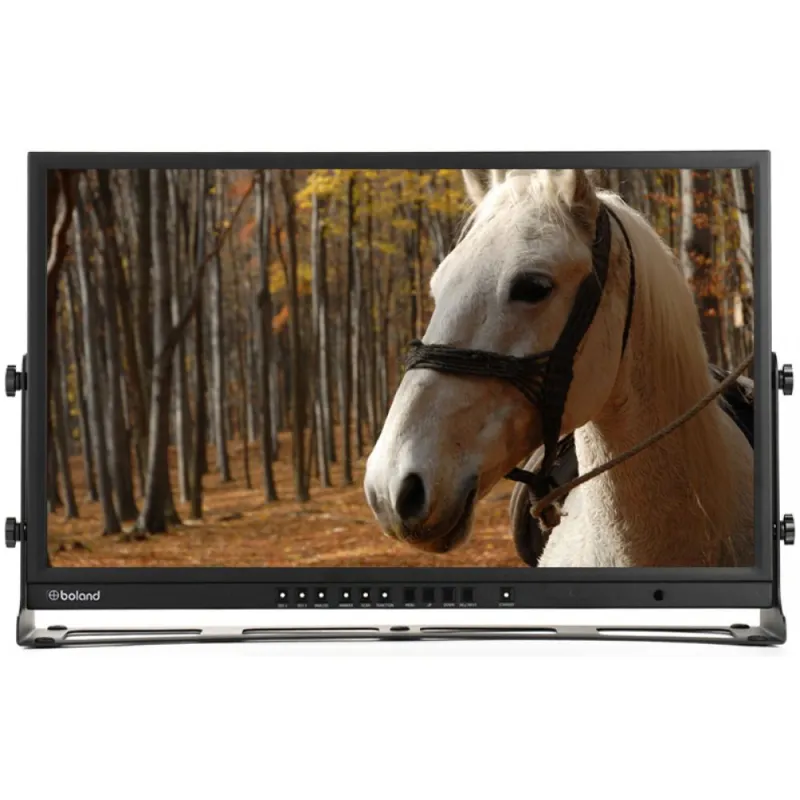

Boland LVB23-G is a 23-inch video LCD monitor supporting HD/SD video inputs including 3G-SDI, HDMI, and DVI with multiple aspect ratios and advanced picture features.

Boland LVB23-G 23 Video LCD Monitor

Product ID: 60777
€ 3535,95 tax incl.

Pre-order. Delivery time from 3 weeks.
SKU: 60777
Ean: 4260269694662
Condition: New product
Manufacturer: Boland
3535.95
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
LCD monitorsmonitor
Connector3,5mm
ConnectorSDI
ConnectorHDMI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Boland LVB23-G 23 Video LCD Monitor

Boland LVB23-G 23 Video LCD Monitor

Boland LVB23-G is a 23-inch video LCD monitor supporting HD/SD video inputs including 3G-SDI, HDMI, and DVI with multiple aspect ratios and advanced picture features.

Write a review

Product details

Display and Video Modes

  • Active Area (Diagonal): 23 inches (584.2 mm)
  • High & Standard Definition Video Modes: Supports 1920x1080p (50/60/30psf/25psf/24psf/30/25/24), 1920x1080i (50/60), 1280x720p (50/59.94/60), 480i (59.94), 576i (50) with Digital, VESA VGA, DVI/HDMI inputs. Note: 24psf/23.98psf signal format is not supported in "UNDERSCAN" mode.
  • PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
  • Standard Definition Video Modes: NTSC, PAL, SECAM, NTSC4.43, PAL-M
  • Scanning Modes: Under, Over, Zero, Pixel to Pixel scanning

Inputs

  • Digital Video Inputs: 2x 3G HD/SD SDI inputs (@50/59.94/60), HD HDMI/DVI with HDCP support
  • Digital Visual Interface supports VESA & SMPTE rates
  • Analog Video Inputs: Composite, Y/C (S-Video), Component (YPbPr/RGB with SOG), DVI-I (Analog PC)

Picture Features

  • Aspect Ratios Supported: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Picture-in-Picture (PIP): Supports analog inputs (Composite 1, 2, 3; YPbPr; GBR; PC), SDI 1 + SDI 2 inputs, and digital inputs (DVI, HDMI)
  • Picture-by-Picture: Side-by-side split screen display
  • Pixel Arrangement: 1920 horizontal x 1080 vertical pixels, RGB strip arrangement (2,073,600 pixels total), 16:9 aspect ratio
  • Pixel Pitch: 0.2655 x 0.2655 mm
  • Brightness (typical at 0°): 250 cd/m²
  • Contrast Ratio (0°): 1000:1
  • Color Processor: 10-bit color processing
  • Viewing Angle (contrast >10:1): Horizontal 178°, Vertical 178°
  • Response Time: 12 ms

Controls and Remote

  • User Controls: STANDBY, SDI 1, SDI 2, ANALOG, MARKER, FUNCTION, MENU, UP, DOWN, SEL/INPUT
  • Remote Controls: IR, TCP/IP, RS-422, RS-232

Light Source

  • LED backlight system
  • LED Life: 12,000 hours

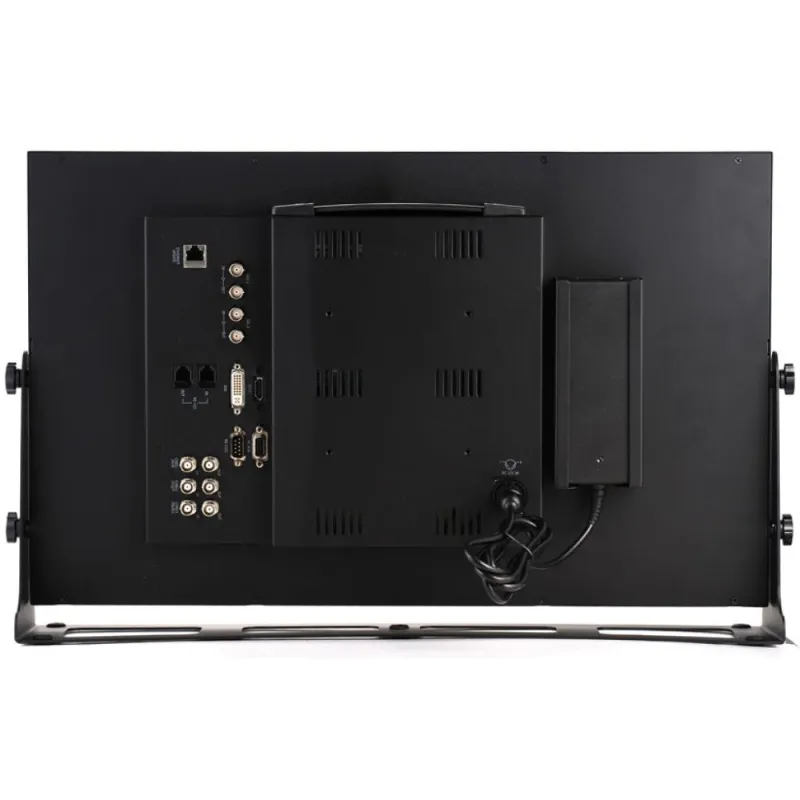

Connectors

  • Video Connectors: BNC x 2 for SDI 2 channel input, BNC x 3 for Composite, YC (S-Video), Component (YPbPr/RGB) inputs
  • HDMI/DVI Connectors: DVI-I x 1 (supports DVI & Analog RGB input), HDMI x 1 (HDMI input)

Power

  • DC Power: 12 VDC ±10%, 40 watts
  • DC Connector: XLR-4M (pin 1 = Ground, pin 4 = +volts)
  • AC Power: 90-264 VAC, 50/60 Hz (detached power supply included)
  • AC Power Connector: IEC 320-C14 3-pin male

Physical and Environmental

  • Display Window Area: 20.06 x 11.29 inches (509.76 x 286.74 mm)
  • Cabinet Dimensions (W x H x D): 540 x 323.2 x 58 mm (21.2 x 12.7 x 2.2 inches)
  • Weight: 10.5 kg (23.1 lbs)
  • Mounting: VESA 100 x 100 mm compatible
  • Operating Temperature: 0 to +50 °C, no condensation, altitude up to 3,048 m (10,000 feet)
  • Storage Temperature: -20 to +60 °C, no condensation, altitude up to 12,192 m (40,000 feet)

Additional Features

  • Marker Display
  • UMD (Under Monitor Display) Support
  • Color Temperature Settings: User adjustable, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
