Boland TP19DB is a 19-inch LED broadcast monitor with 3G SDI, HDMI, and analog inputs, supporting HD and SD video with 10-bit processing and wide aspect ratio options.

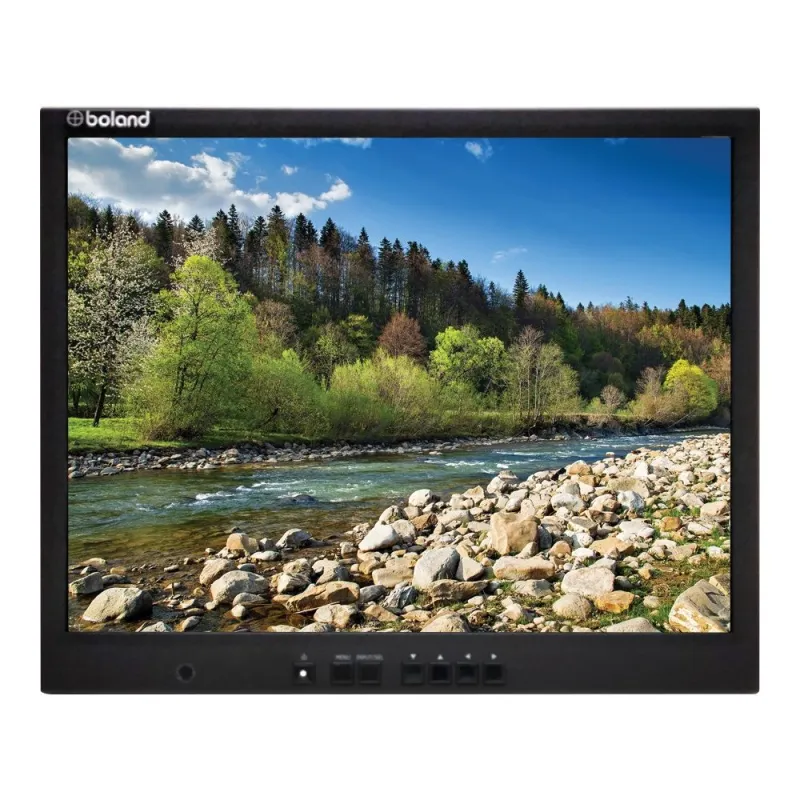

Boland TP19DB LED Broadcast Monitor 19 inch
Product ID: 60778
SKU: 60778
Ean: 4260409489752
Condition: New product
Manufacturer: Boland
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | LCD Monitor |
| Connector | SDI |
| Connector | HDMI |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Boland TP19DB LED Broadcast Monitor 19 inch
Features
- 19" DayBrite Professional Video Monitor with Scan Reverse capability
- Supports High & Standard Definition Video LCD Monitor resolutions: 1080p, 720p, 576i, 480i
- Digital inputs include 3G SDI with loop out and HDMI
- Analog inputs include Composite and PC-VGA
- Video modes range from EGA to WUXGA and support NTSC, PAL, SECAM, NTSC4.43, PAL-M standards
- 10-bit Digital Processing supporting up to 1920 x 1200 resolution with 16.7 million true colors (24-bit color depth)
- Multiple aspect ratios supported: 16:9, 4:3, 1.85:1, with presets and adjustable options
- Fully adjustable horizontal and vertical scan sizes, overscan/underscan, and reverse scan
- Digital Adaptive Comb Filters for enhanced image quality
Specifications
Display
- Active diagonal area: 19.0 inches
- Pixel arrangement: 1280 (H) x 1024 (V) RGB vertical stripe (983,040 pixels), aspect ratio 15:9 (1.667:1)
- Pixel pitch: 0.294 mm horizontal and vertical
- Brightness: 1000 cd/m² (typical at 0° viewing angle)
- Contrast ratio: 1000:1 (high contrast)
- Color depth: 16.7 million colors with 10-bit digital processing
- Viewing angle (contrast >10:1): 170° horizontal, 160° vertical
- Response time: 5 ms (high speed)
- Standard definition video resolution: 450 TV lines
Video Modes
- High & Standard Definition Video: 1080p, 720p, 576i, 480i at 23/24/25/29/30/60 interlaced or progressive frames per second, digital and analog auto-selected
- PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA
- Standard Definition Video Modes: NTSC, PAL, SECAM, NTSC4.43, PAL-M (auto-selected)
Inputs
- Digital Video Inputs: 3G/HD/SD SDI (SMPTE 259M/292/296), HDMI
- Analog Video Inputs: Composite, PC VGA (EIA, CCIR, VESA, SMPTE 274)
Controls
- User controls include On/Off and a menu system with step, increment, and decrement functions
Backlight
- LED light source with a lamp life exceeding 50,000 hours
Connectors
- Video connectors: Two BNC connectors for 3G/HD/SD SDI input (1) and HDMI/Composite input/output with Hi-Z passive loop-thru and auto-termination (2)
- HDMI supports resolutions up to 1920 x 1200
- VGA/PC connector: DE-15HD-F
Power
- DC power: 12 VDC (range 11.4 to 12.6 V)
- DC connector: D4M (XLR4-M) locking type (pin 1 ground, pin 4 +12 V)
- AC power: Universal 90-264 VAC, 47-63 Hz, 35 watts (detached power supply included)
- AC power connector: IEC-320 3-pin male (universal)
Physical and Environmental
- Display window area: 14.89 x 11.95 inches
- Cabinet dimensions: 16.50 x 13.9 inches
- Mounting options: 10-32 screws in each corner, VESA 75 mm or 100 mm (M5), with optional rackmount or desk stand
- Operating temperature: 0 to +50 °C, 10-90% relative humidity, no condensation, up to 3000 m altitude
- Storage temperature: -20 to +60 °C, 10-90% relative humidity, no condensation, up to 12,000 m altitude
- Case color and material: Textured semi-gloss black powder hard coat, aircraft aluminum
- RoHS (Pb) compliant
