15-inch Boland TP15DB LED Broadcast Monitor with 3G SDI, HDMI, composite and VGA inputs, supporting HD and SD video modes with 10-bit processing.

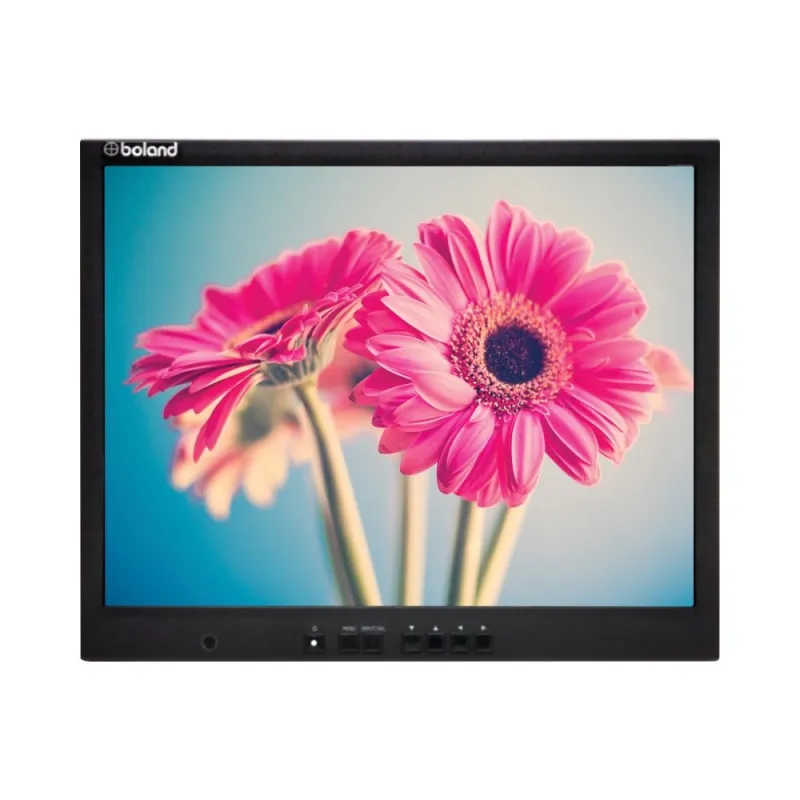

Boland TP15DB LED Broadcast Monitor 15 Inch
Product ID: 60779
SKU: 60779
Ean: 4260409489790
Condition: New product
Manufacturer: Boland
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | LCD Monitor |
| LCD monitors | monitor |
| Connector | SDI |
| Connector | HDMI |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Boland TP15DB LED Broadcast Monitor 15 inch
Features
- 15" DayBrite Professional Video Monitor with Scan Reverse capability
- Supports High & Standard Definition Video LCD Monitor formats: 1080p, 720p, 576i, 480i
- Digital inputs include 3G SDI with loop out and HDMI
- Analog inputs include Composite and PC-VGA
- Video modes range from EGA to WUXGA, and support NTSC, PAL, SECAM, NTSC4.43, PAL-M standards
- 10-bit Digital Processing supporting resolutions up to 1920 x 1200 with 16.7 million true colors (24-bit)
- Multiple aspect ratios supported: 16:9, 4:3, 1.85:1, with presets and adjustable options
- Fully adjustable horizontal and vertical scan sizes, overscan/underscan, and reverse scan
- Digital Adaptive Comb Filters for enhanced image quality
Specifications
Display
- Active diagonal area: 15.0 inches
- Pixel arrangement: 1024 (H) x 768 (V) RGB vertical stripe (983,040 pixels), aspect ratio 15:9 (1.667:1)
- Pixel pitch: 0.297 mm horizontal and vertical
- Brightness: 1000 cd/m² (typical at 0° viewing angle)
- Contrast ratio: 700:1 (high contrast at 0°)
- Color depth: 16.7 million colors with 10-bit digital processing
- Viewing angle (contrast >10:1): 165° horizontal, 160° vertical
- Response time: 8 ms (high speed)
- Standard definition video resolution: 450 TV lines
Video Modes
- High & Standard Definition Video: 1080p/720p/576i/480i at 23/24/25/29/30/60 interlaced or progressive frames per second, digital and analog auto-selected
- PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA
- Standard Definition Video Modes: NTSC, PAL, SECAM, NTSC4.43, PAL-M (auto-selected)
Inputs
- Digital Video Inputs: 3G/HD/SD SDI (SMPTE 259M/292/296), HDMI
- Analog Video Inputs: Composite, PC VGA (EIA, CCIR, VESA, SMPTE 274)
Controls
- User controls include On/Off and a menu system with step, increment, and decrement functions
Backlight
- LED light source with a lamp life exceeding 50,000 hours
Connectors
- Video connectors: BNC x2 (3G/HD/SD SDI input and loop out), HDMI and Composite input/output with Hi-Z passive loop-thru and auto-termination
- HDMI supports resolutions up to 1920 x 1200
- VGA/PC connector: DE-15HD-F
Power
- DC power: 12 VDC (range 11.4 to 12.6 V), connector D4M (XLR4-M) locking type
- AC power: Universal 90-264 VAC, 47-63 Hz, 25 watts (detached power supply included)
- AC power connector: IEC-320 3-pin male
Physical and Environmental
- Display window area: 12.04 x 9.05 inches
- Cabinet dimensions: 13.43 x 11.05 inches
- Mounting options: 10-32 screws in each corner, VESA 75mm or 100mm (M5), with optional rackmount or desk stand
- Operating temperature: 0 to +50 °C, 10-90% relative humidity, no condensation, altitude up to 3000 m
- Storage temperature: -20 to +60 °C, 10-90% relative humidity, no condensation, altitude up to 12,000 m
- Case color and material: Textured semi-gloss black powder hard coat, aircraft aluminum
- RoHS (Pb) compliant
