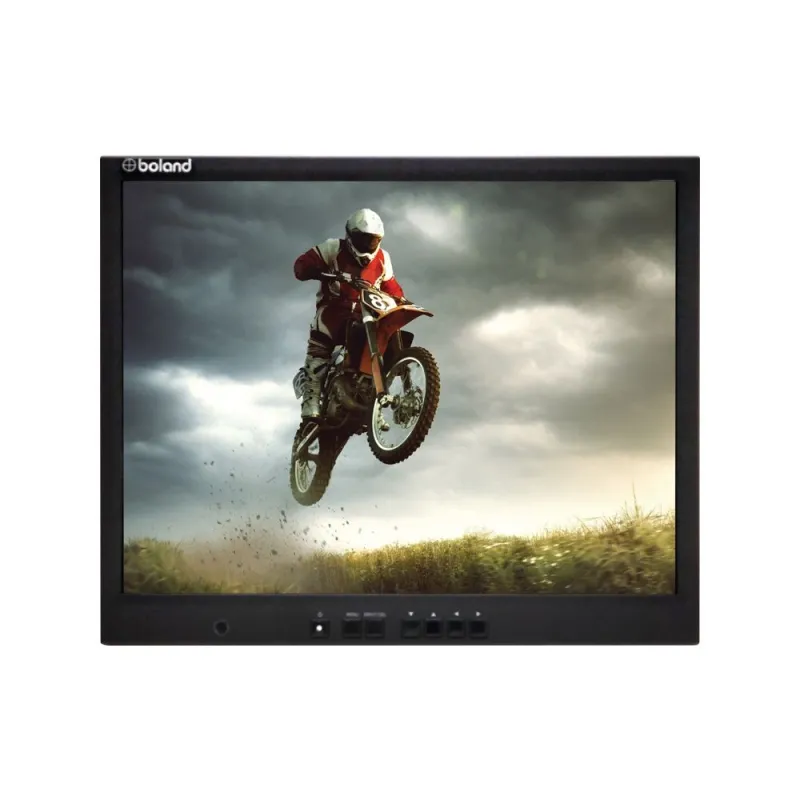

Boland TP12DB LED Broadcast Monitor 12 Inch

Boland TP12DB LED Broadcast Monitor 12 Inch

12-inch Boland TP12DB LED broadcast monitor with 3G SDI, HDMI, composite and VGA inputs, 10-bit processing, 1000 cd/m² brightness, and multiple video modes.

Write a review

Product details

Boland TP12DB LED Broadcast Monitor 12 Inch

General Features

  • 12" DayBrite professional video monitor with scan reverse capability
  • Supports high and standard definition video LCD formats: 1080p, 720p, 576i, 480i
  • Digital inputs include 3G SDI with loop out and HDMI
  • Analog inputs include Composite and PC VGA
  • Video modes range from EGA to WUXGA and support NTSC, PAL, SECAM, NTSC4.43, PAL-M standards
  • 10-bit digital processing up to 1920 x 1200 resolution with 16.7 million true colors (24-bit color depth)
  • Multiple aspect ratios supported: 16:9, 4:3, 1.85:1, with presets and adjustable settings
  • Fully adjustable horizontal and vertical scan sizes, overscan/underscan, and reverse scan
  • Digital adaptive comb filters for enhanced image quality

Display Specifications

  • Active diagonal display area: 12.0 inches
  • Pixel arrangement: 1024 horizontal x 768 vertical RGB vertical stripe (total 983,040 pixels), aspect ratio 15:9 (1.667:1)
  • Pixel pitch: 0.24 mm horizontal x 0.24 mm vertical
  • Brightness: 1000 cd/m² (typical at 0° viewing angle)
  • Contrast ratio: 700:1 (high contrast at 0°)
  • Color depth: 16.7 million colors with 10-bit digital processing
  • Viewing angle (contrast >10:1): 150° horizontal and vertical
  • Response time: 8 ms (high speed)
  • Standard definition video resolution: 450 TV lines

Supported Video and PC Modes

  • High & standard definition video modes: 1080p, 720p, 576i, 480i at 23/24/25/29/30/60 interlaced or progressive frames per second, auto-selected digital and analog inputs
  • PC video modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA
  • Standard definition video modes: NTSC, PAL, SECAM, NTSC4.43, PAL-M auto-selected

Inputs and Connectors

  • Digital video inputs: 3G/HD/SD SDI (SMPTE 259M/292/296), HDMI
  • Analog video inputs: Composite, PC VGA (EIA, CCIR, VESA, SMPTE 274)
  • Video connectors: BNC x2 (3G/HD/SD SDI in with loop out), HDMI/composite in/out with Hi-Z passive loop-thru and auto-termination
  • VGA/PC connector: DE-15HD-F

Controls and Backlight

  • User controls include power on/off and menu system with step, increment, and decrement functions
  • Backlight source: LED with lamp life exceeding 50,000 hours

Power Requirements

  • DC power: 12 VDC (range 11.4 to 12.6 V), connector D4M (XLR4-M) locking type
  • AC power: Universal 90-264 VAC, 47-63 Hz, 23 watts (detached power supply included)
  • AC power connector: IEC-320 3-pin male universal

Physical and Environmental Specifications

  • Display window area: 247.5 mm x 186.4 mm
  • Cabinet dimensions: 287 mm x 239 mm
  • Mounting options: 10-32 screws in each corner, VESA 75 mm or 100 mm (M5), optional rackmount or desk stand
  • Operating temperature: 0 to +50 °C, 10-90% relative humidity, no condensation, up to 3000 m altitude
  • Storage temperature: -20 to +60 °C, 10-90% relative humidity, no condensation, up to 12,000 m altitude
  • Case color and material: Textured semi-gloss black powder hard coat, aircraft aluminum
  • RoHS (Pb) compliant
