Boland PVB24a is a 24-inch LED broadcast monitor with 3G HD/SD SDI, HDMI/DVI inputs, SMPTE 709 color, waveform/vectorscope, and multiple video modes.

Boland PVB24a LED Broadcast Monitor 24 inch

Product ID: 60782
€ 3825,45 tax incl.

Pre-order. Delivery time from 3 weeks.
SKU: 60782
Ean: 4260269690794
Condition: New product
Manufacturer: Boland
3825.45
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
LCD monitorsmonitor
ConnectorHDMI
ConnectorSDI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

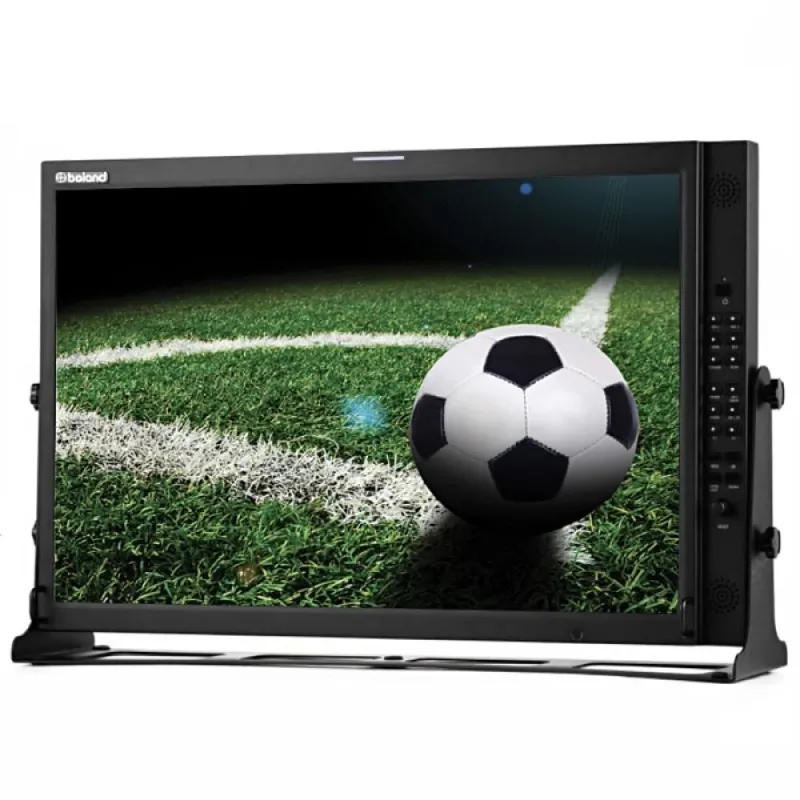

Boland PVB24a LED Broadcast Monitor 24 inch

Boland PVB24a LED Broadcast Monitor 24 inch

Boland PVB24a is a 24-inch LED broadcast monitor with 3G HD/SD SDI, HDMI/DVI inputs, SMPTE 709 color, waveform/vectorscope, and multiple video modes.

Write a review

Product details

Boland PVB24a 24-inch LED Broadcast Monitor

Key Features

  • 24-inch LED display with 3G HD and SD SDI digital, analog, and HD HDMI/DVI (+HDCP) inputs
  • Compliant with SMPTE 709 color standard
  • Supports high and standard definition video formats: 1080p, 720p, 576i, 480i
  • Includes 2x 3G HD/SD SDI digital inputs and HD HDMI/DVI (+HDCP)
  • Dual Link Mode and 1080p 60Hz compatible
  • HDMI/DVI inputs support up to 1080p HD resolution
  • Multiple video modes: EGA to UXGA, NTSC, PAL, SECAM, NTSC4.43, PAL-M
  • Analog inputs: Composite, Y/C (S-Video), Component, RGB (SOG), DVI-I (Analog PC)
  • Aspect ratios supported: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Waveform and vectorscope display (SDI only), marker display
  • Audio level meter with 16 channels, adjustable position and scale
  • UMD/IMD support and closed captioning (CEA608 & 708, SDI only)
  • Color temperature presets: User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
  • 4:4:4 color sampling

Specifications

Display
  • Active diagonal area: 24.1 inches
  • Resolution and video modes:
    • High & Standard Definition: 2048x1080p (24/25 fps), 1920x1080p (various frame rates including 50/60/30psf/25psf/24psf), 1920x1035i (60/59.94), 1920x1080i (50/59.94/60), 1280x720p (24/25/30/50/59.94/60), 480i (59.94), 576i (50)
    • PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
    • Standard Definition: NTSC, PAL, SECAM, NTSC4.43, PAL-M
  • Scanning modes: Under scan, Over scan, Zero scan, Pixel to Pixel scan
  • Pixel arrangement: 1920 horizontal x 1200 vertical RGB strip (2,304,000 pixels), 16:10 aspect ratio
  • Pixel pitch: 0.270 mm x 0.270 mm
  • Color depth: 16.7 million colors with 10-bit color processor
  • Brightness: 350 cd/m² typical
  • Contrast ratio: 1000:1
  • Viewing angle: 178° horizontal and vertical (typical)
  • Response time: 14 ms
Inputs and Connectivity
  • Digital video inputs:
    • 3G HD SDI (SMPTE 259M/292/296)
    • HD HDMI/DVI (+HDCP)
    • Digital Visual Interface, Dual Link, VESA & SMPTE rates
  • Analog video inputs: Composite, Y/C (S-Video), Component (YPbPr/RGB), RGB (SOG), DVI-I (Analog PC)

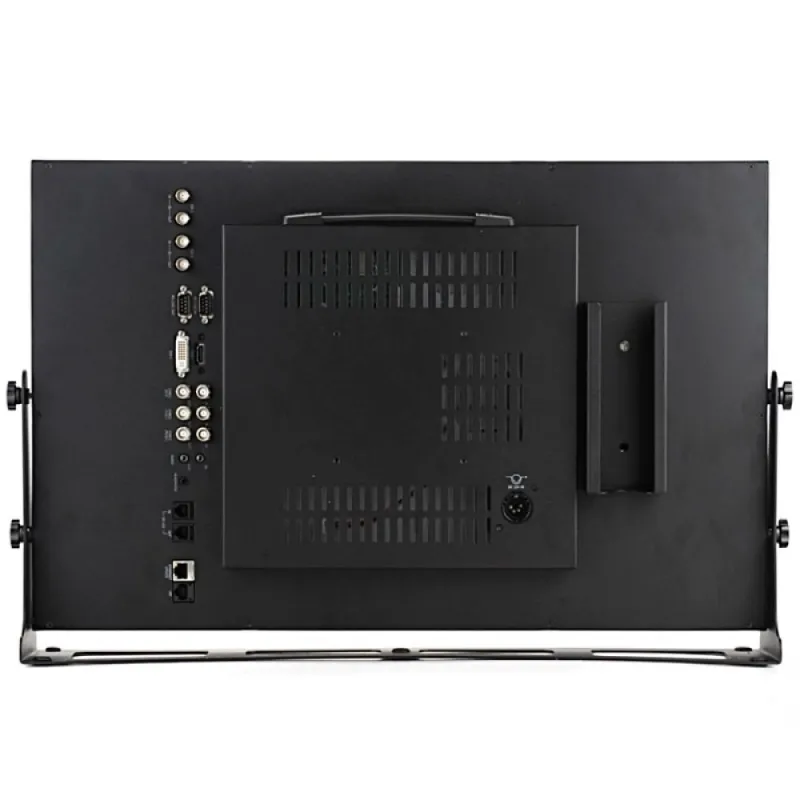

  • Video connectors:
    • BNC x 2 for SDI 2 channel input
    • BNC x 3 for Composite, YC (S-Video), Component inputs
    • DVI-I x 1 for DVI and Analog RGB input
    • HDMI x 1 for HDMI input
  • Audio connector: 3.5 mm phone jack x 1 for audio input
Picture Features
  • Aspect ratios: Full screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Picture-in-Picture (PIP): Supports analog inputs (Composite 1, 2, 3, YPbPr, GBR, PC), digital inputs (DVI, HDMI), SDI inputs (SDI1, SDI2), and combined SDI1 + SDI2
  • Picture-by-Picture: Side-by-side split screen display
Controls
  • User controls: Standby, SDI1~2, Analog, Scan, Marker, Horizontal/Vertical Delay, Audio, Waveform/Vectorscope, Function keys F1-F4, Menu, Select/Input, Up, Down, Adjust
  • Remote controls: Infrared (IR), TCP/IP
Backlight and Power
  • Backlight: LED system with 30,000 hours typical life
  • Power supply:
    • DC: 12 VDC ±10%, 65 watts, XLR-4M connector (pin 1 = ground, pin 4 = +volts)
    • AC: 90-264 VAC, 50/60 Hz (detached power supply included), IEC 320-C14 3-pin male connector
Physical and Environmental
  • Display window size: 518.4 x 324.0 mm (20.4 x 12.75 inches)
  • Cabinet dimensions: 584.4 x 363 x 61 mm (23 x 14.29 x 2.4 inches)
  • Weight: 12 kg (26.4 lbs) without rackmount
  • Mounting: VESA 100 x 100 mm compatible
  • Operating temperature: 0 to +50 °C, no condensation, altitude up to 3,048 m (10,000 feet)
  • Storage temperature: -20 to +60 °C, no condensation, altitude up to 12,192 m (40,000 feet)
Additional Features
  • Supports waveform and vectorscope display for SDI inputs
  • Audio level meter with 16 channels and adjustable position and scale
  • Closed caption support for CEA608 & 708 (SDI only)
  • UMD/IMD support
  • Available options include rackmount and stand
