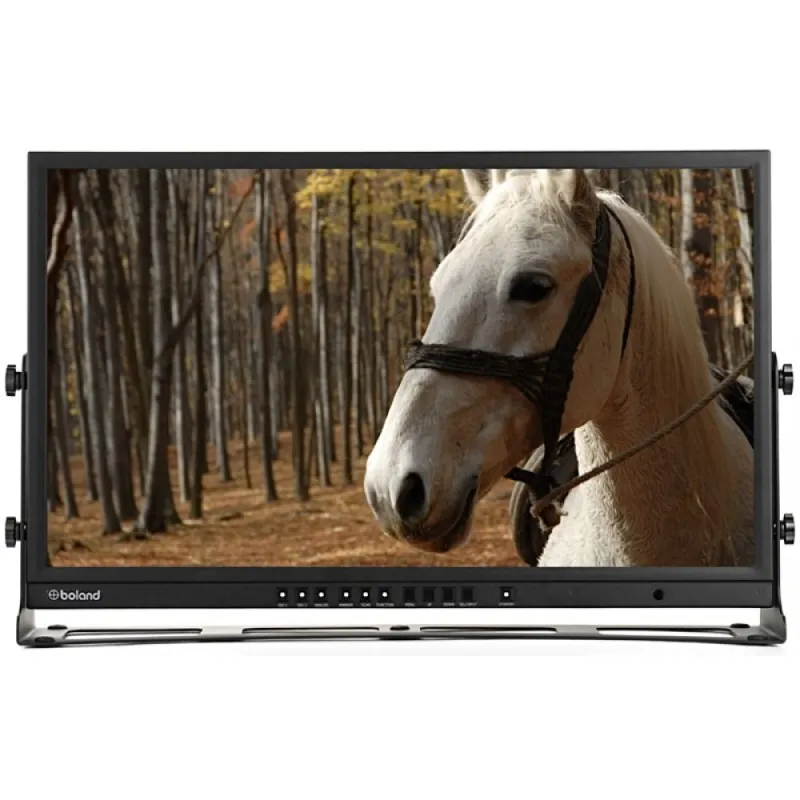

Boland LVB23 LED Broadcast Monitor 23 inch

Boland LVB23 LED Broadcast Monitor 23 inch

Boland LVB23 is a 23-inch LED broadcast monitor supporting HD/SD SDI, HDMI/DVI inputs with 1080p resolution and versatile video modes.

Write a review

Product details

Display and Video Support

  • 23-inch active diagonal area with HD and SD SDI digital, analog, and HD HDMI/DVI (+HDCP) inputs
  • Supports high and standard definition video formats: 1080p/720p/576i/480i at 60/59.94/50 Hz
  • 3G includes 2x3G HD/SD SDI digital inputs and HD HDMI/DVI (+HDCP)
  • HDMI/DVI inputs accept up to 1080p HD resolution
  • Video modes range from EGA to UXGA, including NTSC, PAL, SECAM, NTSC4.43, and PAL-M
  • Analog inputs include Composite, Y/C (S-Video), Component, RGB (SOG), and DVI-I (analog PC)
  • Aspect ratios supported: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Marker display and UMD support available
  • Color temperature presets: User adjustable, VAR, 11000K, 9300K, 6500K, 5400K, 3200K

Specifications and Modes

  • Active display area: 23 inches diagonal
  • High & Standard Definition Video Modes: 1920x1080p (50/60/30psf/25psf/24psf/30/25/24), 1920x1080i (50/60), 1280x720p (50/59.94/60), 480i (59.94), 576i (50)
  • Digital, VESA VGA, DVI/HDMI supported
  • Note: 24psf/23.98psf signal format not supported in underscan mode
  • PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
  • Standard Definition Video Modes: NTSC, PAL, SECAM, NTSC4.43, PAL-M
  • Scanning modes: Under, Over, Zero, Pixel to Pixel scanning

Inputs and Connectors

  • Digital Video Inputs: 3G HD SDI (@50/59.94/60), HD HDMI/DVI (+HDCP)
  • Digital Visual Interface supports VESA and SMPTE rates
  • Analog Video Inputs: Composite, Y/C (S-Video), Component, RGB (SOG), DVI-I (Analog PC)
  • Video connectors: BNC x 2 for SDI 2 channel input, BNC x 3 for Composite, YC (S-Video), Component (YPbPr/RGB)
  • HDMI/DVI connectors: DVI-I x 1 (DVI & Analog RGB input), HDMI x 1 (HDMI input)

Picture and Display Features

  • Aspect ratios: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Picture-in-Picture (PIP): Analog inputs (Composite 1, 2, 3, Y.Pb.Pr, GBR, PC), SDI 1 + SDI 2 inputs, Digital (DVI, HDMI) input PIP
  • Picture-by-Picture: Side-by-side split screen display
  • Pixel arrangement: 1920 horizontal x 1080 vertical pixels, RGB strip arrangement (2,073,600 pixels, 16:9)
  • Pixel pitch: 0.2655 x 0.2655 mm
  • Brightness (typical at 0°): 250 cd/m²
  • Contrast ratio (0°): 1000:1
  • Color processor: 10-bit
  • Viewing angle (contrast >10:1): Horizontal 178°, Vertical 178°
  • Response time: 12 ms

Controls and Remote

  • User controls: Standby, SDI 1, SDI 2, Analog, Marker, Function, Menu, Up, Down, Select/Input
  • Remote controls: IR, TCP/IP, RS-422, RS-232

Backlight and Power

  • LED backlight system with 12,000 hours typical life
  • Power: 12 V DC ±10%, 40 watts
  • DC connector: XLR-4M (pin 1 = ground, pin 4 = + volts)
  • AC power supply (detachable): 90-264 VAC, 50/60 Hz
  • AC power connector: IEC 320-C14 3-pin male

Physical and Environmental

  • Display window size: 509.76 mm x 286.74 mm (20.06" x 11.29")
  • Cabinet dimensions (W x H x D): 540 mm x 323.2 mm x 58 mm (21.2" x 12.7" x 2.2")
  • Weight: 10.5 kg (23.1 lbs)
  • Mounting: VESA 100 x 100 mm compatible
  • Operating temperature: 0 to +50 °C, no condensation, altitude up to 3,048 m
  • Storage temperature: -20 to +60 °C, no condensation, altitude up to 12,192 m
