17-inch Boland PVB17 LED Broadcast Monitor with 3G HD SDI, HDMI/DVI inputs, SMPTE 709, waveform, vectorscope, and multiple video modes.

Boland PVB17 LED Broadcast Monitor 17 inch

Product ID: 60784
€ 3699,89 tax incl.

Pre-order. Delivery time from 3 weeks.
SKU: 60784
Ean: 4260269690800
Condition: New product
Manufacturer: Boland
3699.89
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
LCD monitorsmonitor
Connectorother
ConnectorSDI
ConnectorHDMI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Boland PVB17 LED Broadcast Monitor 17 inch

Boland PVB17 LED Broadcast Monitor 17 inch

17-inch Boland PVB17 LED Broadcast Monitor with 3G HD SDI, HDMI/DVI inputs, SMPTE 709, waveform, vectorscope, and multiple video modes.

Write a review

Product details

Boland PVB17 LED Broadcast Monitor 17 inch (BVB 17)

Boland Communications, established in 1979 and based in Lake Forest, California, USA, offers premium quality LCD and LED monitors in worldwide formats. The Boland Broadcast Monitors deliver exceptional image quality with enhanced Ultra Pixel technology, optimized for various lighting and viewing conditions.

Features

  • 17-inch display with 3G HD & SD SDI Digital, Analog, HD HDMI/DVI (+HDCP) inputs
  • Compliant with SMPTE 709 color standard
  • Supports high and standard definition video LCD modes: 1080p, 720p, 576i, 480i
  • Includes 2x 3G HD/SD SDI digital inputs and HD HDMI/DVI (+HDCP)
  • Dual Link Mode and 1080p 60Hz compatible
  • HDMI/DVI inputs accept up to 1080p HD resolution
  • Video modes range from EGA to UXGA, and support NTSC, PAL, SECAM, NTSC4.43, PAL-M standards
  • Analog inputs: Composite, Y/C (S-Video), Component, RGB (SOG), DVI-I (Analog PC)
  • Multiple aspect ratios supported: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Waveform and Vectorscope display (SDI only) with marker display
  • Audio level meter supporting 16 channels with adjustable position and scale
  • UMD/IMD support and closed captioning (CEA608 & 708, SDI only)
  • 4:4:4 color sampling
  • Color temperature presets: User adjustable, VAR, 11000K, 9300K, 6500K, 5400K, 3200K

Specifications

Display
  • Active diagonal area: 17.3 inches
  • Resolution and video modes:
    2048x1080p (24/25 fps), 1920x1080p (50/60/30psf/25psf/24psf/30/25/24 fps), 1920x1035i (60/59.94 Hz), 1920x1080i (50/59.94/60 Hz), 1280x720p (24/25/30/50/59.94/60 Hz), 480i (59.94 Hz), 576i (50 Hz)
  • PC video modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
  • Standard definition video modes: NTSC, PAL, SECAM, NTSC4.43, PAL-M
  • Scanning modes: Under scan, Over scan, Zero scan, Pixel to Pixel scan
  • Pixel arrangement: 1920 horizontal x 1080 vertical RGB strip (2,073,600 pixels), 16:9 aspect ratio
  • Pixel pitch: 0.1989 x 0.1989 mm
  • Color depth: 16.7 million colors with 10-bit color processor
  • Brightness (typical): 380 cd/m²
  • Contrast ratio: 1050:1
  • Viewing angle: Horizontal 120°, Vertical 100° (typical)
  • Response time: 5 ms
Inputs and Connectivity
  • Digital video inputs: 3G HD SDI (SMPTE 259M/292/296), HD HDMI/DVI (+HDCP)
  • Supports Digital Visual Interface, Dual Link, VESA & SMPTE rates
  • Analog video inputs: Composite, Y/C (S-Video), Component, RGB (SOG), DVI-I (Analog PC)

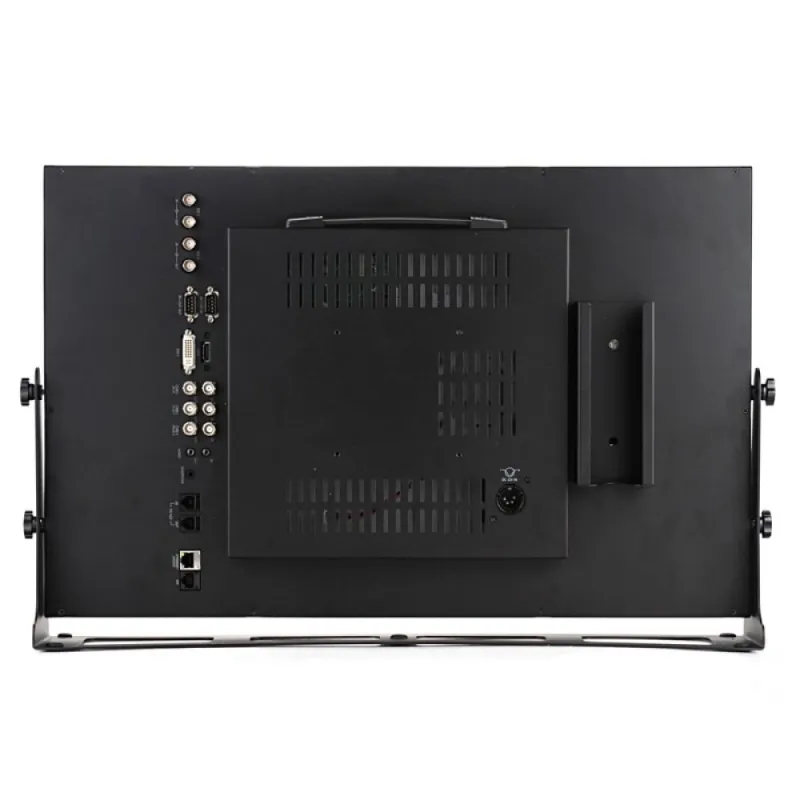

  • Video connectors: BNC x 2 for SDI 2 channel input, BNC x 3 for Composite, YC (S-Video), Component (YPbPr/RGB) input, Dual Link
  • HDMI/DVI connectors: DVI-I x 1 (DVI & Analog RGB input), HDMI x 1 (HDMI input)
  • Audio connector: 3.5 mm phone jack x 1 for audio input
Picture Features
  • Aspect ratios supported: Full screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
  • Picture-in-Picture (PIP): Supports analog inputs (Composite 1, 2, 3, YPbPr, GBR, PC), digital inputs (DVI, HDMI), SDI inputs (SDI1, SDI2), and combined SDI1 + SDI2 input PIP
  • Picture-by-Picture: Side-by-side split screen display
Controls and Adjustments
  • User controls include standby, SDI1~2, analog, scan, marker, horizontal/vertical delay, audio, waveform/vectorscope, function keys F1~F4, menu, select/input, up, down
  • Remote controls via IR and TCP/IP
Backlight and Power
  • Backlight: External Electrode Fluorescent Lamp (EEFL) system
  • LED life expectancy: 60,000 hours
  • Power supply: 12 V DC ±10%, 40 watts
  • DC connector: XLR-4M (pin 1 = ground, pin 4 = + voltage)
  • AC power (detached power supply included): 90-264 V AC, 50/60 Hz
  • AC power connector: IEC 320-C14 3-pin male
Physical and Environmental
  • Display window size: 698.40 x 392.85 mm (27.49 x 15.46 inches)
  • Cabinet dimensions (W x H x D): 445 x 260 x 61 mm (17.51 x 10.23 x 2.4 inches)
  • Weight: 9.5 kg (21 lbs) without rack mount
  • Mounting: VESA 100 x 100 mm; 6 RU rack mount compatible
  • Operating temperature: 0 to +50 °C, no condensation, altitude up to 3,048 m (10,000 feet)
  • Storage temperature: -20 to +60 °C, no condensation, altitude up to 12,192 m (40,000 feet)
Options
  • Available rackmount and stand options included
