Boland LVB17 is a 17.3-inch LED broadcast monitor supporting HD/SD SDI, HDMI/DVI inputs with 1080p resolution and advanced picture features.

Boland LVB17 LED Broadcast Monitor 17 inch

Product ID: 60785
€ 2455,95 tax incl.

Pre-order. Delivery time from 3 weeks.
SKU: 60785
Ean: 4260269690879
Condition: New product
Manufacturer: Boland
2455.95
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
LCD monitorsAC adapter
LCD monitorsmonitor
ConnectorXLR
ConnectorSDI
ConnectorHDMI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Boland LVB17 LED Broadcast Monitor 17 inch

Boland LVB17 LED Broadcast Monitor 17 inch

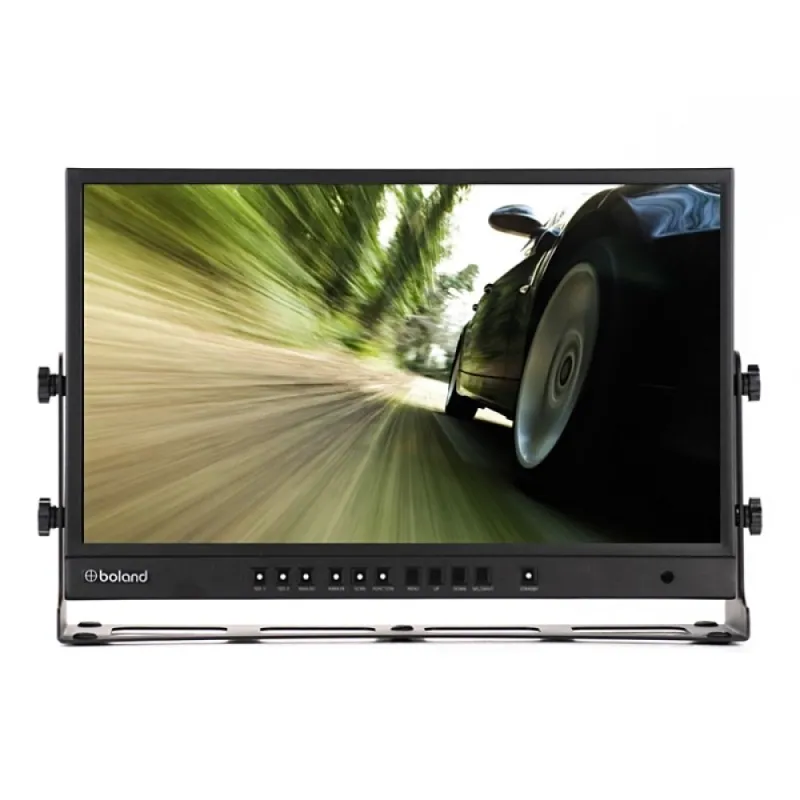

Boland LVB17 is a 17.3-inch LED broadcast monitor supporting HD/SD SDI, HDMI/DVI inputs with 1080p resolution and advanced picture features.

Write a review

Product details

Display and Video Support

  • 17.3-inch active diagonal display with HD and SD SDI digital, analog, and HD HDMI/DVI (+HDCP) inputs
  • Supports high and standard definition video formats including 1080p, 1080i, 720p, 576i, and 480i at various frame rates (50/59.94/60 Hz)
  • 3G-SDI inputs: 2x 3G HD/SD SDI digital inputs and HD HDMI/DVI (+HDCP) inputs accepting up to 1080p HD
  • Video modes range from EGA to UXGA and support NTSC, PAL, SECAM, NTSC4.43, and PAL-M standards
  • Analog inputs include Composite, Y/C (S-Video), Component, RGB (SOG), and DVI-I (analog PC)
  • Aspect ratios supported: 16:9, 4:3, 14:9, 13:9, 1.85:1, and 2.35:1

Picture Features

  • Picture-in-Picture (PIP) supports analog inputs (Composite 1, 2, 3, YPbPr, GBR, PC), SDI 1 + SDI 2 inputs, and digital inputs (DVI, HDMI)
  • Picture-by-Picture (PBP) side-by-side split screen display
  • Pixel arrangement: 1920 x 1080 RGB strip (2,073,600 pixels) with 0.1989 mm pitch
  • Brightness: 300 cd/m² typical at 0° viewing angle
  • Contrast ratio: 500:1 at 0°
  • 10-bit color processor for enhanced color accuracy
  • Viewing angles: Horizontal 120°, Vertical 100° (contrast >10:1)
  • Response time: 8 ms

Controls and Connectivity

  • User controls include standby, SDI 1, SDI 2, analog input selection, marker display, function, menu navigation, and input selection
  • Remote control via IR, TCP/IP, RS-422, and RS-232 interfaces

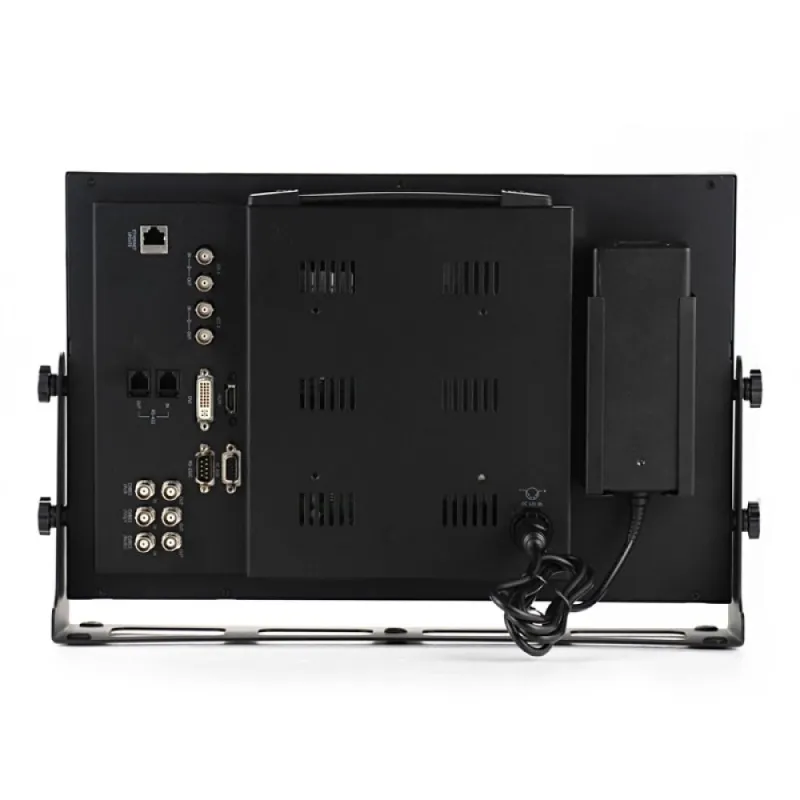

  • Video connectors: 2x BNC SDI inputs, 3x BNC composite inputs, YC (S-Video), component (YPbPr/RGB)
  • HDMI/DVI connectors: 1x DVI-I (digital and analog RGB input), 1x HDMI input

Backlight and Power

  • LED backlight system with an expected life of 12,000 hours
  • Power supply: 12 V DC ±10%, 30 W via XLR-4M connector (pin 1 ground, pin 4 positive)
  • Includes detached AC power supply supporting 90-264 VAC, 50/60 Hz with IEC 320-C14 connector

Physical and Environmental Specifications

  • Display window size: 381.9 mm x 214.8 mm (15.03 x 9.52 inches)
  • Cabinet dimensions: 403 mm x 260 mm x 58 mm (width x height x depth)
  • Weight: 7.5 kg (16.5 lbs)
  • Mounting options: VESA 100 x 100 mm and 6 RU rack mount
  • Operating temperature: 0 to +50 °C, no condensation, altitude up to 3,048 m
  • Storage temperature: -20 to +60 °C, no condensation, altitude up to 12,192 m

Additional Features

  • Marker display and UMD (Under Monitor Display) support
  • Color temperature presets: User adjustable, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
  • Scanning modes: Under scan, over scan, zero scan, pixel-to-pixel scan
