Photo & video store, rental and expert advice
New arrivals
- Write a review

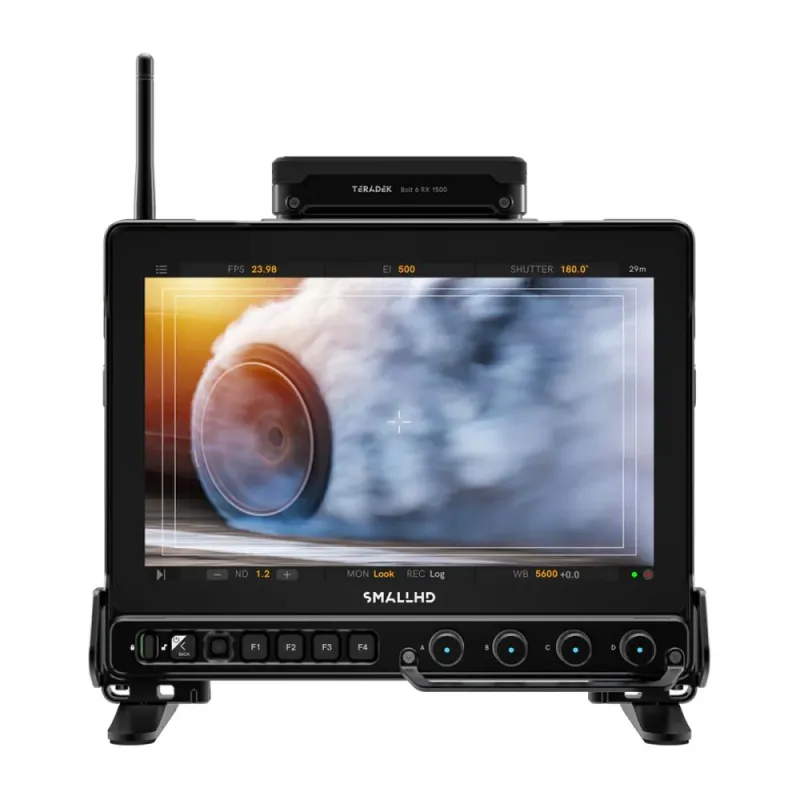

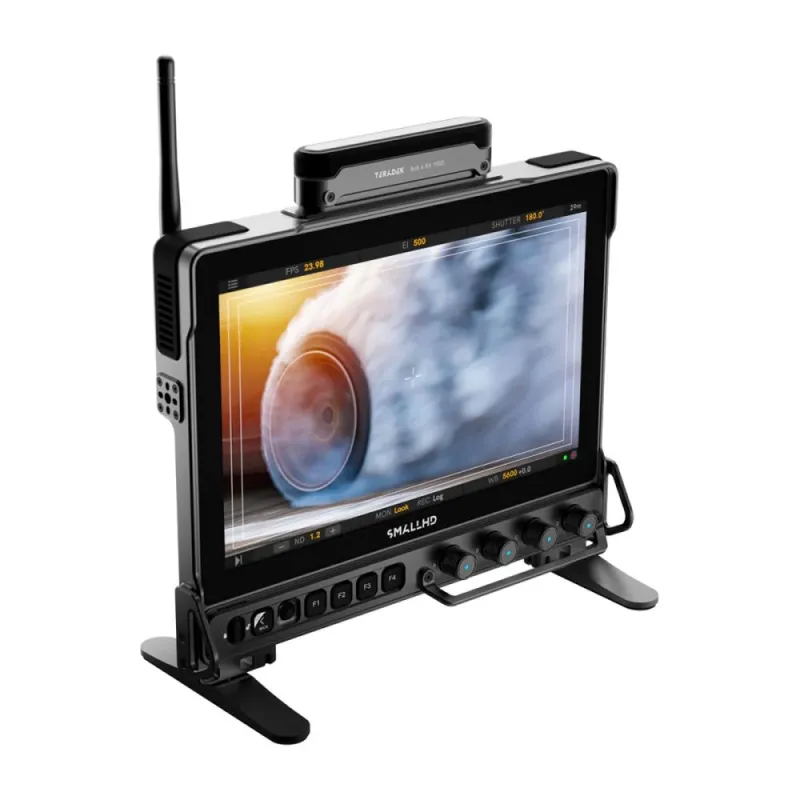

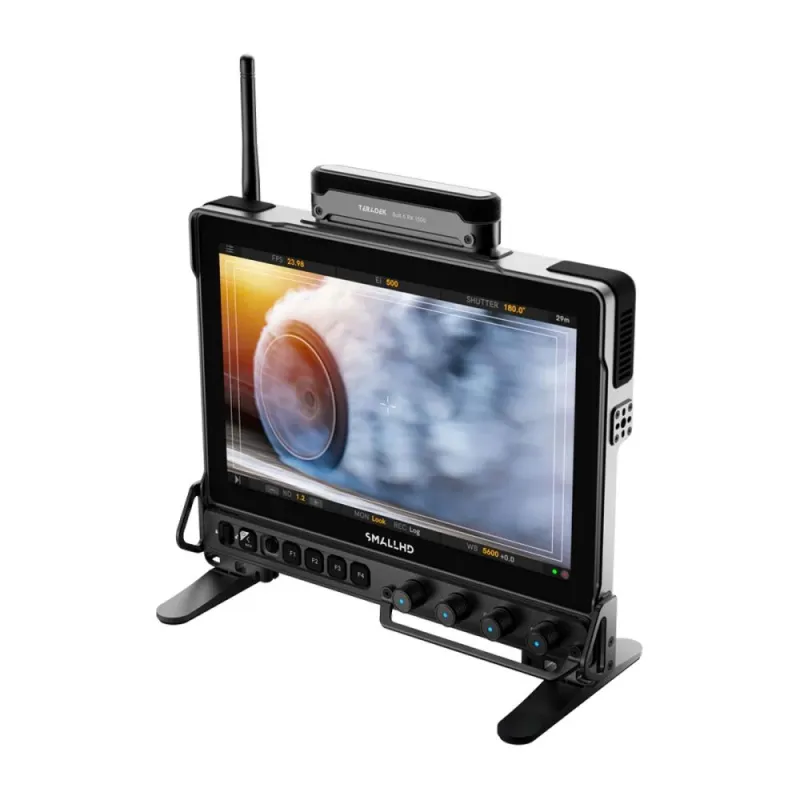

SmallHD Ultra 10 Bolt 6 RX 1500 V-Mount Kit features a 10.1" 2000-nit IPS touchscreen monitor with integrated Teradek Bolt 6 wireless receiver and IP54-rated rugged design.
SmallHD Ultra 10 Bolt 6 RX 1500 V-Mount Kit
Product ID: 61326
SKU: 61326
Ean: 0811786035229
Condition: New product
Manufacturer: SmallHD
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | LCD Monitor |
| LCD monitors | monitor |
| Connector | 3,5mm |
| Connector | SDI |
| Connector | USB |
| Connector | HDMI |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Display Features
- 10.1-inch IPS LCD touchscreen with 1920x1200 resolution and 224 PPI pixel density
- 2000 nits maximum brightness for ultra-bright viewing
- 99.8% Rec709 color gamut with 10-bit processing (8-bit panel)
- Contrast ratio of 1000:1 and LED edge-lit backlight
- Refresh rate synchronized with input from 48Hz to 60Hz
Build and Durability
- IP54-rated dust and water resistance, suitable for extreme environments
- Anodized aluminum unibody construction with plastic accents
- Impact-resistant design with raised edges protecting the front glass and user-replaceable shock-absorbing bumpers
- Operating temperature range from 0ºC to 40ºC
- Multiple mounting points: 11x 1/4-20 (9 on top, left, right), 1x 3/8, and 1 Arca rail

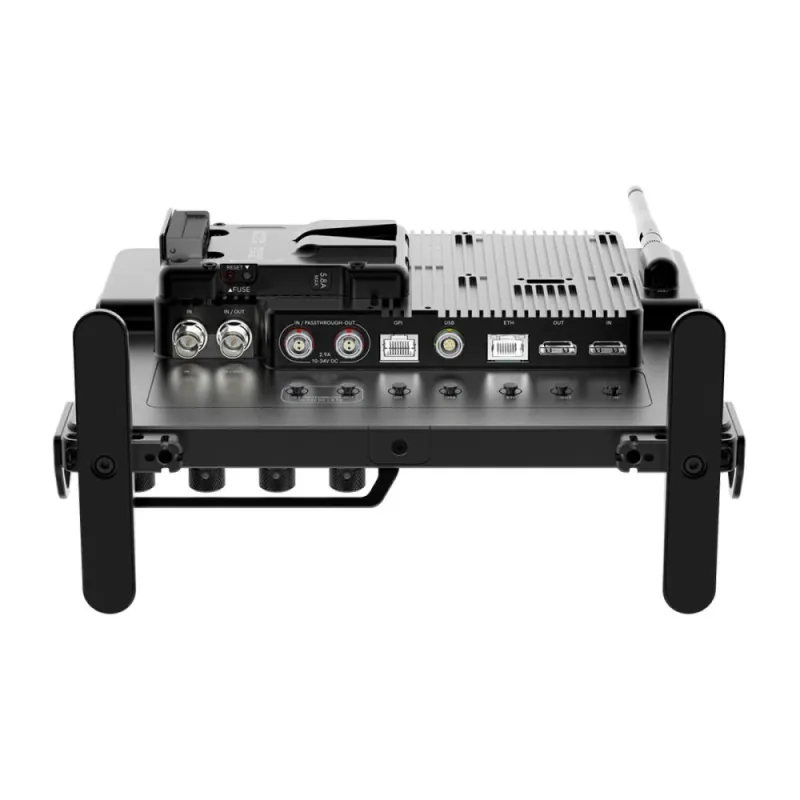

Connectivity and Inputs/Outputs
- 6G-SDI input and output supporting modern 4K workflows with various formats including DCI-4K and 1080p
- 3G-SDI, HD-SDI, SD-SDI inputs and outputs with multiple supported resolutions and color formats
- Full-size HDMI input and output supporting up to 3840x2160 30p and various HD formats with 8/10/12/16 bit color depth
- Audio output via 3.5mm stereo headphone jack; HDMI and SDI carry incoming audio streams downstream
- 5-pin locking USB and Ethernet ports for optional camera control (compatible with ARRI, Sony VENICE, BURANO, FX6, and RED cameras)
- RJ45 Ethernet and GPI for additional control options
Integrated Wireless Video Receiver
- Built-in Teradek Bolt 6 Receiver with internal V-Antenna
- Zero-delay wireless video reception from camera at ranges up to 1500 feet (available in 750 or 1500 feet versions)
- Available with Gold Mount or V-Mount battery plate options
Power and Battery
- Power input via 2-pin locking connector supporting DC 10V to 34V
- Battery terminals support 6.0V to 16.8V
- Compatible with V-Mount and Gold Mount micro battery plates
- Recommended power supply: DC 12-15V at approximately 2.5 amps or greater
- Reverse polarity overload protection on DC input
- Battery chemistry: Lithium-ion
Software and Monitoring Features
- Advanced PageOS workflow with touchscreen, joystick, tactile buttons, and multi-function rotary encoder knobs
- Pixel zoom from 1.1x to 8.0x, adjustable via swipe and pinch gestures
- Preset and customizable frame guides and aspect ratios
- DSLR scale presets for Canon 5DMkii and 7D
- Anamorphic de-squeeze options: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
- Automatic or manual image rotate and flip
- Cross conversion between HDMI and SDI signals
- Focus assist with adjustable color style and intensity, peaking, false color (rainbow, Arri style, custom with up to 10 nodes), dual configurable zebra patterns
- Waveform monitor (luma and RGB style) with region of interest highlighting
- Vectorscope, RGB parade, and histogram (luma and RGB style)
- Image capture capability
- 33-point user LUT support with calibration and system-wide color calibration options
- Overlay with opacity slider and blink setting
- Audio meters supporting up to 8 channels via HDMI and SDI
- Multi-view mode supporting two camera feeds simultaneously
Included Accessories
- Ultra 10 Bolt 6 RX monitor
- D-Tap to 2-Pin power cable (91 cm)
- Micro battery plate – Ultra Series
- Ultra 10 Bolt 6 color bands
- Monitor handles neck strap
- Ultra screen protector for Ultra 10
- 8GB SD card
- SmallHD cleaning cloth
