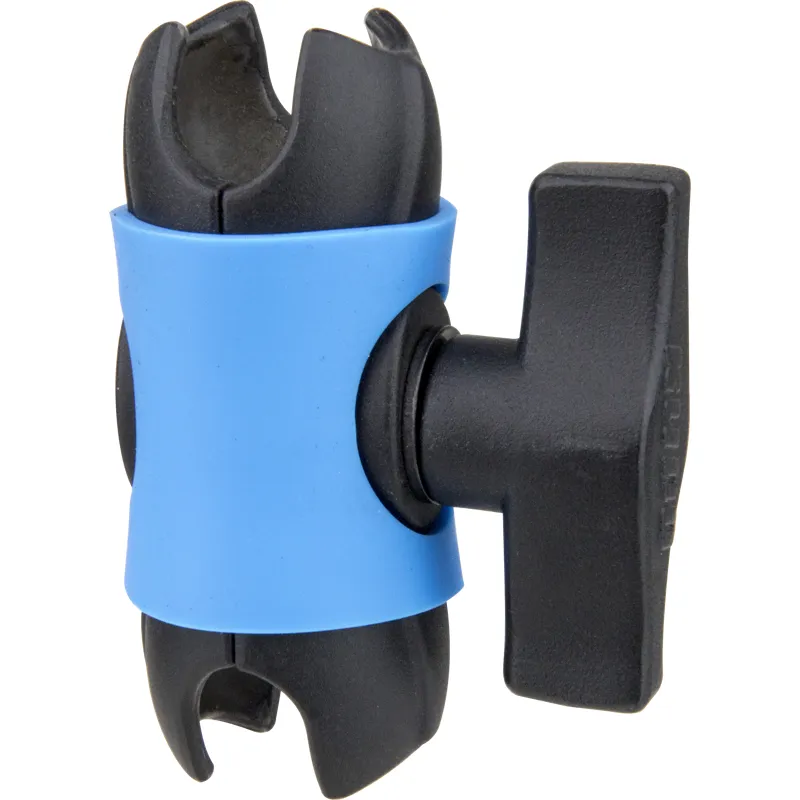

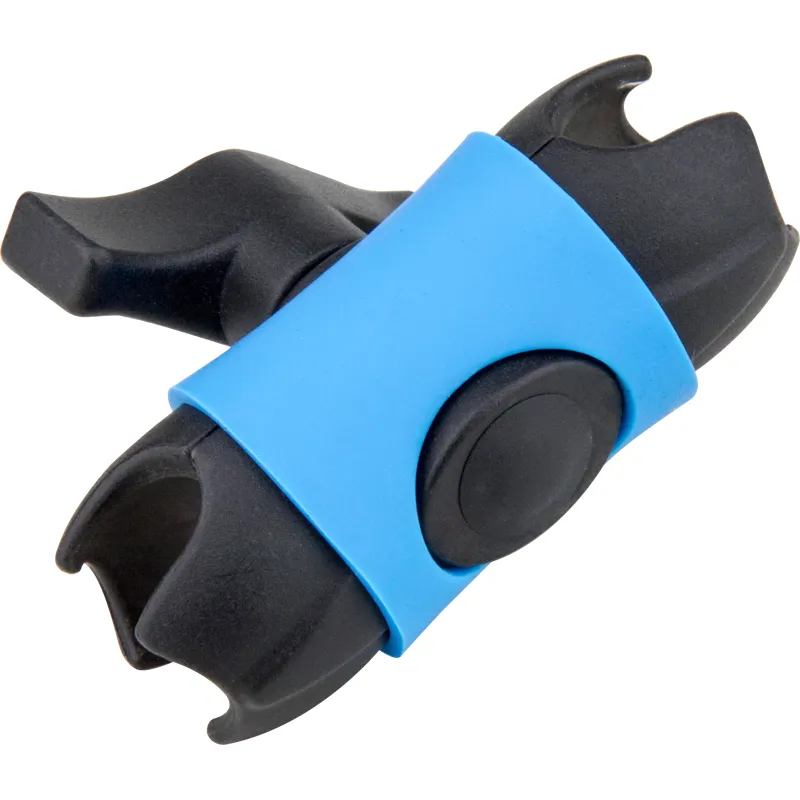

KUPO KS-474 SUPER KNUCKLE DIE CASTING SHELL W/KNOB KS-474

KS-474 / 3 DOUBLE SOCKET ARM W/ KNOB

Overview

The super knuckle features a double socket arm and ball head at each end, which can be locked by the center knob. It offers an ultra-versatile solution for mounting and positioning. Constructed from a die-cast aluminum alloy shell, the ball heads and knob make it sturdy yet lightweight.

Key Features

• Standard Dia. 26mm ball head with hard anodized and serrated surface for better grip.
• Weather-resistant design.
• Shell designed with 2 side deeper cuts for a greater tilt-down angle.
• Built-in silicon rubber sleeve holds the unit together while changing the ball head.
• Double sockets and ball heads allow for the interchange of various components.

Applications

This versatile arm is suitable for a wide range of applications in various industries, including:

• Lighting
• Cameras
• Monitors
• Tablets
• Smartphones
• Any mobile device

Specifications

• Overall length: 151mm (5.95 inches)
• Loading capacity: 8 kg
• Ball bases overall length: 3 inches (77.8mm)
• Socket-to-socket length: 2.32 inches (59mm)

The 3 long die-casting aluminum double socket arm comes with a metal knob, allowing you to connect your super knuckle mounting equipment, complete with ball heads to meet your different mounting requirements.
