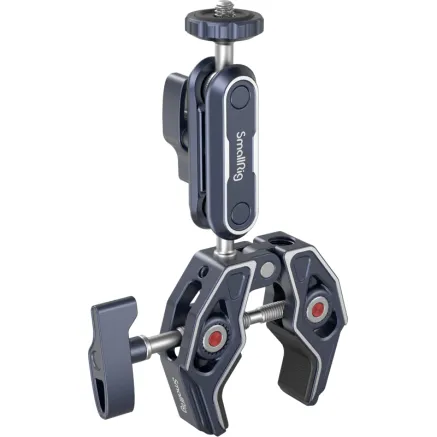

SmallRig 3757 Crab-Shaped Clamp with Ballhead Magic Arm

Material and Build

SmallRig 3757 Crab-Shaped Clamp with Ballhead Magic Arm is constructed from aircraft-grade aluminum alloy and stainless steel. It is CNC machined and carved to enhance sturdiness and durability. The design features a skeletal structure and a shark clamp that provides a stronger clamping force.

Compatibility and Mounting

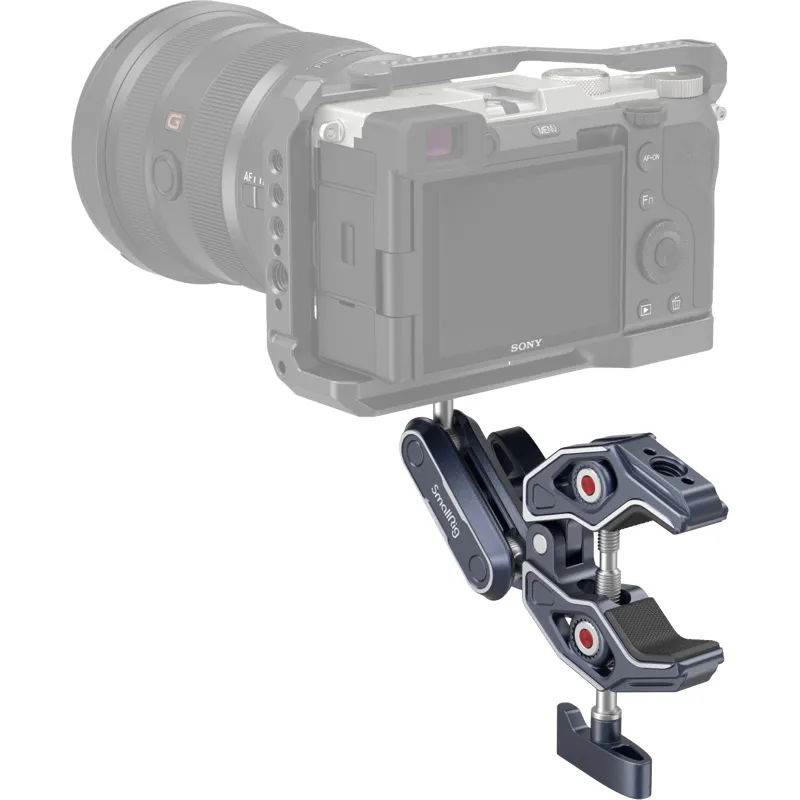

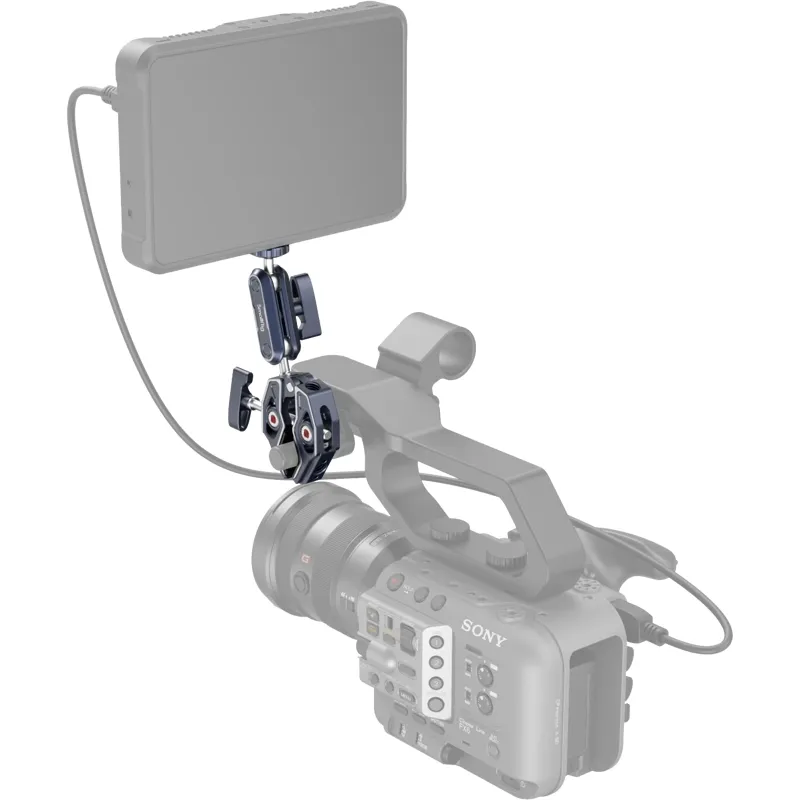

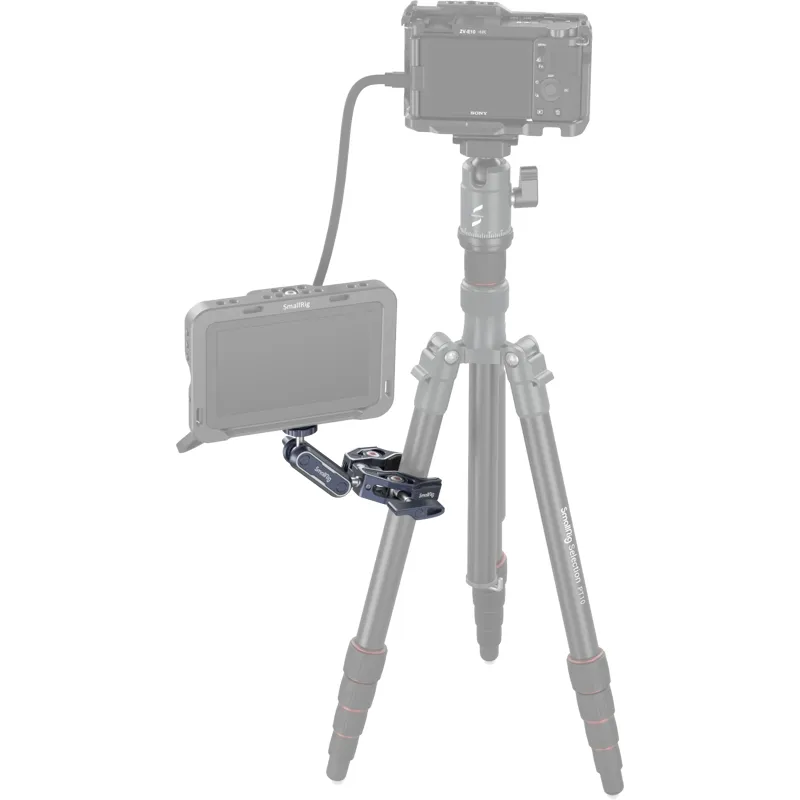

The clamp supports rods with a minimum diameter of 13 mm and surfaces with a maximum thickness of 65 mm. It can quickly attach cameras, monitors, LED lights, and other accessories to round pipes, cables, handlebars, tripods, and stabilizer handheld rings. Built-in silicone cushions protect surfaces and improve clamping stability.

Threaded Holes and Mounting Options

• 1/4"-20 threaded holes
• 3/8"-16 threaded holes
• ARRI 3/8"-16 locating holes

Ballhead Magic Arm Features

The ballhead magic arm consists of two ball heads and a ballhead clamp. It includes an anti-twist design that secures the arm to the crab-shaped clamp to prevent disconnection. The bottom ballhead has a hex hole for enhanced fastening using an Allen wrench.

The 360-degree adjustable ball heads feature anti-slip threads for easier locking. Each ball head includes one 1/4"-20 screw for quick connection of action cameras, monitors, LED lights, microphones, and other accessories.

Specifications

• Load capacity: < 3.5 kg, compatible with most photographic accessories
• Open distance: 13 mm to 65 mm
• Product dimensions: 141.0 x 89.8 x 18.0 mm
• Package dimensions: 137.0 x 104.0 x 52.0 mm
• Net weight: 184 g ± 5 g
• Package weight: 430 g ± 5 g
• Materials: Aluminum alloy, stainless steel, silicone

Included in Package

• 1 x Crab-Shaped Clamp
• 1 x Ballhead Magic Arm

Note

Do not disassemble the original machine screw to avoid damaging the original ballhead magic arm or stripping the thread.
