The Manfrotto 196B-2 is a compact 2-section arm for cameras and lights, supporting up to 1.5 kg.

Manfrotto 196B-2 Single Arm 2 Section with Camera Bracket

Product ID: 48106
65,88 tax incl.
20-30
SKU: 48106
Model: 196B-2
Ean: 8024221424027
Condition: New product
Manufacturer: Manfrotto

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLight stand accessories
Type of ProductHolders
Straps and holdersTurētāji
Holder typePagarināmie
ColorBlack
ColorBlack
Sections2
Maximum load capacity, kg1.5
MaterialAluminum
Materialaluminium
Collapsed length, cm38
Max height, cm60.5
Weight, gr530
Weight, gr530
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Manfrotto 196B-2 Single Arm 2 Section with Camera Bracket

Manfrotto 196B-2 Single Arm 2 Section with Camera Bracket

The Manfrotto 196B-2 is a compact 2-section arm for cameras and lights, supporting up to 1.5 kg.

Write a review

Product details

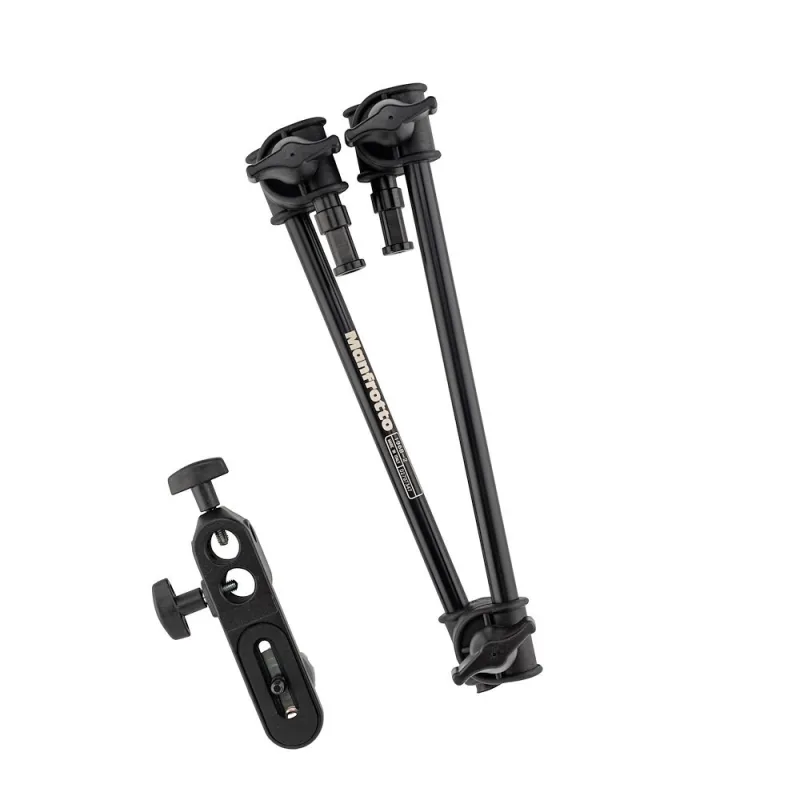

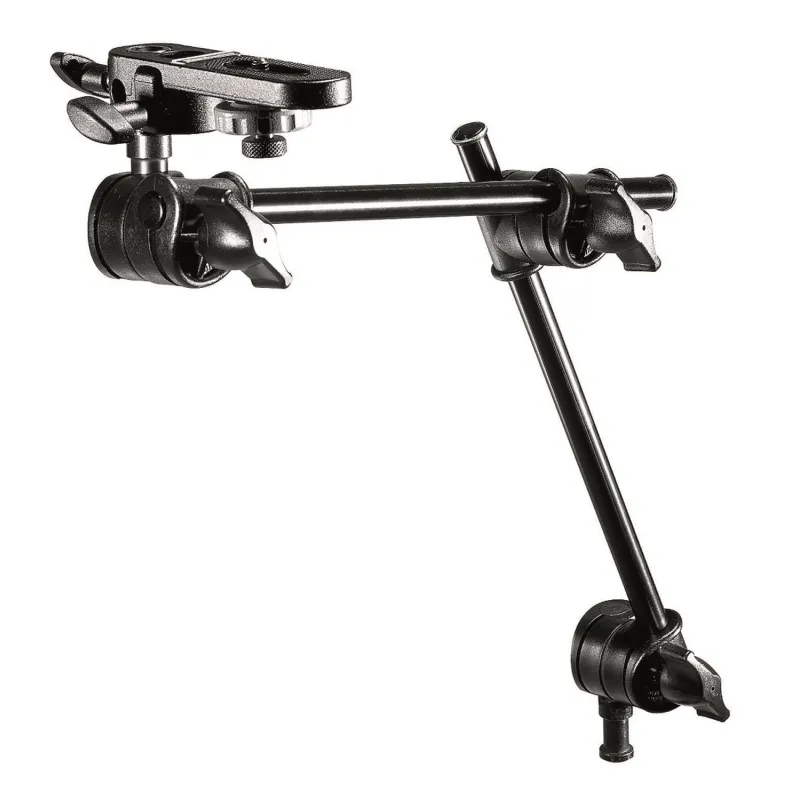

The Manfrotto 196B-2 is a compact, telescopic 2-section articulated arm (60.5 cm max) with a removable camera bracket, designed for precise positioning of small cameras, LED lights, or monitors up to 1.5 kg. Perfect for table-top, macro, or product photography when mounted via Super Clamp, it collapses to just 38 cm yet extends and locks independently in each section for ultimate flexibility in tight spaces.

The telescopic version of Manfrotto's classic single articulated arm features sections that lock separately with large ergonomic handles, and the inner section slides out for extra reach. Supplied with the 143BKT swivel camera/monitor bracket (1/4-20 screw + locking pin), it is ideal for macro rigs, copy stands, low-angle shots, or mounting on-camera lights. Ends feature 5/8 Baby studs with 1/4-20 and 3/8-16 female threads, fully Super Clamp compatible.

Key Features

  • Telescopic 2-section arm 38 cm collapsed / 60.5 cm fully extended
  • Independent locking on each section
  • Includes removable 143BKT camera/monitor bracket (1/4-20 + anti-rotation pin)
  • 1.5 kg payload perfect for mirrorless, small LEDs, field monitors
  • Super Clamp compatible (5/8 studs + 1/4 & 3/8 threads)
  • Lightweight black aluminum only 530 g

  • 1 196B-2 2-Section Articulated Arm
  • 1 143BKT Camera/Monitor Bracket

  • Model Manfrotto 196B-2
  • Arm Length 60.5 cm (max) / 38 cm (min)
  • Payload 1.5 kg (1 kg at full extension)
  • Sections 2 (telescopic)
  • Top Attachment 3/8 female + 5/8 stud (plus 143BKT bracket)
  • Bottom Attachment 1/4 female, 3/8 female, 5/8 stud
  • Weight 0.53 kg
  • Colour Black
