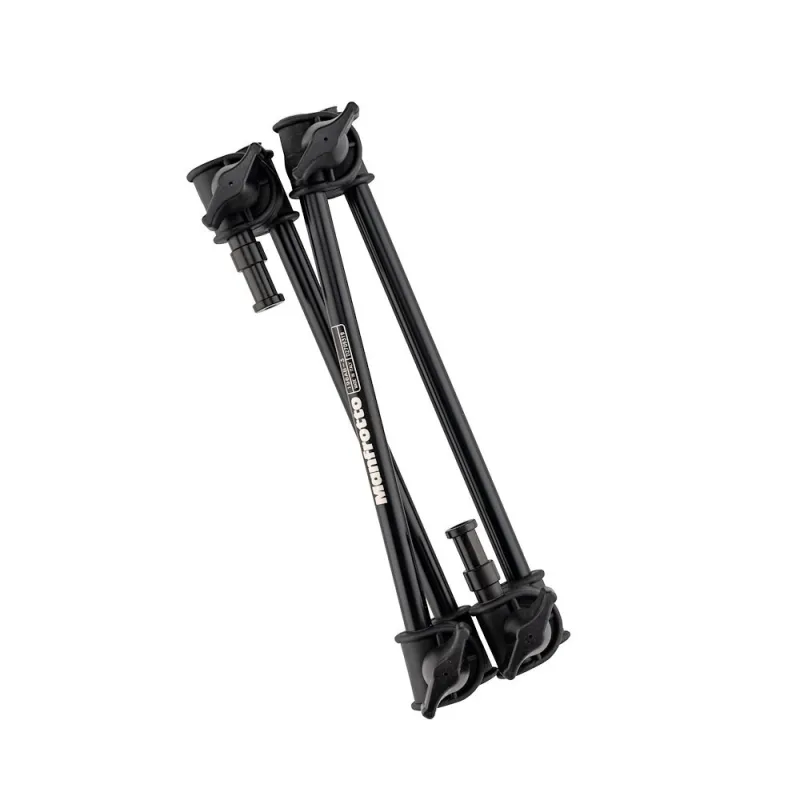

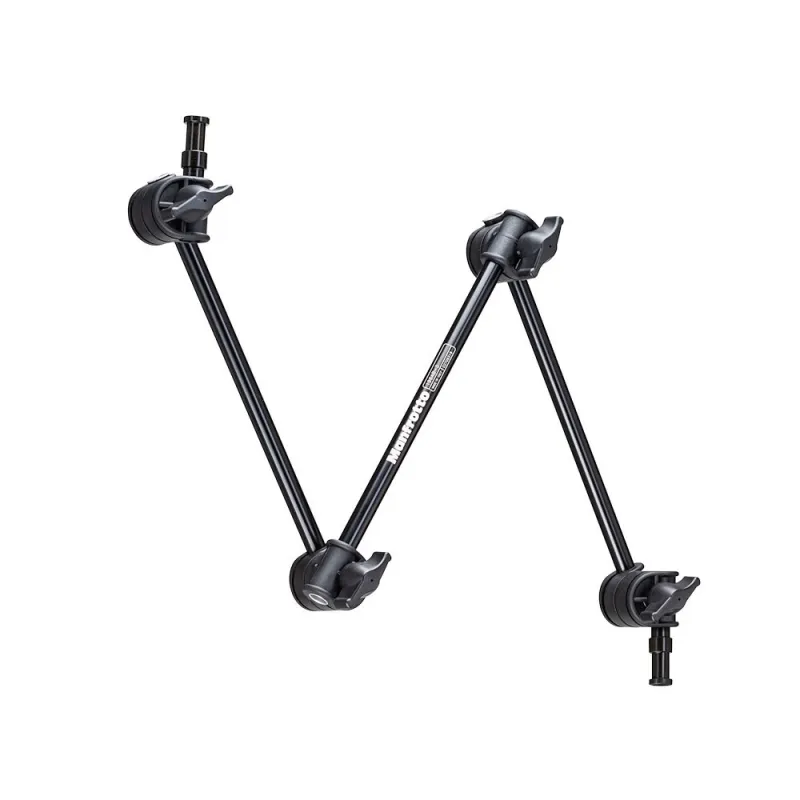

Manfrotto 196AB-3 Single Arm 3 Section

The Manfrotto 196AB-3 is an ultra-lightweight, 3-section articulated arm that extends to 85 cm, supports up to 1 kg (1.5 kg at reduced extension), and features 5/8 (16 mm) Baby studs with 1/4 and 3/8 threads on both ends, making it perfect for mounting small lights, cameras, monitors, or accessories with precise, flexible positioning via Superclamp or any standard grip.

This highly versatile arm is designed for quick and secure mounting of lightweight equipment in studio or on location. Thanks to its sliding central extension and double-ball joints, it reaches a maximum length of 85 cm while weighing just 0.5 kg, offering exceptional reach without adding bulk. Each end is fitted with a 5/8 (16 mm) Baby stud that includes both 1/4-20 and 3/8-16 female threads, ensuring universal compatibility with lights, cameras, flags, or monitors.

Key Features

• Three independently locking sections with sliding extension
• Double ball-joint design for maximum angle flexibility
• Ultra-light at only 0.5 kg
• 5/8 (16 mm) Baby studs top and bottom with 1/4 & 3/8 threads
• Superclamp-compatible bottom stud
• Reaches 85 cm fully extended

• Material: Black aluminum
• Sections: 3
• Arm length: 85 cm (33.4 in)
• Payload: 1 kg (2.2 lb) at full extension / 1.5 kg max
• Weight: 0.5 kg (1.1 lb)
• Top attachment: 5/8 (16 mm) stud + 3/8 female thread
• Bottom attachment: 5/8 (16 mm) stud + 1/4 female thread
• Colour: Black
