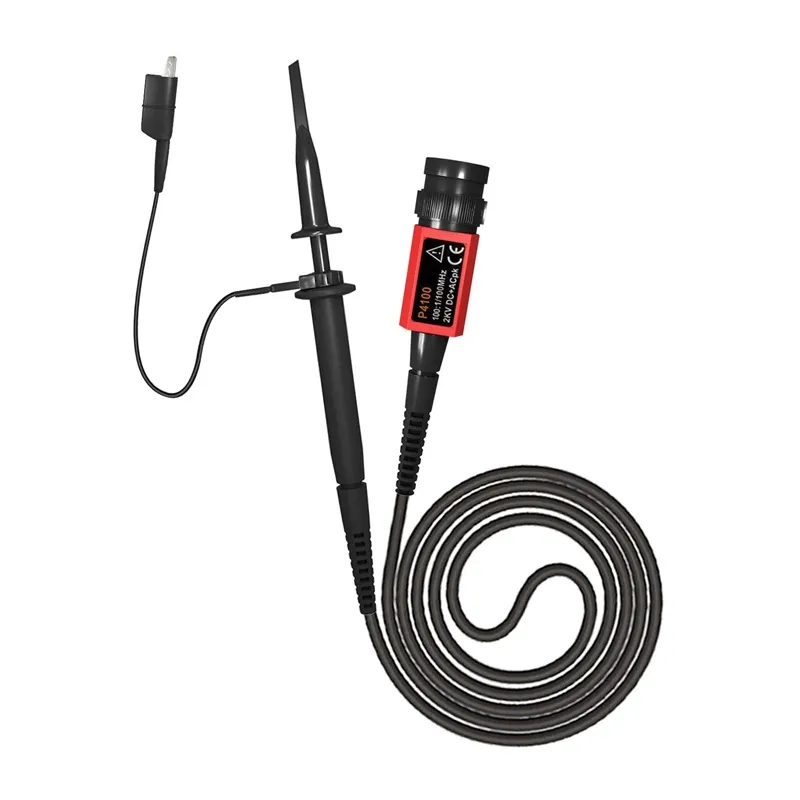

FNIRSI P4100 Probe

FNIRSI P4100 Probe

The FNIRSI P4100 is a professional oscilloscope probe designed for accurate signal analysis in service, laboratory, and electronics applications. It features a bandwidth of 100 MHz and an attenuation ratio of 100:1, making it suitable for measuring signals with varying voltage levels. The probe supports a maximum operating voltage of 1000 V DC plus AC peak-to-peak, enabling use with high-voltage circuits.

Accurate Capture of Fast Signals

With a short rise time of just 3.5 nanoseconds, the FNIRSI P4100 faithfully reproduces dynamic waveforms and detects very rapid signal changes. This makes it ideal for applications requiring high measurement precision and reliable electrical parameter analysis. The 100 MHz bandwidth ensures accurate measurements across a wide frequency range, enhancing diagnostic and testing effectiveness.

Robust Design for Everyday Use

The probe housing is constructed from durable ABS plastic, providing resistance to heavy use in workshops and laboratories. Its sturdy build and versatile operating parameters make the FNIRSI P4100 a practical tool for electronics engineers, service technicians, and professionals needing precise, stable, and safe measurements.

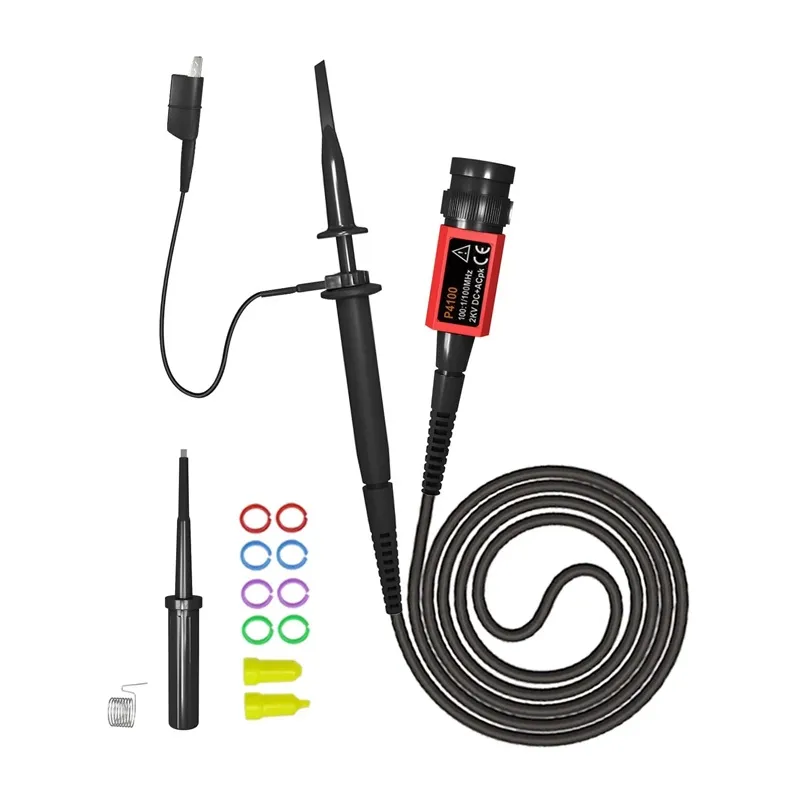

Included Accessories

• Probe
• Screwdriver
• Multicolored test leads (8 pieces)
• Tip positioning sleeves (2 pieces)
• Spring
• User manual

Technical Specifications

• Manufacturer: FNIRSI
• Model: P4100
• Supported models: Universal
• Input resistance: 100 MΩ
• Input capacitance: 6 pF
• Compensation range: 10 pF to 35 pF
• Bandwidth: 100 MHz
• Rise time: 3.5 ns
• Maximum operating voltage: 1000 V DC + AC peak-to-peak
• Color: Black
• Material: ABS plastic
• Cable length: 1.1 m
