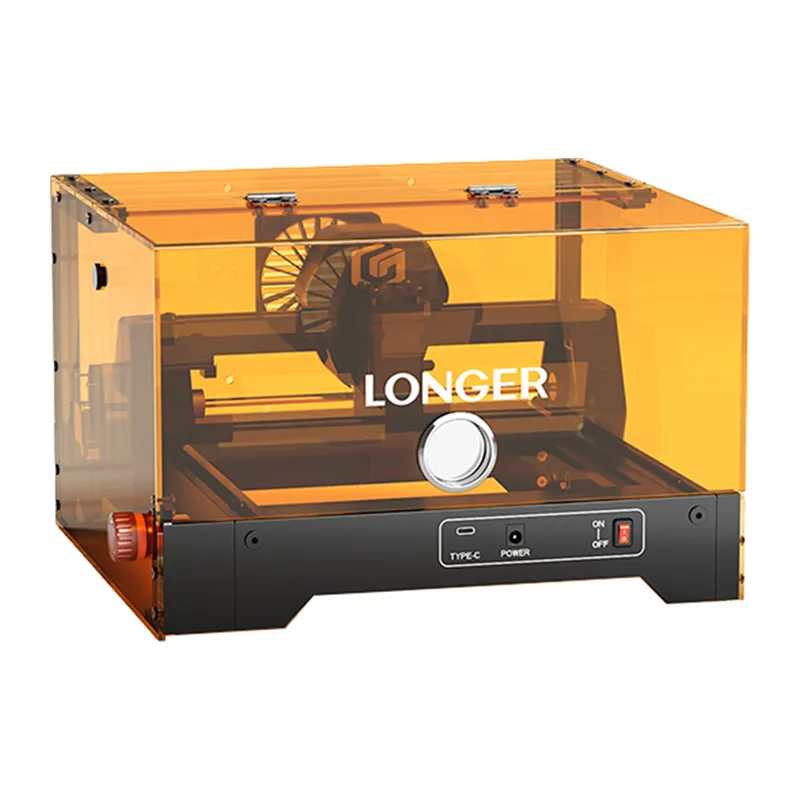

LONGER RAY5 minis 3.5W Laser Engraver

Longer Ray5 miniS laser engraver (3.5 W)

The Longer Ray5 miniS laser engraver allows you to engrave materials without direct exposure to the laser beam. The 3.5 W device is pre-assembled and ready to use right out of the box, so you can start your project right away. The 130 x 140 mm working area and speed of up to 12,000 mm/min allow you to work comfortably on your desk, workbench, or in a small studio.

Details that look like they came from a professional workshop

A 0.04 x 0.04 mm laser spot and 0.04 mm engraving accuracy allow you to reproduce fine lines, small letters, and subtle patterns without blurring the edges. Thanks to the 2 mm spacer block, focusing is mechanical and repeatable. This means a clean engraving contour on wood, leather, or acrylic without trial and error for each material. Even small jewelry items, key chains, or nameplates retain the sharpness of detail that is often lost with weaker lasers.

Projects you can finish in one session

A speed of up to 12,000 mm/min combined with a 130 x 140 mm field allows you to complete most small DIY projects in a short time. You can engrave a series of key rings, coasters, or product labels in a single work session. This scale is well suited to handmade creators and micro-sellers who operate in small quantities.

Personalization on hundreds of materials

The 3.5 W 450 nm diode laser allows you to engrave over 300 materials and, depending on their thickness, also cut them, from wood and leather to acrylic, metal, and ceramics. The Longer Ray5 miniS is suitable for a variety of applications, so you don't have to invest in multiple tools for different materials.

Freedom of engraving

USB and Wi-Fi connectivity and support for mobile apps and LaserGRBL or LightBurn software on various operating systems allow you to prepare your project on your computer or directly on your smartphone. Once the file is uploaded, the device can work offline, minimizing the risk of interrupting the task in progress.

Stress-free work

The enclosure with a cover, door sensor, axis limit switches, and emergency stop button form a safety system characteristic of Class I devices. An exhaust fan removes fumes from the working chamber, improving comfort when working in a closed room.

Quick start to creation

The aluminum alloy body, weighing 2.89 kg and measuring 307 x 320 x 197 mm, makes the device easy to place on a desk or move between workstations. Pre-assembly means that once you connect the power supply and data cable, you can get started on your first project right away. The kit includes safety glasses, a focus block, tools, and accessories needed to get started.

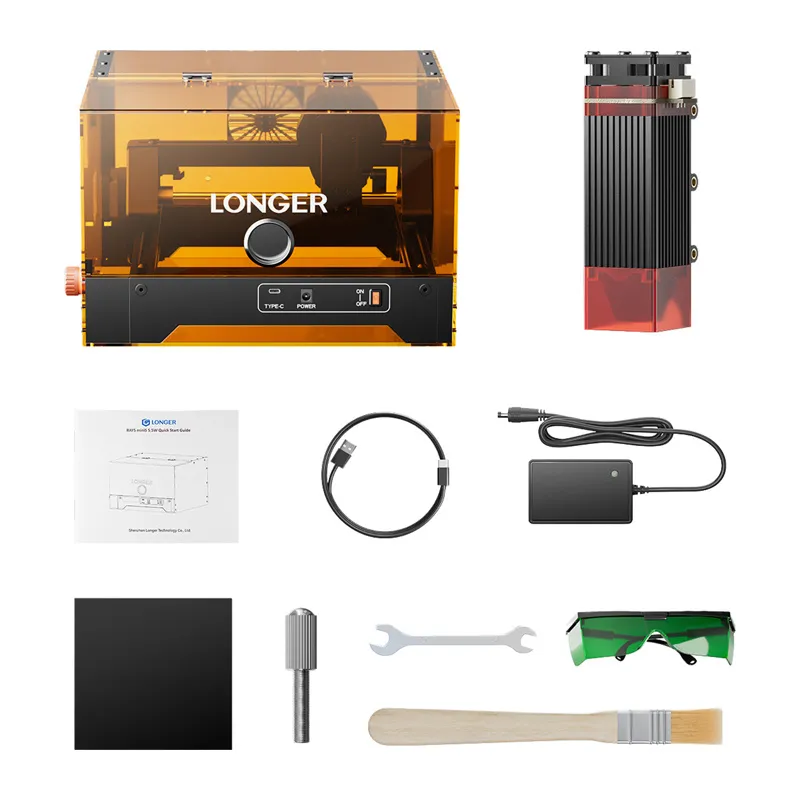

Included

• Machine frame
• Laser module
• Power supply
• Data cable
• Safety glasses
• Focusing block
• Wrench
• Wooden brush

Specifications

• Manufacturer: Longer
• Model: RAY5 minis 3.5W
• Laser power: 3.5 W
• Laser source: Single laser diode with FAC
• Laser wavelength: 450 nm
• Working area: 130 x 140 mm
• Cutting depth: 12 mm
• Engraving speed: 12,000 mm/min
• Engraving precision: 0.04 mm
• Supported formats: JPG, BMP, PNG, DXF
• Lifespan: 10,000+ hours
• Machine material: Aluminum alloy
• Connection: Wi-Fi, USB, app
• Safety certifications: CE; FCC; FDA; RoHS
• Supported systems: Windows; MacOS; Linux; Android; iOS
• Dimensions: 307 x 320 x 197 mm
• Weight: 2.89 kg
• Power supply: 100-240V 50/60Hz 1.5A/12V-2A (24W) or 12V-3A (36W)
• Compatible materials: Wood, acrylic, leather, fabric, metal, ceramics, etc.
