MAKERA Carvera Air CNC Router

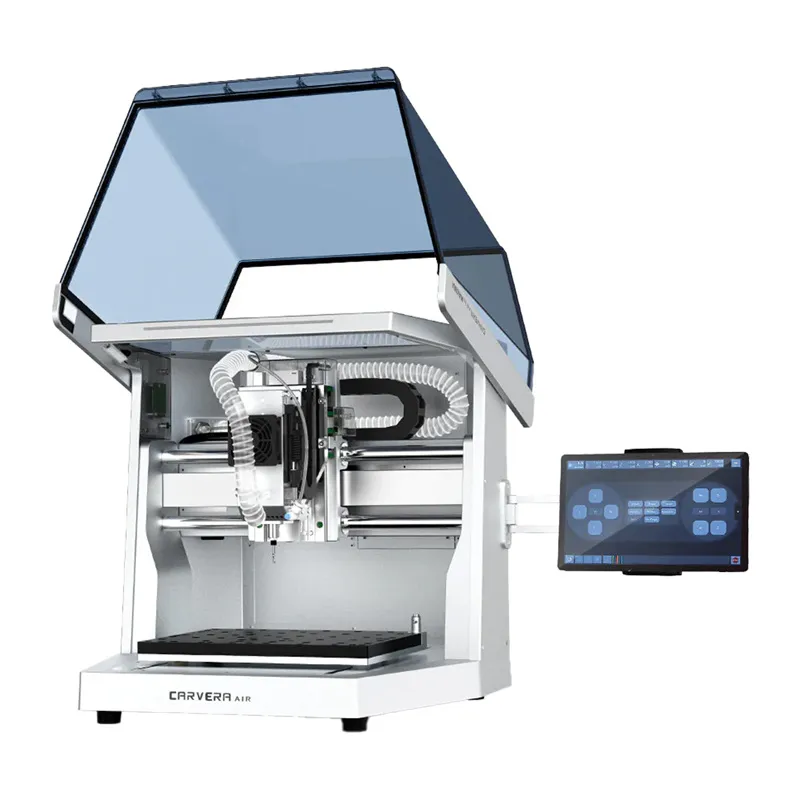

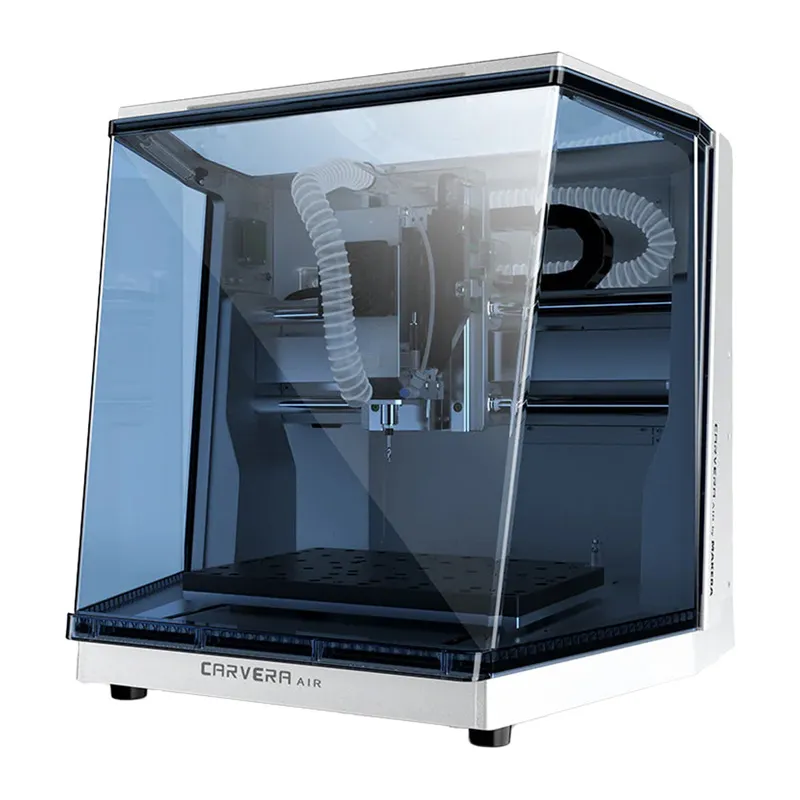

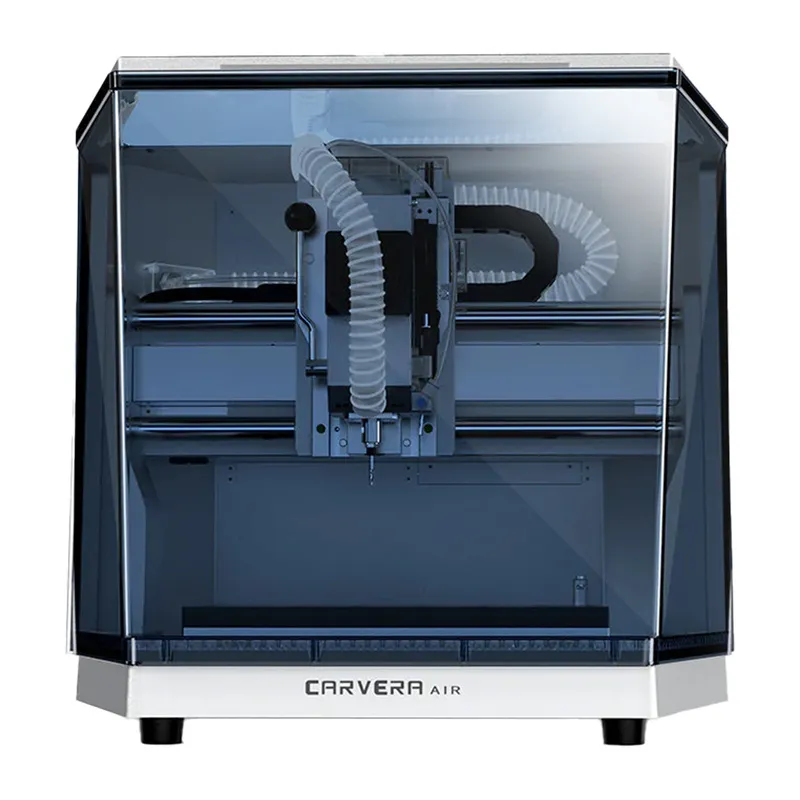

MAKERA Carvera Air CNC Milling Machine

The Carvera Air™ is a CNC milling machine that combines high precision with intelligent automation. It features automatic tool change in just 10 seconds, auto-probing and auto-leveling functions, and 4-axis support, enabling completion of complex projects with minimal user intervention. The machine offers 0.01 mm precision and a spindle speed of up to 13,000 rpm, ensuring accurate and smooth machining of various materials. Optional expansions include a laser module and integration with an external dust extraction system. Remote control via an app allows convenient operation from a computer or smartphone.

Fast Operation and Automatic Precision

An innovative automatic tool-changing system enables cutter changes in just 10 seconds, allowing seamless transitions between machining stages. Combined with auto-probing and auto-leveling, the machine automatically calibrates tools and the work surface, detecting material irregularities and adjusting parameters. This ensures precise cuts on irregular surfaces, greater repeatability, and reduced material waste.

Expanded Capabilities: 4th Axis and Laser Module

The optional 4th-axis module (not included) allows machining of cylindrical parts, double-sided projects, and complex 3D shapes with simultaneous four-axis operation. This greatly expands capabilities, especially for realistic 3D models. Additionally, equipping the Carvera Air™ with the optional 5 W laser head provides precise engraving and cutting, supporting both technical and creative projects with a single machine.

Clean Operation and Convenient Control

The Carvera Air™ maintains a clean workspace by effectively limiting dust and debris spread, improving workpiece visibility and user comfort. Cross-platform control software enables operation from computers, tablets, or smartphones. Remote control features allow convenient monitoring and management, increasing flexibility and efficiency.

Robust Construction and High Precision

The die-cast housing ensures durability, while the enclosed design enhances safety, reduces noise, and contains machining particles. The use of 20 mm diameter linear guides and ball screws guarantees smooth, stable movement and high operational accuracy.

Wide Range of Applications and Intuitive Software

The Carvera Air™ is ideal for creating double-sided PCBs and fast prototyping. It produces durable parts for robots, drones, and RC models from aluminum and composite materials. It is also suitable for artists and designers creating decorations, jewelry, and personalized products, including realistic 3D models. Included Makera CAM software supports simple 2D designs and advanced 3D models, integrating with popular CAD/CAM programs for complete creative freedom.

Included Accessories

• Milling machine
• Safety goggles
• Spare 1/8" x30 cutter rings
• Manual tool height sensor
• Power cable
• Emergency stop button
• USB cable
• 2.0 mm drill bit x2
• 2.0 mm "corn" cutter x2
• 30° engraving cutter 0.3 mm x2
• 30° engraving cutter 0.5 mm x2
• "O"-type spiral cutter 2x12 mm x2
• Phone/tablet holder
• Sanding block x2
• LED lighting kit
• Acrylic sheet x2
• Epoxy resin sheet (modeling) x2
• Aluminum sheet
• ABS plastic sheet
• MDF pad x2
• Single-sided copper laminate x2
• Double-sided copper laminate x2
• Small hand saw
• L-bracket
• M5 screws x20
• Top clamp x4
• "O" type spiral cutter 3.175x25 mm x2
• Spiral cutter for metal 3.175x12 mm x2
• 30° engraving cutter for metal 0.2 mm x2
• 90° chamfering cutter 0.2 mm x2
• "Corn" cutter 0.8 mm x2
• 4 mm set screw x10
• Screwdriver
• Tool for mounting rings on cutters
• Tool for mounting the spindle collet

Specifications

General

• Manufacturer: MAKERA
• Model: Carvera Air

Dimensions and Working Area

• Working area: 30 cm (X) × 20 cm (Y) × 13 cm (Z)
• 4th axis working area (optional): 9.2 cm diameter × 20 cm length
• Maximum height (with cover open): 84 cm
• Base dimensions: 50 × 45 × 45 cm (width × depth × height)
• Weight: approx. 30 kg

Spindle

• Power: 200 W
• Rotational speed: 0–13,000 rpm (closed-loop control)
• Chuck: Dedicated 1/8" chuck included (optional: 1/4", 6 mm, 4 mm, 3 mm)
• Tool change method: Quick tool change
• Magazine capacity: 6 tools
• Cooling: Air
• Air Assist: External air compressor support

Drive System

• Motors: Closed-loop stepper motor
• Drive: Z-axis with linear guides and ball screw; X/Y-axis with hardened, chrome-plated linear shafts and ball screws
• Maximum travel speed: 4000 mm/min
• 4th axis drive (optional): Harmonic drive

Precision

• Spindle accuracy: < 0.01 mm
• Resolution: 0.01 mm

Laser Module (Optional)

• Power: 5 W
• Laser type: 445 nm semiconductor diode laser

Dust Extraction System

• Cyclone dust extraction (optional): External dust extraction with rear chip discharge channel and spindle guard

Supported Materials

• Metals: Aluminum, brass, copper; optional steel and titanium (not recommended for long-term machining)
• Wood: Hardwood, softwood, MDF, plywood, and others
• Plastics: Foams, PVC, ABS, acrylic, PC, HDPE, and others
• Composite materials: Carbon fiber, FR4, and others
• Laser engraving materials: Wood, plastic, fabrics, leather, cardboard, and others

Software and Connectivity

• Control: Dedicated software supporting CARVERA functions
• Connectivity: USB and Wi-Fi
• Operating systems: iOS, Android, macOS, Windows, Linux, and others
• Dedicated CAM software: Makera CAM; Makera Studio
• Compatible CAD/CAM software: Fusion360, SolidWorks, AutoCAD, VCarve Pro, Aspire, Illustrator, and others

Additional Features

• Makerables: A platform for sharing CNC projects from Makera
• AI Craft: An AI tool that allows creation and modification of CNC models without modeling skills
