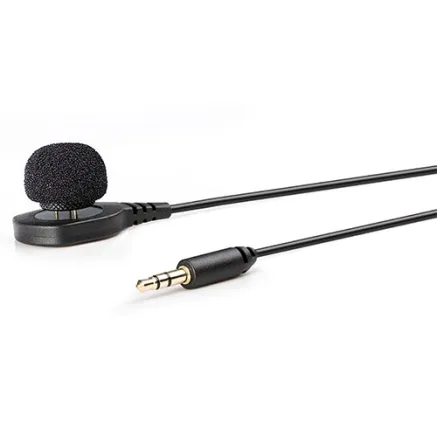

Boya BY-HLM1 Pin Microphone for DSLR and Camcorders

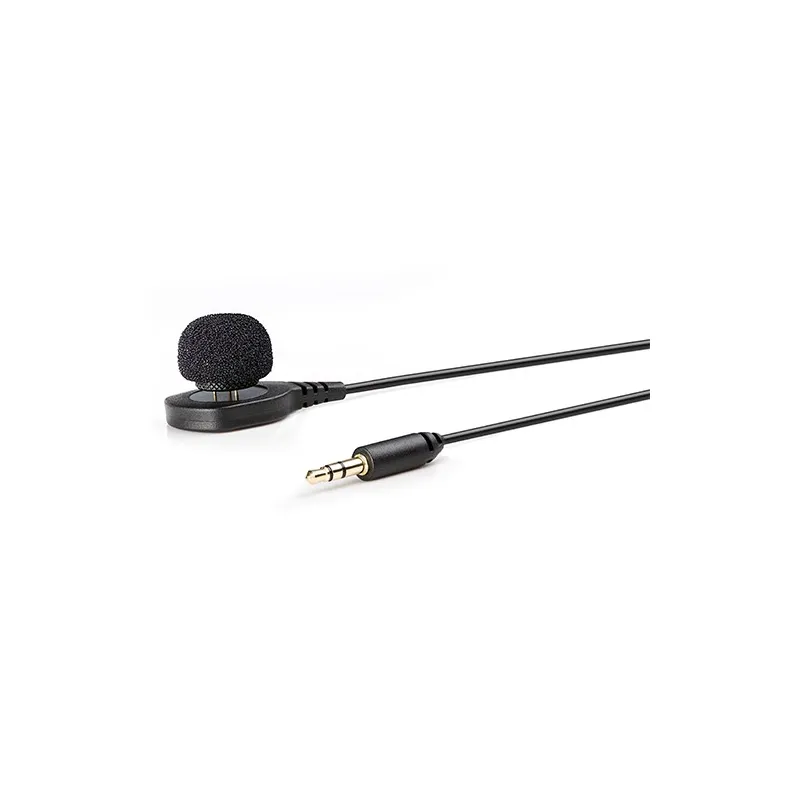

Boya BY-HLM1 Pin Microphone

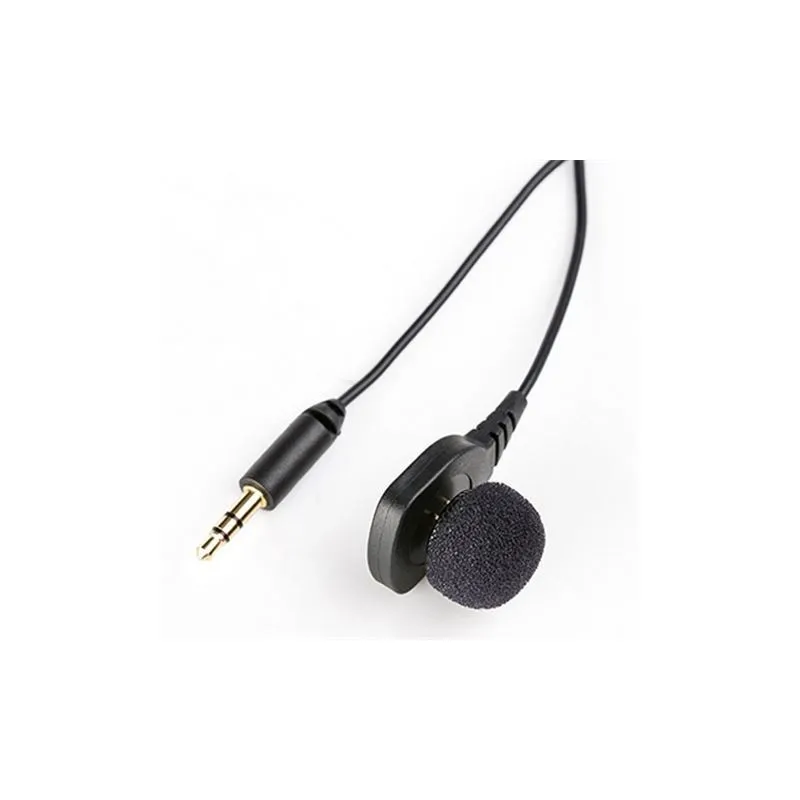

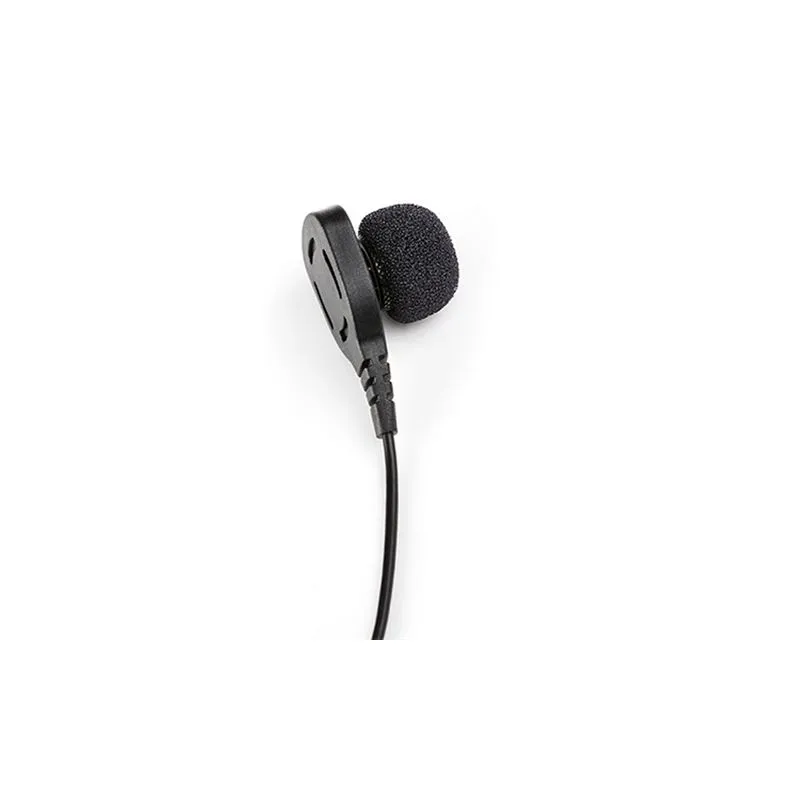

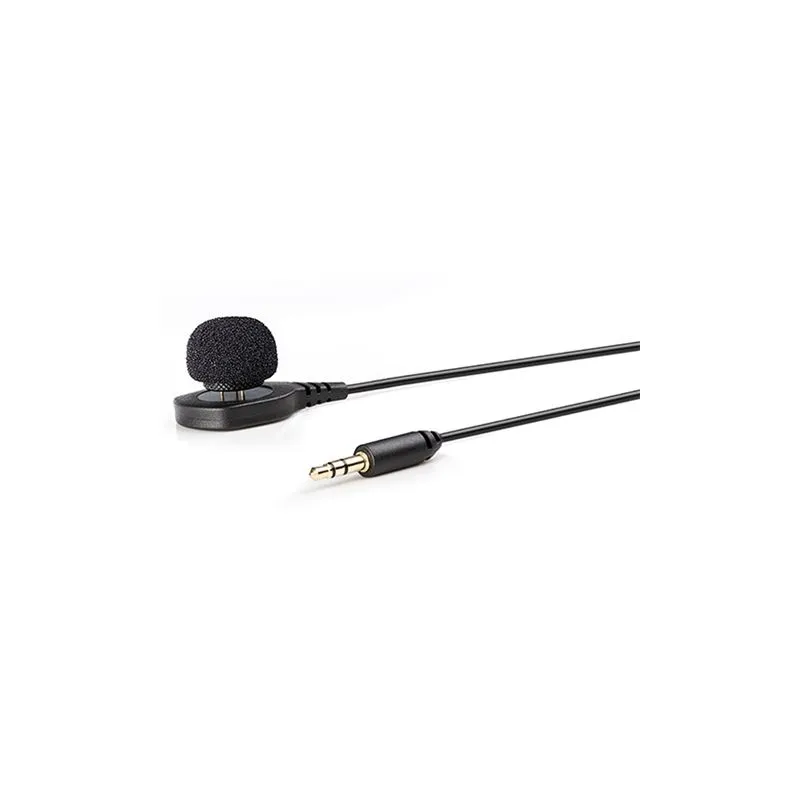

The Boya BY-HLM1 is a discreet pin microphone designed for clear voice recording during video production. It features three thin, sturdy pins that easily pierce most clothing, allowing the microphone to be attached inconspicuously. Only the small microphone capsule is visible externally, while the cable remains hidden behind the clothing, minimizing visual distraction. The small holes left in the fabric are comparable to those made by price tags and are minimally invasive.

Usage

The BY-HLM1 is ideal for subtle sound recording applications such as interviews, presentations, and other scenarios where an unobtrusive microphone is preferred. Its design ensures that attention remains on the subject rather than on a prominent microphone. The microphone connects via a 3.5mm TRS plug, making it compatible with DSLR cameras, camcorders, wireless microphone systems, and most devices with a 3.5mm microphone input.

A small windscreen is included to reduce wind noise during outdoor recordings. The microphone also comes with a protective storage bag featuring compartments for accessories, ensuring safe transport and storage.

Technical Specifications

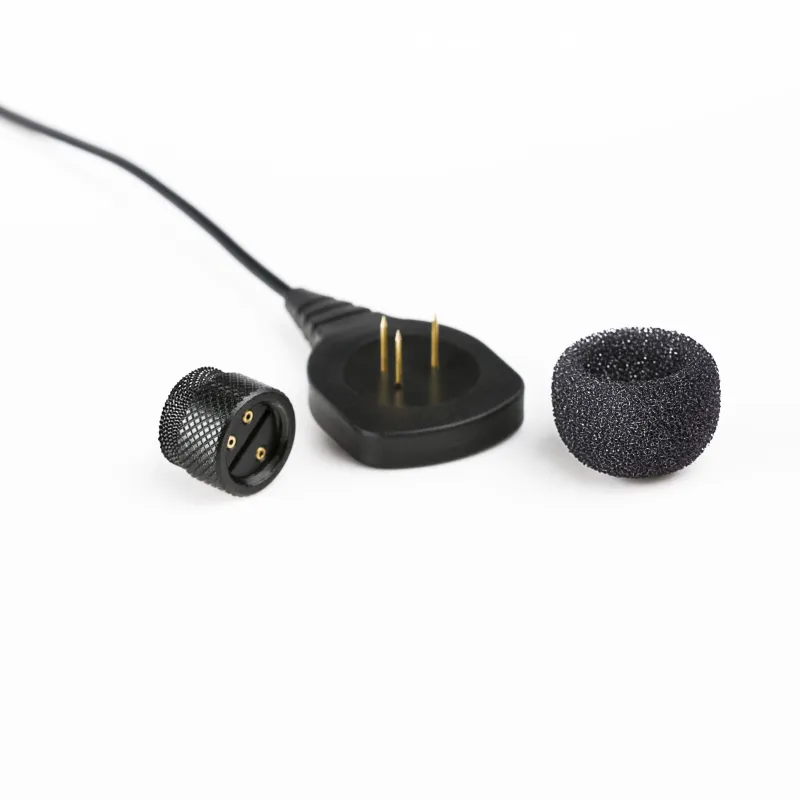

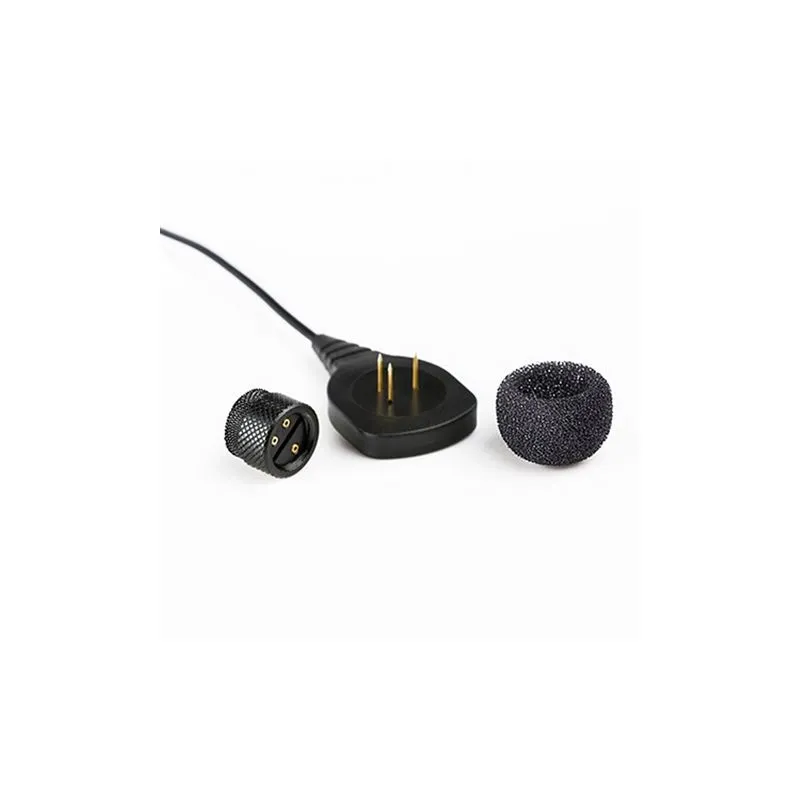

• Microphone type: Clip-on directional pin microphone with detachable microphone head
• Frequency response: 50 Hz to 20,000 Hz
• Output impedance: 2.2 kΩ
• Sensitivity: -30 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz)
• Signal-to-noise ratio: ≥ 58 dB
• Weight: 16 grams
• Connector: 3.5 mm TRS plug

Included Items

• 1x Boya BY-HLM1 pin microphone
• 1x Cable with 3.5 mm TRS plug
• 1x Windscreen
• 1x Protective storage bag with accessory pockets
• 1x User manual
• 1x Packaging
