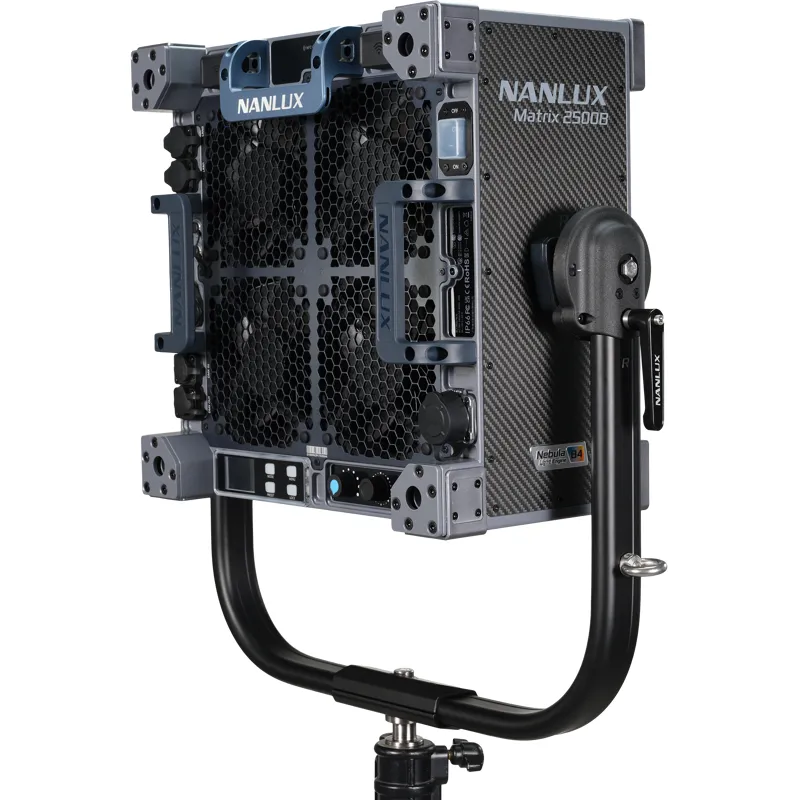

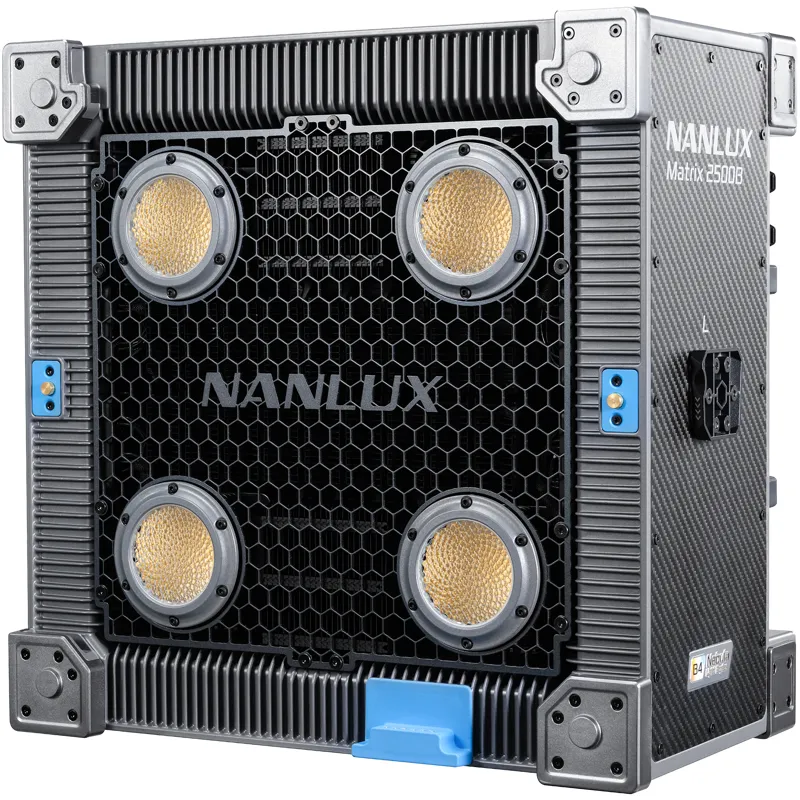

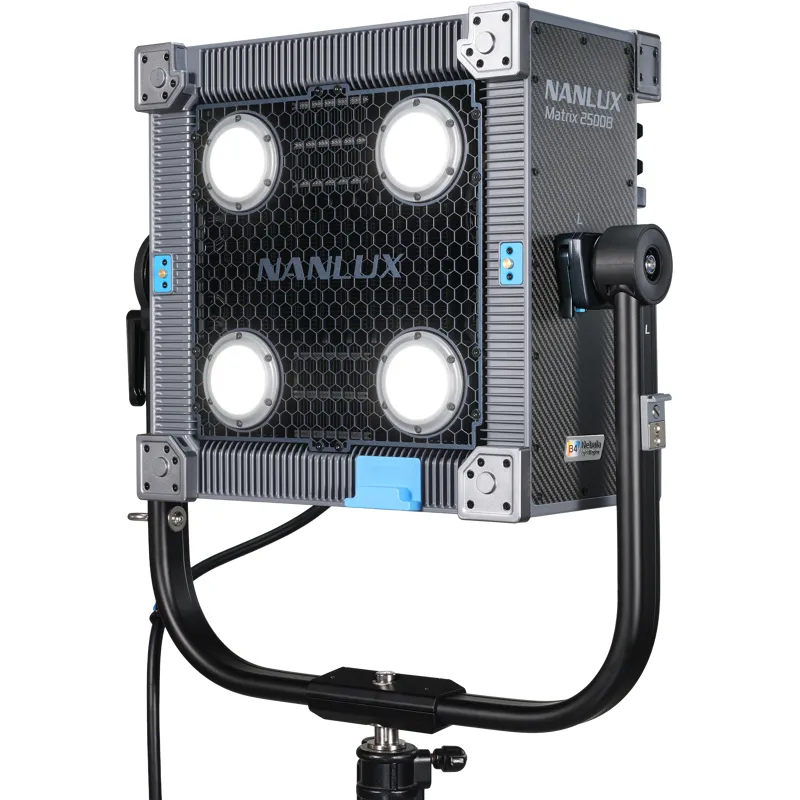

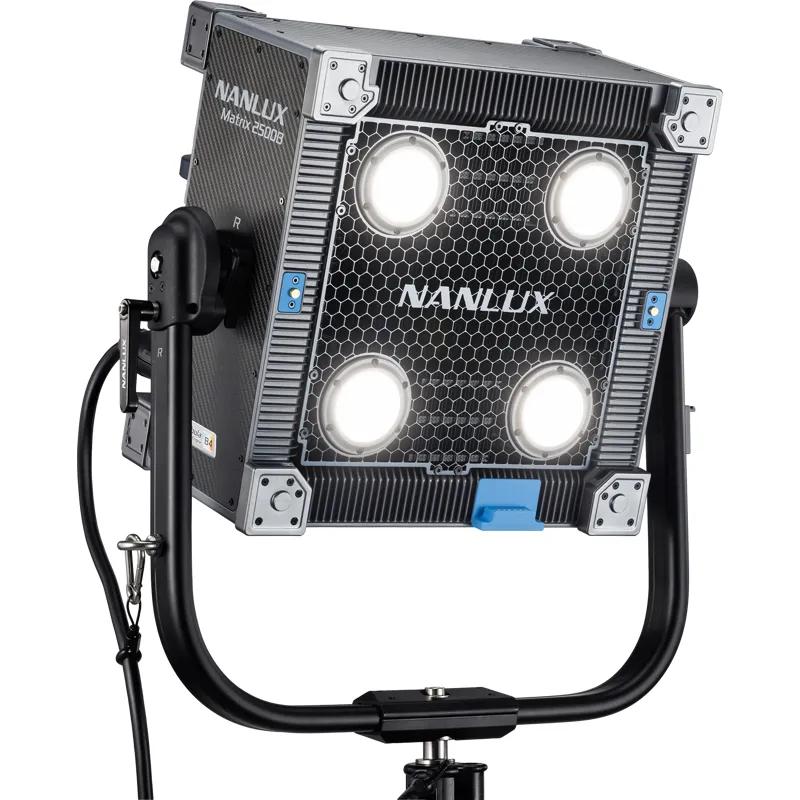

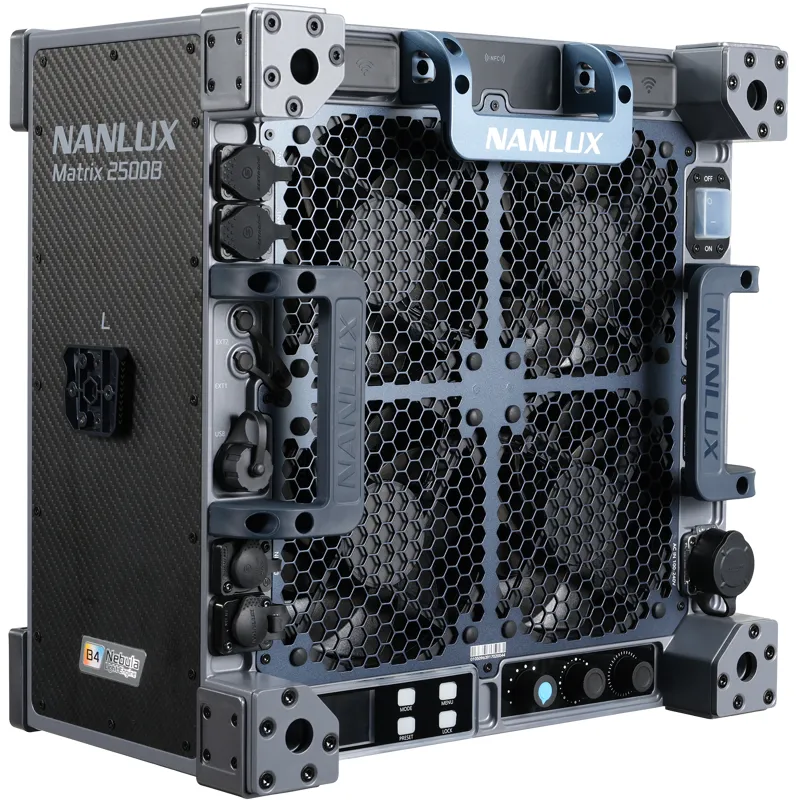

NANLUX Evoke Matrix 2500B Bi-color Multi-Source Spot Light Kit
High-Power Professional Lighting for Film and TV Production
The NANLUX Evoke Matrix 2500B is a 2500 W bi-color multi-source spotlight designed for large-scale professional cinema, television, and commercial filming. It features an integrated four-head light engine optimized for high-power lighting systems requiring power, stability, and efficient setup.
Advanced Light Engine and Color Control
At its core is the NANLUX Nebula B4 light engine, combining four types of white light chips: CW+, CW-, WW+, and WW-. This configuration provides a correlated color temperature (CCT) range from 2700K to 6500K with green/magenta adjustment of ±80, maintaining high efficiency typical of white light devices. The unit offers both CCT and effect modes, making it a powerful and precise bi-color solution for productions demanding accurate and controllable white light.
Light Output and Optics
- Delivers 13,470 lux at 3 meters distance at 5600K without Fresnel lens.
- With the included motorized Fresnel lens FL-MT25, output increases to 103,000 lux at 3 meters at 5600K with a 16° beam angle.
- FL-MT25 offers a zoom range from 16° to 48°, adjustable remotely, ideal for fixtures mounted high or used in large lighting arrays.
Compact and Integrated Design
The device is built around a compact 40x40 cm form factor with an "all-in-one" design integrating the control unit and power supply within the fixture body. This allows operation with a single power cable. Multiple Matrix units can be placed closely together to create a smooth, continuous light beam with high light density. Using an additional NANLUX four-light frame, four Matrix units can be combined into a 10,000 W lighting system.
Durability and Cooling
- Constructed with a high-strength magnesium alloy housing.
- Rated IP66 for use in rain, high temperatures, and dusty environments.
- Features a front-to-back airflow cooling system to reduce heat buildup when fixtures are closely stacked.
- Four fan modes: Smart, Full Speed, Low Speed, and Off. Smart mode automatically adjusts fan speed based on ambient temperature to minimize audio recording interference.
Control Options
- Built-in control panel
- Remote control and wired control options
- NANLINK app compatibility
- DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and NFC support
- Each light head can be controlled independently via DMX for precise adjustment of large lighting arrays and virtual production setups.
Technical Specifications
- Rated Power: 2500 W
- Input Voltage/Current: AC 100–240 V / 50–60 Hz / 28 A
- CCT Range: 2700K–6500K, Green/Magenta ±80
- CRI: Average 98
- TLCI: Average 98
- TM-30 Rf: Average 95
- TM-30 Rg: Average 100
- Dimming Range: 0.0%–100.0% with 0.1% steps
- Fixture Dimensions: 399 x 399 x 234 mm
- Fixture Weight: 16.51 kg
- Yoke Weight: 2.25 kg
- FL-MT25 Weight: 4.04 kg
- Standard Kit Carton Size: 630 x 575 x 560 mm

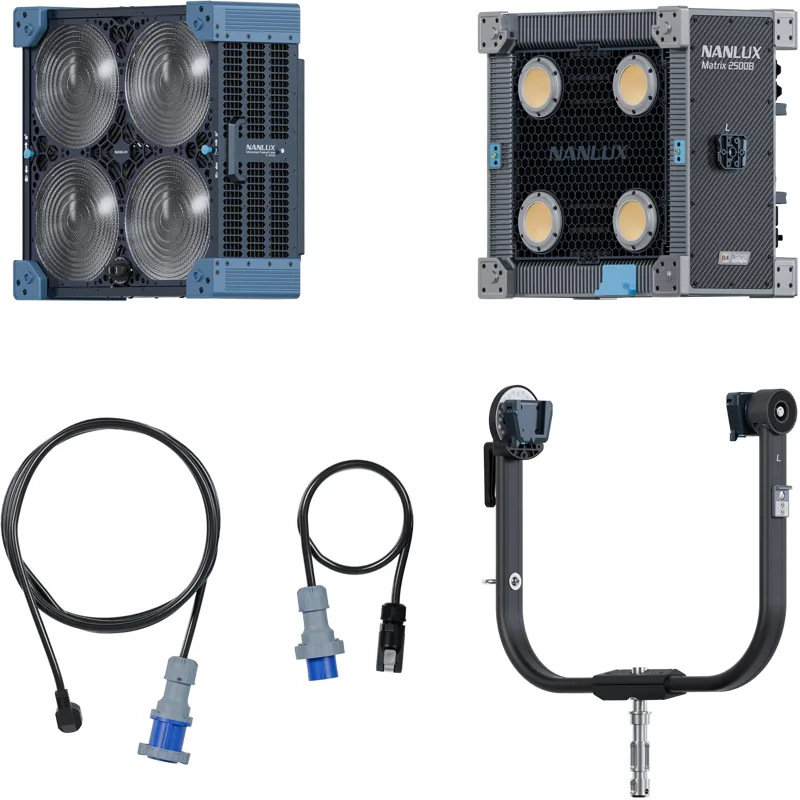

Included in the Box
- Matrix 2500B x 1
- Yoke x 1
- Motorized Fresnel Lens FL-MT25 x 1
- 7.5 m AC Power Cable x 1
- User Manual x 1
