NANLUX Evoke Matrix 2500B Bi-color Multi-Source Spot Light Kit in Flight Case
The NANLUX Evoke Matrix 2500B flight case kit is a transport-ready version of the 2500 W bi-color Matrix 2500B, designed for rental companies, lighting professionals, and large-scale productions requiring a powerful white light source delivered in a protective flight case.
The Matrix 2500B is an integrated four-head fixture intended for multi-unit lighting systems. It utilizes the NANLUX Nebula B4 light engine, combining four types of white light chips to achieve a CCT range from 2700 K to 6500 K with green/magenta color adjustment of +/-80. The device supports both CCT and effects modes, providing a strong and precise bi-color light source for large spaces, reflected lighting, accent lighting, and background illumination.
Power is a key advantage of the Matrix 2500B. It produces 13,470 lux at 3 meters distance at 5600 K using only the light source, and 103,000 lux at 3 meters at 5600 K with the included motorized Fresnel lens FL-MT25 at a 16° beam angle. The motorized Fresnel lens offers a zoom range from 16° to 48° and allows remote beam angle adjustment, solving manual adjustment issues when fixtures are mounted high or used in larger lighting systems.
The all-in-one design integrates the control unit and power supply, requiring only a single power cable for installation. The compact lamp layout is engineered so that when multiple Matrix fixtures are placed together, the distance between adjacent fixtures precisely matches the internal lamp layout of each unit. This creates a compact arrangement and helps produce a more uniform light beam in lighting systems.
Using an additional four-light frame, four Matrix fixtures can be combined into a 10,000 W configuration, where a 4-way power distribution cable and EXT port cables simplify power supply and synchronized control. Multiple fixture blocks can also be connected together on truss systems to create a larger modular lighting matrix.

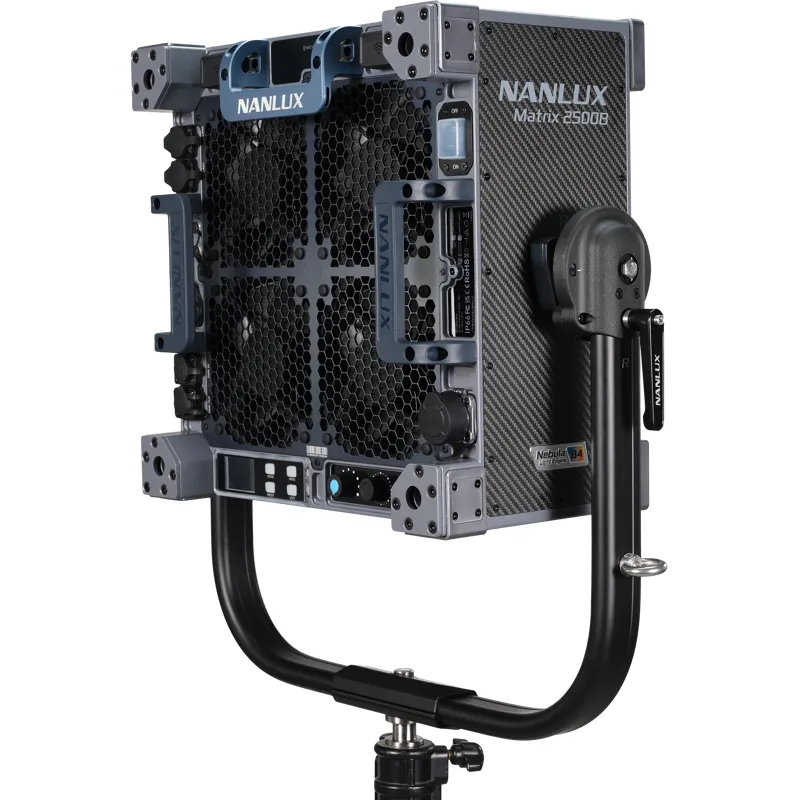

The Matrix 2500B is constructed from a single-piece magnesium alloy housing and meets IP66 rating. It is designed for reliable operation in rain, high temperature, and dusty conditions. The airflow structure from front to back helps manage heat buildup in complex lighting systems, ensuring continuous operation under heavy load. Four fan modes are available: Smart, Full Speed, Low Speed, and Off, allowing users to balance cooling performance and noise requirements.
The device supports eight control methods: built-in, remote control, wired control panel, NANLINK app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and NFC. It also features a new accessory mount with electronic contacts that enable the device to recognize supported modifiers and provide specialized motorized accessory operation.
Main Specifications:
- Rated Power: 2500 W
- Input Voltage/Current: AC 100–240 V / 50–60 Hz / 28 A
- CCT: 2700 K–6500 K, Green/Magenta +/-80
- CRI: Average 98
- TLCI: Average 98
- TM-30 Rf: Average 95
- TM-30 Rg: Average 100
- Dimming: 0.0%–100.0% with 0.1% steps
- Fixture Dimensions: 399 x 399 x 234 mm
- Fixture Weight: 16.51 kg
- Yoke Weight: 2.25 kg
- FL-MT25 Weight: 4.04 kg
- Flight Case Dimensions: 790 x 670 x 565 mm

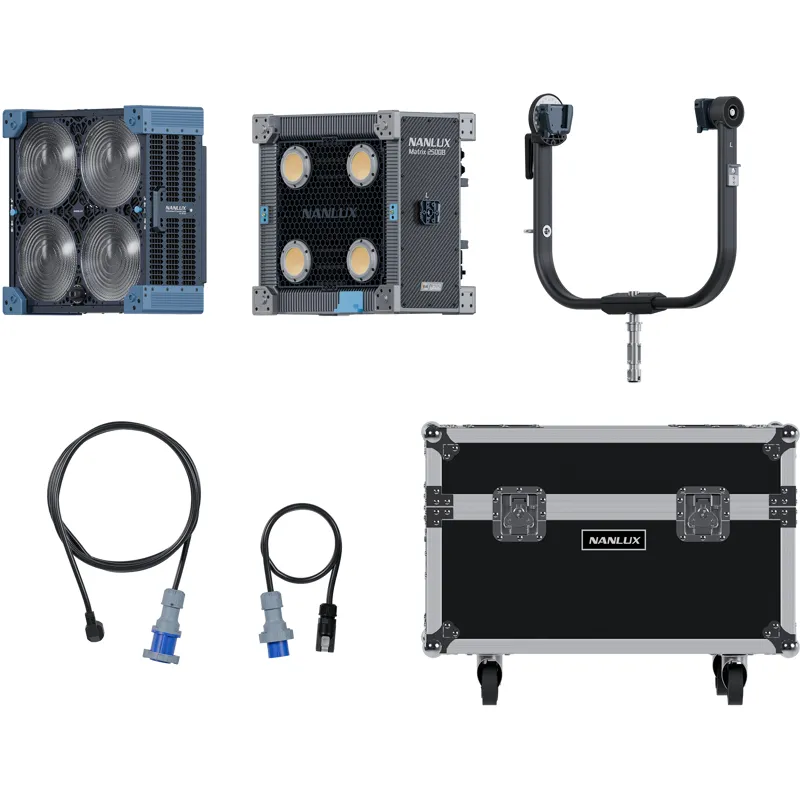

Included in the Kit:
- Matrix 2500B x 1
- Yoke x 1
- FL-MT25 Motorized Fresnel Lens x 1
- 7.5 m AC Power Cable x 1
- Flight Case x 1
- User Manual x 1
