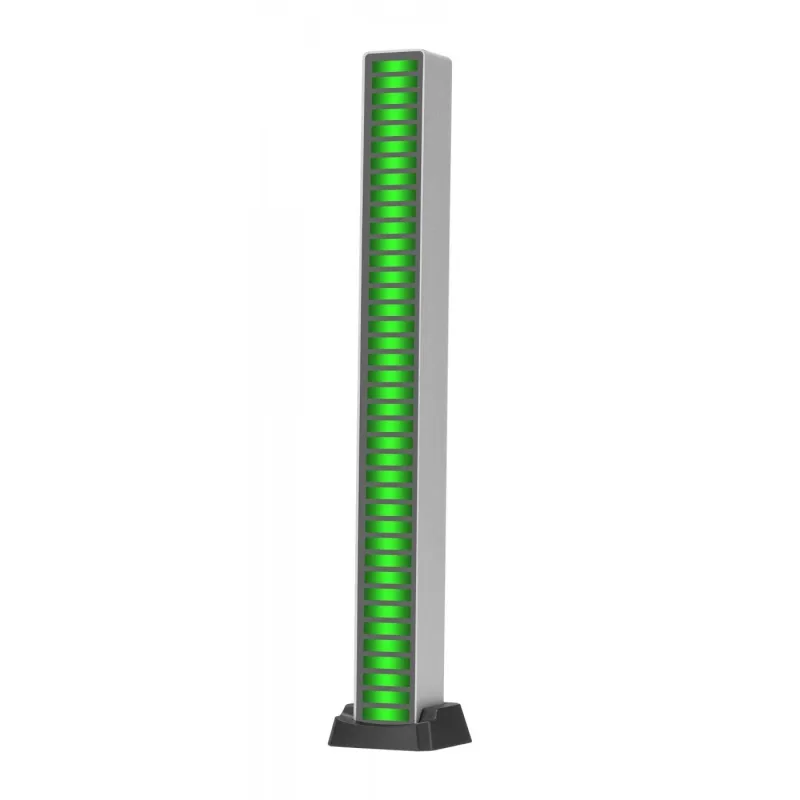

Redleaf 40LED RGB Equalizer, Silver

Sound-responsive RGB light column

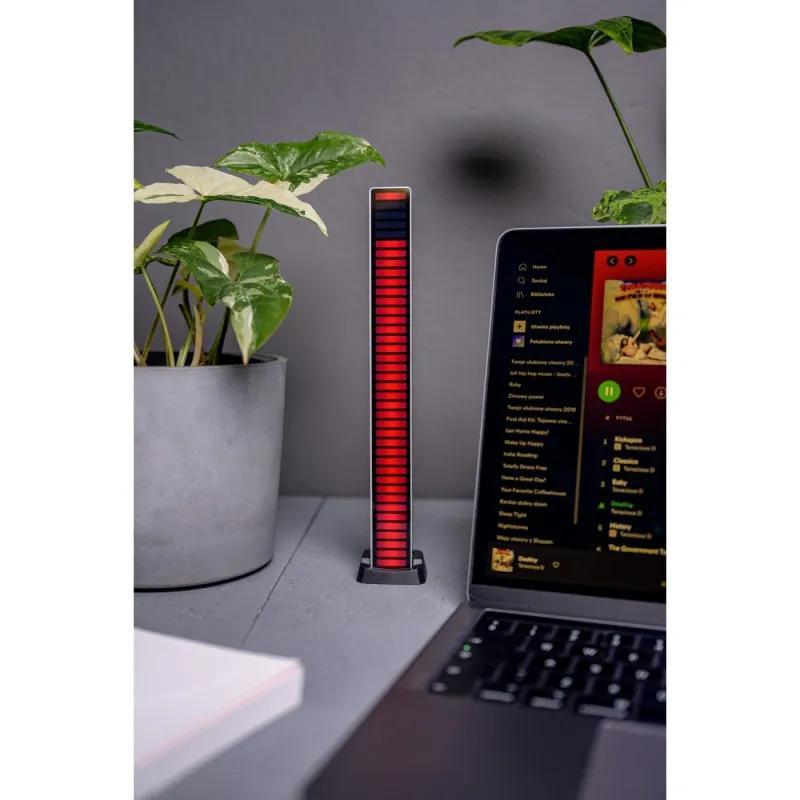

The silver Redleaf 40LED RGB Equalizer is a light column with 40 LEDs that responds to sound in real time. Its coloured animations can emphasise the rhythm of music and add ambient lighting to a home, office, car or recording studio. It can also complement a home theatre or gaming setup. Sound recognition is handled by a 32-bit ARM processor, while the built-in high-sensitivity microphone features noise cancellation and automatic gain control (AGC) to adjust sensitivity to the sound level.

Lighting modes and control

• 9 sound-visualisation modes, each with 17 preset colour programmes, for up to 153 combinations.
• 12 predefined colours and an in-app colour wheel for selecting custom shades.
• Five speed settings for animations and four brightness settings.

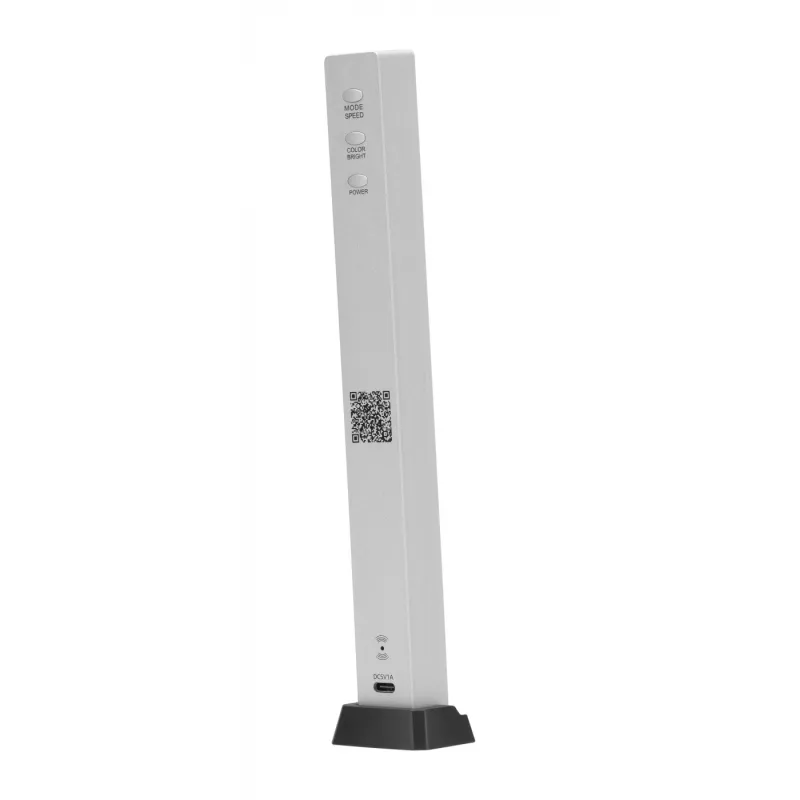

• Control using the physical buttons on the rear or the Colorful Lights app for iOS and Android.
• The app adjusts sensitivity, animation speed, colours and modes, and can control several Redleaf equalizers simultaneously.

Charging and mounting

The built-in rechargeable battery charges through the USB-C port using a 5 V / 1 A power source. The included 1 m USB-A to USB-C cable can be connected to a power bank, computer USB port or charger. LEDs indicate the charging level. Position the panel on the included stand or attach it to a dashboard, monitor or other flat surface using the included double-sided mounting tape.

Specifications

• Model: Redleaf 40LED
• Colour: Silver
• Charging input: DC 5 V / 1 A
• Charging port: USB-C
• Processor: 32-bit ARM
• Number of LEDs: 40
• Bandwidth: 100 Hz–16 kHz
• Operating modes: 9
• Programmes per mode: 17
• Predefined colours: 12
• Control: Physical buttons and mobile app
• Optical radiation characteristics (wavelength):
  • Red light: 620–625 nm
  • Green light: 625 nm
  • Green light: 520–525 nm
  • Blue light: 460–470 nm
• Optical radiation characteristics (brightness):
  • Red light: 450–550 nm
  • Green light: 450–550 nm
  • Green light: 1300–1500 nm
• Dimensions: 225 × 25 × 18.6 mm
• Weight: 135 g

In the box

• Redleaf 40LED RGB light column, silver
• USB-A to USB-C cable, 1 m
• USB-C cable
• Stand
• Double-sided mounting tape
