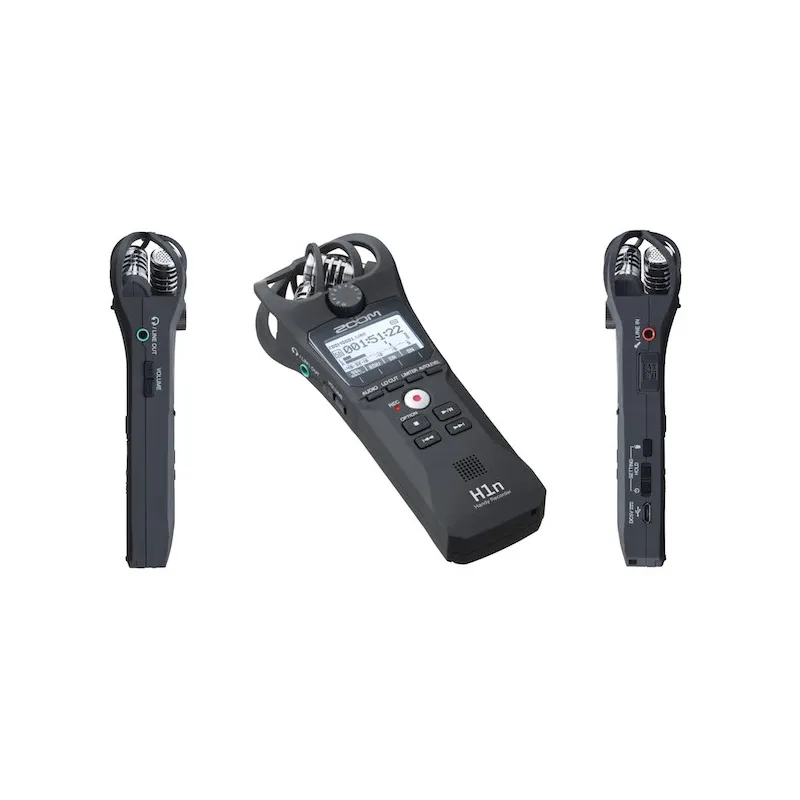

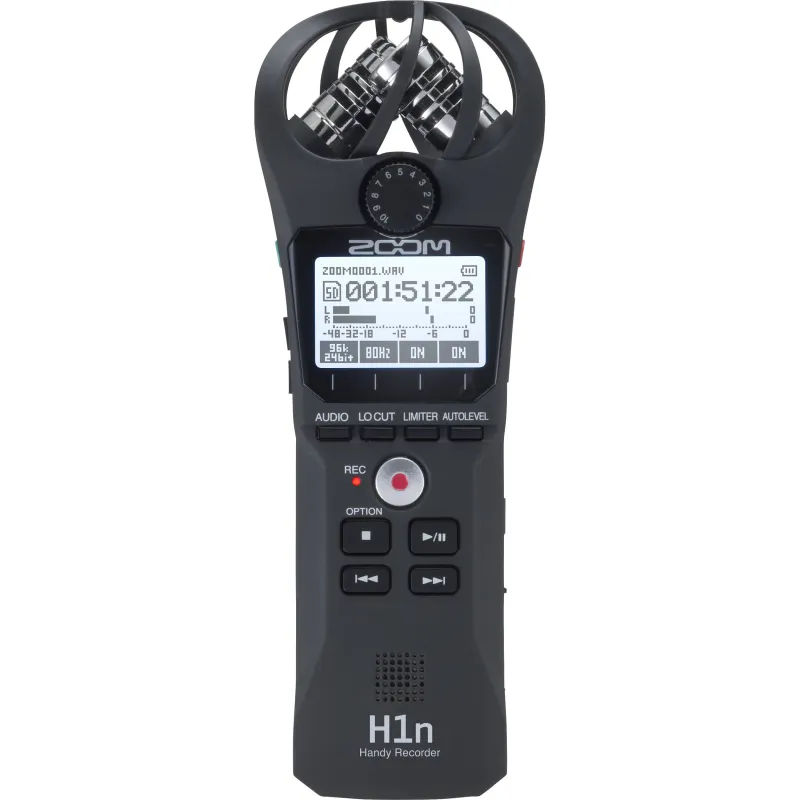

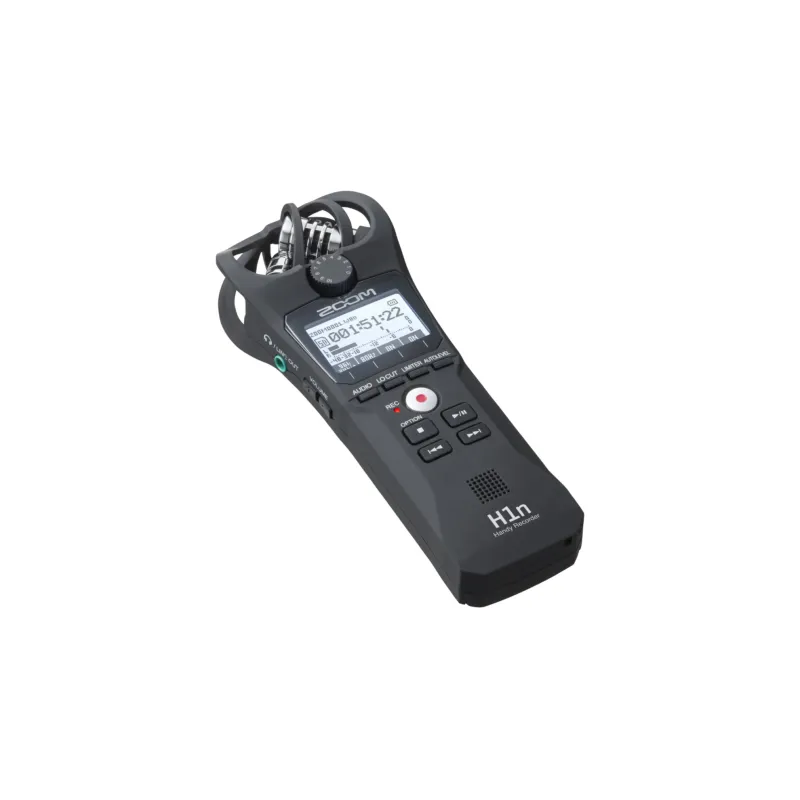

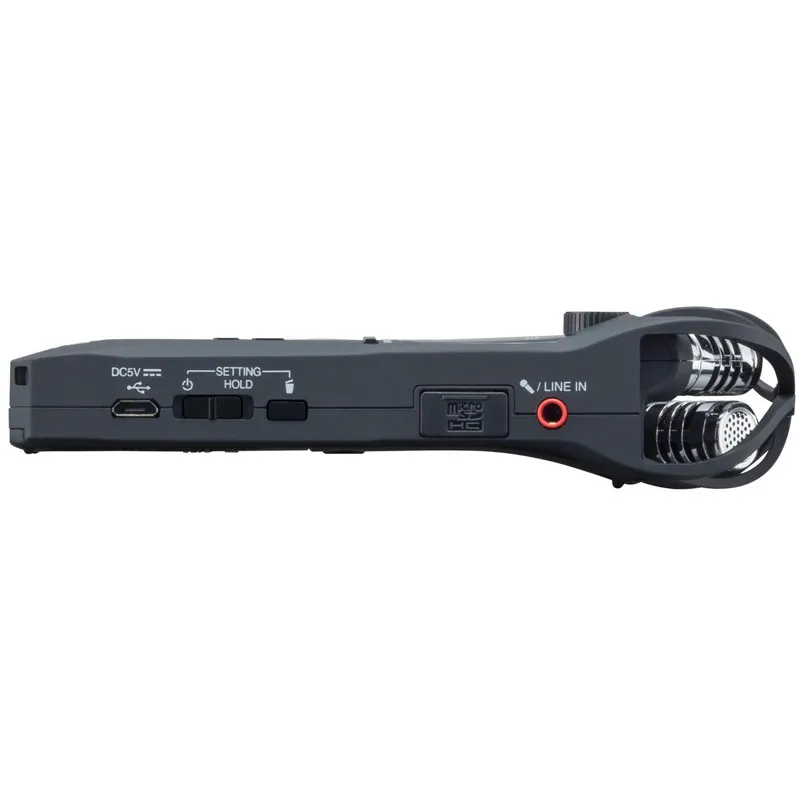

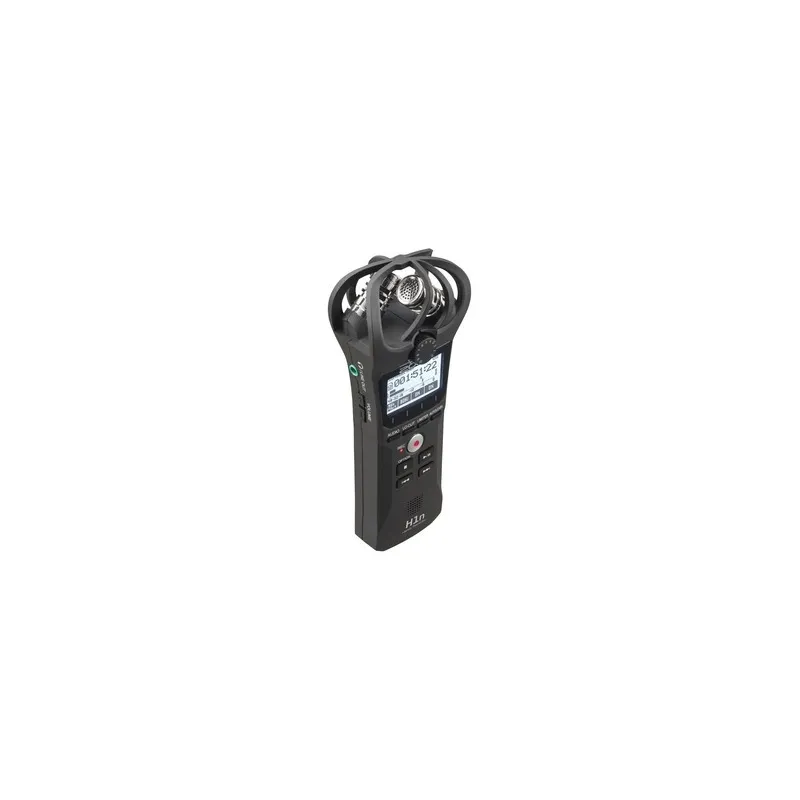

Zoom H1n Matte Black Handy Recorder

Included Accessories

• Memory card for audio recording

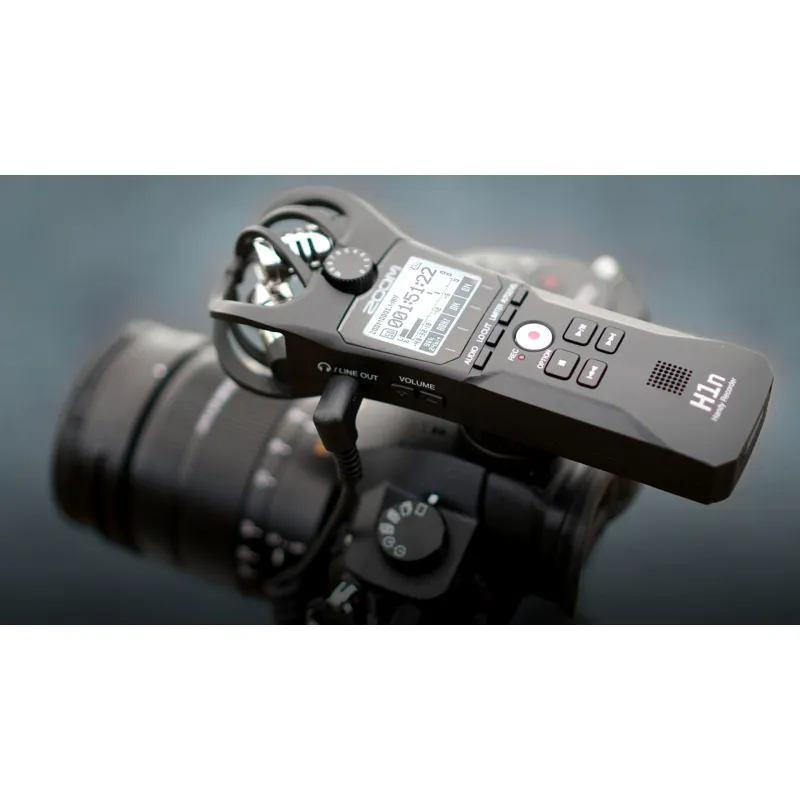

• 3.5 mm cable for camera connection (enables simultaneous recording on camera and recorder)
• Hot shoe holder to mount the recorder on a camera

Product Features

The Zoom H1n redefines portable recording with its stylish X/Y microphone enclosure, designed for convenience and versatility. It is an essential tool for creators, offering simple operation with enhanced playback and control features.

Durably built with high-quality stereo condenser microphones, tone and slate generators, it is ideal for DSLR filmmakers and field recording. The graphic LCD display, one-touch button controls, and localized menus facilitate quick recording of music ideas, film audio, lectures, podcasts, and more.

Key Features:

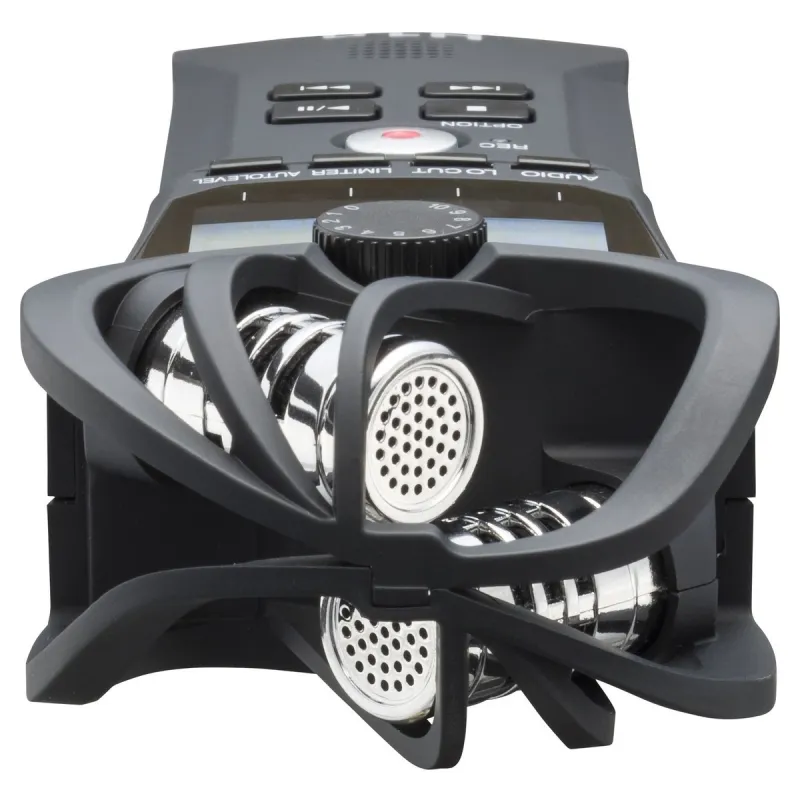

• High-quality X/Y condenser microphones for crystal clear stereo recording
• High-performance graphic LCD display with one-touch button controls
• Multi-language user menu supporting German, Chinese, Japanese, French, and Spanish
• Advanced limiter for distortion-free recording up to 120 dB SPL
• Optional USB audio interface operation (USB class compliant)
• Powered by 2 AAA batteries for up to 10 hours continuous use
• Optional AC adapter (Zoom AD-17) for continuous power (not included)
• Playback speed control and A-B repeat playback
• Stereo Bounce feature for overdubbing new sounds over existing audio
• Auto-record, pre-record, and self-timer functions
• Supports 16 and 24 bit WAV recording at 44.1, 48, or 96 kHz, and MP3 format
• Built-in 500 mW mono speaker (8 Ω)
• ⅛” (3.5 mm) mini phone jack mic/line input
• Includes licenses for Cubase LE and WaveLab LE software

Specifications

• Simultaneous playback tracks: 2
• Simultaneous recording tracks: 2
• Functions: Lo-cut filter, limiter, test tone, slate tone, voice emphasize filter, playback position skipping, playback speed control, A-B repeat, auto REC level, marker, auto-record, pre-record, self-timer, overdubbing
• A/D conversion: 24-bit, 128x oversampling
• D/A conversion: 24-bit, 128x oversampling
• Signal processing: 32-bit
• Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32 GB)
• Display: 1.25" monochrome LCD (96 × 64 pixels)
• Built-in stereo mic: Unidirectional condenser, 90° XY stereo format; Gain: -∞ dB to +39 dB; Maximum SPL: 120 dB
• Inputs: 3.5 mm stereo phone jack; Rated input level: -∞ dB to -39 dBm; Input impedance: 2 kΩ; Plug-in power supported (2.5 V)
• Built-in speaker: 500 mW mono speaker; Output impedance: 8 Ω
• Outputs: 3.5 mm stereo phone jack (combined line/headphones); Rated output level: 20 mW + 20 mW into 32 Ω load; Output impedance: ≥10 kΩ
• USB: Micro USB port; Mass storage class operation (USB 2.0 high speed); Audio interface operation at 44.1/48 kHz sampling rate, 16-bit depth, 2-in/2-out; Transfer method: asynchronous

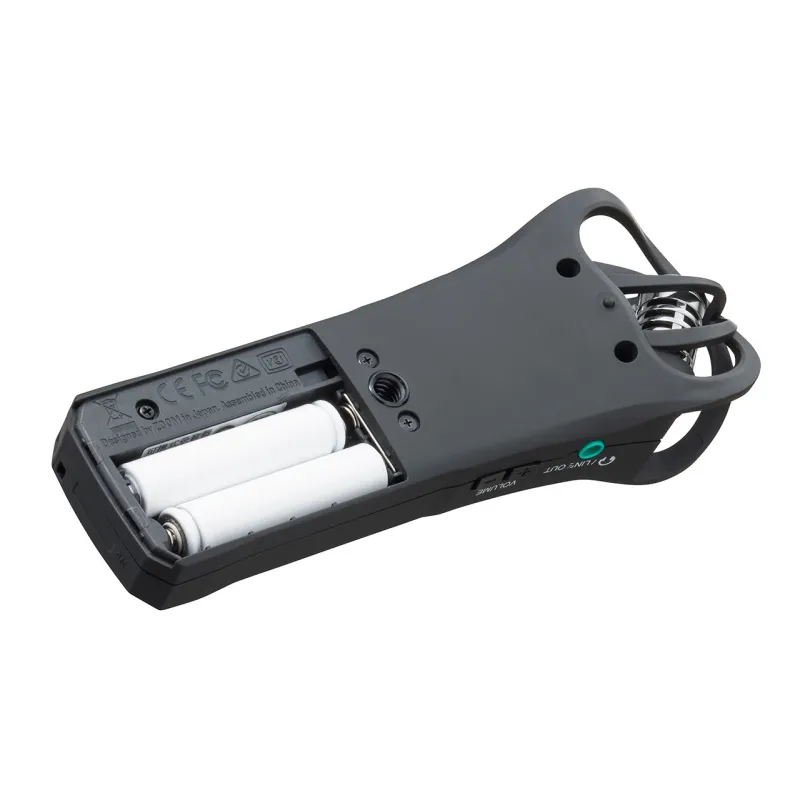

• Power requirements: 2 AAA batteries (alkaline, NiMH rechargeable, or lithium); Optional AC adapter (Zoom AD-17): DC 5V/1A; USB bus power supported
• Battery life (alkaline): Approximately 10 hours continuous recording using built-in mic at 44.1 kHz/16-bit
• Dimensions: 50 mm (W) × 137.5 mm (D) × 32 mm (H)
• Weight: 60 g (without batteries)
