Endoscope USB-C Redleaf RDE-307UR - rigid 7 m cable

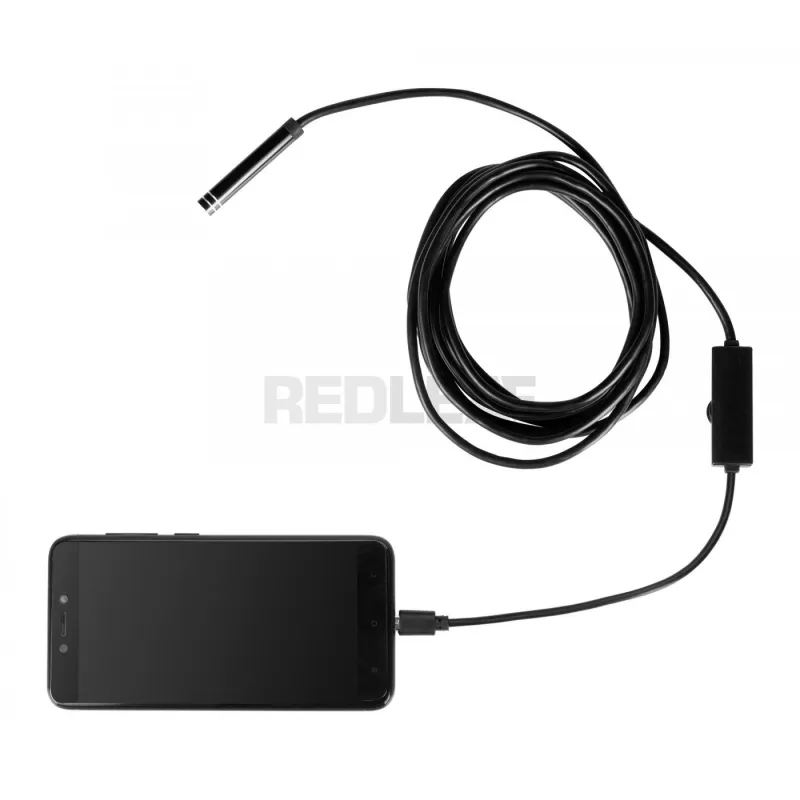

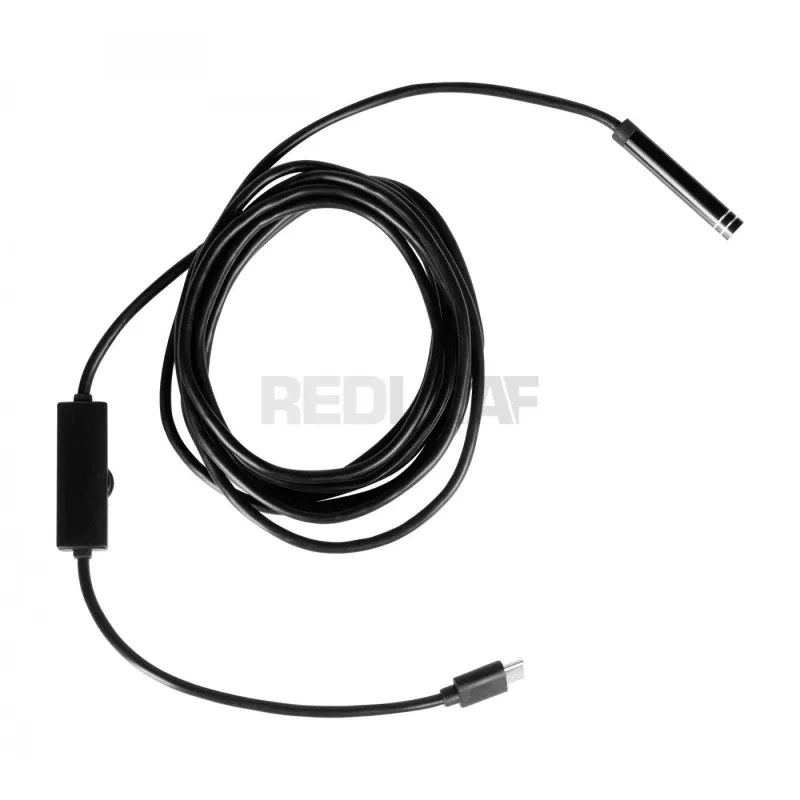

The Redleaf RDE-307UR USB-C Endoscope

The Redleaf RDE-307UR USB-C Endoscope is a unique device that allows you to film and take pictures in hard-to-reach places. With a 7-foot rigid cable and a small 8-millimeter camera, it's a kit that will allow you to capture video in nooks and crannies you could never reach with a smartphone, camera, or even the smallest sports camera.

Communications

The Redleaf RDE-307UR endoscope uses a USB-C interface, so we can connect it to a wide variety of devices equipped with this increasingly popular connector. The inspection camera works with Windows (from version XP), Android (compatible with the OTG standard), and macOS. The manufacturer has also prepared dedicated programs to facilitate the camera operation both from smartphones and tablets (CameraFi and An98 applications available free of charge in Google Play) and from computers (ViewPlayCap for Windows). The kit, along with the endoscope, includes two adapters to connect it to devices equipped with USB type A and micro USB ports.

Image Quality and Filming in the Dark

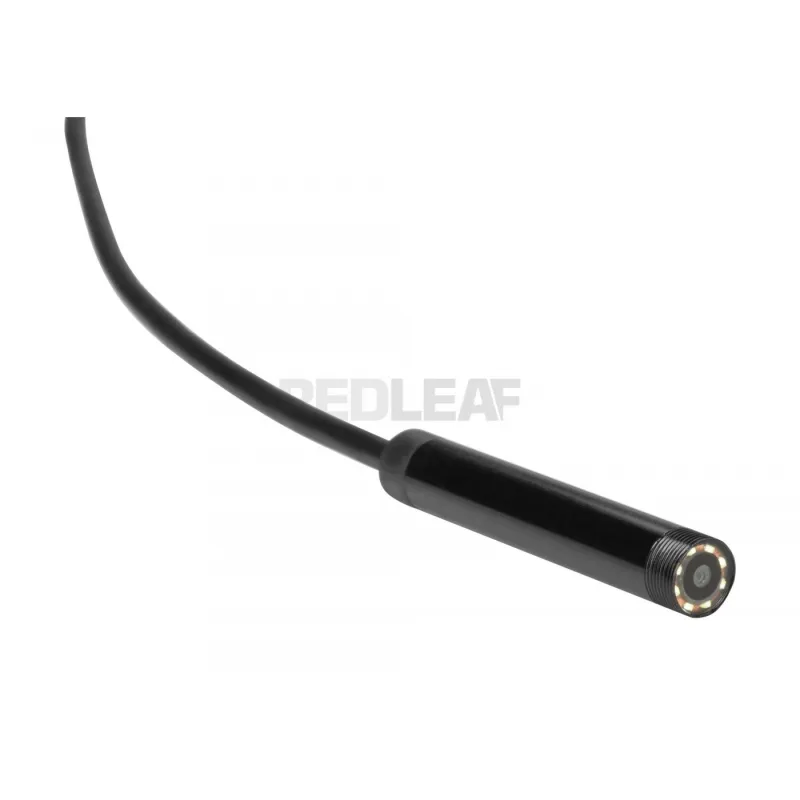

The camera, installed in the Redleaf RDE-307UR endoscope, allows you to record videos and photos with a maximum resolution of 1280 by 720 pixels. LEDs, placed around the lens, allow recording in total darkness. This allows you to see the finest details of filmed objects, even in places where there is no light at all. The power of the backlight can also be adjusted using a dedicated, physical knob.

Multifunctional Caps

The set comes with special overlays that will further extend the practical use of the Redleaf RDE-307UR endoscope. A magnet and hook, placed on small wires, will allow you to extract small objects from hard-to-reach places. In turn, the cap with a mirror will turn the endoscope into a small periscope, which will allow you to film and take pictures from a different angle.

Stiff Cable

The use of a rigid cable allows you to conveniently model its positioning. This makes it easier to adapt the shape of the cable to the space where you want to use it.

Water and Dust Resistance

The device meets the IP67 standard, which means that the endoscope can be submerged in water. This will be useful, for example, when diagnosing problems with leaking or clogged plumbing.

Specification

• Model: Redleaf RDE-307UR
• Lens diameter: 8 mm
• Viewing angle: 70°
• Sharpening range: 4 to 6 cm
• Video resolution:
  • 160 x 120 30 fps
  • 320 x 240 30 fps
  • 352 x 288 30 fps
  • 640 x 480 30 fps
  • 1280 x 720 30 fps
  • 1280 x 960 30 fps
• Image resolution:
  • 160 x 120 px
  • 320 x 240 px
  • 352 x 288 px
  • 640 x 480 px
  • 1280 x 720 px
  • 1280 x 960 px
• Colour image: Yes
• Cable length: 7 m
• Interface: USB-C
• Lighting: 8 LEDs with adjustable light intensity
• Power supply: From the connected device via USB OTG
• Waterproof rating: IP67
• Supported operating systems:
  • Windows 2000, XP, Vista, 7, 8
  • macOS
  • Android (with OTG support)

Kit Contents

• Redleaf USB-C endoscope RDE-307UR 7m rigid cable
• Adapter micro USB USB C
• USB A USB C adapter
• Cap with mirror
• Cap with hook
• Cap with magnet
• A cap to allow mounting of the wires
