Panasonic LEICA DG SUMMILUX 9mm F1.7 ASPH (H-X09)
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Lenses |
| Lens mount | Micro Four Thirds (MFT) |
| Lens Format Coverage | Four Thirds |
| Lens Design | Prime Lenses |
| Lens focus length, mm | 9 |
| Focus Type | Manual Focus |
| Image Stabilization | No |
| Lens type | wideangle |
| Filter size | 55mm |
| Weight, gr | 130 |
| Maximum Aperture | f/1.7 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Optical Design and Performance

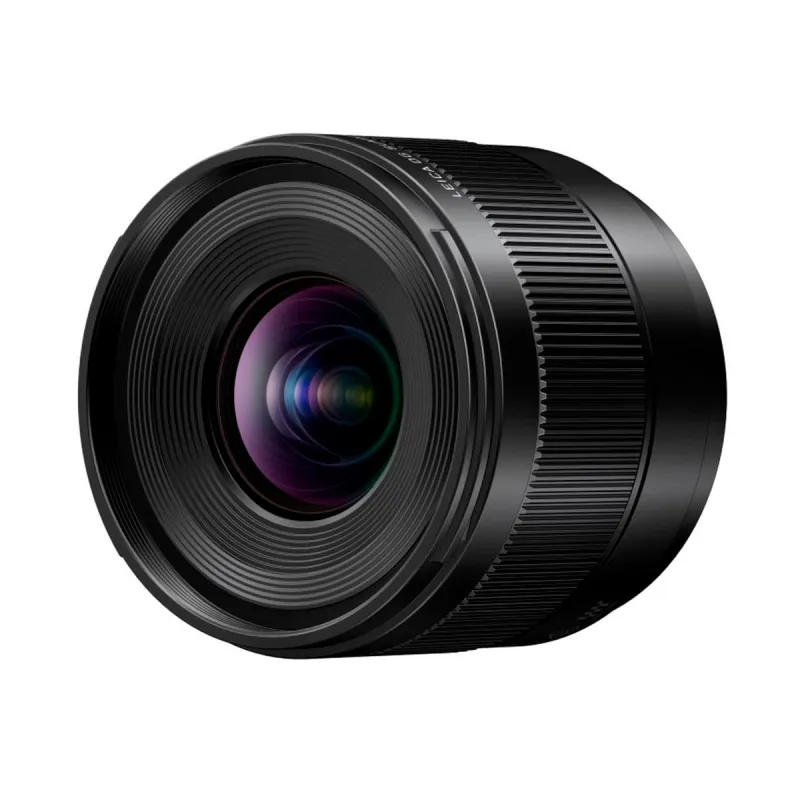

The Panasonic LEICA DG SUMMILUX 9mm F1.7 ASPH (H-X09) is a Micro Four Thirds ultra-wide-angle lens designed for professional photographers and videographers. It features a high descriptive performance with smooth, beautiful bokeh for both photo and video applications. The lens construction includes 12 elements in 9 groups, incorporating 2 aspherical lenses, 2 extra-low dispersion (ED) lenses, and 1 ultra-high refractive (UHR) lens to minimize aberrations and ensure superb resolution.
Key Optical Specifications
- Focal length: 9mm (equivalent to 18mm on 35mm format)
- Maximum aperture: F1.7
- Minimum aperture: F16
- Number of diaphragm blades: 7
- Minimum focusing distance: 9.5 cm
- Maximum magnification ratio: 0.25x (0.5x equivalent on 35mm format)
- Filter thread size: 55 mm
Design and Build
This compact and lightweight lens measures 60.8 mm in diameter and 52 mm in length, weighing approximately 130 grams. It features a rugged, dust-, splash-, and freeze-resistant design, capable of operating in temperatures as low as -10°C. The lens is coated with fluorine to resist dirt and smudges, making it suitable for demanding field use under harsh conditions.
Video and Autofocus Features
- Optimized for video recording with minimal focus breathing and smooth aperture control.
- Fast and accurate autofocus with linear and non-linear focus ring control for precise manual focusing.
- Dynamic aperture control for smooth exposure transitions during video capture.
- Focus breathing suppression to maintain consistent framing while focusing.
Usage and Applications
The lens excels in ultra-wide-angle photography and videography, offering expansive 100° diagonal angle of view. Its bright F1.7 aperture allows excellent low-light performance and creative depth-of-field control. The close focusing capability and high magnification ratio enable detailed macro photography, capturing fine details with beautiful bokeh. This versatility makes it ideal for landscape, architecture, street photography, and video content creation.
