X-Rite i1Publish (software only)

X-Rite i1Publish Software

i1Publish Software offers users an unprecedented level of flexibility and functionality when combined with an i1iSis device for creating custom profiles and addressing the needs of digital imaging workflows.

i1Publish Software boasts a number of unique colour management capabilities that allow users to produce professional, precise custom profiles for monitors, printers, and projectors. All levels of expertise are covered with the option to choose either the basic wizard-driven or the advanced interface, with both producing the same outstanding results.

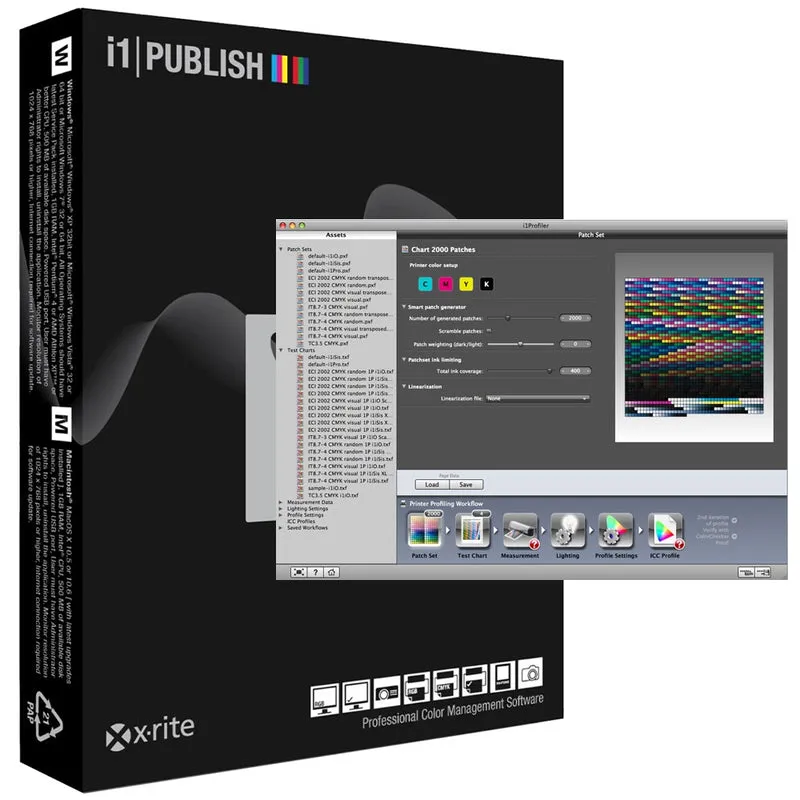

i1Publish Profiling

i1Publish Software is driven by X-Rite's i1Prism engine, whose unique profiling technology allows users to build print profiles for up to 8-Colour workflows (RGB, CMYK & CMYK + any 4). This technology is extremely robust, allowing further optimization based on any combination of images, spot colours, or captured colours.

Users can also select from any of the included PANTONE colour libraries, including the new Plus Series.

i1Profiler Software Specifications

Macintosh

• MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)
• 512MB RAM (2GB recommended)
• Intel Core Duo Processor
• Up to 500MB of available disk space (depending on components installed)
• Powered USB Port
• Monitor resolution of 1024x768 pixels or higher
• Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
• DVD drive or high-speed internet connection required for software install, download, and automatic software update
• User must have administrator rights to install and uninstall application

Windows

• Microsoft Windows 7 32 or 64 bit
• Microsoft Windows 8 32 or 64 bit
• Microsoft Windows 8.1 32 or 64 bit
• Microsoft Windows 10 32 or 64 bit
• All operating systems require latest updates and Service Packs installed
• 512MB RAM (2GB recommended)
• Intel Core 2 Duo or AMD Athlon XP or better CPU
• Up to 500MB of available disk space (depending on components installed)
• Powered USB Port
• Monitor resolution of 1024x768 pixels or higher
• Latest drivers for video card installed
• Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
• Network adaptor installed and driver loaded
• DVD drive or high-speed internet connection required for software install, download, and automatic software update
• User must have administrator rights to install and uninstall application

Scanner Target Support

• ColorChecker Classic and ColorChecker Digital SG (X-Rite)
• Reflective IT 8.7/2 (X-Rite, LaserSoft and Wolf Faust)
• Transmissive 4x5 and 35mm IT 8.7/1 (X-Rite, Kodak, LaserSoft and Wolf Faust)

Language Versions

• Chinese (Simplified)
• English
• French
• German
• Italian
• Japanese
• Portuguese
• Spanish
• Russian

i1Pro Hardware Specifications

Spectral Engine

• i1 technology with built-in wavelengths check
• Spectral analyser Holographic diffraction grating with 128-pixel diode array
• Spectral Range 380 - 730 nm
• Physical sampling interval 3.5 nm
• Optical resolution 10 nm
• Spectral reporting 380 ... 730 nm in 10 nm steps
• Measurement Frequency in scanning mode 200 measurements per second

Optics

• Measurement geometry 45/0 ring illumination optics, ISO 13655:2009
• Measurement aperture 4.5 mm (0.18) diameter (effective measurement aperture during scanning depends on patch size and measurement speed)
• Illumination Spot Size 3.5 mm (0.14)
• Light source Gas filled tungsten (illuminant type A) and UV LED

Reflectance Measurement

• Data Format Spectral Reflectance dimensionless
• Measurement Conditions
• UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2
• OBC Optical Brightener Compensation (OBC) with i1Profiler software
• Calibration Manual on external ceramic white reference
• Measurement Background white, ISO 13655:2009; for measurements on backup board
• Minimal Media Thickness 3 mm (0.12) on backup board
• Minimal Patch Size in Scanning Mode 7 x 10 mm (0.28 x 0.39) (Width x Height) with sensor ruler 10 x 10 mm (0.39 x 0.39) (Width x Height) without sensor ruler
• Inter-instrument agreement 0.4 E94* average, 1.0 E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23C (73.4F) on 12 BCRA tiles (D50, 2))
• Short-term repeatability 0.1 E94* on white (D50, 2, mean of 10 measurements every 3 seconds on white)

Emissive Measurement

• Data format Spectral radiance (mW/nm/m2/sr); Luminance Y (cd/m2)
• Measurement range 0.2 - 1200 cd/m2 on a typical LCD-Monitor
• Short-term repeatability x,y +/- 0.002 typical (5000K, 80 cd/m2)

Ambient Light Measurement

• Data Format spectral irradiance mW/nm/m2, illuminance lux
• Type Cosine-corrected diffuse light measurement head

Interface, Dimensions and Weight

• Interface USB 1.1
• Power supply Device powered by USB. No additional charger or battery required. USB 1.1 high power device.

Physical Dimensions

• i1Pro device Length 155 mm, width 66 mm, height 67 mm (6.1 x 2.6 x 2.6)
• i1 Ruler Length 337 mm, width 102 mm (13.3 x 4.0)
• i1 Backup Board 355 mm x 265 mm (14.0 x 10.4) folded or 355 mm x 400 mm (14.0 x 15.7) unfolded
• Weight i1Pro device 245 g (8.6 oz)

i1Publish includes i1Profiler v1.x software for monitors, projectors, scanners, and RGB, CMYK and CMYK+4 printers, ColorChecker Camera Calibration software and mini ColorChecker Classic target for cameras, ColorChecker Proof Target, and PANTONE Color Manager.
