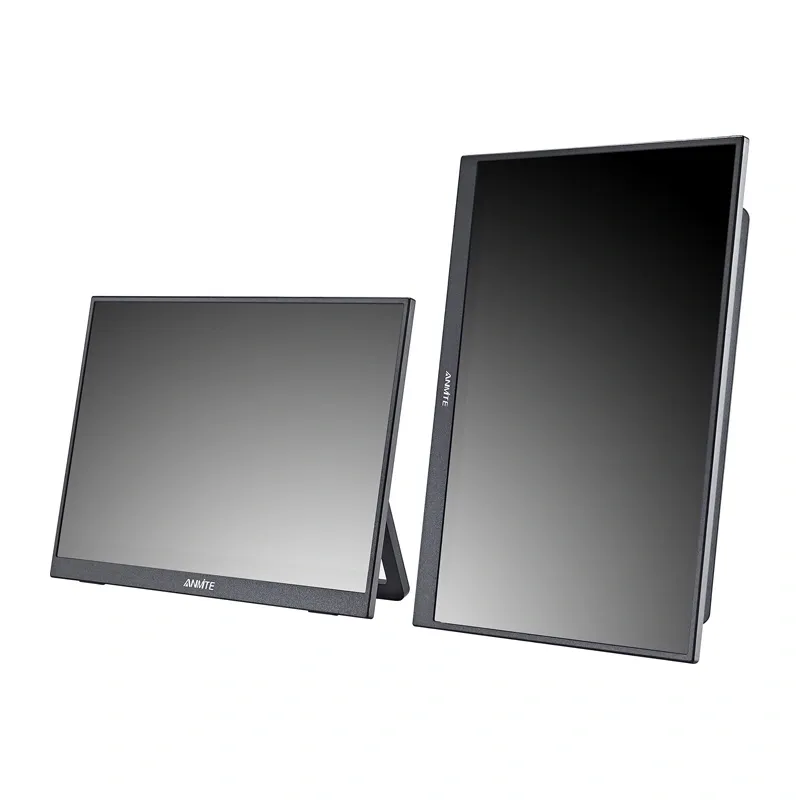

ANMITE A160W03H 16-inch Portable Monitor

ANMITE A160W03H 16-inch Portable Monitor

The ANMITE A160W03H is a 16-inch portable monitor featuring an IPS LED backlit panel with a resolution of 1920 × 1200 pixels. It offers high image quality combined with a slim and lightweight design, making it ideal for mobile use. The monitor supports a refresh rate of up to 144 Hz via USB-C and 120 Hz via mini HDMI, along with a fast 1 ms response time, ensuring smooth visuals for work, entertainment, and gaming.

Display Quality and Viewing Comfort

• IPS panel with natural color reproduction and wide 178° viewing angles for consistent image clarity from various positions.
• Resolution of 1920 × 1200 provides a larger workspace than Full HD, facilitating multitasking and detailed content viewing.
• Brightness of 300 cd/m² ensures clear visibility in different lighting conditions.
• Supports refresh rates up to 144 Hz (USB-C) and 120 Hz (mini HDMI) for smooth motion display.
• 1 ms response time reduces motion blur and ghosting effects.

Portable and Adjustable Design

• Compact dimensions: 35.5 × 23.7 × 1.3 cm and lightweight at 0.81 kg for easy transport.

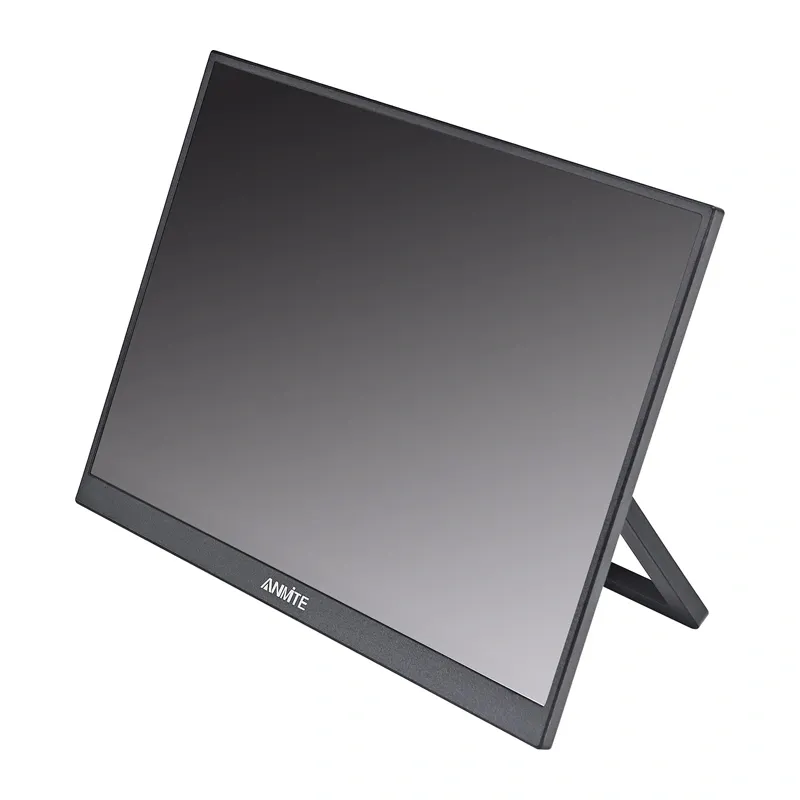

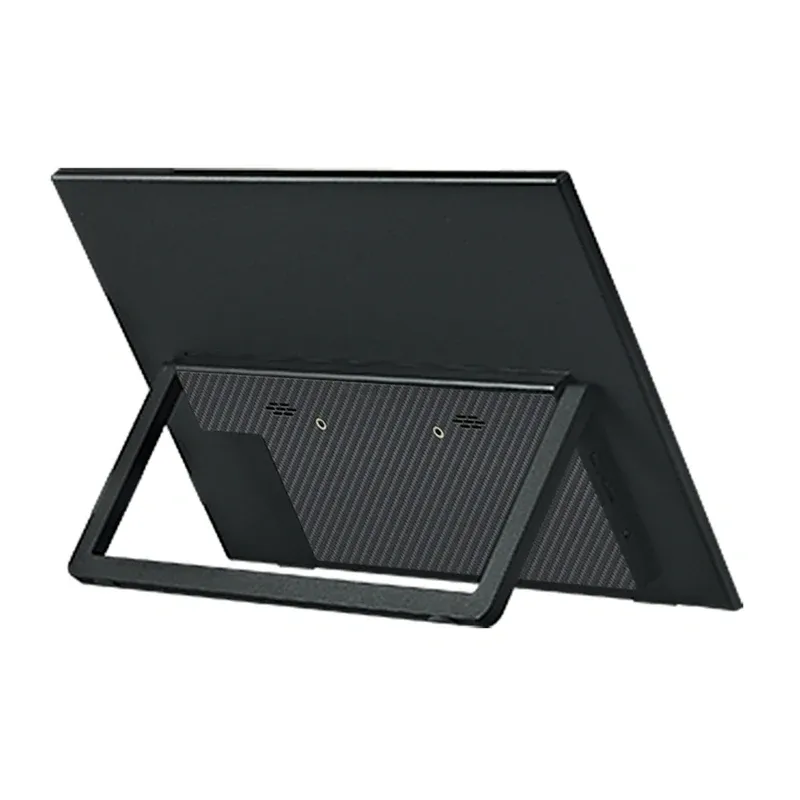

• Built-in stand with tilt adjustment up to 180° allows flexible positioning for comfortable viewing angles.

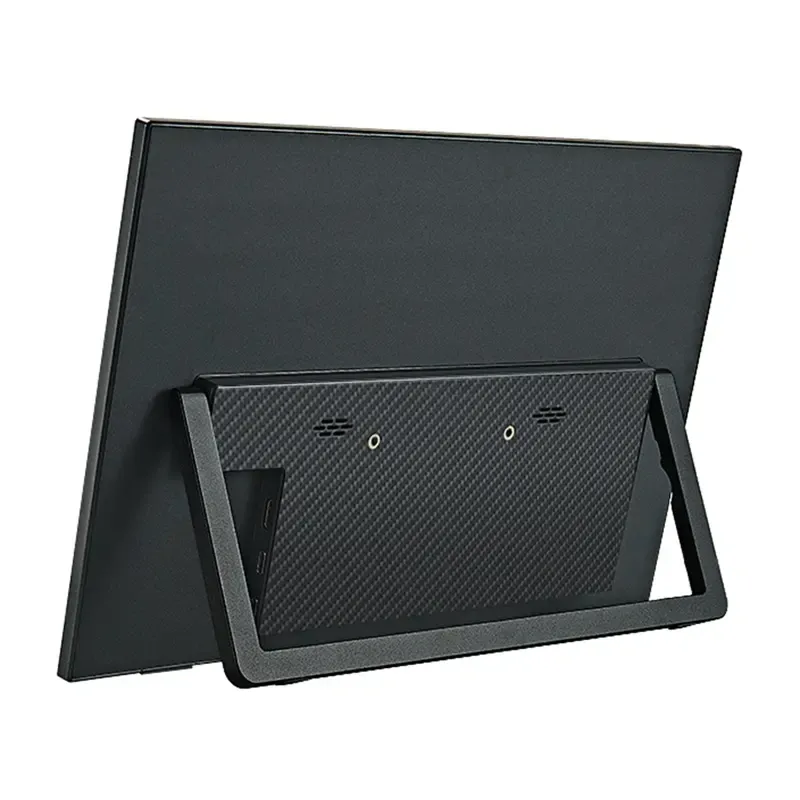

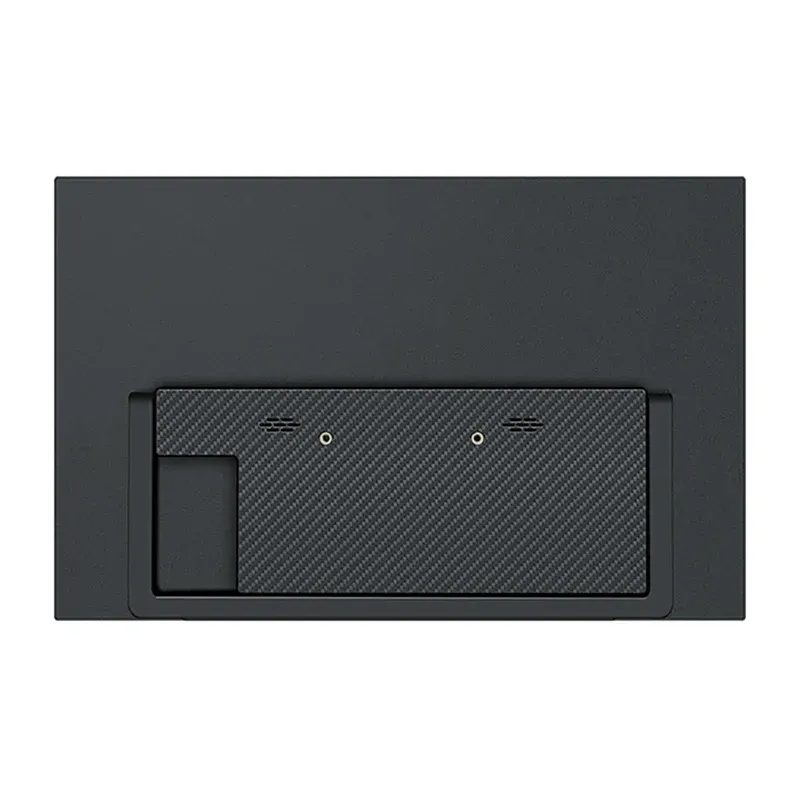

• Flat rear panel includes VESA mounting holes (7.5 × 7.5 cm) for compatibility with standard mounts.
• Constructed with durable ABS housing material.

Connectivity and Compatibility

• Equipped with two USB-C ports, one mini HDMI port, and a 3.5 mm audio output for versatile device connections.
• Compatible with smartphones, laptops, desktop PCs, tablets, Nintendo Switch, PS4, PS5, Xbox, and Android TV Box devices.
• USB-C supports direct smartphone connection, Huawei EMUI PC and Samsung DeX modes, keyboard and mouse use, and reverse charging for connected phones.
• Functions as a secondary display for laptops, enhancing productivity and entertainment on the go.

Audio and Power Requirements

• Includes two built-in stereo speakers delivering balanced sound and immersive 3D audio experience.
• Recommended to use a Power Delivery adapter with at least 30 W output to ensure stable performance, prevent brightness issues, and avoid screen flickering.

Package Contents

• ANMITE A160W03H Monitor ×1
• HDMI to Mini HDMI cable ×1
• USB-C 3.1 to USB-C cable ×1
• USB-A to USB-C cable ×1
• User manual ×1

Technical Specifications

• Manufacturer: ANMITE
• Model: A160W03H
• Screen diagonal: 16 inches
• Panel type: IPS LED Backlit
• Resolution: 1920 × 1200 pixels
• Brightness: 300 cd/m²
• Viewing angles: 178° horizontal and vertical
• Refresh rate: 144 Hz (USB-C), 120 Hz (Mini HDMI)
• Response time: 1 ms
• Net weight: 0.81 kg
• Gross weight: 1.3 kg
• Dimensions: 35.5 × 23.7 × 1.3 cm
• Thickness: 0.6 cm (thinnest point), 1.3 cm (thickest point)
• Housing material: ABS
• Ports: USB-C ×2, Mini HDMI ×1, 3.5 mm audio output ×1
• Speakers: Built-in stereo speakers
• Tilt adjustment: Up to 180°
• Mounting: VESA 7.5 × 7.5 cm
• Recommended power supply: Power Delivery 30 W or higher
