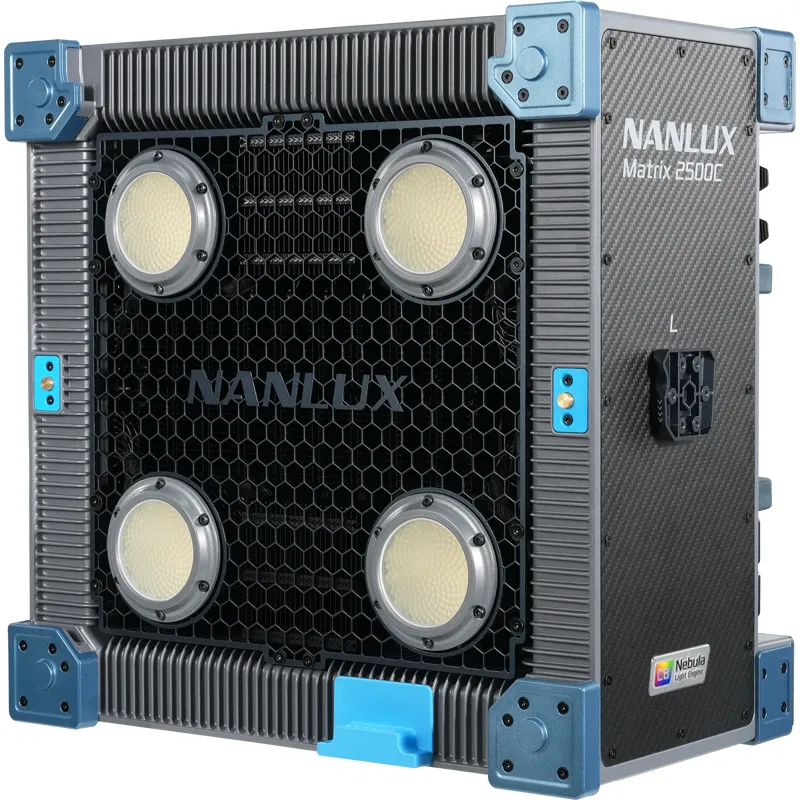

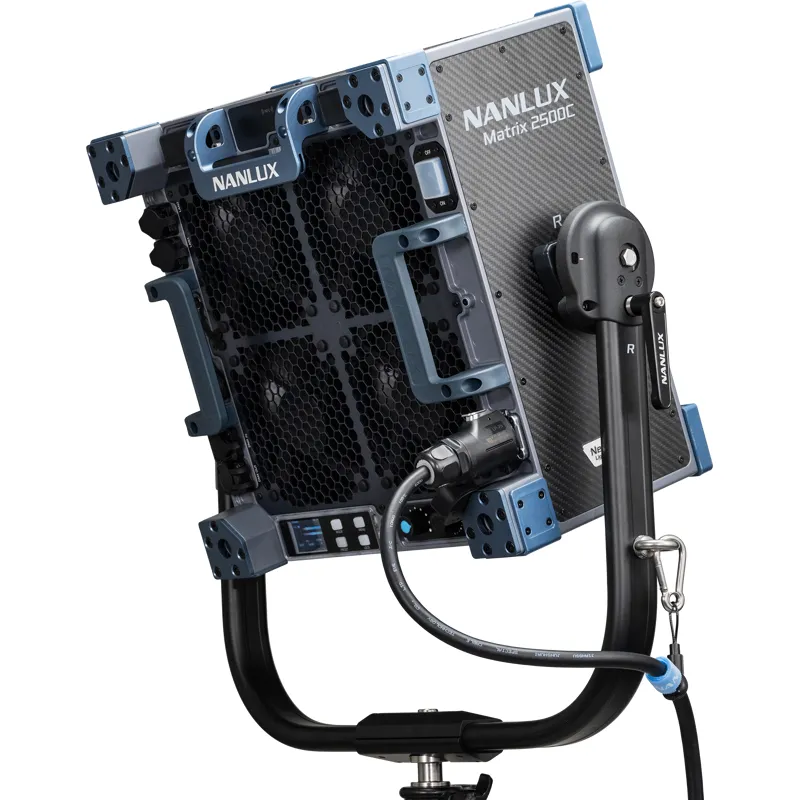

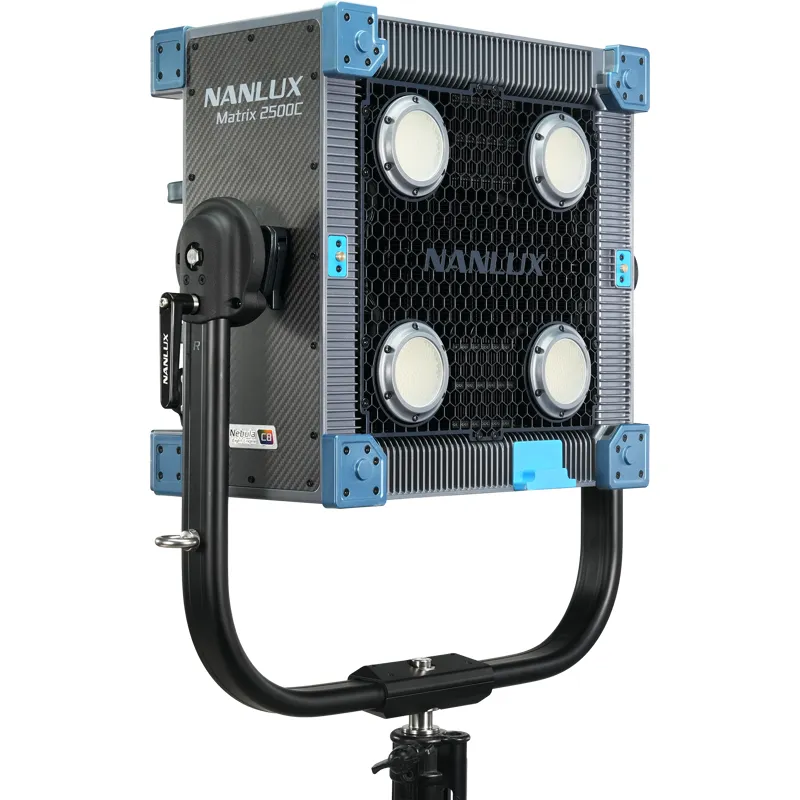

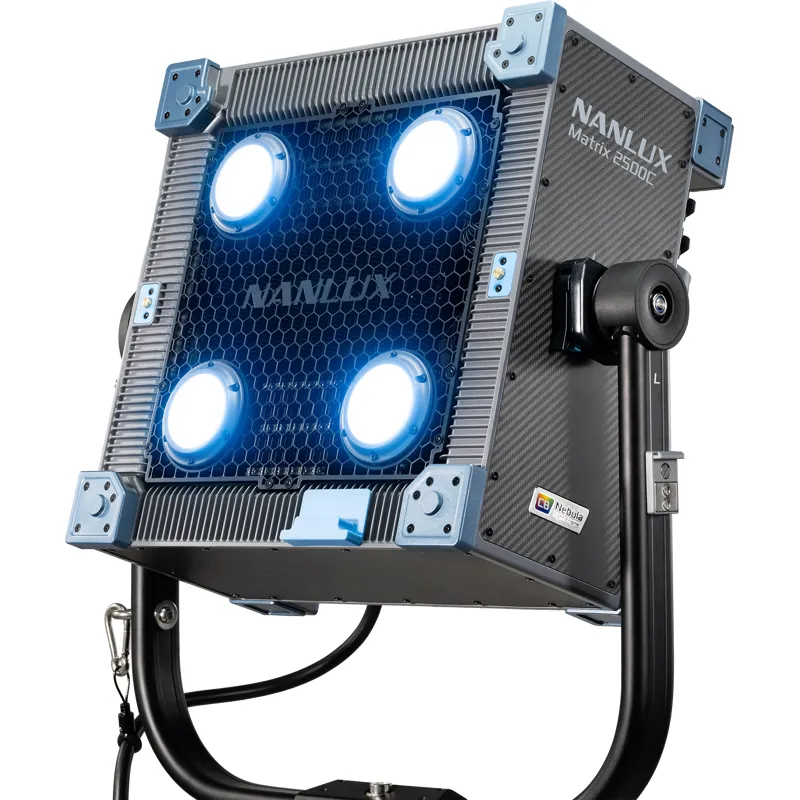

NANLUX Evoke Matrix 2500C Full-color Multi-Source Spot Light Kit in Flight Case
Professional High-Power Lighting Solution
The NANLUX Evoke Matrix 2500C kit is a transport-ready, full-color 2500 W multi-source spotlight solution designed for demanding professional film productions. It is ideal for large-scale film, television, and commercial productions, rental environments, and complex lighting systems requiring high power, full-color control, and rapid setup.
Advanced Color Engine
The Matrix 2500C utilizes the NANLUX Nebula C8 color light engine, combining dark red, red, amber, lime, green, cyan, blue, and indigo LEDs. This modern eight-color engine provides a correlated color temperature (CCT) range from 1000K to 20,000K with green/magenta adjustment of +/-200, supporting a wide color gamut, strong saturation, and accurate skin tone rendering.
Lighting Modes and Output
The device offers seven lighting modes: CCT, HSI, HSIW, RGBW, XY coordinates, Gel, and Effect. This versatility makes the Matrix 2500C suitable for precise white light work as well as complex color configurations. Using light only, the luminous flux is 9570 lux at 3 meters distance at 5600K. With the included motorized Fresnel lens FL-MT25 at a 16° beam angle, the luminous flux reaches 67,900 lux at 3 meters at 5600K. The motorized Fresnel lens features a zoom range of 16° to 48°, allowing remote beam angle adjustment for all four lenses.
Modular Design for Large-Scale Systems
The Matrix 2500C is designed to operate as part of larger modular lighting systems. Its compact size and lamp arrangement create smooth beam and shadow transitions when multiple fixtures are placed together. Using an additional four-light frame, four Matrix fixtures can be combined into a 10,000 W lighting array. Multiple arrays can also be connected on truss systems to form larger modular matrices for high-power applications.
Robust and Weather-Resistant Construction
The all-in-one housing integrates the control unit and power supply within the fixture, reducing installation complexity. The single-piece magnesium alloy housing provides durability while maintaining a relatively lightweight design for its class. The IP66 rating makes it suitable for challenging production environments, including rain, heat, and dust conditions.

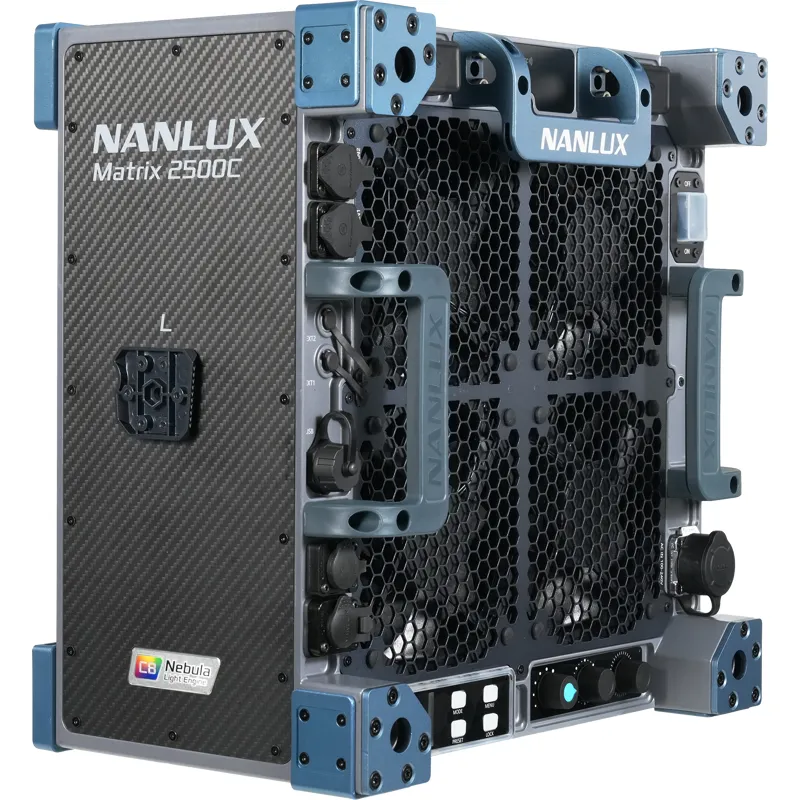

Efficient Cooling System
Cooling is provided by a front-to-back airflow system specifically designed to reduce heat buildup in dense system configurations. Four fan modes are available: Smart, Full Speed, Low Speed, and Off. In Smart mode, the fixture automatically adjusts fan speed based on ambient temperature, maintaining stable performance while minimizing unwanted audio noise.
Comprehensive Control Options
The Matrix 2500C supports built-in control, remote control, wired control, NANLINK app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and NFC. NFC enables simultaneous DMX parameter configuration for multiple devices, while DMX allows individual control of each light head. This provides detailed control over large matrix systems and enables dynamic response in virtual production environments.
Accessory Interface
The device also features a new accessory interface with electronic contacts. This allows the fixture to recognize compatible modifiers and provides specialized motorized modifier operation as well as automatic color shift correction.
Technical Specifications
- Rated Power: 2500 W
- Input Voltage/Current: AC 100–240 V / 50–60 Hz / 28 A
- CCT Range: 1000K–20,000K, Green/Magenta +/-200
- CRI: Average 98
- TLCI: Average 98
- TM-30 Rf: Average 96
- TM-30 Rg: Average 100
- SSI: 3200K: 86 / 5600K: 78
- Dimming: 0.0%–100.0% in 0.1% increments
- Fixture Dimensions: 399 x 399 x 234 mm
- Fixture Weight: 18.07 kg
- Yoke Weight: 2.25 kg
- FL-MT25 Weight: 4.04 kg
- Flight Case Dimensions: 790 x 670 x 565 mm

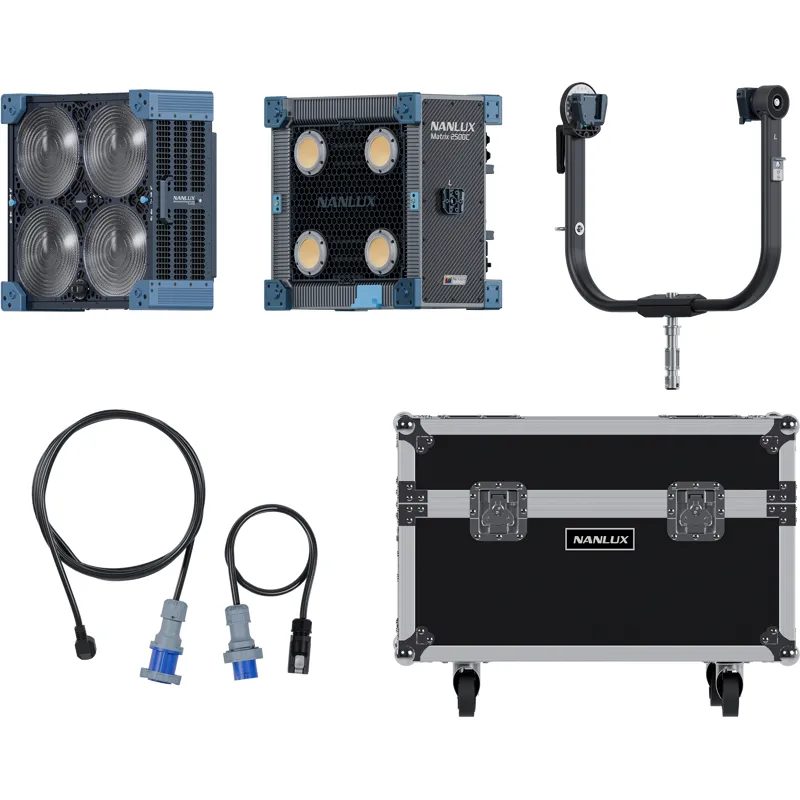

Included in the Kit
- Matrix 2500C x 1
- Yoke x 1
- Motorized Fresnel Lens FL-MT25 x 1
- 7.5 m AC Power Cable x 1
- Flight Case x 1
- User Manual x 1
