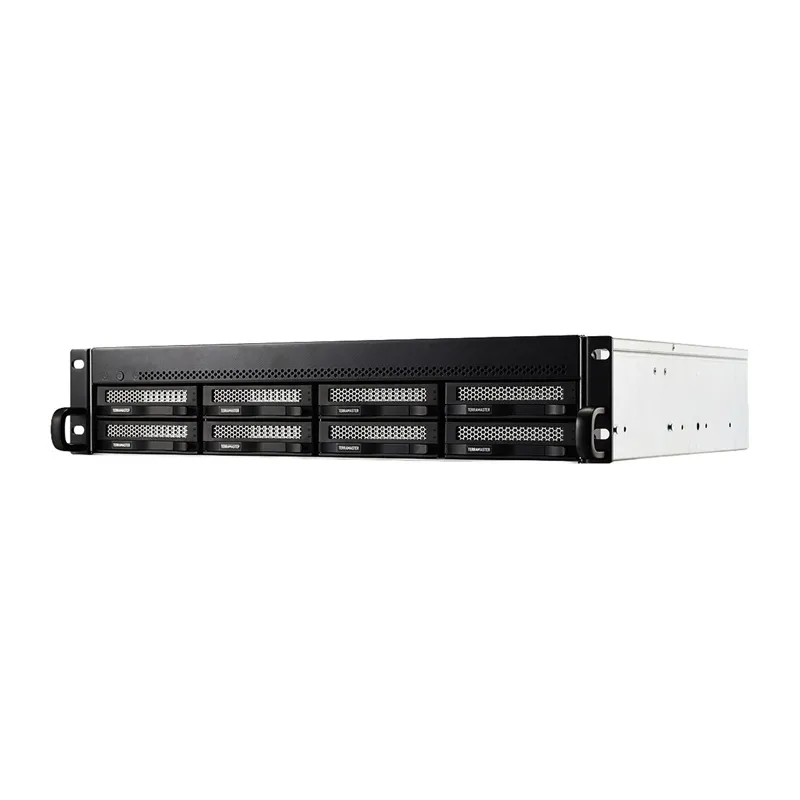

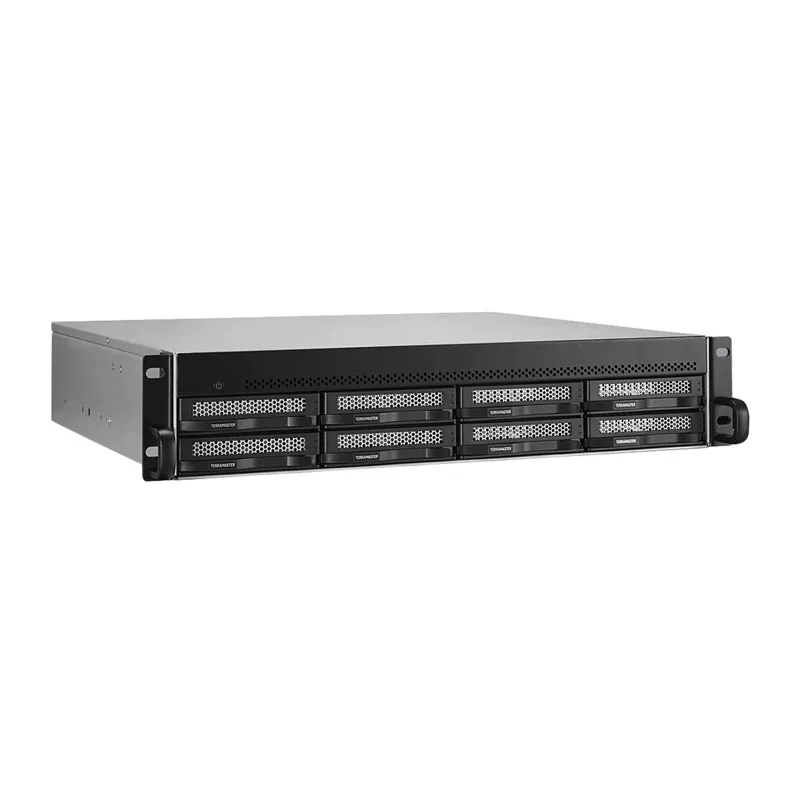

TERRAMASTER U8-500 Plus NAS File Server with Intel Core i7-1255U, 16 GB RAM, 8 Bays
The TerraMaster U8-500 Plus is a high-performance NAS file server featuring a 10-core Intel Core i7-1255U processor and 16 GB of DDR5 memory, expandable up to 64 GB. It includes 8 drive bays compatible with 3.5" and 2.5" SATA HDDs and SSDs, supporting a maximum internal raw storage capacity of 176 TB (8 × 22 TB). Two M.2 NVMe PCIe 4.0 slots provide additional high-speed SSD cache or storage options. The device supports hot-swappable drives, enabling replacement without powering down, minimizing downtime.
Powerful Processing and Memory
The Intel Core i7-1255U processor offers 10 cores with Turbo Boost speeds up to 4.7 GHz, ensuring smooth multitasking and efficient handling of multiple users, network services, and backup operations. The system comes with 16 GB DDR5 4800 MHz RAM, expandable to 64 GB via two SODIMM slots, allowing scalable performance for growing business needs.
Extensive Storage and Expansion
Eight bays accommodate both 3.5" and 2.5" SATA drives, providing ample space for centralized data storage including documents, projects, databases, and backups. The two M.2 2280 NVMe PCIe 4.0 x4 slots enable ultra-fast SSD caching or additional storage. Hot-swap support facilitates easy drive replacement without system downtime.
High-Speed Networking and Connectivity
The server includes two 10GbE RJ-45 ports for high-bandwidth data transfer, supporting link aggregation to enhance network performance and serve multiple users efficiently. Claimed transfer speeds reach up to 2090 MB/s. Additional connectivity features include one HDMI port, three USB 3.1 Type-A ports, and one USB 3.1 Type-C port with up to 10 Gb/s bandwidth.
Comprehensive Backup and Data Protection
The Business Backup Suite integrates Centralized Backup, Duple Backup, TerraSync, CloudSync, and Snapshot functionalities, enabling multi-layered data protection. It supports centralized backup of employee computers, physical servers, and virtual machines, as well as data synchronization across locations, enhancing resilience against hardware failures, user errors, and ransomware.
Advanced Security and Management
Security features include AES hardware encryption, OTP authentication, SSL certificates, Active Directory, and LDAP support. The Snapshot and HyperLock File System protect against unauthorized changes and data loss. The intuitive TOS web interface allows convenient management of users, permissions, and resources.
Included Accessories
- TerraMaster U8-500 Plus NAS server
- Power cord
- RJ-45 network cable
- Quick start guide
- Warranty information
- Set of mounting screws
Technical Specifications
- Manufacturer: TerraMaster
- Model: U8-500 Plus
- Processor: Intel Core i7-1255U (10 cores, up to 4.7 GHz Turbo)
- RAM: 16 GB DDR5 4800 MHz (expandable to 64 GB)
- Drive Bays: 8 (3.5" SATA HDD, 2.5" SATA HDD/SSD)
- Maximum Internal Capacity: 176 TB (8 × 22 TB)
- M.2 Slots: 2 × M.2 2280 NVMe PCIe 4.0 x4
- Network Ports: 2 × 10GbE RJ-45
- USB Ports: 3 × USB 3.1 Type-A, 1 × USB 3.1 Type-C (10 Gb/s)
- HDMI: 1 port
- Expansion Slot: 1 × PCIe 3.0 x4
- Supported RAID: TRAID, TRAID+, JBOD, RAID 0, 1, 5, 6, 10
- File Systems: Btrfs, EXT4
- Hot Swap: Yes
- Dimensions: 88 × 440 × 384 mm
- Weight: 6.9 kg
- Power Supply: 250 W
