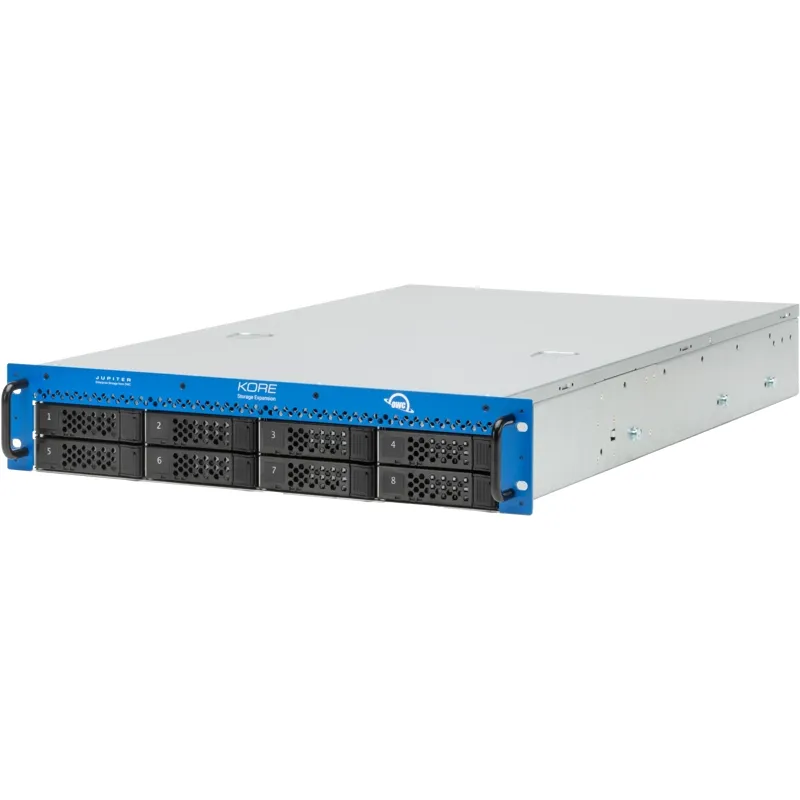

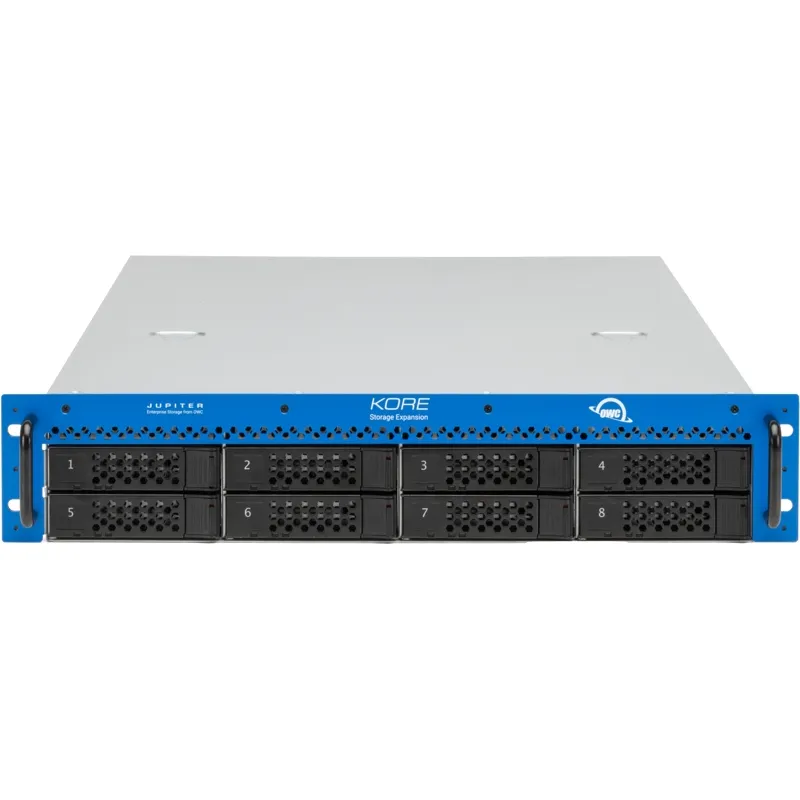

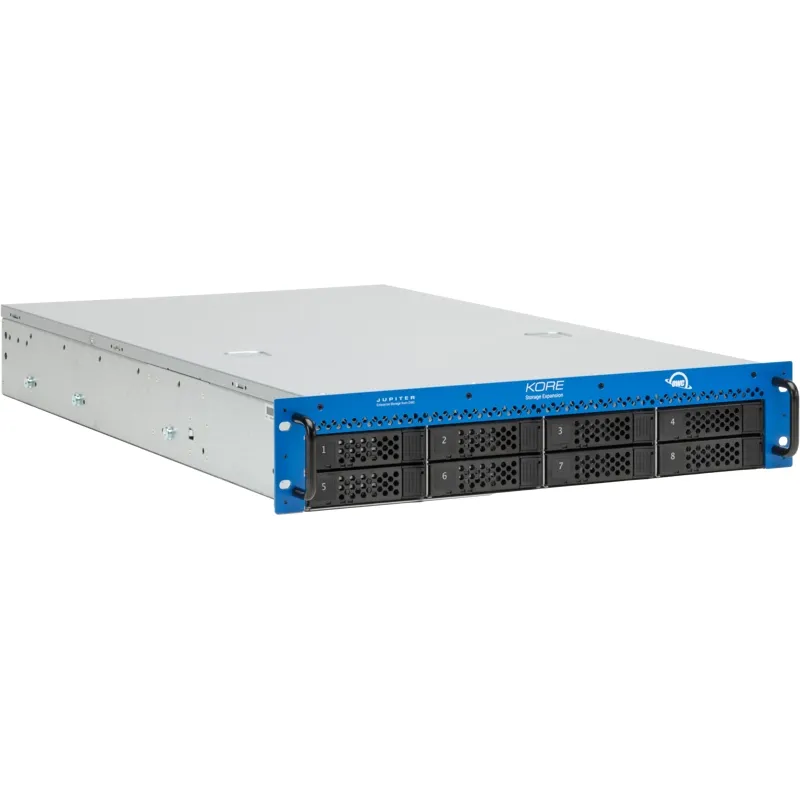

OWC Jupiter Kore 2S 2U Rack SSD Storage 16TB
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Network Attached Storage (NAS) |
| Capacity | 16TB |
| Connector | Mini-SAS HD |
| Color | Black |
| Media type | Network Attached Storage (NAS) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
OWC Jupiter Kore Enterprise-Class Storage
Enhance your data workflow with the OWC Jupiter Kore, an enterprise-class storage solution designed for high performance, large capacity, reliability, and cost efficiency. It features dual Mini-SAS HD interface ports, each delivering 48Gb/s, enabling rapid data transfer for demanding professional applications.
Storage Expansion
- Rack-Mounted Form Factor: Available in 2U (8 drives) and 3U (16 drives) configurations
- 12Gb Mini-SAS HD Interface for high-speed connectivity
- Storage Capacities: Supports 16-64TB SSD or 32-320TB HDD options
- Expandable up to 2.5PB by connecting a single Callisto service with up to 7 Kore units
- Compatible with Mac, PC, and Linux operating systems
Utilize the dual Mini-SAS HD ports either in tandem for combined performance speeds up to 96Gb/s or use the second port to add additional JBOD storage capacity. The Kore system can also expand existing RAID arrays such as the OWC Jupiter Callisto.
Capacity and Expansion
The OWC Jupiter Kore offers extensive direct-attached or expansion storage capacity, with up to 160TB in the 2U 8-drive rack system and up to 320TB in the 3U 16-drive rack system. Multiple Kore units can be connected via Mini-SAS to scale storage capacity up to 2.5PB on 3U systems.
RAID Compatibility
Designed for high-performance RAID storage, Kore works seamlessly with Mini-SAS RAID controller cards and adapters. It also extends storage capabilities for networked storage servers like the OWC Jupiter Callisto.
Mini-SAS HD Interface Speed
The core Mini-SAS HD interface architecture supports single-cable speeds up to 48Gb/s, or dual cables for a total bandwidth of 96Gb/s. This facilitates faster workflows, increased video ingest rates, simultaneous video editing, and efficient data movement.
Rack Options
Choose between 8-drive 2U racks or 16-drive 3U racks to suit your installation requirements and available rack space.
Hot-Swappable Components
Both drives and fans are hot-swappable, allowing maintenance or upgrades without interrupting system operation.
Redundant Power Supply
The system includes robust power supplies with redundancy, hot-swap capability, and load balancing to ensure continuous 24/7 operation.
Specifications - 8 Drives (2U)
- Rack Space: 2U
- Internal Raw Capacity: 16-32TB SSD or 32-160TB HDD
- Mini-SAS Storage Expansion Supported
- Dimensions (W×H×D): 48.0 cm × 9.4 cm × 73.7 cm
- Weight: 13.56 kg (without drives)
- Ports: 2 × Mini-SAS HD (12Gb/s) SFF-8644
- Channels: 8 × 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Power Supply: 380W high-efficiency 1+1 redundant, 90–264 VAC full-range auto-switching
- Operating Environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage Environment: -20°C to 80°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
Specifications - 16 Drives (3U)
- Rack Space: 3U
- Internal Raw Capacity: 32-64TB SSD or 64-320TB HDD
- Mini-SAS Storage Expansion up to 2.5PB
- Dimensions (W×H×D): 48.0 cm × 13.2 cm × 73.7 cm
- Weight: 18.37 kg (without drives)
- Ports: 2 × Mini-SAS HD (12Gb/s) SFF-8644
- Channels: 8 × 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Power Supply: 650W 2+1 redundant active PFC, 90–264 VAC full-range auto-switching
- Operating Environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage Environment: -20°C to 70°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
