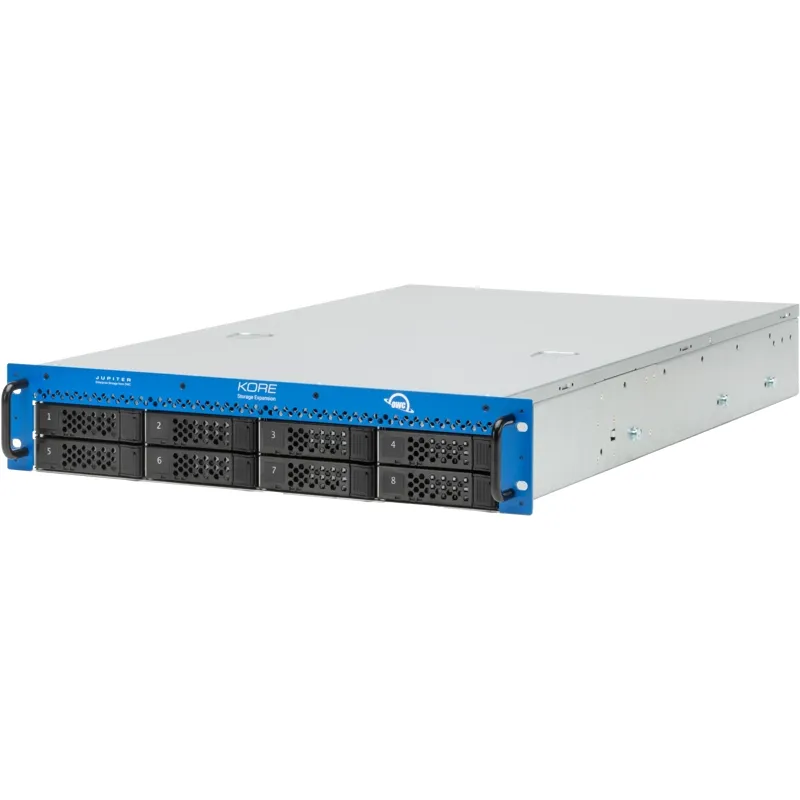

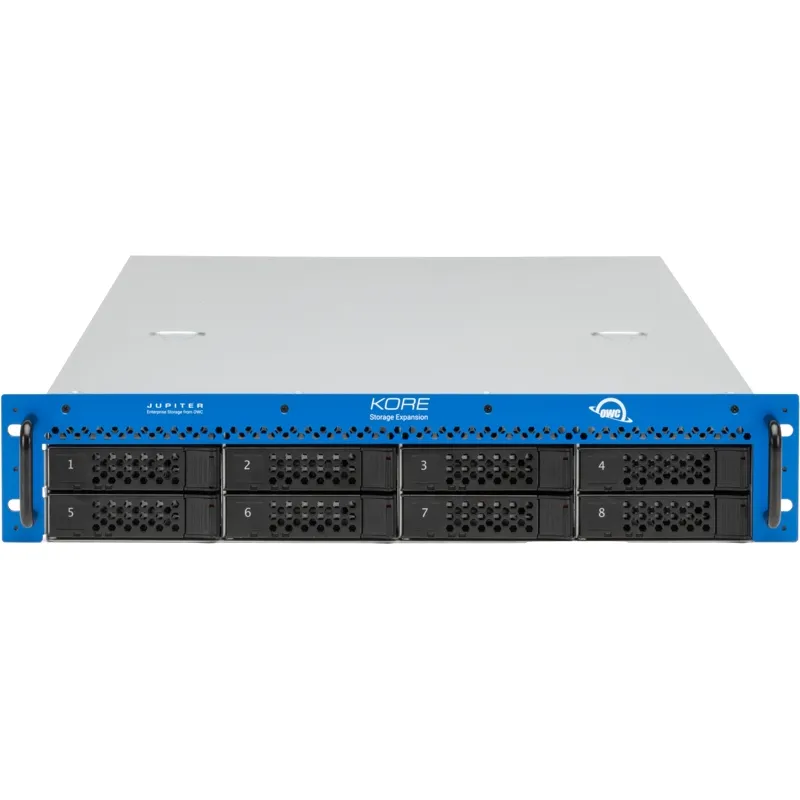

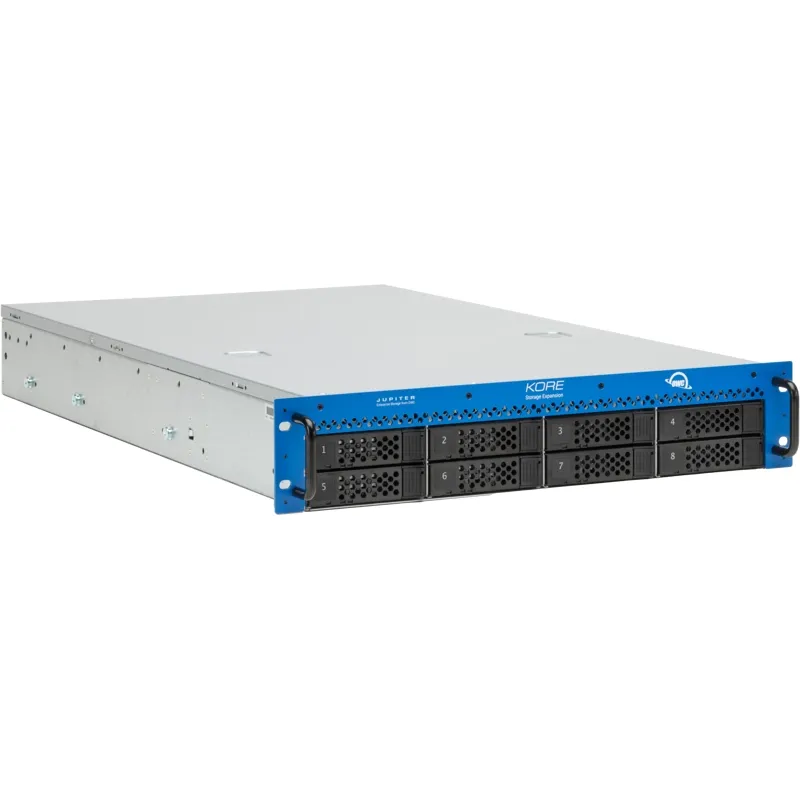

OWC Jupiter Kore 2U Rackmount SSD Storage Expansion
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Network Attached Storage (NAS) |
| Capacity | 32TB |
| Connector | Mini-SAS HD |
| Color | Black |
| Media type | Network Attached Storage (NAS) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Performance and Capacity
OWC Jupiter Kore enterprise-class storage offers high performance, capacity, reliability, and affordability. Featuring two Mini-SAS HD interface ports, each delivering 48Gb/s, it enables high-speed data transfer for demanding workflows.
Storage Expansion Options
- Rack-mounted form factor available in 2U and 3U sizes
- 12Gb Mini-SAS HD interface for fast connectivity
- Supports 16-64TB SSD or 32-320TB HDD internal storage
- Expandable up to 2.5PB with a single Callisto series and seven Kore units
- Compatible with Mac, PC, and Linux systems
Dual Mini-SAS HD ports can be used together for up to 96Gb/s throughput or separately to add JBOD storage capacity. Kore units can also expand existing RAID systems such as the OWC Jupiter Callisto.
High Capacity and Scalability
The 2U 8-drive rack supports up to 160TB of storage, while the 3U 16-drive rack supports up to 320TB. Additional Kore units can be connected via Mini-SAS to scale capacity up to 2.5PB on 3U systems.
RAID and JBOD Support
Kore is ideal for high-performance RAID storage when connected to Mini-SAS RAID controller cards and adapters. It also serves as high-speed JBOD storage to extend networked storage servers like the OWC Jupiter Callisto.
Mini-SAS HD Interface Speed
The Mini-SAS HD interface provides single-cable speeds up to 48Gb/s, or dual cables for up to 96Gb/s total bandwidth. This enables faster video ingestion, editing of multiple video streams, and efficient data movement for creative professionals.
Form Factor and Installation
Available in 2U (8 drives) and 3U (16 drives) rackmount configurations, offering flexibility to fit your space and capacity requirements.
Hot-Swappable Drives and Fans
Supports hot-swapping of drives and fans to minimize downtime during maintenance or upgrades.

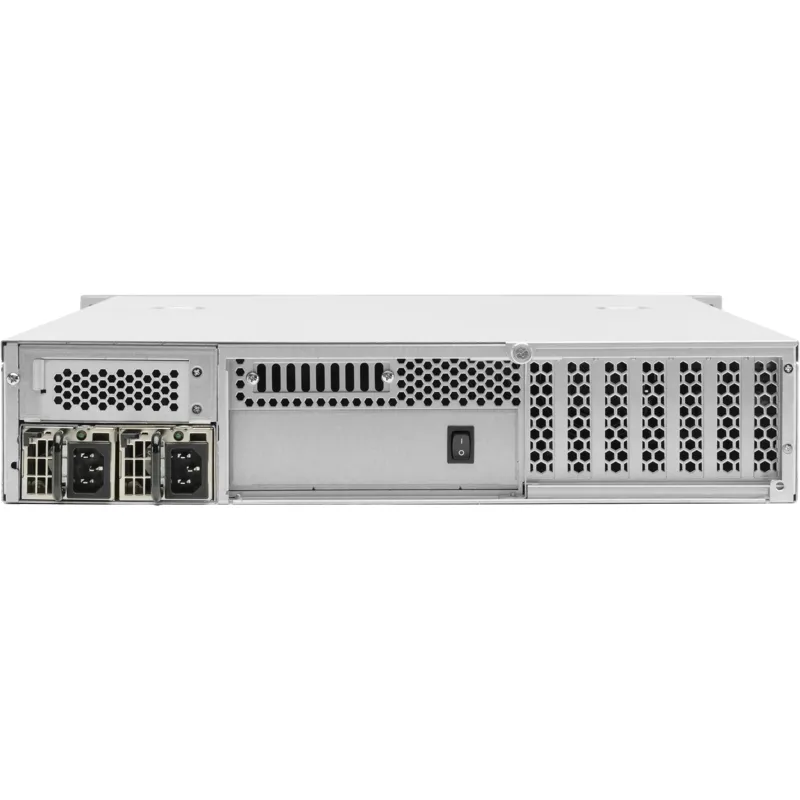

Redundant Power Supplies
Equipped with robust, redundant, hot-swappable power supplies with load balancing to ensure continuous 24/7 operation.
Specifications for 8-Drive 2U Model
- Rack space: 2U
- Internal raw capacity: 16-32TB SSD or 32-160TB HDD
- Mini-SAS storage expansion supported
- Dimensions (W×H×D): 48.0 cm × 9.4 cm × 73.7 cm
- Weight without drives: 13.56 kg
- Connectivity: (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: (8) 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Power supply: 380W high-efficiency 1+1 redundant, 90-264 VAC full-range auto-switching
- Operating environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage environment: -20°C to 80°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable to 5 years
Specifications for 16-Drive 3U Model
- Rack space: 3U
- Internal raw capacity: 32-64TB SSD or 64-320TB HDD
- Mini-SAS storage expansion up to 2.5PB
- Dimensions (W×H×D): 48.0 cm × 13.2 cm × 73.7 cm
- Weight without drives: 18.37 kg
- Connectivity: (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: (8) 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Power supply: 650W 2+1 redundant active PFC, 90-264 VAC full-range auto-switching
- Operating environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage environment: -20°C to 70°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable to 5 years
