OWC Jupiter Kore 2U Rackmount NAS Expansion 64TB
AI ASSISTANT CHAT
Or ask about:
| Capacity | 64TB |
| Color | Black |
| Media type | Network Attached Storage (NAS) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

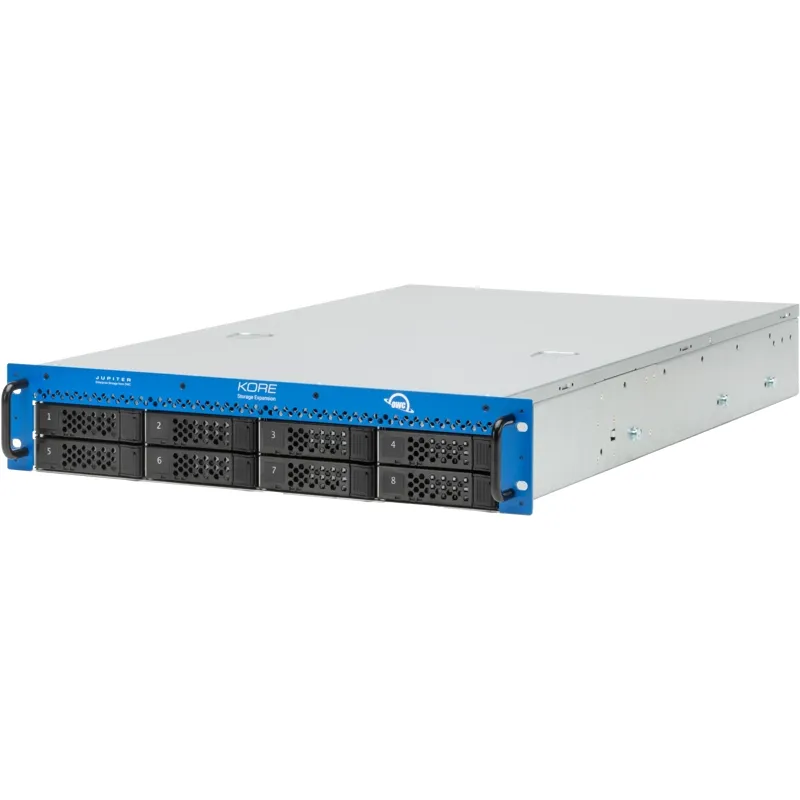

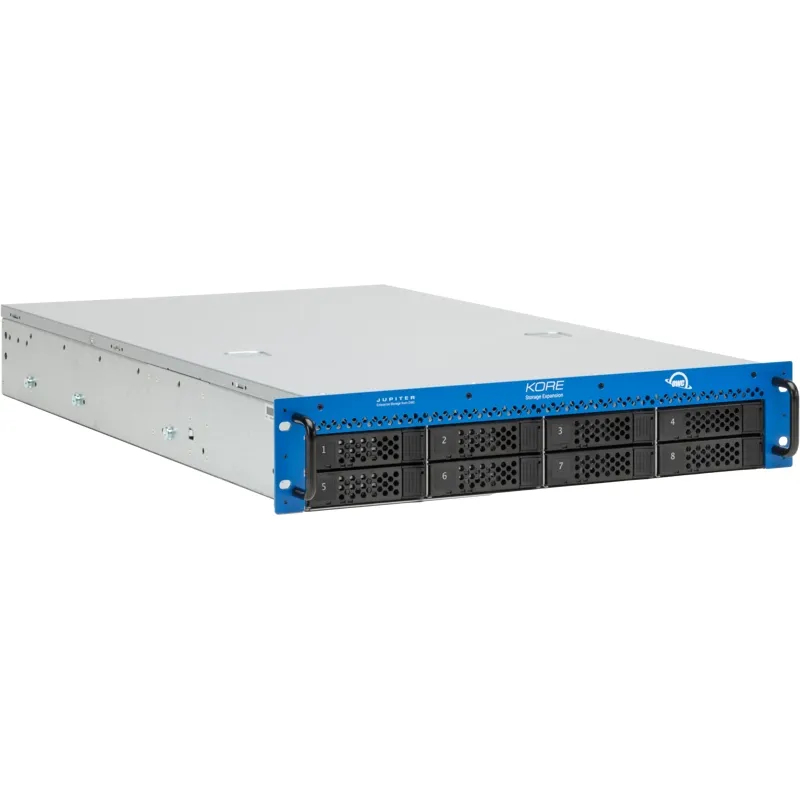

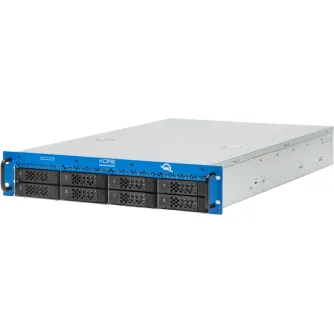

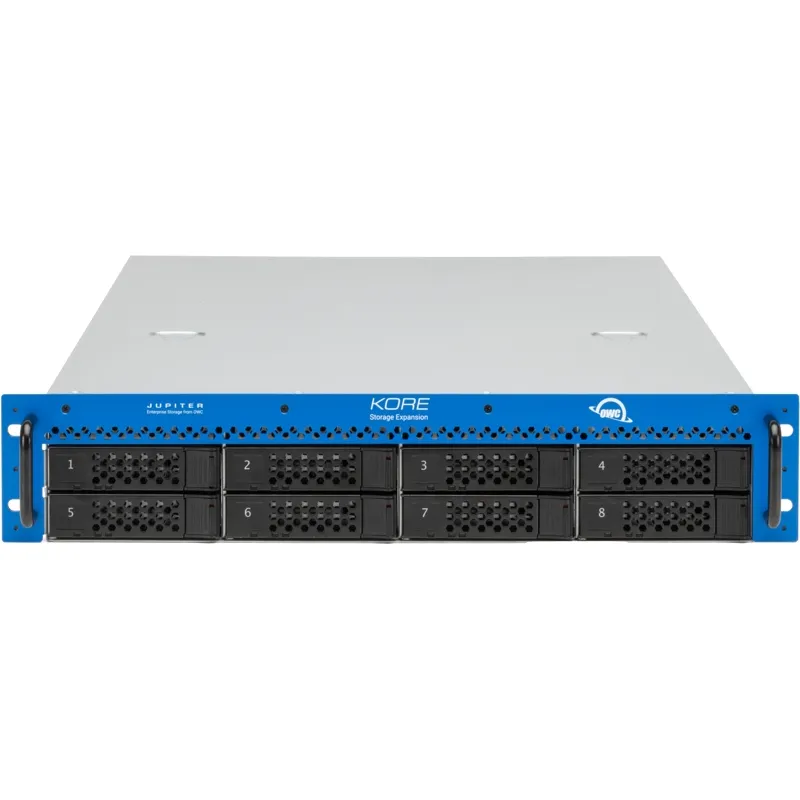

OWC Jupiter Kore Enterprise-Class Storage
Enhance your data storage capabilities with the OWC Jupiter Kore storage system, designed for high performance, reliability, and scalability. This 2U rackmount NAS expansion features dual Mini-SAS HD interface ports, each delivering 48Gb/s, enabling fast data transfer rates suitable for demanding professional workflows.
Storage Expansion Features
- Rack-Mounted Form Factor: 2U configuration
- Dual 12Gb Mini-SAS HD (SFF-8644) Interface Ports
- Storage Capacity: Supports 64TB SSD or up to 320TB HDD in larger configurations
- Expandable up to 2.5PB by connecting up to 7 Kore units with a single Callisto service
- Compatible with Mac, PC, and Linux operating systems
The dual Mini-SAS HD ports can be used simultaneously to achieve combined throughput of up to 96Gb/s or to increase JBOD storage capacity. The Kore system also supports expansion of existing RAID arrays such as the OWC Jupiter Callisto.
High Capacity and Scalability
The Kore system offers flexible storage options, with the 2U 8-drive rack supporting up to 160TB HDD or 32TB SSD, and the 3U 16-drive rack supporting up to 320TB HDD or 64TB SSD. Multiple Kore units can be connected via Mini-SAS to scale storage capacity up to 2.5PB on 3U systems.
RAID and Performance
Designed for high-performance RAID storage, the Kore system connects to Mini-SAS RAID controller cards and adapters. It also functions as a high-speed JBOD storage solution to extend networked storage servers like the OWC Jupiter Callisto.
Mini-SAS HD Interface Speed
The Mini-SAS HD interface supports single-cable speeds of 48Gb/s, with dual cables enabling up to 96Gb/s total bandwidth. This high-speed interface accelerates workflows including video ingestion, multi-stream editing, and large data transfers, enhancing productivity for creative professionals.
Rack Options and Installation Flexibility
Available in 8-drive 2U and 16-drive 3U rack configurations, the Kore system offers flexible installation options to match capacity requirements and available rack space.
Hot-Swappable Drives and Fans
Minimize downtime with hot-swappable drives and fans, allowing maintenance or upgrades without powering down the system.

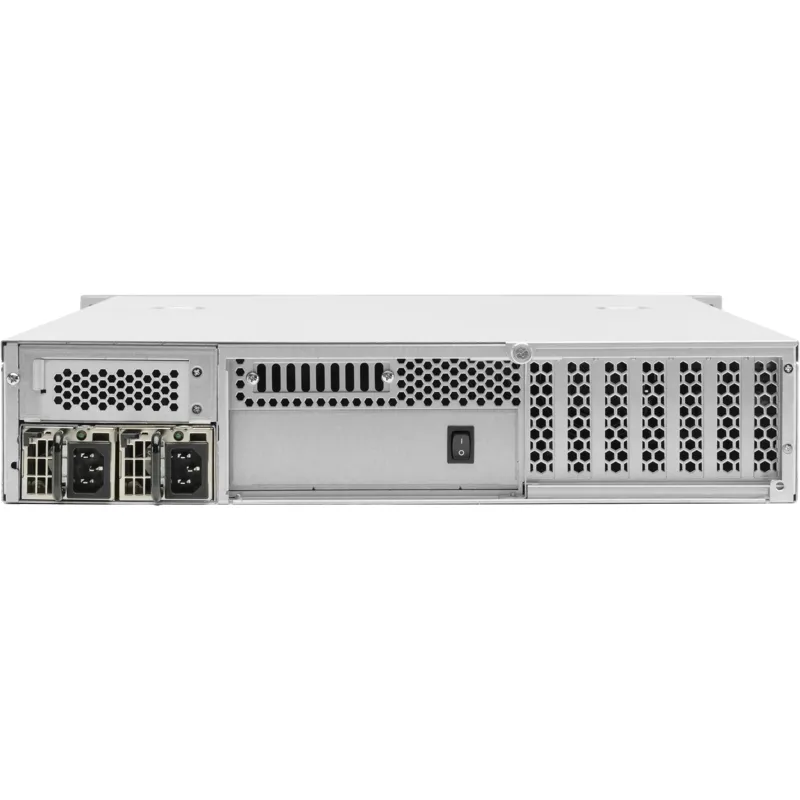

Redundant Power Supply
Equipped with robust, redundant power supplies featuring hot-swap capability and load balancing to ensure continuous 24/7 operation.
Technical Specifications - 8 Drive (2U)
- Rack Space: 2U
- Internal Raw Capacity: 16-32TB SSD or 32-160TB HDD
- Interfaces: 2 × Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: 8 × 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Dimensions (W×H×D): 48.0 cm × 9.4 cm × 73.7 cm
- Weight (without drives): 13.56 kg
- Power Supply: 380W high-efficiency 1+1 redundant, 90–264 VAC auto-switching
- Operating Environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage Environment: -20°C to 80°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable to 5 years
Technical Specifications - 16 Drive (3U)
- Rack Space: 3U
- Internal Raw Capacity: 32-64TB SSD or 64-320TB HDD
- Mini-SAS Storage Expansion: Up to 2.5PB
- Interfaces: 2 × Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: 8 × 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Dimensions (W×H×D): 48.0 cm × 13.2 cm × 73.7 cm
- Weight (without drives): 18.37 kg
- Power Supply: 650W 2+1 redundant active PFC, 90–264 VAC auto-switching
- Operating Environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage Environment: -20°C to 70°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable to 5 years
