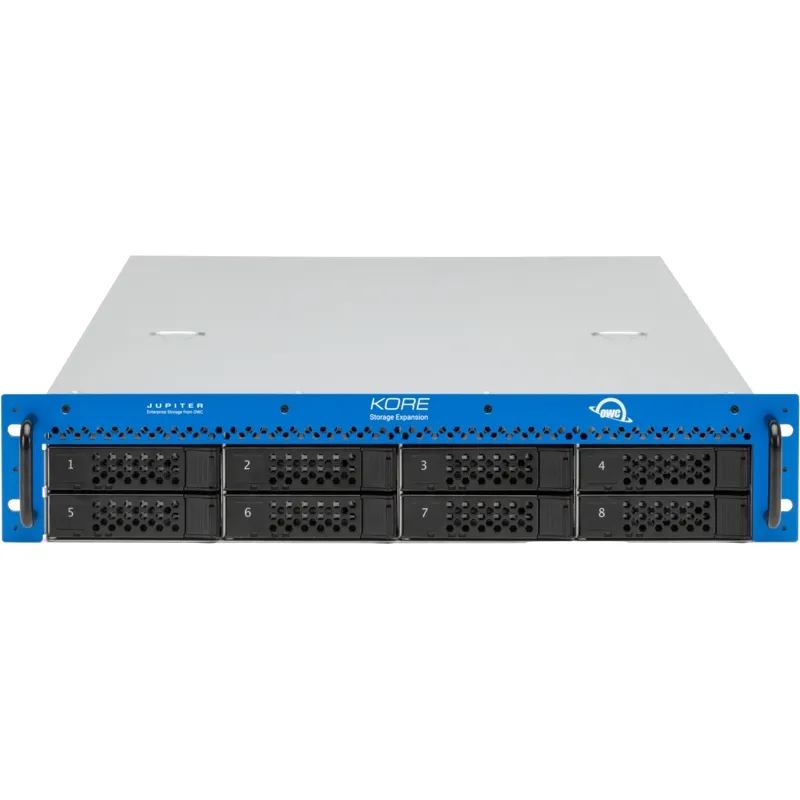

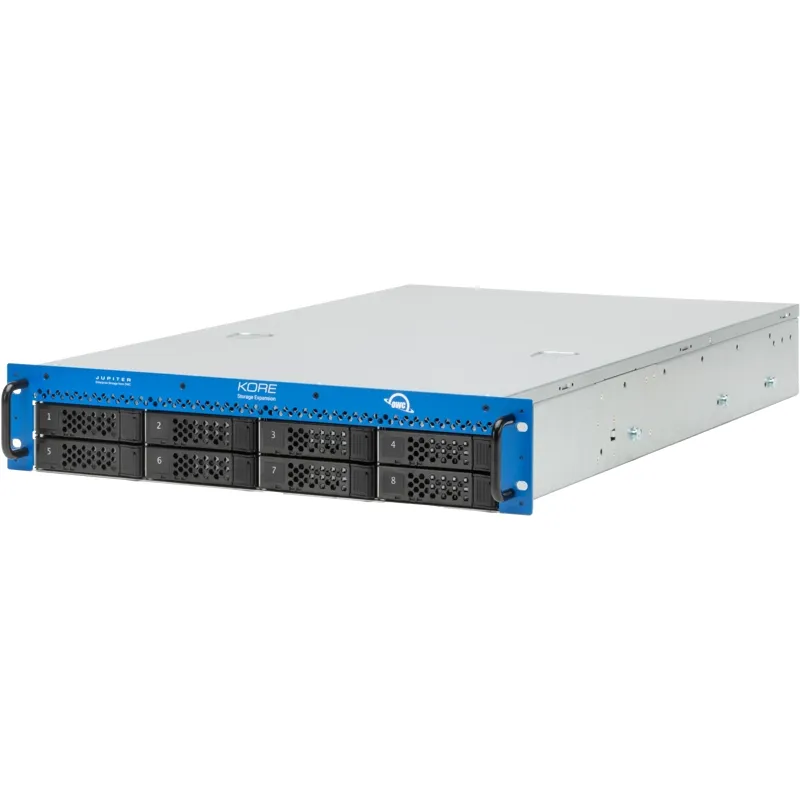

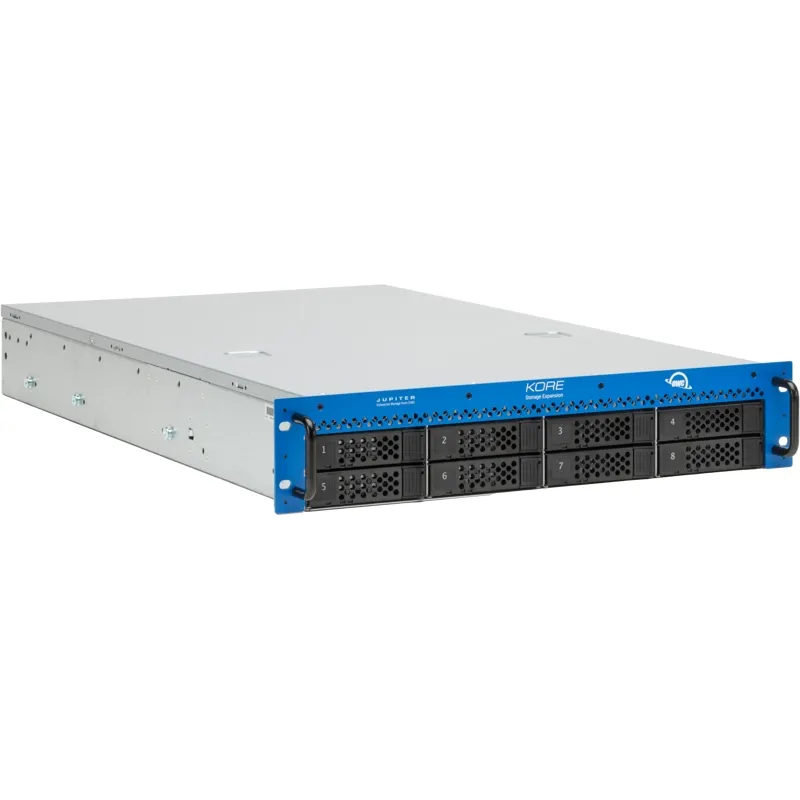

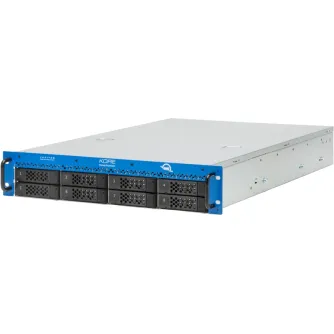

OWC Jupiter Kore Enterprise-Class Storage
Enhance your data storage capabilities with the OWC Jupiter Kore storage system, designed for high performance, large capacity, reliability, and cost efficiency. It features two Mini-SAS HD interface ports, each providing 48Gb/s bandwidth, enabling rapid data transfer suitable for demanding professional applications.
Storage Expansion Features
- Available in rack-mounted 2U and 3U form factors
- High-speed 12Gb Mini-SAS HD interface connectivity
- Supports storage capacities ranging from 16TB to 64TB SSD or 32TB to 320TB HDD
- Expandable up to 2.5PB by connecting up to seven Kore units with a single Callisto service
- Compatible with Mac, PC, and Linux operating systems
The system allows simultaneous use of dual Mini-SAS HD ports for combined throughput up to 96Gb/s or to increase JBOD storage capacity. It can also expand existing RAID configurations such as the OWC Jupiter Callisto.
Capacity and Expansion
The Kore 2U model supports up to 160TB of storage in an 8-drive rack configuration, while the 3U model supports up to 320TB with 16 drives. Multiple Kore units can be interconnected via Mini-SAS to scale storage capacity up to 2.5PB on 3U systems.
RAID and Performance
Optimized for high-performance RAID storage when paired with Mini-SAS RAID controller cards and adapters, Kore also functions as a high-speed JBOD storage solution to extend networked storage servers like the OWC Jupiter Callisto.
Mini-SAS HD Interface Speed
The Mini-SAS HD interface delivers single-cable speeds up to 48Gb/s. Using dual direct Mini-SAS HD cables, the system achieves speeds up to 96Gb/s, accelerating workflows such as video ingestion, multi-stream editing, and data transfer to improve productivity.
Rack Options and Flexibility
Choose between an 8-drive 2U rack or a 16-drive 3U rack to suit your installation requirements and available space, whether for new builds or integration into existing systems.
Hot-Swappable Drives and Fans
Minimize downtime with hot-swappable drives and fans, allowing maintenance or upgrades without powering down the system.

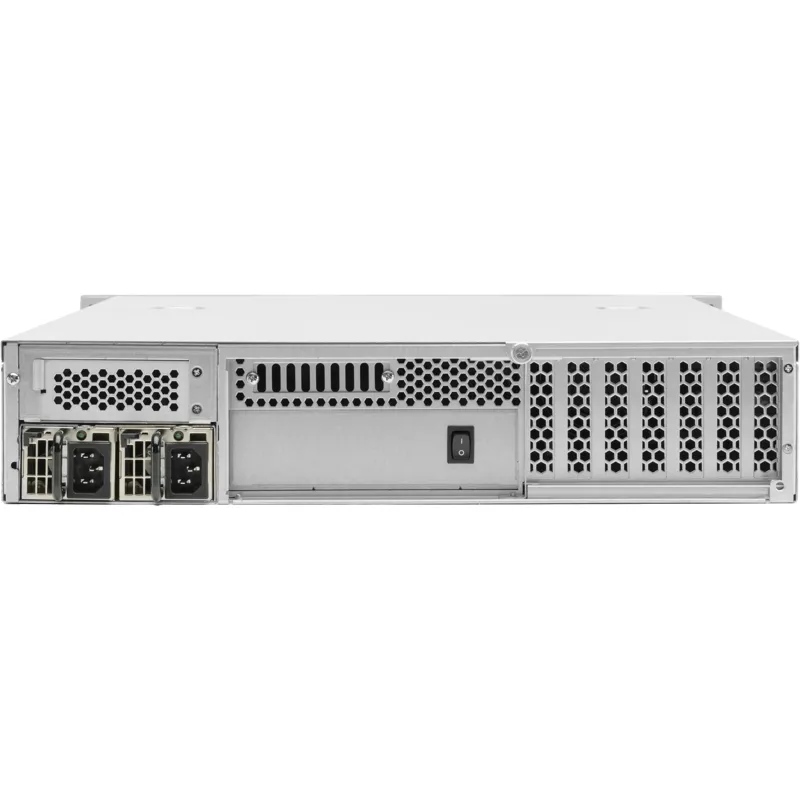

Redundant Power Supply
The Kore system includes robust power supplies featuring redundancy, hot-swap capability, and load balancing to ensure continuous 24/7 operation.
Technical Specifications - 8 Drive (2U)
- Rack space: 2U
- Internal raw capacity: 16-32TB SSD or 32-160TB HDD
- Supports Mini-SAS storage expansion
- Dimensions (W×H×D): 48.0 cm × 9.4 cm × 73.7 cm
- Weight: 13.56 kg (without drives)
- Connectivity: 2 Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: 8 SAS-3 compliant 12Gb/s channels, total bandwidth 96Gb/s (48Gb/s per port)
- Power supply: 380W high-efficiency 1+1 redundant, 90~264 VAC full-range auto-switching
- Operating environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage environment: -20°C to 80°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
Technical Specifications - 16 Drive (3U)
- Rack space: 3U
- Internal raw capacity: 32-64TB SSD or 64-320TB HDD
- Mini-SAS storage expansion up to 2.5PB
- Dimensions (W×H×D): 48.0 cm × 13.2 cm × 73.7 cm
- Weight: 18.37 kg (without drives)
- Connectivity: 2 Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: 8 SAS-3 compliant 12Gb/s channels, total bandwidth 96Gb/s (48Gb/s per port)
- Power supply: 650W 2+1 redundant active PFC, 90~264 VAC full-range auto-switching
- Operating environment: 0°C to 40°C, 20% to 95% non-condensing humidity
- Storage environment: -20°C to 70°C, 10% to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
