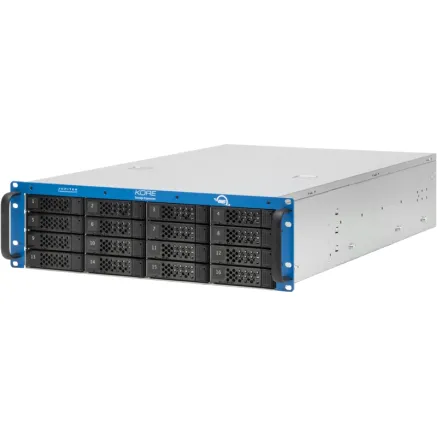

OWC Jupiter Kore 3U 16-Drive NAS Expansion Storage 256TB
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Network Attached Storage (NAS) |
| Capacity | 256TB |
| Connector | USB-C |
| Color | Black |
| Media type | Network Attached Storage (NAS) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

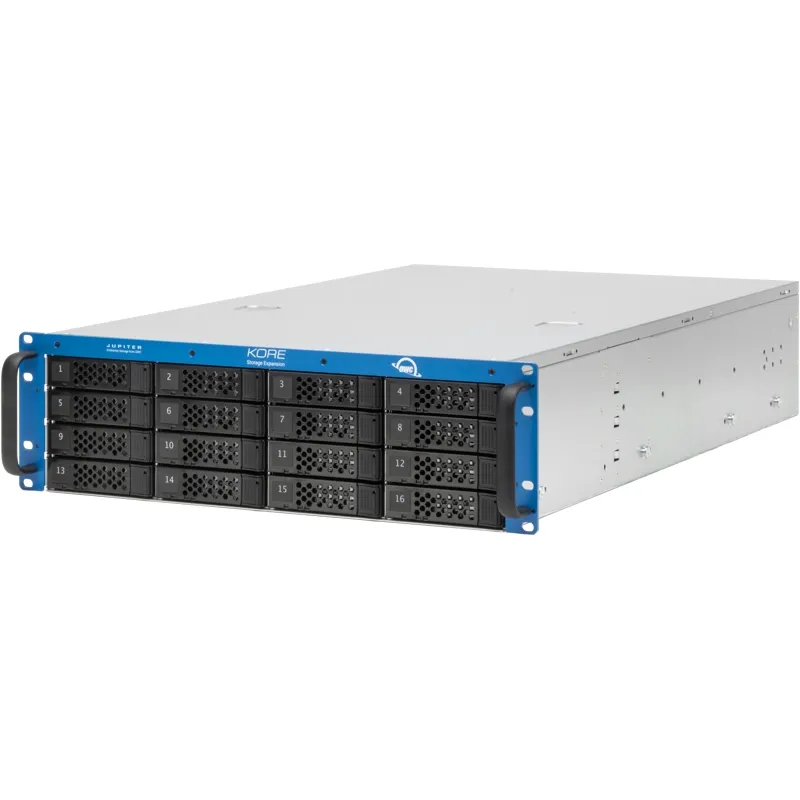

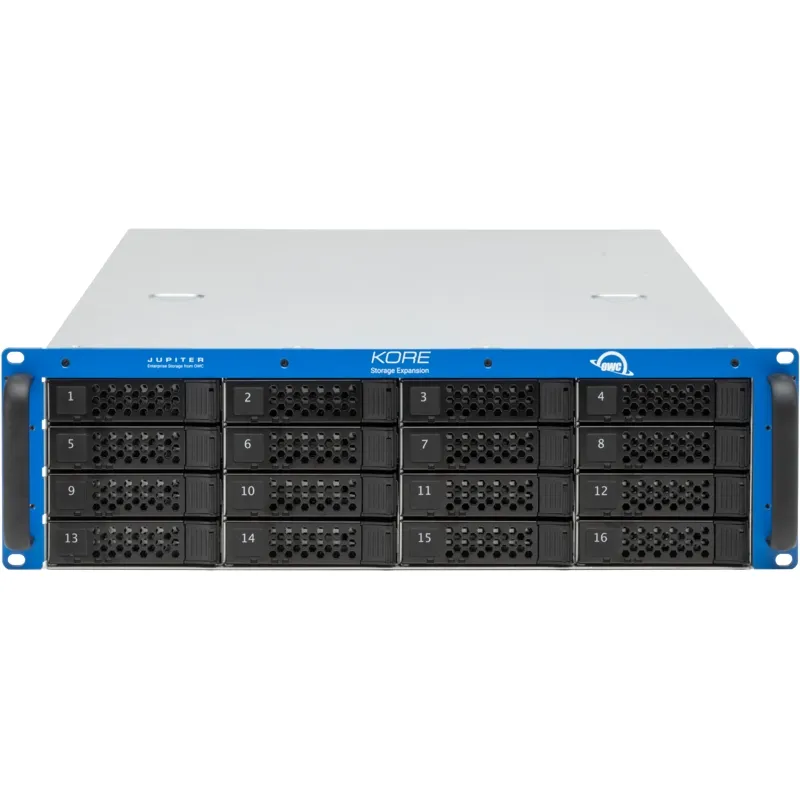

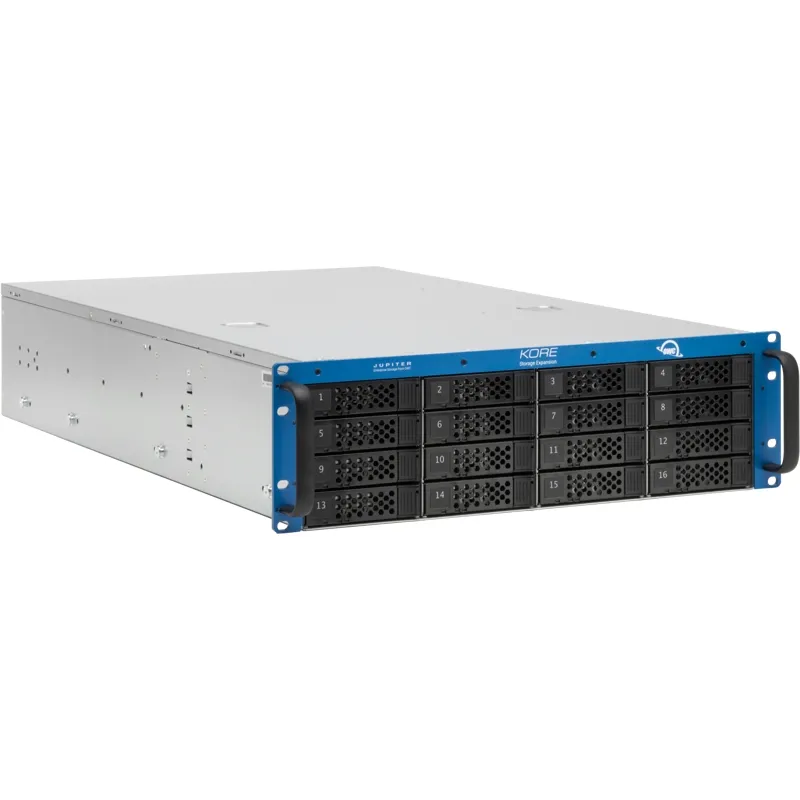

OWC Jupiter Kore Enterprise-Class Storage
Upgrade your workflow with the performance, capacity, reliability, and affordability of the OWC Jupiter Kore storage system. Featuring two Mini-SAS HD interface ports, each delivering 48Gb/s of pure performance, this system enables high-speed data transfer for demanding workflows.
Storage Expansion Features
- Rack-mounted form factor available in 2U (8 drives) and 3U (16 drives) configurations
- 12Gb Mini-SAS HD interface for high-speed connectivity
- Supports 16-64TB SSD or 32-320TB HDD internal storage
- Expandable up to 2.5PB using a single Callisto service and up to 7 Kore units
- Compatible with Mac, PC, and Linux systems
Utilize the dual Mini-SAS HD ports in tandem to achieve performance speeds up to 96Gb/s, or use the second port to increase JBOD storage capacity. Kore can also be used to expand existing RAID systems such as the OWC Jupiter Callisto.
Capacity and Scalability
The Kore system offers vast direct-attached or expansion storage capacity, with up to 160TB in the 2U 8-drive rack and up to 320TB in the 3U 16-drive rack. Additional Kore units can be connected via Mini-SAS to scale storage up to 2.5PB on 3U systems.
RAID and Performance
Kore is ideal for high-performance RAID storage needs, connecting seamlessly to Mini-SAS RAID controller cards and adapters. It also extends the storage capacity of networked storage servers like the OWC Jupiter Callisto by providing high-speed JBOD storage.
Mini-SAS HD Interface Speed
The core Mini-SAS HD interface architecture delivers single-cable speeds up to 48Gb/s. Running dual Mini-SAS HD cables doubles this to 96Gb/s, enabling faster video ingestion, simultaneous video stream editing, and rapid data movement to optimize creative workflows.
Rack Configurations
Choose between 8-drive 2U racks or 16-drive 3U racks to best fit your installation space and capacity requirements, whether building new or integrating into existing systems.
Hot-Swappable Components
Minimize downtime with hot-swappable drives and fans, allowing maintenance or upgrades without interrupting system operation.

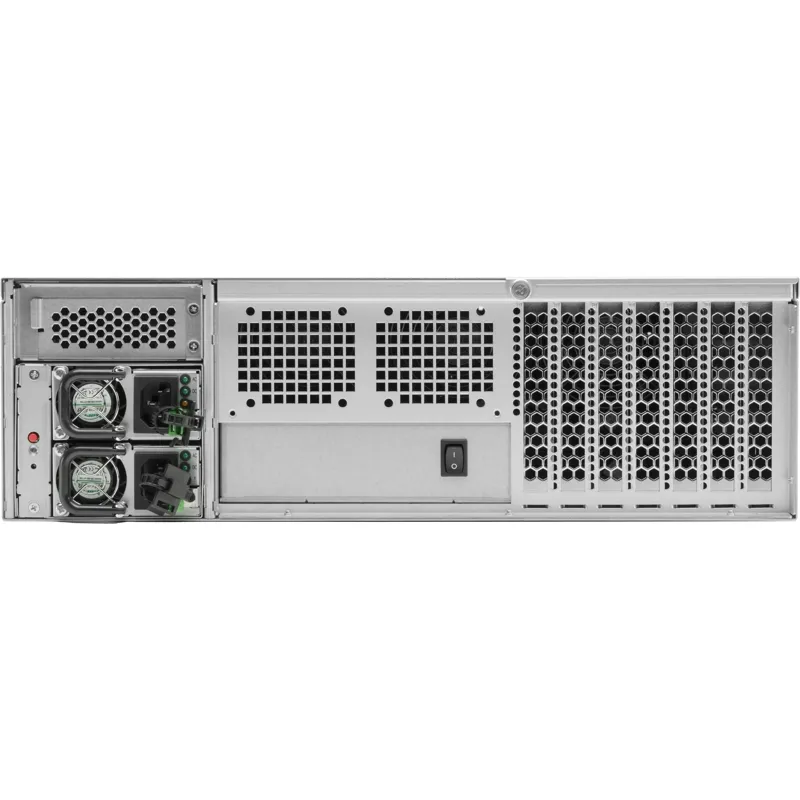

Redundant Power Supply
The Kore system includes robust power supplies with redundancy, hot-swap capability, and load balancing to ensure continuous 24/7 operation.
Technical Specifications - 16 Drives (3U)
- Rack space: 3U
- Internal raw capacity: 32-64TB SSD or 64-320TB HDD
- Expandable storage: Up to 2.5PB via Mini-SAS
- Dimensions (W×H×D): 48.0 cm × 13.2 cm × 73.7 cm
- Weight (without drives): 18.37 kg
- Connectivity: (2) Mini-SAS HD (12Gb/s) SFF-8644 ports
- Channels: (8) 12Gb/s SAS-3 compliant, total bandwidth 96Gb/s (48Gb/s per port)
- Power supply: 650W 2+1 redundant active PFC, 90~264 VAC full-range auto-switching
- Operating environment: 0°C to 40°C, 20 to 95% non-condensing humidity
- Storage environment: -20°C to 70°C, 10 to 95% non-condensing humidity
- Warranty: 3 years limited, expandable up to 5 years
