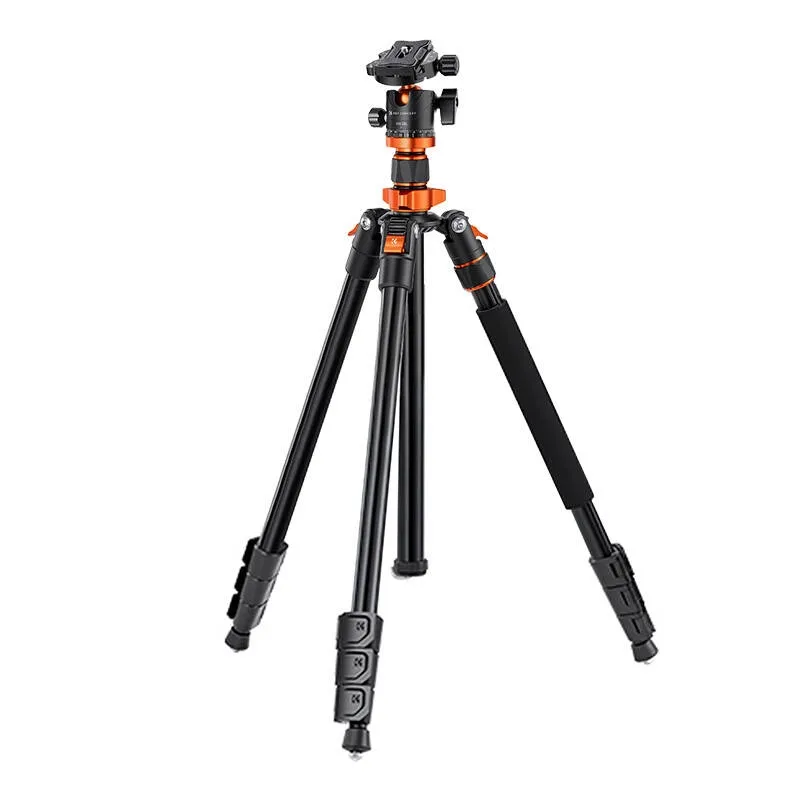

K&F Concept K234A7+BH-28L Tripod with Universal Central Axis KF09.087V5

K&F Concept K234A7+BH-28L Tripod with Universal Central Axis

The K&F Concept K234A7+BH-28L tripod is engineered for photographers and filmmakers seeking versatile, reliable support for dynamic shooting scenarios. Constructed from rugged aluminum alloy, it supports equipment up to 10 kg, making it suitable for advanced DSLR cameras and lenses from Canon, Nikon, Sony, and others.

Innovative Central Column Design

The tripod features a patented horizontal central column that rotates 90°, enabling extended vertical and horizontal camera positioning. This design is ideal for macro, product, and flat lay photography, allowing shots from low angles or overhead perspectives.

Adjustable Height and Monopod Functionality

• Tripod height adjusts smoothly from 60 to 230 cm.

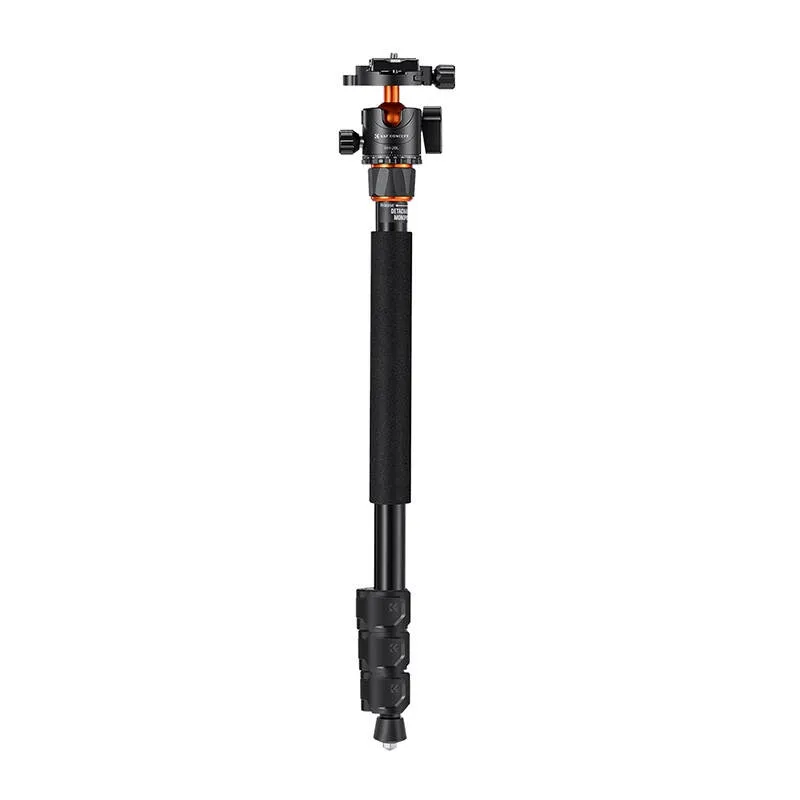

• One leg detaches to function as a monopod with a height range of 50 to 240 cm.
• Central column is two-sectioned and infinitely adjustable, with a reversible mounting option for low-angle shooting.

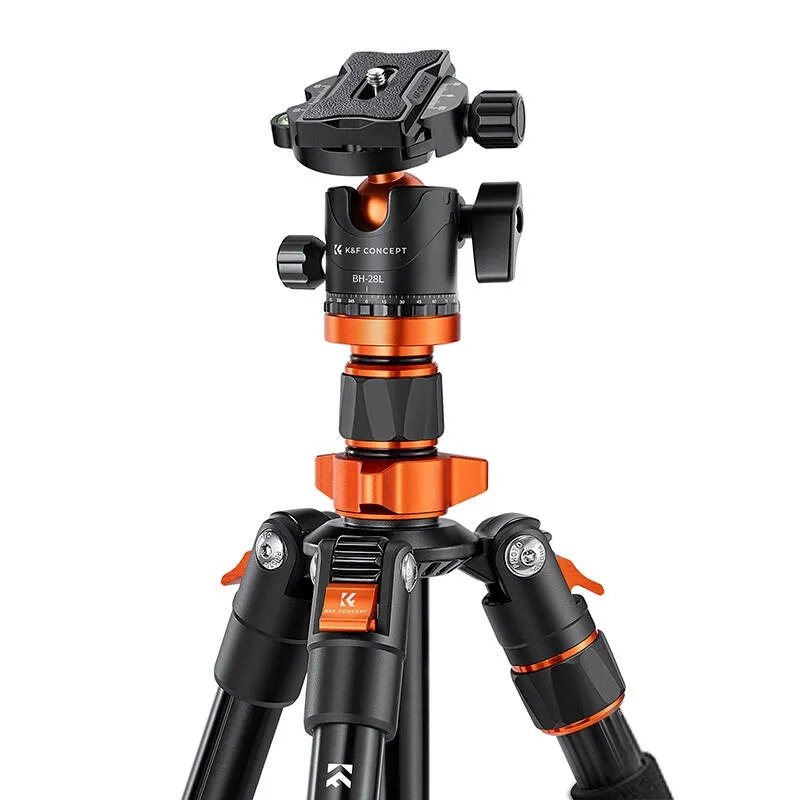

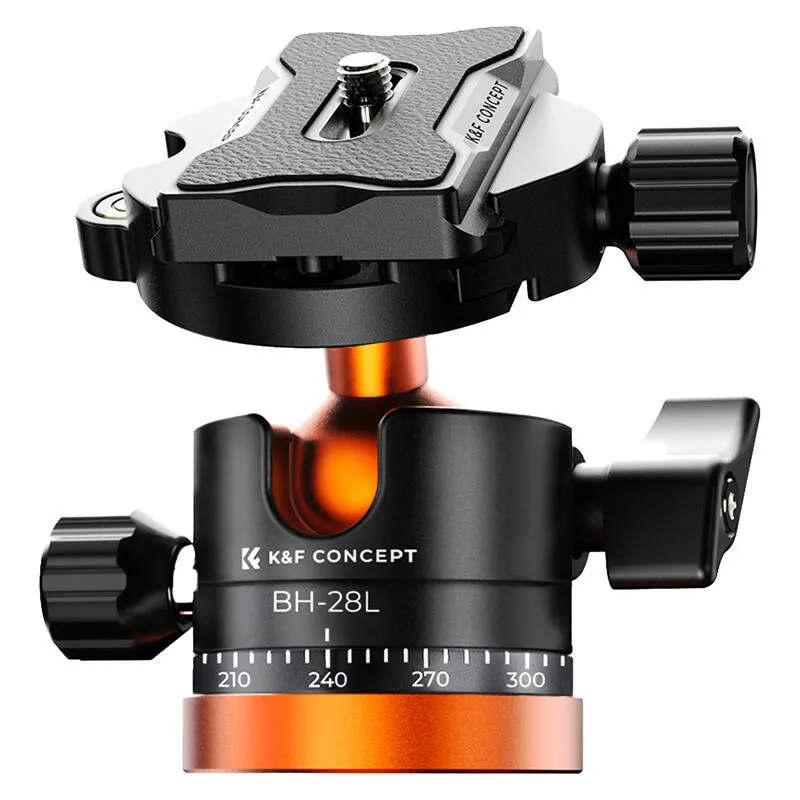

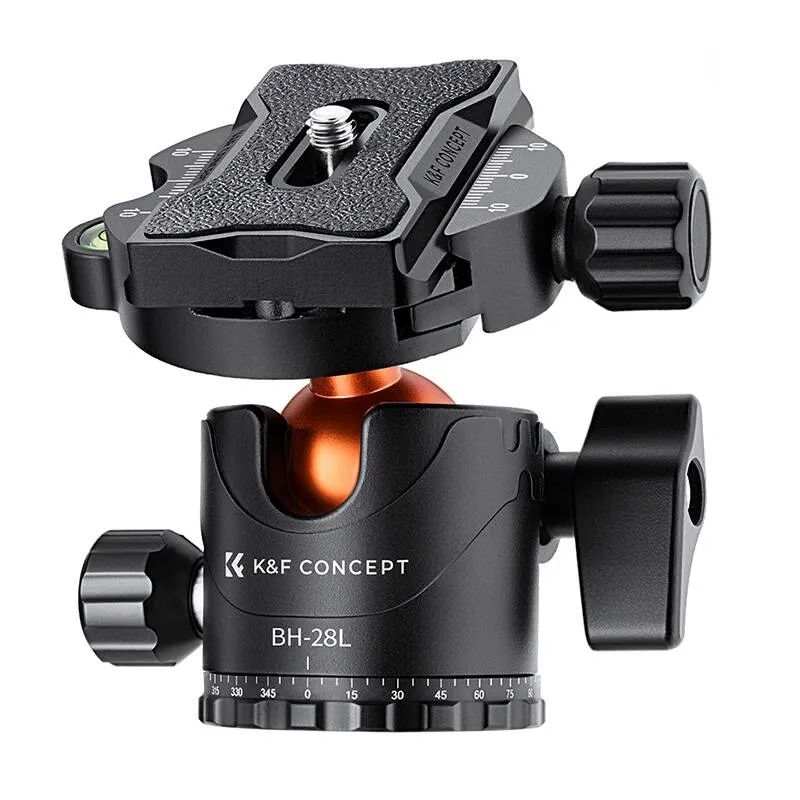

Ball Head Features

• Includes BH-28L ball head with a 2.8 cm diameter ball and 8 cm height.
• Maximum load capacity of 10 kg.
• Equipped with a spirit level, 360° angle scale, and millimeter scale (-10 to +10 mm) for precise positioning.
• Arca-Swiss standard quick release plate with 1/4" thread.
• Adjustable via two clamps controlling rotation angle and bearing position.

Legs and Stability

• Four-section legs with 23 mm diameter tubes, independently adjustable and locked with wide plastic clamps.
• Rubber feet with spikes for secure footing on uneven or slippery surfaces like wet grass or snow.
• Legs can swivel to large angles, including near-parallel to the ground, for compact transport and low-angle shooting.
• One leg covered with soft foam for comfortable handling.

Additional Side Arm

• Includes a 32 cm side arm with a joint for extended camera positioning beyond the tripod's main axis.
• Side arm mounts on the central column after removing the ball head.
• Equipped with a removable mandrel with 1/4" thread and 3/8" adapter.
• Hook for counterweight to maintain balance and prevent tipping when using the side arm.

Dimensions and Weight

• Maximum tripod height: 230 cm.

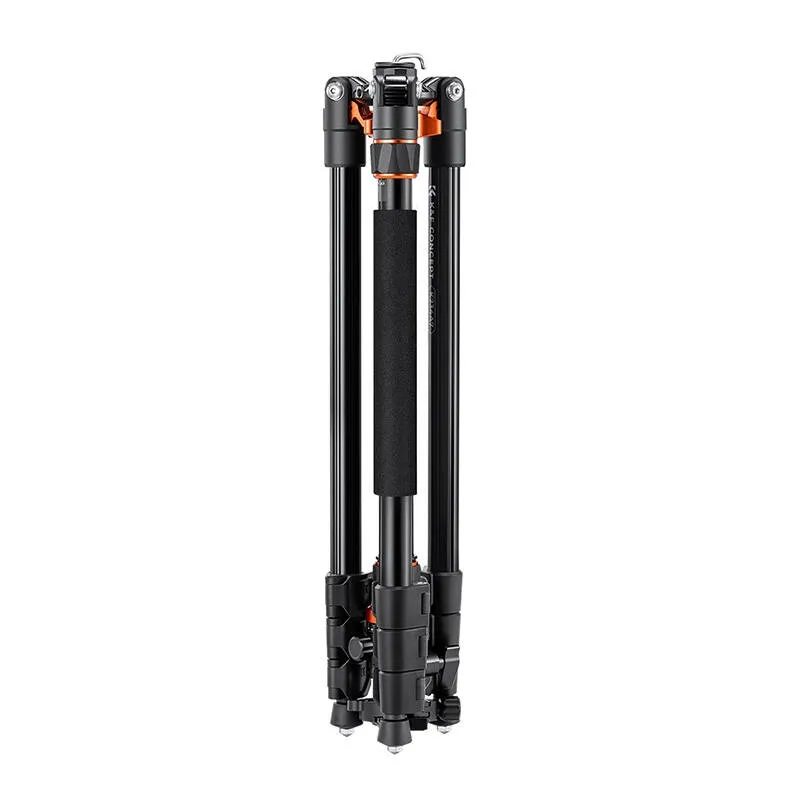

• Folded length: 50 cm.
• Tripod weight: approximately 1.9 kg.
• Monopod maximum height: 240 cm.

Additional Features

• Quick leg locking system with rubber-wrapped screws for comfortable one-handed operation.
• Hook on the central column for suspending counterweights.
• Non-slip spiked feet for enhanced stability.
• Includes a stiffened carrying case with shoulder strap and Allen key.

Use Cases

This tripod is ideal for photographers, filmmakers, vloggers, and content creators who require a flexible, stable platform for a variety of shooting styles including macro, panorama, flat lay, and dynamic video recording. The combination of tripod and monopod functionality, along with the side arm and reversible central column, offers creative freedom and professional-grade stability.
