Atomos Ninja V+ 5.2" 8K HDMI H.265 Raw Recording Monitor with 1TB SSD

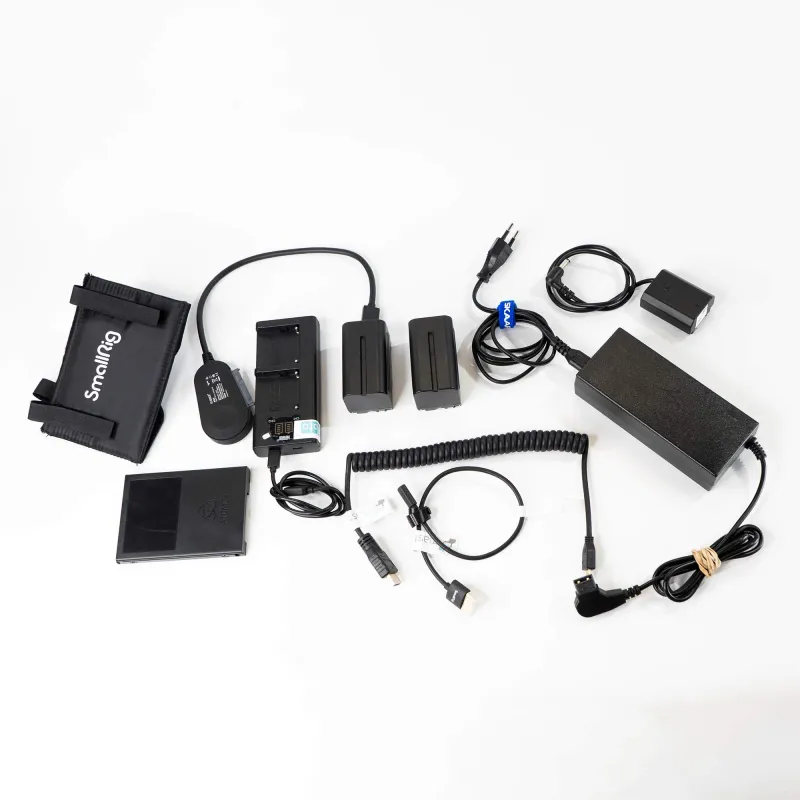

Included in the Package

• Atomos Ninja V+ monitor/recorder

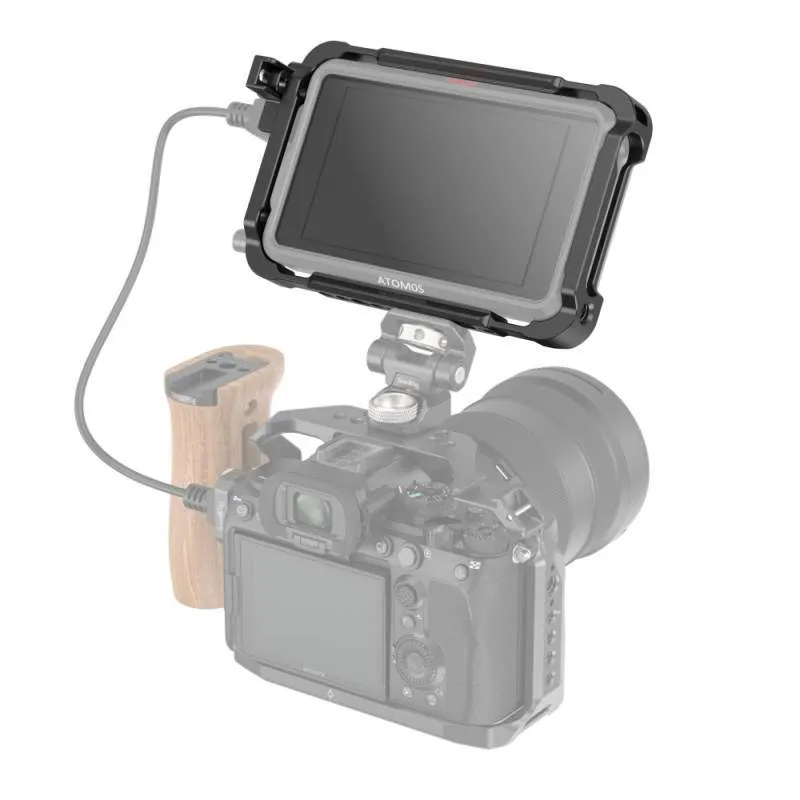

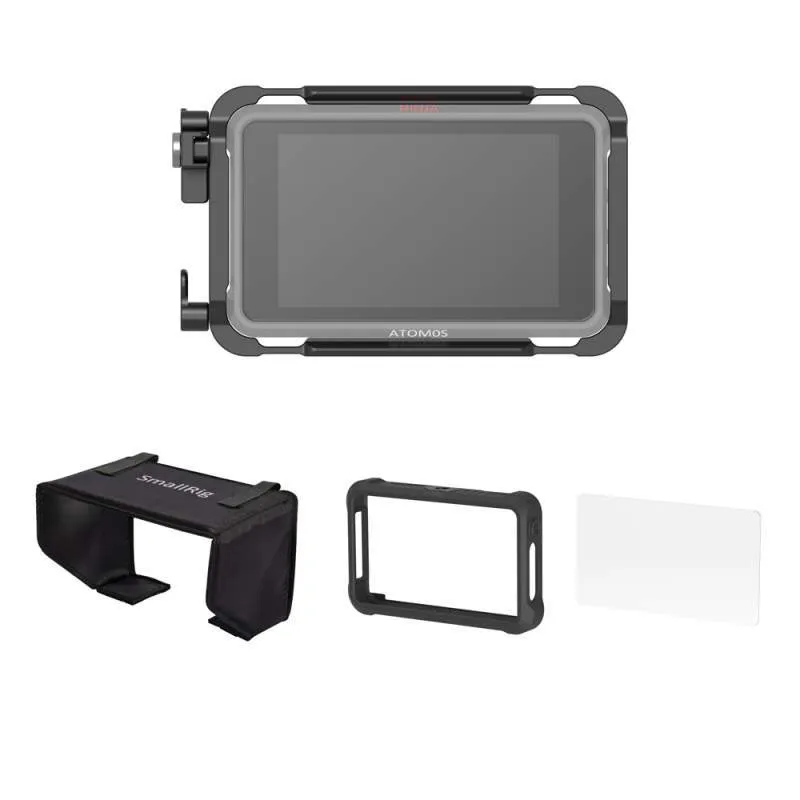

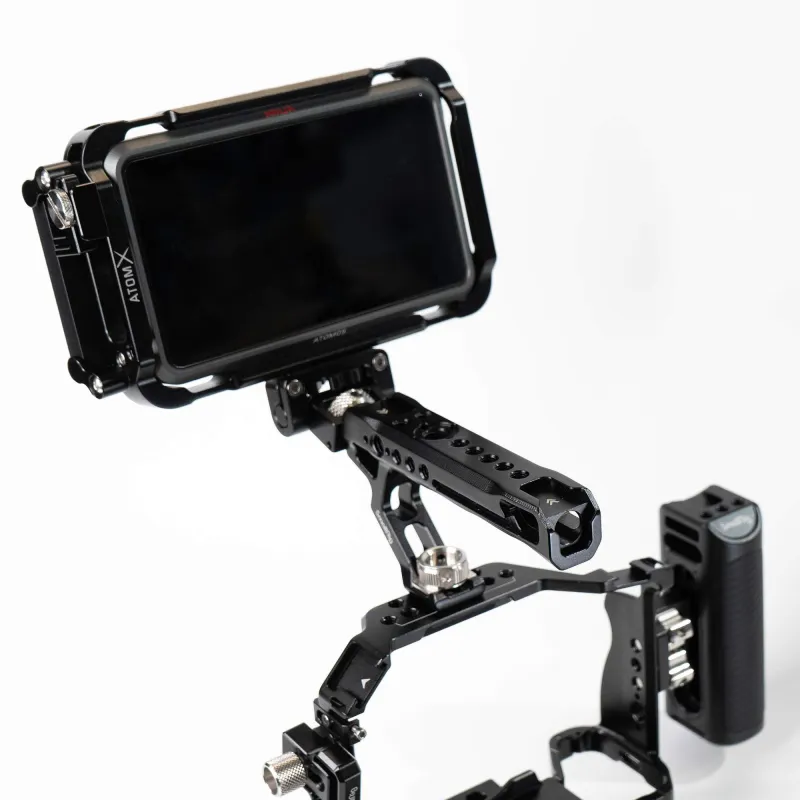

• Metal cage
• Protective screen film
• 1TB SSD drive
• SSD SATA USB 3.0 reader
• NP-F770 battery with charger

Power Options

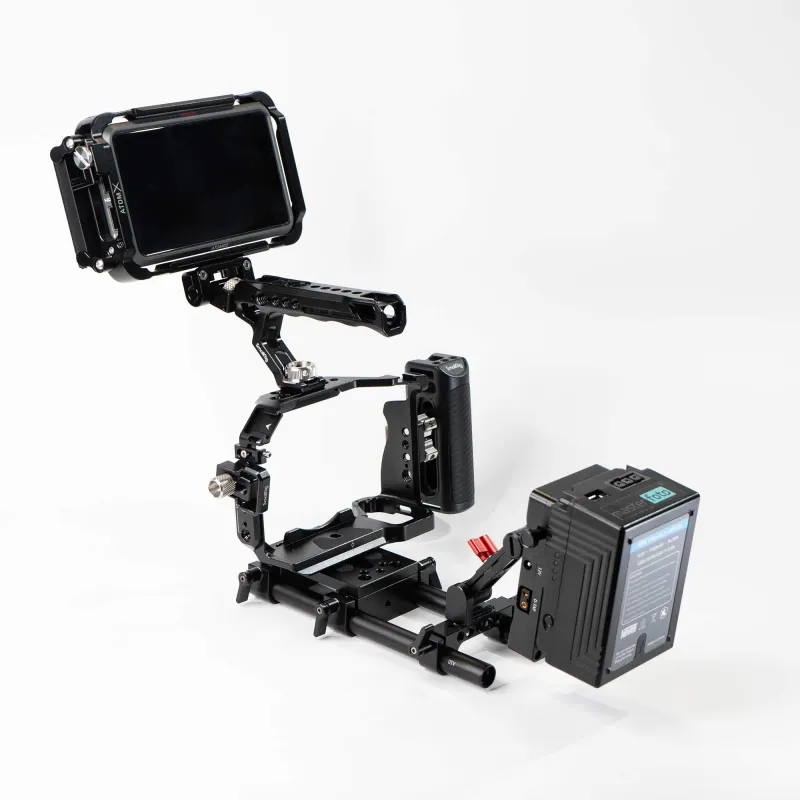

The monitor can also be powered via V-mount battery when rented together with the cage kit.

Recommended Camera Compatibility

Recommended for use with Sony rental cameras such as Sony a7S III, Sony a7IV, and Sony FX3.

Key Features

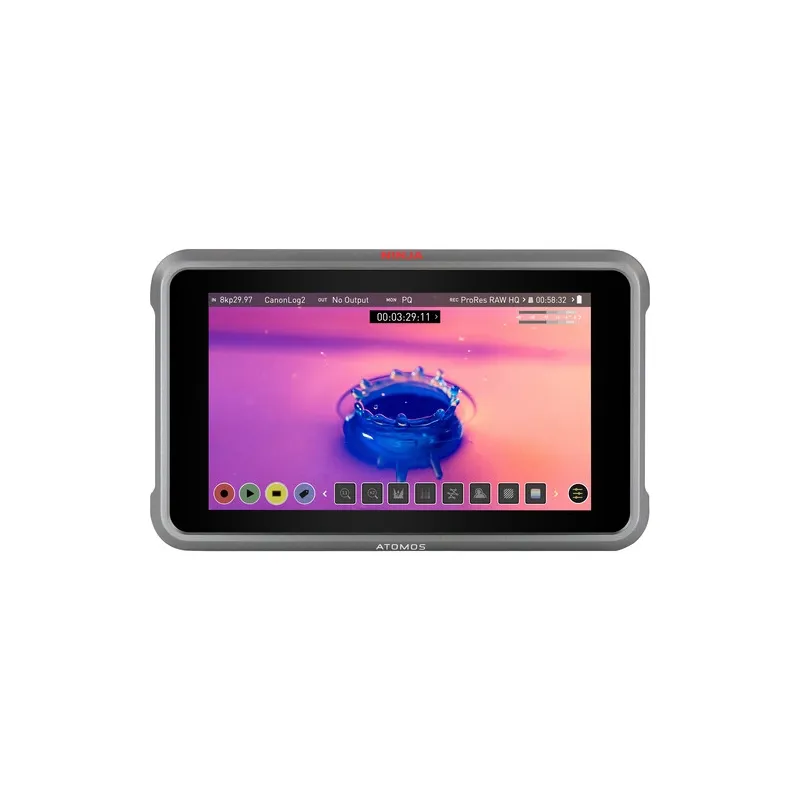

• 5.2" 1920 x 1080 touchscreen IPS LCD display with 1000 cd/m² brightness for daylight viewing

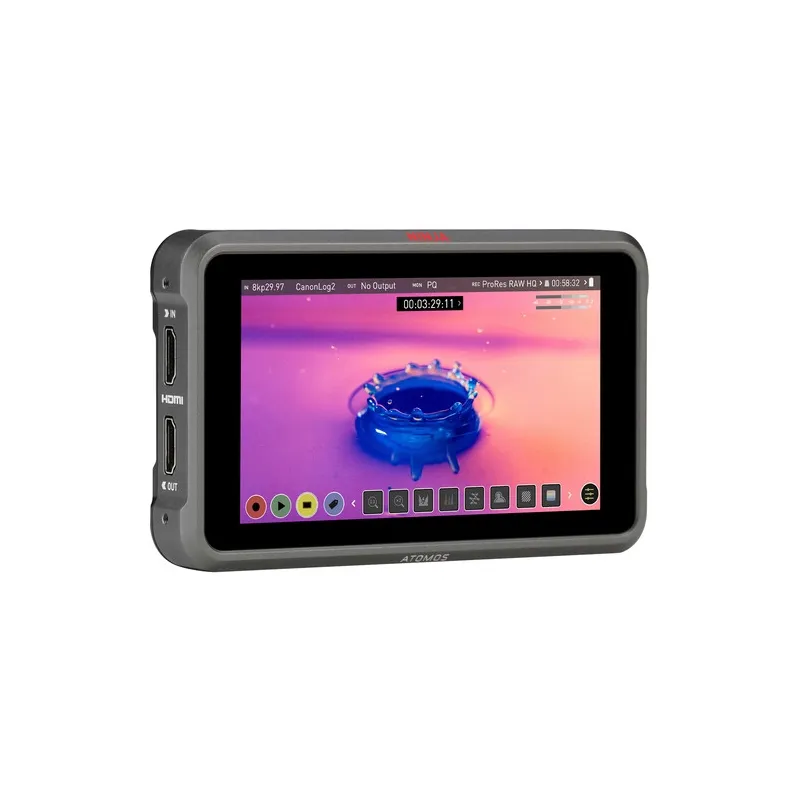

• HDMI 2.0 input/output
• Records up to 8K30 ProRes RAW and DCI 4K120 directly from camera sensors
• Includes free downloadable H.265 codec license for 10-bit 4:2:2 recording
• 10-bit exterior viewable monitor with AtomHDR mode supporting 10-stop dynamic range
• Records to 2.5" mini or standard SSD drives, including AtomX SSDmini up to 2TB
• 10-bit 4:2:2 ProRes and DNxHR encoding

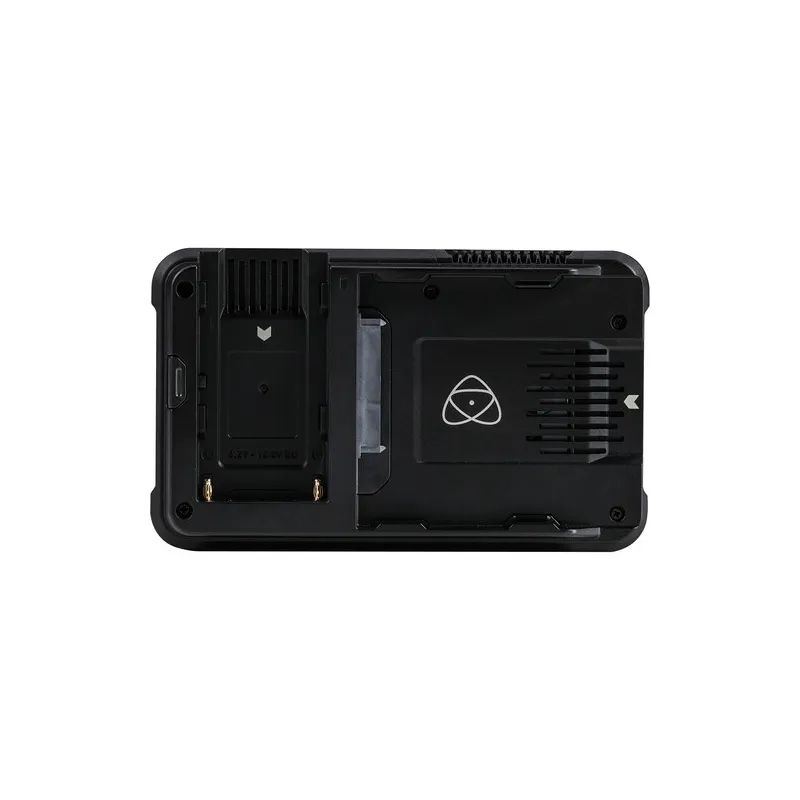

• Single Sony L-Series battery slot for power
• Aluminum chassis designed for production durability
• On-screen exposure analysis, framing guides, anamorphic de-squeeze, and focus assist tools
• Optional expansion modules: AtomX SDI, AtomX SYNC, Connect 4K, and SDI Raw license key

Firmware Update 10.76

Olympus OM-1 ProRes RAW Support

Supports Apple ProRes RAW recording over HDMI with Olympus OM-1 Micro Four Thirds camera at up to 12-bit 4K 60 fps. Requires camera firmware v1.1 and AtomOS 10.76.

New in the Ninja V+

• New chip supports higher frame rates and resolutions
• ProRes RAW recording over HDMI up to 4K120 with Z Cam E2 and E2-M4
• ProRes RAW recording over HDMI up to 8K30 with cameras like Canon R5 (additional camera support ongoing)
• H.265 codec license enables 10-bit 4:2:2 and 8-bit 4:2:2/4:2:0 recording at bit rates up to 350 Mb/s

Display and Monitoring

• 5.2" daylight viewable screen with 1000 cd/m² brightness and factory color calibration
• AtomHDR displays 10+ stops of dynamic range for log gamma footage
• Supports custom LUTs and user calibration with X-Rite i1 Display Pro tool
• Anamorphic de-squeeze for 2x, 1.5x, 1.33x, and Panasonic 8:3 ratios
• Selectable frame markers including 1:1, 4:5, 1.91:1, and 9:16

Recording Capabilities

• Apple ProRes and ProRes RAW recording up to 8K30 and DCI 4K120
• Avid DNxHR compatibility for broad editing software support
• Records to standard 2.5" SSDs or compact AtomX SSDmini drives with up to 2TB capacity
• SSDmini drives offer read speeds up to 550 MB/s and write speeds up to 500 MB/s
• Time-lapse recording as a single file with configurable frame intervals and durations

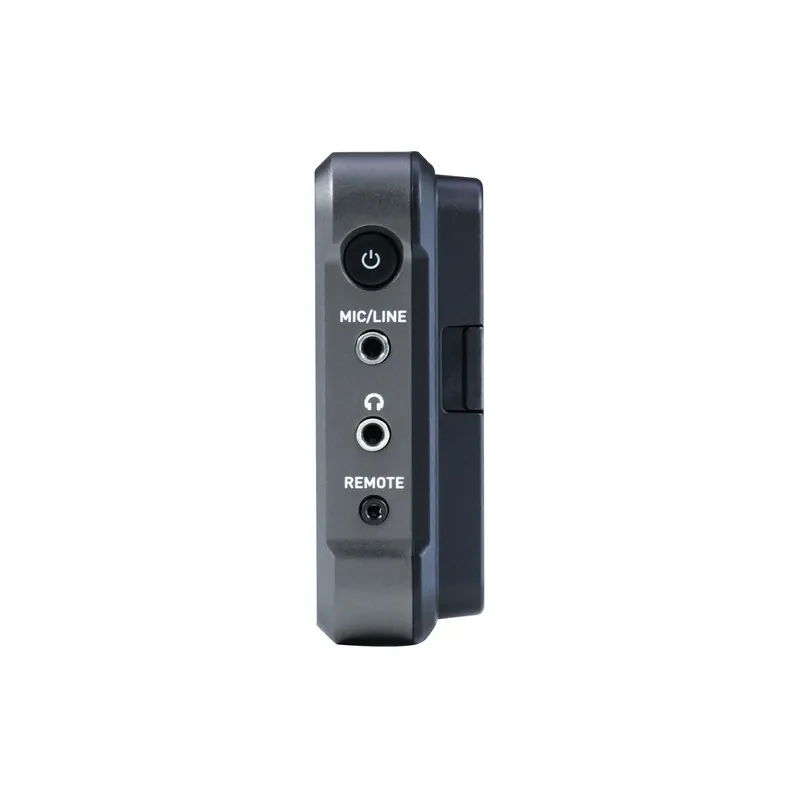

Audio

• Audio input/output via HDMI
• 3.5mm Line In/Mic In port for external audio
• 3.5mm headphone port for audio monitoring

Supported Log and HDR Formats

• Log formats: ARRI Log C, Canon C-Log/C-Log2, FUJIFILM F-Log, JVC J-Log, Nikon N-Log, Panasonic V-Log, RED LogFilm, Sony SLog2/SLog3
• HDR recording gamuts: ARRI Log CEI160 to CEI1600, Canon C-Log series, FUJIFILM F-Log, HLG, JVC J-Log1, Nikon N-Log PQ10K, Panasonic V-Log, RED LogFilm variants, Sony SLog2/SLog3
• HDR monitoring gamuts: ARRI ALEXA Wide Gamut, BT.2020, Canon Cinema/DCI P3 variants, JVC LS300, Nikon N-Log PQ10K, Panasonic V-Gamut, Rec. 709, RED DRAGONcolor series, Sony S-Gamut series

Optional Expansion Modules

• AtomX SDI Module for 12G-SDI input/output and HDMI/SDI cross conversion up to 8K30 ProRes RAW
• SDI Raw activation key
• AtomX SYNC for wireless timecode sync in multicamera setups
• Atomos Connect 4K for HDMI to USB streaming up to 1080p60
