NEEWER PH74E Battery Grip Power Supply for Portable COB Lights

Portable Battery Power for COB Lights

The NEEWER Basics PH74E is a rechargeable battery grip designed to provide portable power for NEEWER HS60B and MS60B series video lights and other compact COB lights. Its 5,000 mAh, 74 Wh capacity provides steady power for extended shooting; it can operate an HS60B at full power for approximately 1 hour. The slim handle has a striped grip pattern for more comfortable extended handheld use.

Power Outputs and Charging

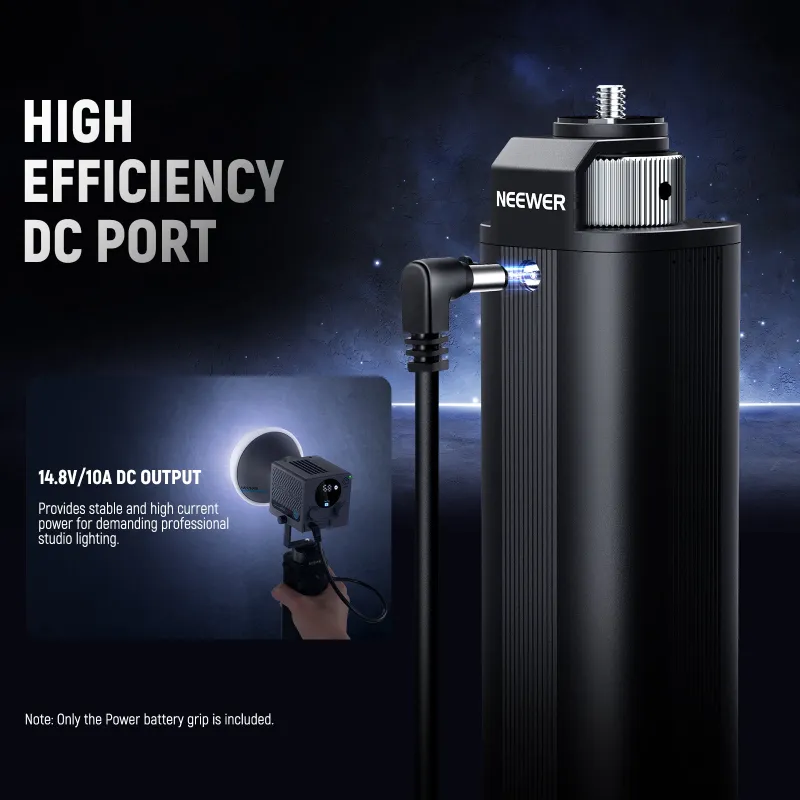

• DC output: 14.8 V, up to 10 A, for stable, high-current power to compatible lighting equipment.

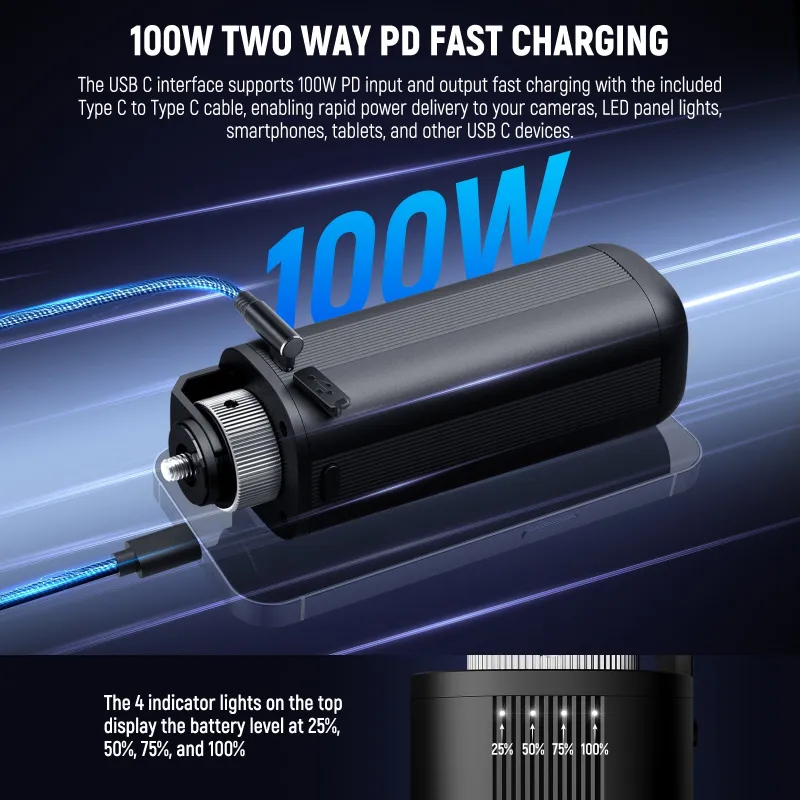

• USB-C two-way PD charging: Supports up to 100 W input and output. Output profiles are 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, and 20 V/5 A; input profiles are the same.
• DC input: 16.8 V, up to 5 A.
• The USB-C port can power compatible cameras, LED panel lights, smartphones, tablets, and other USB-C devices. Adjustable current levels help match the requirements of connected devices.
• Four battery indicators show charge levels at 25%, 50%, 75%, and 100%.

Mounting and Protection

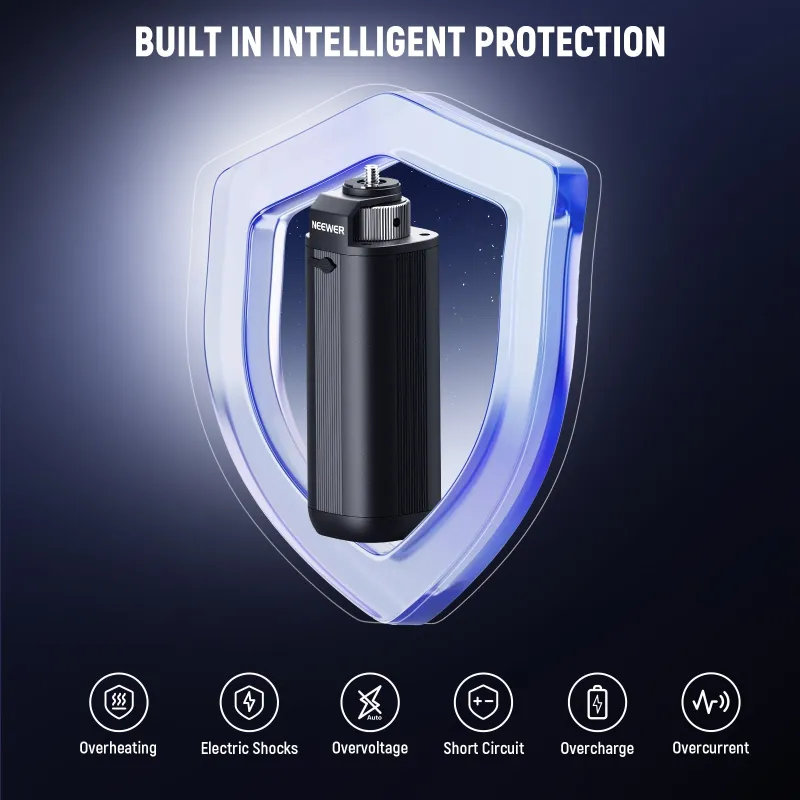

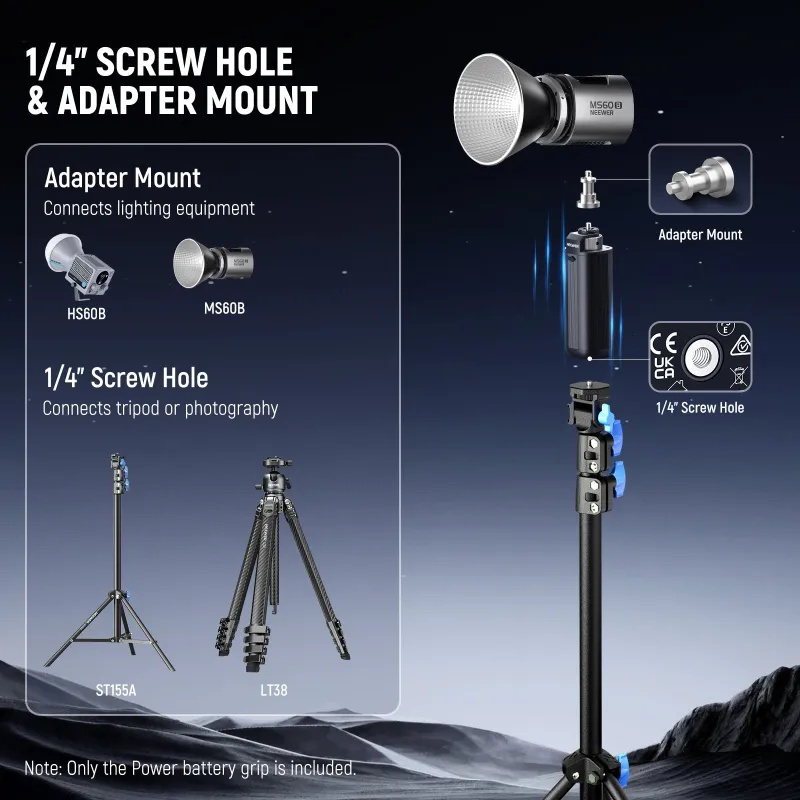

The included 1/4-inch mounting head connects the grip to compatible lighting equipment. A 1/4-inch threaded hole on the bottom allows attachment to a camera tripod or photography light stand for hands-free use. A built-in protection system guards against overcharging, over-discharge, overcurrent, overvoltage, overheating, overpower, and short circuits.

Specifications

• Model: PH74E
• Product type: Battery grip
• Color: Black
• Compatibility: Studio LED lights, including NEEWER HS60B and MS60B series lights and other compact COB lights
• Application: Product and portrait photography
• Capacity: 14.8 V, 5,000 mAh, 74 Wh
• DC output: 14.8 V, 10 A maximum
• USB-C output: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A
• DC input: 16.8 V, 5 A maximum
• USB-C input: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A
• Main material: Metal
• Weight: 850 g
• Mounting points: 1/4-inch screw and 1/4-inch threaded hole

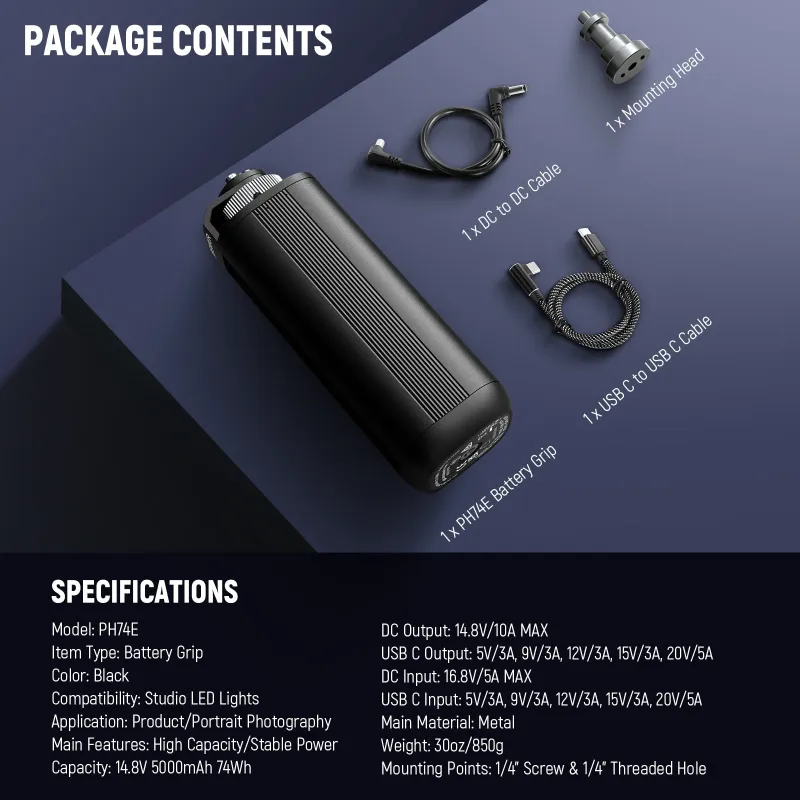

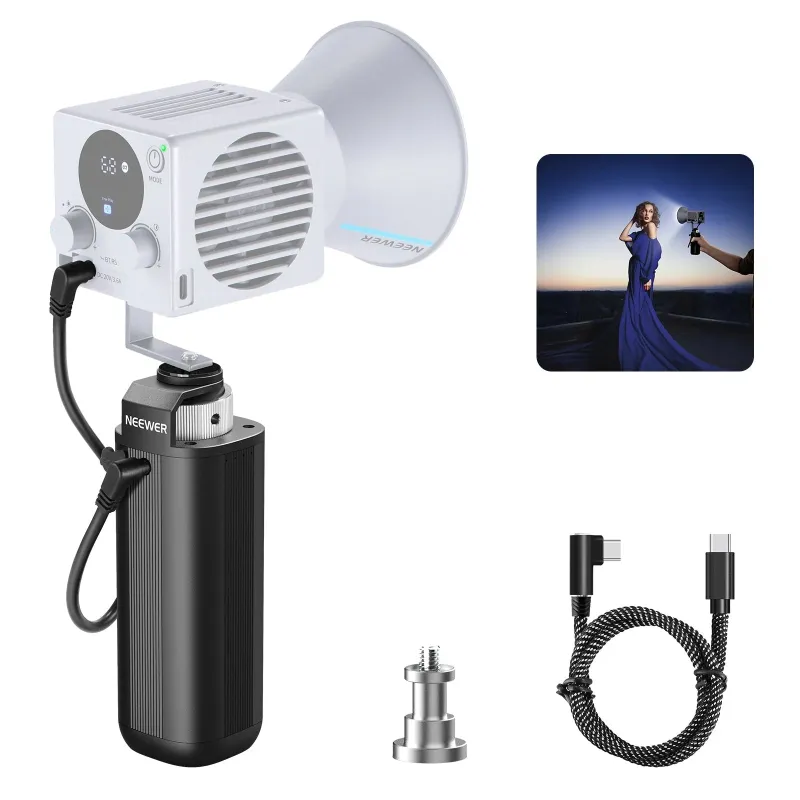

Package Contents

• PH74E battery grip
• Mounting head
• DC-to-DC cable
• USB-C-to-USB-C cable

Lights and stands are not included.
