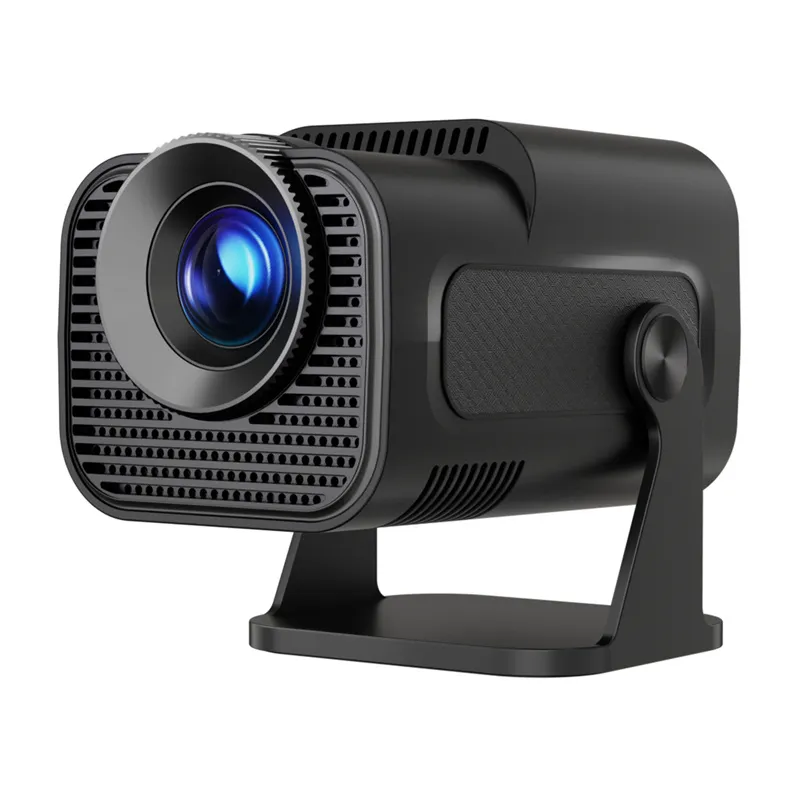

Magcubic HY320MINI Projector

Magcubic HY320MINI Projector

The Magcubic HY320MINI is a portable projector featuring a native resolution of 720p (1280 × 720) with support for 4K content. It delivers 300 ANSI lumens of brightness and a high contrast ratio of 10,000:1, producing clear and dynamic images suitable for various lighting conditions. The projector can display images with a diagonal size ranging from 30 to 200 inches.

Image Quality and Display Features

Equipped with LED technology, the projector offers enhanced color intensity and image stability, ensuring natural and visually comfortable viewing even during extended sessions. The 300 ANSI lumens brightness combined with a 10,000:1 contrast ratio provides well-defined details and deep blacks, ideal for movies and TV shows. It supports Full HD and 4K signals, allowing compatibility with modern image sources.

Operating System and Multimedia Capabilities

Running on Android 11, the HY320MINI functions as a standalone multimedia device with access to over 4,000 apps, including popular streaming services like YouTube, Netflix, and Prime Video. It includes a built-in Hi-Fi speaker delivering high-quality sound without the need for external audio devices. The user interface is intuitive, enabling quick switching between apps and content sources.

Connectivity

• Dual-band Wi-Fi 6 (2.4 GHz and 5 GHz) with speeds up to 1800 Mbps for fast and stable wireless streaming.
• Bluetooth 5.0 for wireless connection to headphones or external speakers.

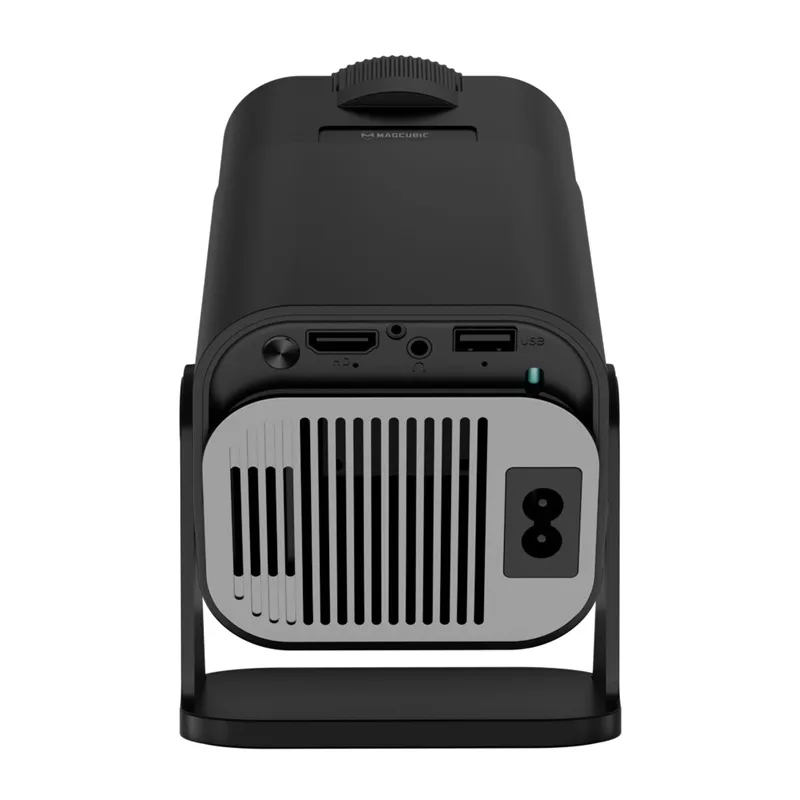

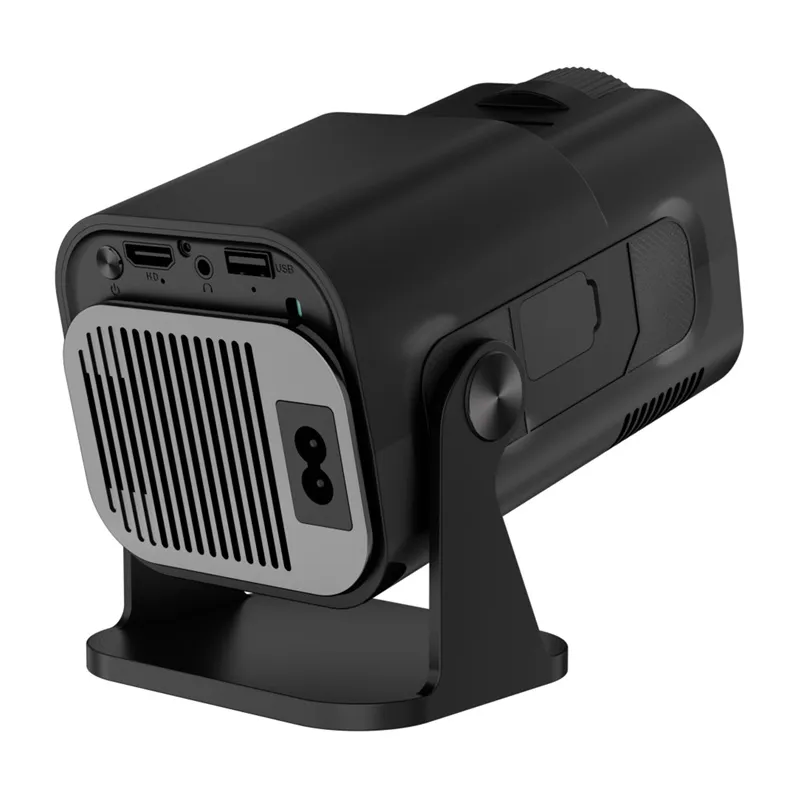

• Multiple ports including HDMI, USB, AV, and 3.5 mm audio output for connecting game consoles, TV sticks, laptops, DVD players, and other devices.
• Screen Mirroring (ScreenCast) support for iOS, Android, and Windows devices enables wireless image transmission from smartphones or tablets.

Image Adjustment and Projection Flexibility

• Automatic vertical keystone correction with a 30° range and manual horizontal adjustment.
• 4-point (4P) trapezoid correction for precise corner adjustments.
• Digital zoom from 50% to 100% to adjust image size without moving the device.
• Manual focus adjustment via a dial for quick and accurate image clarity.
• 180° swivel design allows projection onto walls or ceilings without additional mounts.

Physical Specifications and Usage

• Compact and lightweight at approximately 0.74 kg, enhancing portability.
• Designed for tabletop placement, tripod mounting, or ceiling installation.
• Recommended projection distance ranges from 1 to 4 meters, with an optimal distance of 1.68 meters for an 85-inch image.

Technical Specifications

• Manufacturer: Magcubic
• Model: HY320MINI
• Max. native resolution: 720p (1280 × 720)
• Max. brightness: 300 ANSI lumens
• Signal support: Up to 4K
• Operating system: Android 11
• Processor: Allwinner H726
• Keystone correction: Automatic vertical, manual 4-point (4P/4D)
• Focus adjustment: Manual
• Connectivity: Wi-Fi 6 (dual band 2.4 GHz & 5 GHz), Bluetooth 5.0, HDMI, USB, AV, 3.5 mm audio output
• Built-in speaker: Yes (Hi-Fi)
• Contrast ratio: 10,000:1
• Zoom: 50–100%
• Tilt angle: Up to 180°
• Side projection: Supported via 4P correction
• Projection diagonal: 30–200 inches
• Recommended projection distance: 1–4 meters (optimal 1.68 m for 85")
• Weight: 0.74 kg
