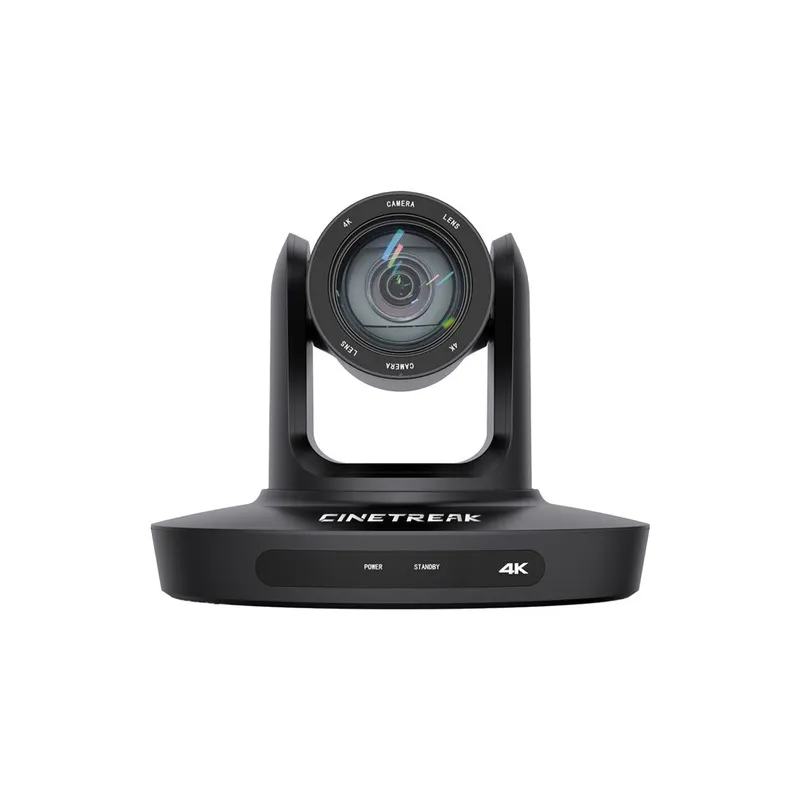

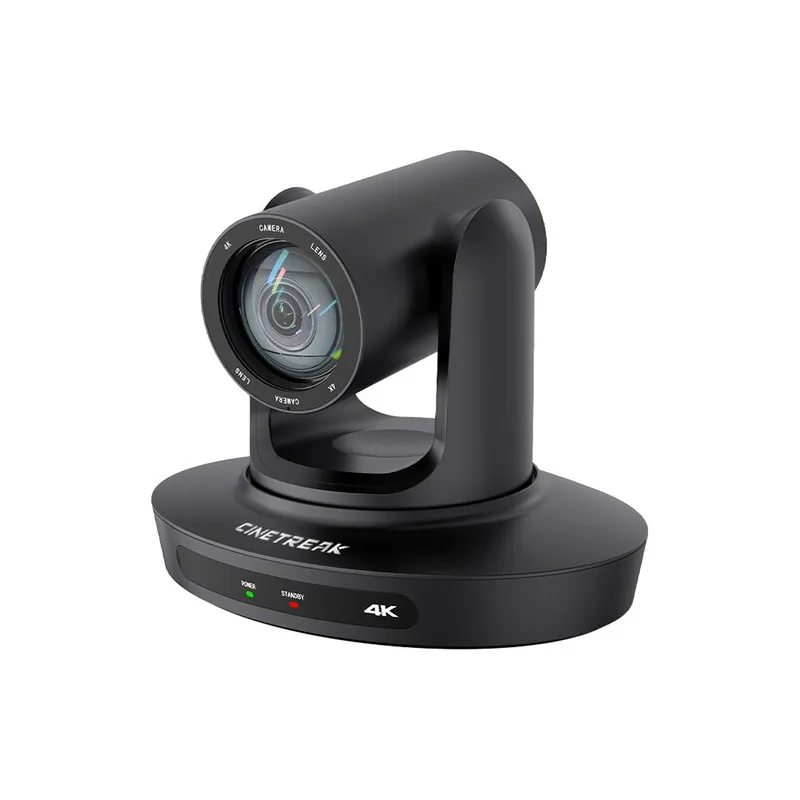

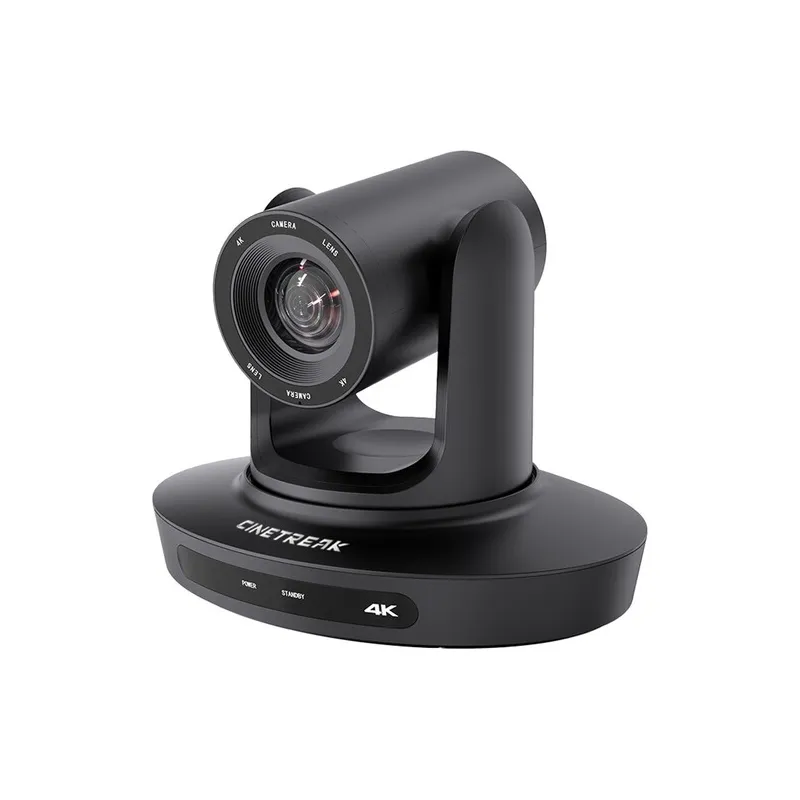

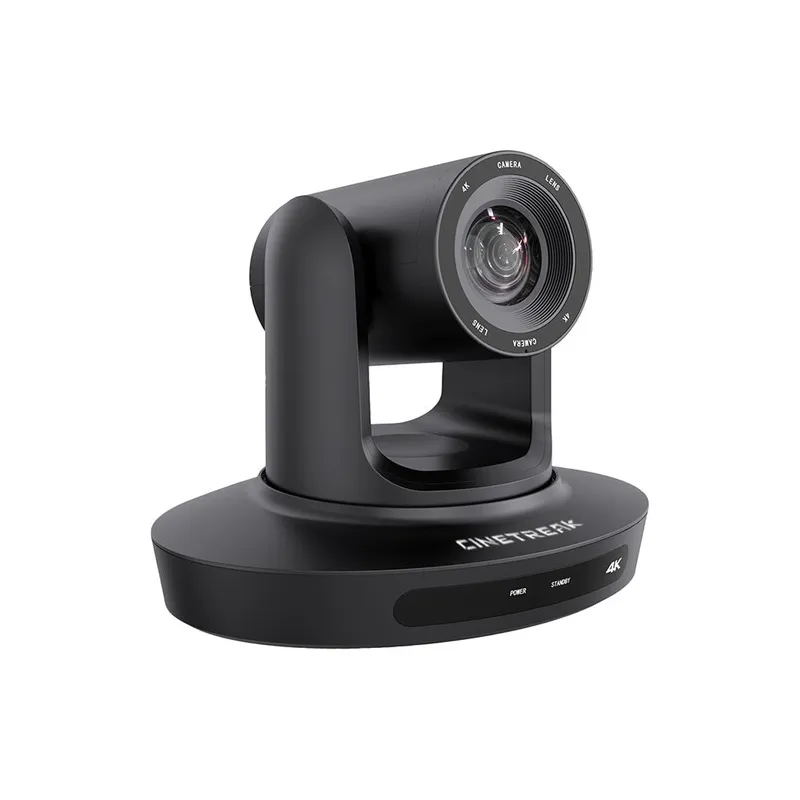

CineTreak CT-PT20H 4K PTZ Camera
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 20x
- Video Interface hdmi
- Video Interface usb 3.0
- Video Interface rj-45
- Features live streaming capability
- Features auto tracking
- Features 3d noise reduction
- Features poe
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- IP Video rtmps
- IP Video onvif
- Control Protocol rs-232
- Control Protocol rs-485
- Control Interface rj-45
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 20x
- Video Interface hdmi
- Video Interface usb 3.0
- Video Interface rj-45
- Features live streaming capability
- Features auto tracking
- Features 3d noise reduction
- Features poe
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- IP Video rtmps
- IP Video onvif
- Control Protocol rs-232
- Control Protocol rs-485
- Control Interface rj-45
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| CMOS Sensor | 4K (3840 x 2160) QFHD |
| Video Resolution | 4K |
| Optical Zoom | 20x |
| Video Interface | RJ-45 |
| Video Interface | USB 3.0 |
| Video Interface | HDMI |
| Features | Auto Tracking |
| Features | PoE |
| Features | Live Streaming Capability |
| Features | 3D Noise Reduction |
| IP Video | ONVIF |
| IP Video | RTMP |
| IP Video | RTMPS |
| IP Video | SRT |
| IP Video | RTSP |
| Control Protocol | RS-485 |
| Control Protocol | RS-232 |
| Control Interface | RJ-45 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
The CineTreak CT-PT20H is a versatile 4K PTZ camera with AI human tracking, featuring a Sony 1/2.8 STARVIS CMOS sensor, 20 optical zoom, and simultaneous HDMI, USB 3.0, and IP output. Designed for education, conferencing, and live streaming, it delivers smooth UHD 4K30 video, advanced subject tracking, and flexible control via serial and IP protocols.
The CineTreak CT-PT20H USB/HDMI/IP Live Stream 4K PTZ Camera brings professional PTZ performance and intelligent automation to classrooms, corporate meeting spaces, houses of worship, and live streaming environments. Equipped with a Sony 1/2.8 STARVIS CMOS sensor, the camera delivers clean, detailed video with excellent low-light performance, capturing resolutions up to UHD 4K at 30fps.
Its 20 optical zoom lens provides precise framing from wide-angle shots to tight close-ups while maintaining accurate color reproduction and image sharpness. Enhanced with advanced AI human tracking, the CT-PT20H automatically detects and follows presenters, keeping them centered in the frame without manual operation, ideal for hands-free productions.
The camera supports simultaneous video output via HDMI 1.4, USB 3.0, and IP streaming, allowing seamless integration into modern AV, streaming, and conferencing workflows. USB connectivity supports UVC 1.1 and UAC 1.0, enabling plug-and-play compatibility with popular software platforms using YUY2, MJPEG, H.264, and H.265 codecs.
With support for RTMP, RTSP, RTMPS, ONVIF, and SRT streaming, along with RS-232 and RS-485 serial control, the CT-PT20H integrates easily into both IP-based and traditional control systems. Additional professional features include 200 programmable PTZ presets, 2D and 3D digital noise reduction, a 3.5mm stereo audio input, and flexible power options via PoE or the included 12V DC power adapter.
Key Features
- Sony 1/2.8 STARVIS CMOS sensor
- Capture up to UHD 4K30
- 20 optical zoom
- Advanced AI human tracking
- Simultaneous HDMI, USB 3.0 & IP output
- RTMP, RTSP, RTMPS, ONVIF & SRT streaming
- RS-232 / RS-485 serial control
- 200 PTZ presets
- 2D & 3D digital noise reduction
- PoE support
- 3.5mm stereo audio input
- Power adapter included
- CineTreak CT-PT20H 4K PTZ Camera
- 12V DC Power Adapter
- IR Remote Control
- RS-232C Cable
- HDMI Cable
- USB Cable
- Mounting Bracket
- Image Sensor 1/2.8 STARVIS CMOS
- Signal-to-Noise Ratio 55 dB
- Minimum Illumination 0.5 lux at f/1.8
- Shutter Speed 1/10,000 to 1/25 sec
- White Balance Auto, Indoors, Outdoors, Manual, One-touch
- Focus Autofocus / Manual
- Optical Zoom 20
- Focal Length 5.2104 mm
- Field of View (Horizontal) 58.73°
- Field of View (Vertical) 33.18°
- Maximum Resolution 3840 x 2160 (UHD 4K)
- Frame Rate (4K) Up to 30 fps
- Frame Rate (1080p) Up to 60 fps
- Frame Rate (720p) Up to 60 fps
- Embedded Audio HDMI / USB / IP
- Internal Recording No

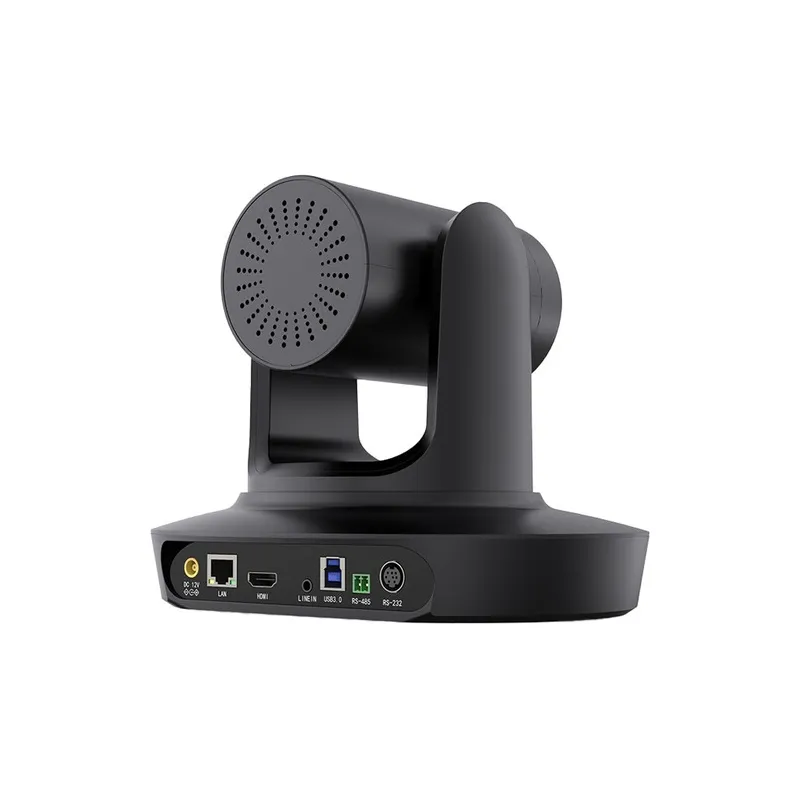

- Video Outputs HDMI 1.4, USB-B 3.0, RJ45 LAN
- Audio Input 3.5 mm stereo line-in
- Control Interfaces RS-232 (DIN 8-pin), RS-485 / RS-422 (Phoenix)
- Presets 200
- Pan Range 170°
- Tilt Range 120° (30 to 90)
- Power Input 12 V DC
- Power Consumption 12 W
- PoE Proprietary PoE
- Power Adapter Included
