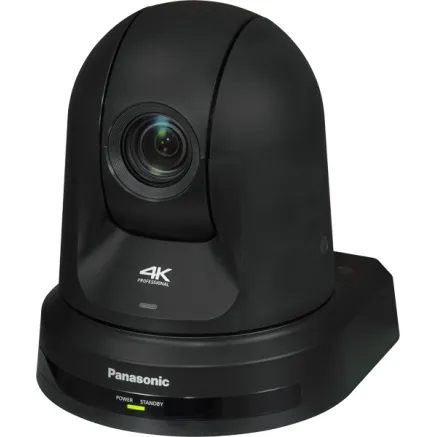

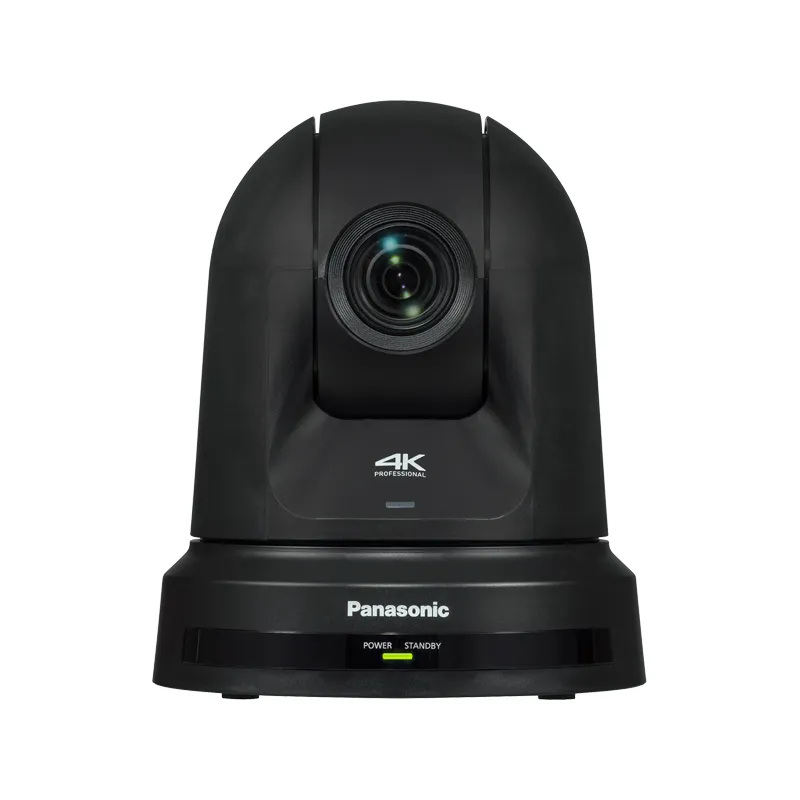

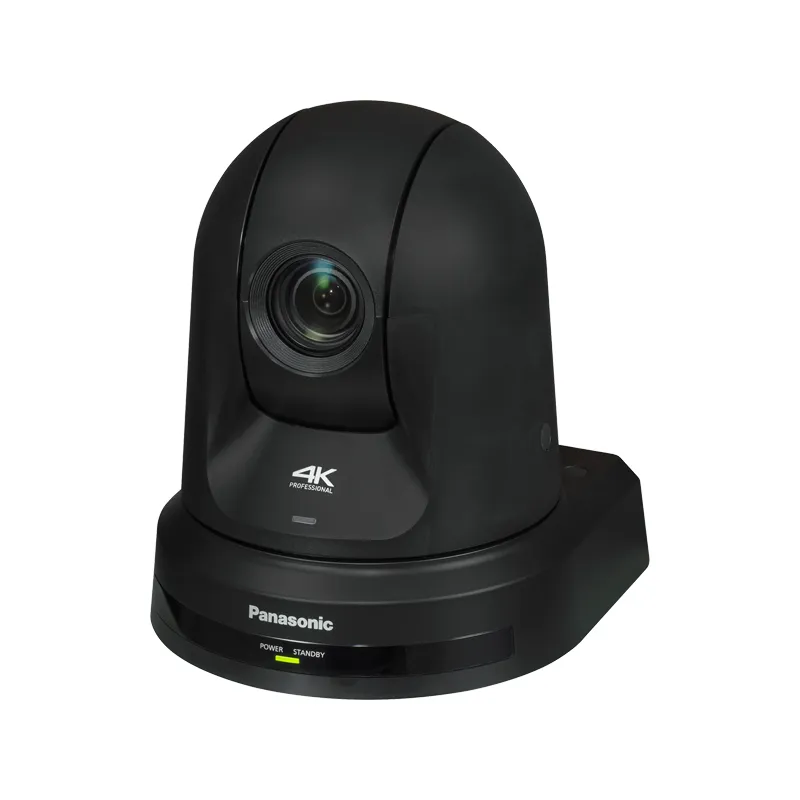

PANASONIC AW-UE30KEJ 4K INTEGRATED CAMERA, BLACK AW-UE30KEJ
- Color black
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 20x
- Digital Zoom 12x
- Video Interface hdmi
- Video Interface usb type-c
- Features auto tracking
- Features wide dynamic range
- Features audio embedding
- PoE Technology poe+
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- IP Video rtmps
- IP Video onvif
- Control Protocol rs-422
- Control Protocol ip
- Control Interface rj-45
- Angle Of View 75 degree
- Color black
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 20x
- Digital Zoom 12x
- Video Interface hdmi
- Video Interface usb type-c
- Features auto tracking
- Features wide dynamic range
- Features audio embedding
- PoE Technology poe+
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- IP Video rtmps
- IP Video onvif
- Control Protocol rs-422
- Control Protocol ip
- Control Interface rj-45
- Angle Of View 75 degree
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| CMOS Sensor | 4K (3840 x 2160) QFHD |
| Color | Black |
| Video Resolution | 4K |
| Optical Zoom | 20x |
| Digital Zoom | 12x |
| Video Interface | HDMI |
| Video Interface | USB Type-C |
| Features | Auto Tracking |
| Features | Audio embedding |
| Features | Wide Dynamic Range |
| PoE Technology | PoE+ |
| IP Video | RTMP |
| IP Video | RTMPS |
| IP Video | SRT |
| IP Video | RTSP |
| IP Video | ONVIF |
| Control Protocol | IP |
| Control Protocol | RS-422 |
| Control Interface | RJ-45 |
| Angle Of View | 75 Degree |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Imaging and Outputs
The integrated lens provides a 35 mm equivalent focal range of approximately 25-500 mm. UHD output is available up to 2160/29.97p or 25p via HDMI (422, 10-bit). The USB-C device port supports UVC/UAC for USB workflows. A 3.5 mm mic/line input with plug-in power allows audio embedding on HDMI and IP streams. i.Zoom extends to 23x in UHD and 30x in FHD, with a digital extender offering 1.4x/2x options. Minimum illumination is 3 lx (F1.8, 59.94p, 50 IRE, 42 dB).
Network, Control, and PTZ Performance
The camera streams over IP in JPEG (MJPEG), H.264, and H.265 at up to 1080p, with selectable frame rates for 50/60 Hz regions. Supported protocols include RTSP/RTP, RTMP/RTMPS, and SRT, with IPv4/IPv6 compatibility. Control is available over IP and RS-422, and PoE+ enables power and data over a single cable. The direct-drive pan/tilt mechanism provides smooth motion with a pan range of 175, a tilt range of 30 to +90, and speed modes from precise moves up to 180/s (Fast2). Operating noise is NC25 or less. A built-in auto-tracking function and optical image stabilization support presenter tracking and stable shots in typical conferencing and education environments.
Key Features
1/2.5-type 4K MOS sensor; approx. 8.49 MP effective
HDMI output UHD 2160/29.97p, 25p; HD formats up to 1080/59.94p and 50p
20x optical zoom; i.Zoom 23x (UHD) / 30x (FHD); digital extender 1.4x/2x
35 mm equivalent focal length approx. 25-500 mm; horizontal angle of view 74.1 (wide) to 4.0 (tele)
IP streaming in JPEG (MJPEG), H.264, H.265 up to 1080p; protocols include RTSP/RTP, RTMP/RTMPS, SRT
USB-C device mode with UVC/UAC; 3.5 mm stereo mic/line input with plug-in power; audio embedding on HDMI/IP
Direct-drive PTZ pan 175, tilt 30 to +90; speed modes up to 180/s (Fast2)
Minimum illumination 3 lx; scene files and gamma options including Normal, Cinema1/Cinema2, Still-Like

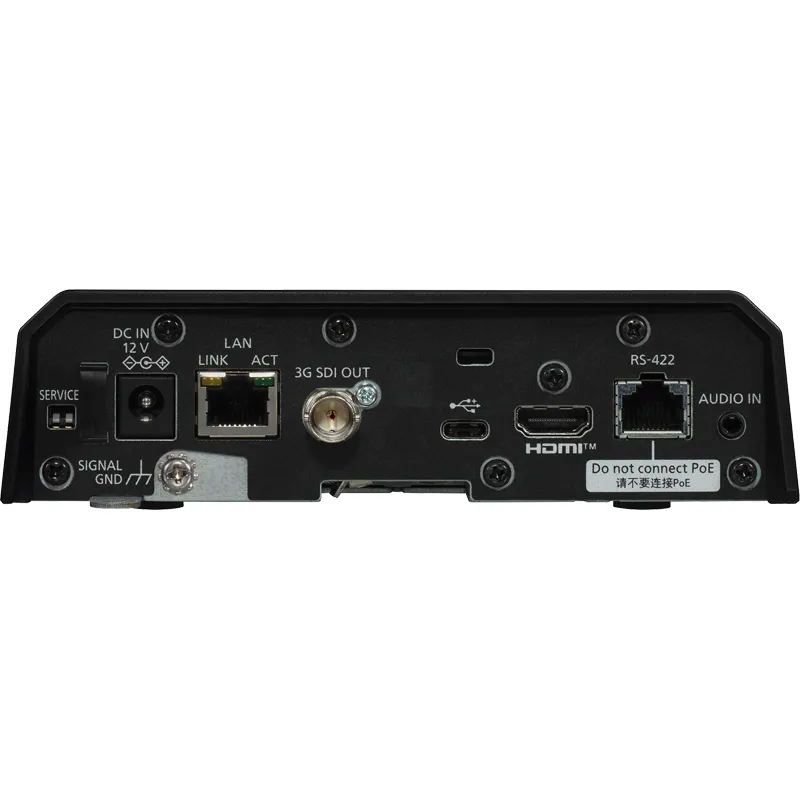

Power and control via PoE+; LAN 100/1000BASE-T; RS-422 control (RJ-45)
Dimensions approx. 160 x 192.1 x 166 mm; mass approx. 2.05 kg including ceiling bracket
