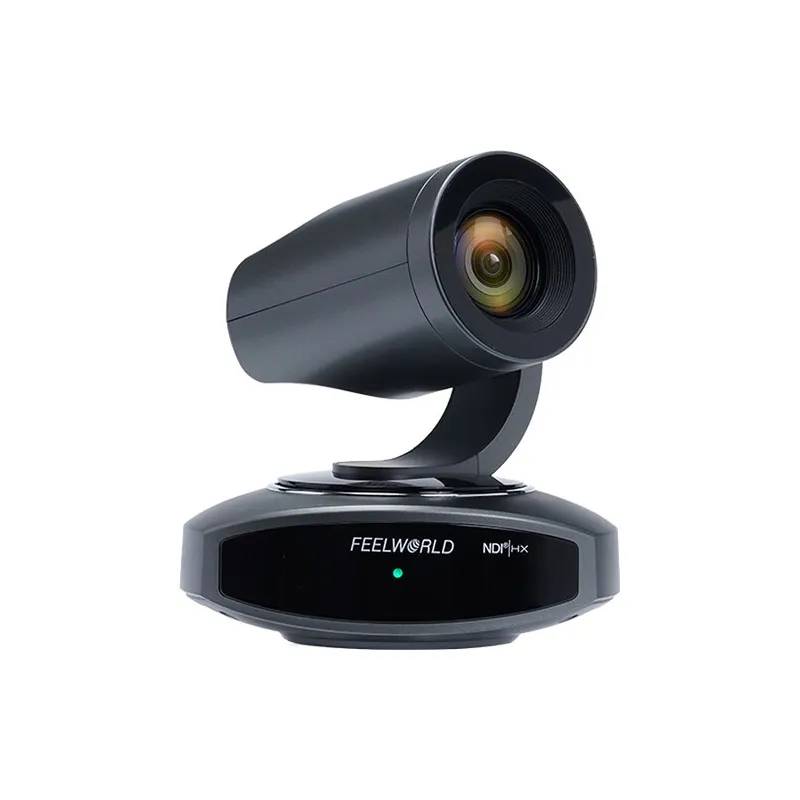

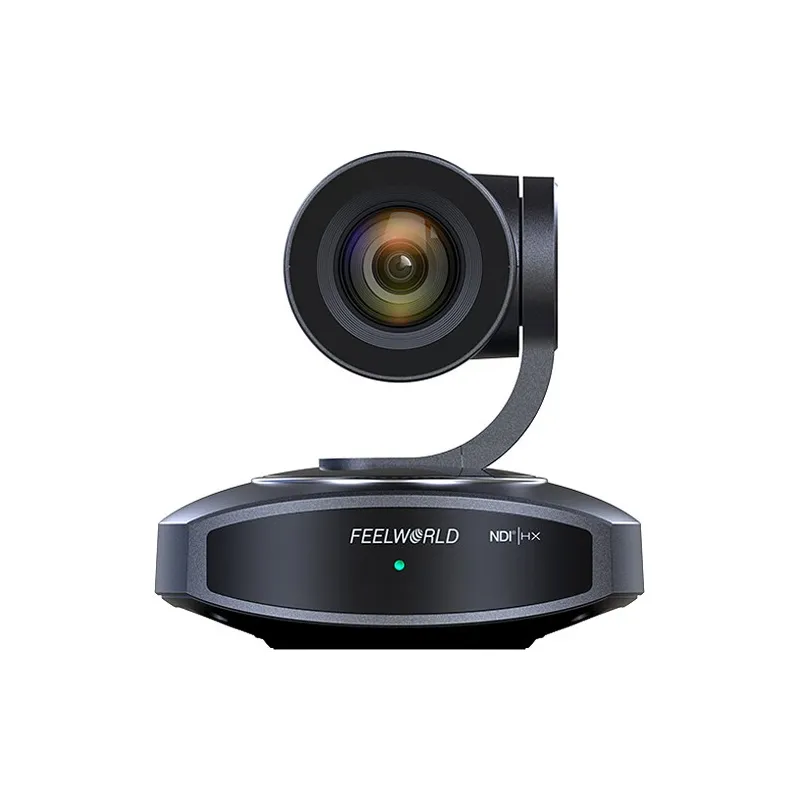

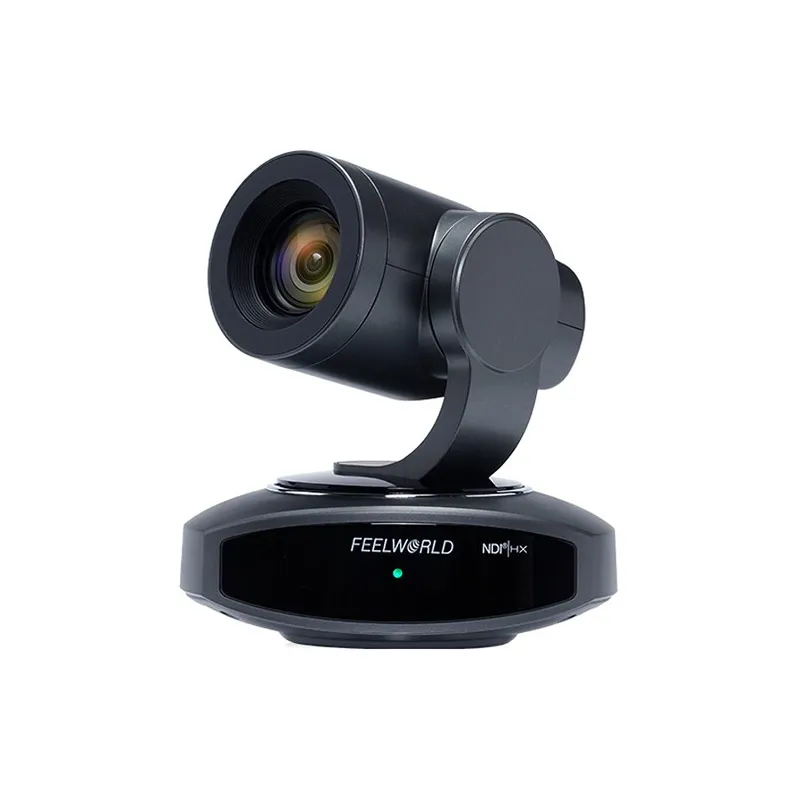

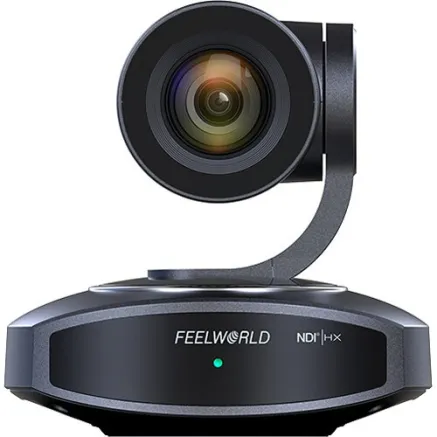

Feelworld NDI10X 4K PTZ Camera

The Feelworld NDI10X is a compact 4K NDI HX2 PTZ camera designed for professional live streaming, education, conferencing, and houses of worship. Featuring a 1/2.8 CMOS sensor, 10 optical zoom, AI-assisted auto-tracking, and simultaneous HDMI, USB, and IP output, it delivers high-quality, low-latency video with flexible control and PoE support.

The Feelworld NDI10X NDI HX2 4K PTZ Camera offers a powerful and efficient solution for modern IP-based and traditional video production workflows. Built around an 8.29MP 1/2.8 CMOS sensor, the camera captures sharp UHD video up to 4K at 30fps and Full HD at 60fps, ensuring excellent image clarity for live broadcasts and recordings.

Equipped with a 10 optical zoom lens and 16 digital zoom, the NDI10X allows precise framing from wide-angle views to close-up shots. Its AI-assisted auto-tracking system supports real-time and zone-based tracking, automatically following presenters to keep them centered in frame, ideal for classrooms, lectures, meetings, and worship services.

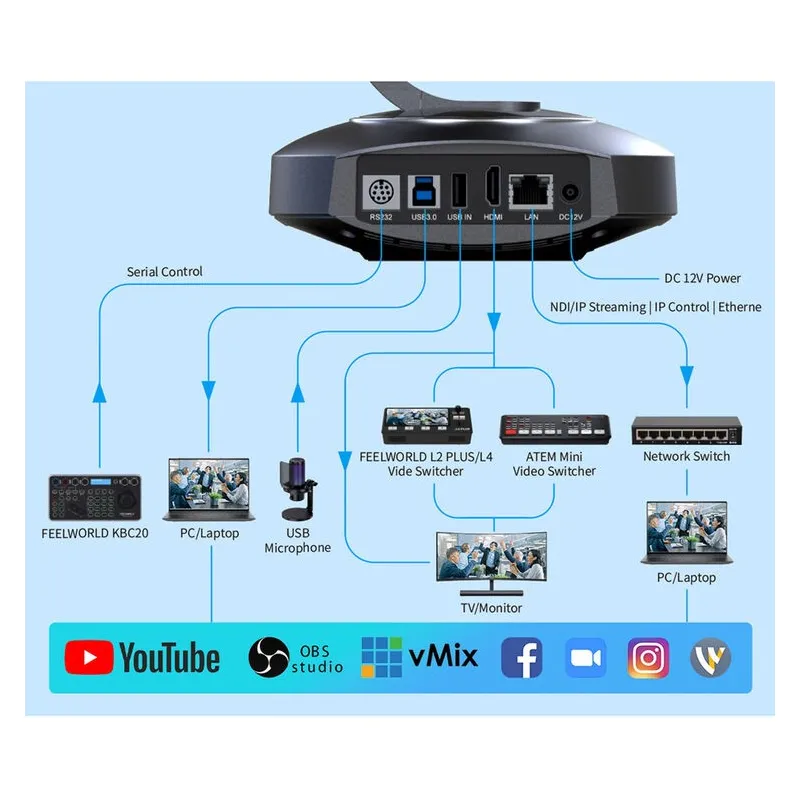

The camera supports simultaneous HDMI, USB 3.0, and NDI HX2 outputs, enabling seamless integration into streaming platforms, video switchers, and conferencing systems. With support for H.264, H.265, MJPEG, NV12, and YUY2, it provides flexible dual-stream output for both high-quality production and bandwidth-efficient streaming. Power over Ethernet (PoE 802.3at) simplifies installation by delivering power, video, and control over a single cable.

Advanced imaging features such as 2D/3D noise reduction, fast autofocus, and multiple white balance modes ensure consistent image quality even in challenging lighting conditions. Broad compatibility with VISCA, Pelco-D/P, RS-232, and IP control protocols makes the NDI10X well suited for multi-camera and remote-controlled environments.

Key Features

• 8.29MP 1/2.8 CMOS image sensor
• UHD 4K up to 30fps, Full HD up to 60fps
• 10 optical zoom, 16 digital zoom
• NDI HX2 low-latency IP streaming
• Simultaneous HDMI, USB 3.0, and IP output
• AI-assisted auto-tracking (real-time & zone)
• Dual-stream output (YUY2/NV12 + H.264/H.265)
• Advanced 2D/3D noise reduction
• PoE (802.3at) and DC power support
• VISCA, Pelco-D/P, RS-232 control protocols
• Built-in tally light

• Feelworld NDI10X PTZ Camera
• Power Adapter
• IR Remote Control
• User Documentation

• Sensor 1/2.8 CMOS
• Effective Pixels 8.29 Megapixels
• Minimum Illumination 0.5 lux f/1.8
• Shutter Speed 1/25 - 1/20000 s
• SNR 50 dB
• Noise Reduction 2D / 3D DNR
• White Balance Auto, Manual, One Push, ATW, Color Temperature
• Optical Zoom 10
• Digital Zoom 16
• Field of View 67.5 (wide) - 7.6 (tele)
• Aperture f/1.76 - f/3.0
• Focus Auto / Manual
• HDMI Output 3840x2160 25/30 fps; 1920x1080 60/50/30/25 fps; 1280x720 60/50 fps
• IP / NDI HX2 Output 320x180 to 3840x2160 5-30 fps
• USB 3.0 Output YUY2, NV12, MJPEG, H.264, H.265
• Embedded Audio HDMI / USB / LAN / NDI
• Pan Range 340°
• Tilt Range 120°
• Presets 255 (IP / RS-232 / VISCA)
• Pan Speed 0.165°/s
• Tilt Speed 0.135°/s
• Power Input DC 12V / PoE 802.3at
• Power Consumption 13.3 W
• Dimensions 154.5 x 151.6 x 131.3 mm
• Weight 1.0 kg
