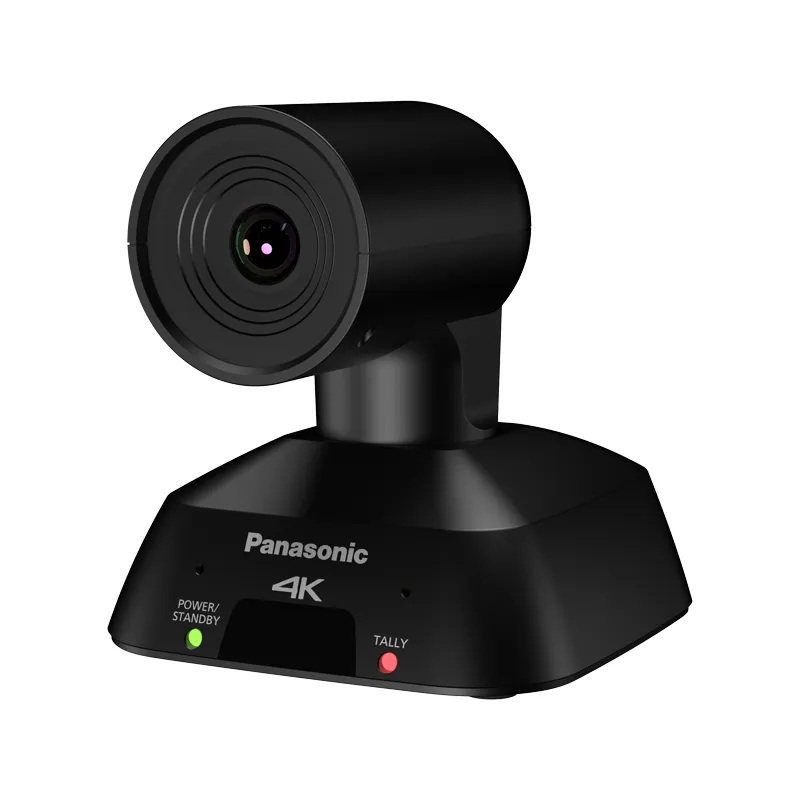

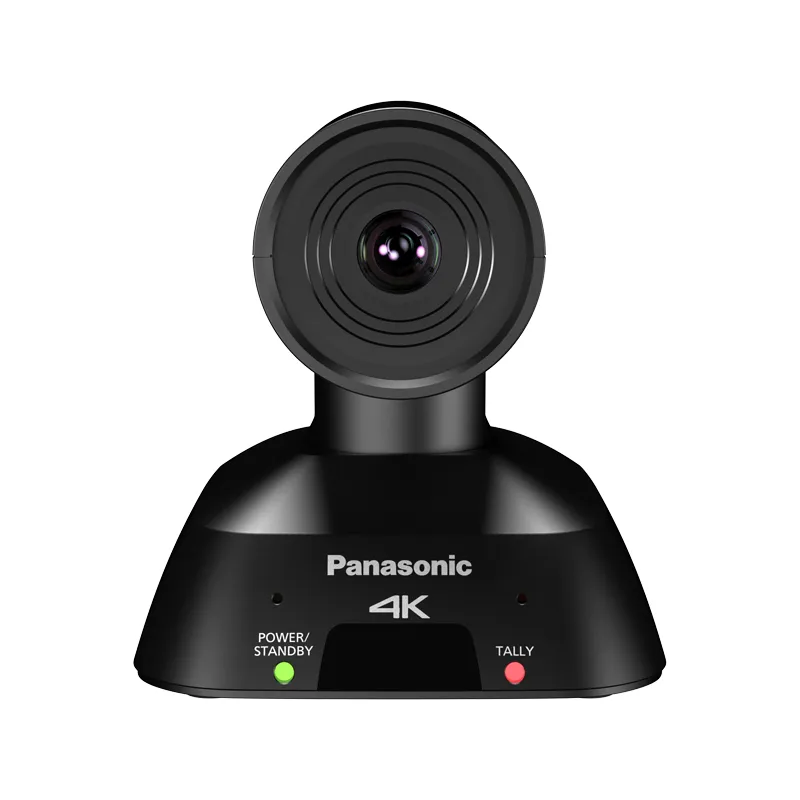

Panasonic AW-UE5KG, 4K Ultra-Wide ePTZ Camera, Black
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| Color | Black |
| Video Resolution | 4K |
| Features | ePTZ |
| Features | Auto Framing |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Sensor and Lens
The Panasonic AW-UE5 features a 1/2.8-type MOS sensor combined with an F2.45 ultra-wide-angle lens, providing a 121° horizontal field of view. This wide perspective allows the camera to capture areas that traditional PTZ cameras might find difficult from the same position, making it ideal for small rooms or as an additional ultra-wide camera in multi-camera setups.
AI-Powered Intelligent Framing
The AW-UE5 includes AI-driven automatic framing functions that reduce the need for manual camera control during meetings, lectures, and presentations.
- Group Framing: Automatically adjusts framing based on the number of people in the capture area. It zooms in for a single person and widens the view as more participants join, dynamically optimizing the frame as people enter or leave.
- Preset Framing: Allows predefining zones within the wide field of view, such as a podium or stage. When a person enters these zones, the camera automatically switches to the preset framing, enabling dynamic broadcasts without manual operator intervention.
These AI framing and ePTZ features operate in the ePTZ/AI priority mode.
Ultra-Wide 121° Field of View
The ultra-wide 121° horizontal field of view enables the camera to capture nearly the entire room from a relatively short distance, making it especially suitable for meeting rooms, lecture halls, and other spaces where traditional camera placement is challenging.
This wide image also provides the source area for electronic pan, tilt, and zoom (ePTZ), allowing digital selection and movement of the desired frame within the captured image instead of relying on mechanical camera movement.
In ePTZ/AI priority mode, the digital zoom factor can reach up to 5x, with digital panning and tilting available after zooming to adjust composition and create various camera angles from a fixed installation position.
Smooth 4K Video up to 60p
The AW-UE5 supports video output up to 3840 × 2160 resolution at 60p/59.94p or 50p, providing smooth motion rendering suitable for presentations, conferences, events, and production environments.
There are two main operating priority modes:
- ePTZ/AI Priority Mode: Offers intelligent framing and digital PTZ functionality with 4K output up to 30p/29.97p or 25p.
- 4K High Frame Rate Mode: Prioritizes 4K 60p/59.94p or 50p output; AI framing and digital zoom are not available in this mode.
This flexibility allows configuring the AW-UE5 according to the use case: automated intelligent framing for meetings and presentations or higher frame rate 4K output for smooth motion.
Multiple Interfaces: HDMI, IP, and USB
The AW-UE5 is designed to integrate into various audiovisual and production workflows, offering simultaneous HDMI, IP, and USB outputs.
- HDMI output can be used for local monitors or video switchers.
- IP video integrates into network production environments supporting NDI HX2 and NDI HX3 protocols.
- USB connection allows use as a USB webcam with MJPEG output supporting up to 3840 × 2160 resolution.
This versatility makes the camera suitable for hybrid installations combining traditional AV equipment, IP production, and computer-based communication.
The built-in stereo microphone provides audio capture for applications requiring simple integrated audio solutions.
Advanced IP Streaming and Protocol Support
The camera supports NDI HX2 and NDI HX3 for efficient high-quality video distribution over existing IP networks, simplifying integration with compatible production equipment and software.
It also supports H.264 and H.265 IP streaming, as well as MJPEG, RTSP, RTMP, and RTMPS workflows. RTMP/RTMPS support enables streaming to compatible online platforms and services without requiring traditional hardware video output.
Easy Installation with Single-Cable Power
The AW-UE5 supports Power over Ethernet (PoE) according to IEEE 802.3af and USB power, simplifying installation by reducing cable clutter.
- PoE allows a single LAN cable to provide power, video transmission, and camera control, ideal for permanent or ceiling-mounted installations.
- USB-C connection can supply power from a computer, enabling video, control, and power over one USB cable without separate AC adapters.
With a compact size of 123 × 131 × 139 mm and weight of approximately 0.5 kg, the camera can be discreetly placed on a table or mounted using the included mounting hardware.
Versatile Applications
The combination of ultra-wide-angle 4K output and multiple connectivity options provides significant flexibility for various environments:
- Corporate meeting rooms benefit from the 121° field of view and Group Framing for natural participant framing in hybrid meetings.
- Classrooms and lecture halls can use Preset Framing to automatically adjust composition as presenters move.
- Events and production environments gain a comprehensive wide perspective with easy integration via HDMI and NDI.
- The camera can complement other Panasonic remote cameras in multi-camera setups, serving as an ultra-wide-angle addition to traditional PTZ shots.
Main Features
- Compact 4K ultra-wide-angle ePTZ camera
- 1/2.8-type MOS image sensor
- 121° horizontal ultra-wide field of view
- F2.45 lens with 11.1 mm equivalent focal length
- Video output up to 3840 × 2160 at 60p/59.94p/50p
- AI-driven group framing and preset framing
- Electronic pan, tilt, and zoom within the captured image
- Digital zoom up to 5x in ePTZ/AI priority mode
- Simultaneous HDMI, IP, and USB output
- NDI HX2 and NDI HX3 support
- H.264 and H.265 IP video streaming
- RTSP, RTMP, and RTMPS streaming support
- USB Video Class 1.1 webcam functionality
- USB-C interface
- PoE power supply (IEEE 802.3af)
- USB power support
- Built-in stereo microphone
- AAC-LC audio for IP streaming
- Linear PCM audio via USB
- Tabletop or hanging installation
- Approximate weight 0.5 kg
- Available in white (AW-UE5W) and black (AW-UE5K)
Included in the Package
- Panasonic AW-UE5 camera
- USB Type-C to Type-C cable with locking screw
- Hanging bracket
- Base plate
- Safety tether
- Mounting screws
