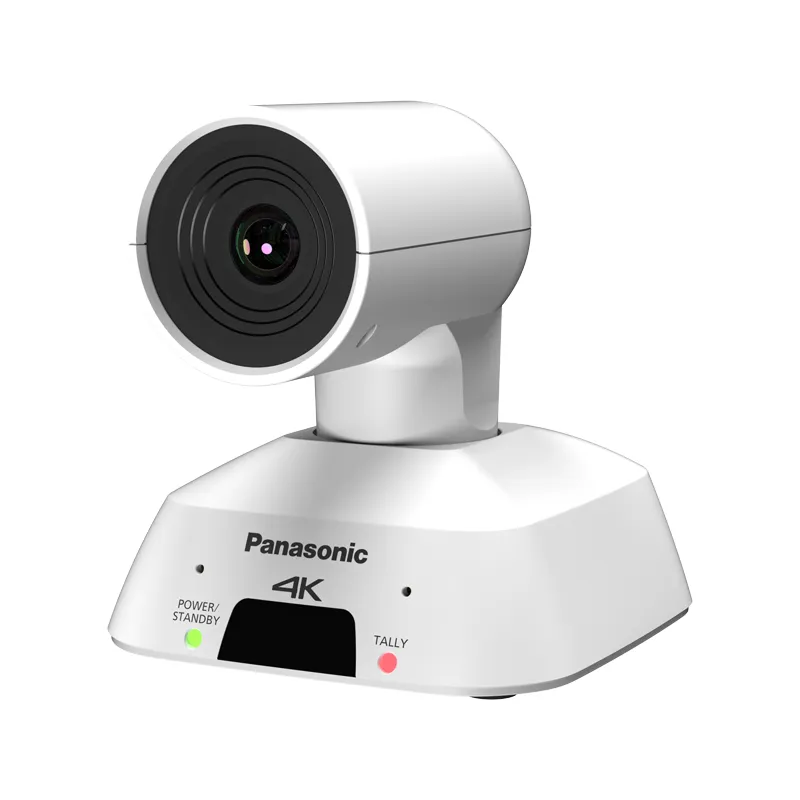

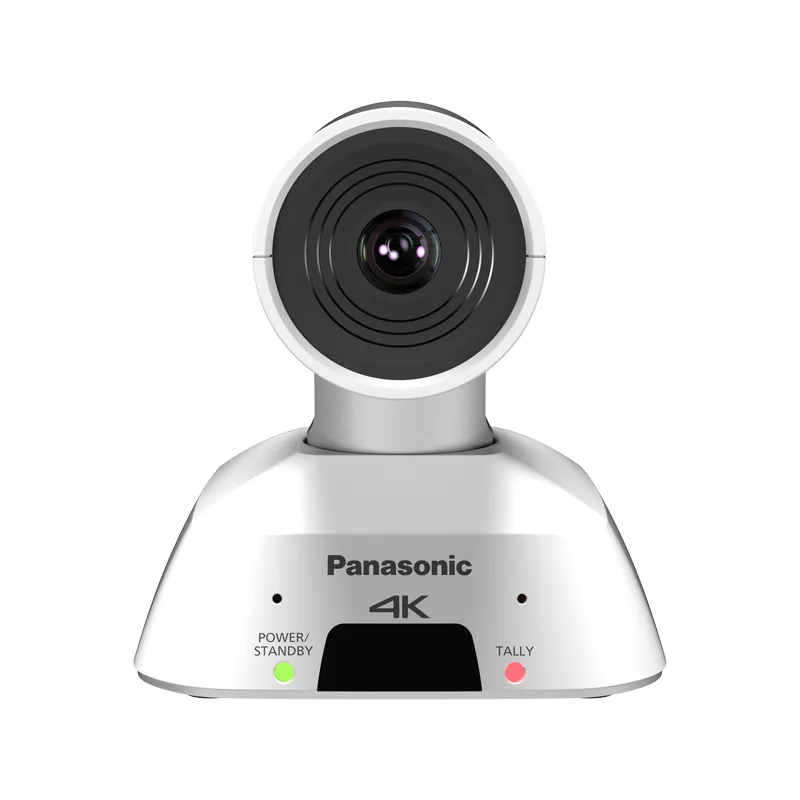

Panasonic AW-UE5KG, 4K Ultra-Wide ePTZ Camera, White
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| Color | White |
| Video Resolution | 4K |
| Tracking | Auto Framing |
| Features | ePTZ |
| Angle Of View | 121 Degree |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
4K Ultra-Wide ePTZ Camera with AI Auto Framing
The Panasonic AW-UE5 features a 1/2.8-type MOS sensor combined with an F2.45 ultra-wide-angle lens, providing an exceptional 121° horizontal field of view. This wide perspective allows coverage of areas that traditional PTZ cameras might struggle to capture from the same position, making it ideal for smaller rooms where the camera must be placed close to participants or as an additional ultra-wide camera in multi-camera setups.
The AW-UE5 is available in white (AW-UE5W) and black (AW-UE5K) finishes, enabling seamless integration into various corporate, educational, and production environments.
AI-Powered Intelligent Framing
The camera includes AI-driven automatic framing functions that reduce the need for manual control during meetings, lectures, and presentations.
- Group Framing: Automatically adjusts the frame based on the number of people in the capture area. It zooms in for a single person and widens the view as more participants join, dynamically optimizing the shot as people enter or leave the room.
- Preset Framing: Allows registration of predefined zones within the wide field of view, such as a podium or stage. When a person enters these zones, the camera automatically switches to the preset framing, enabling dynamic broadcasts without manual operator intervention.
These AI framing and ePTZ features operate in the ePTZ/AI priority mode.
121° Ultra-Wide Field of View
The ultra-wide 121° horizontal field of view enables the camera to capture nearly the entire room from a relatively short distance, making it especially suitable for meeting rooms, lecture halls, and other spaces where traditional camera placement is challenging.
This wide image also provides the source area for electronic pan, tilt, and zoom (ePTZ). Instead of relying on mechanical camera movement, the AW-UE5 digitally selects and moves the desired frame within the captured image.
In ePTZ/AI priority mode, digital zoom up to 5x is available. After zooming, digital panning and tilting can be used to adjust composition and create various camera angles from the fixed installation position.
Smooth 4K Video up to 60p
The AW-UE5 supports video output up to 3840 × 2160 at 60p/59.94p/50p, delivering high image quality and smooth motion reproduction. This makes it suitable not only for presentations and conferences but also for events and filming environments.
The camera offers two main operation modes:
- ePTZ/AI Priority Mode: Provides intelligent framing and digital PTZ functionality with 4K output up to 30p/29.97p or 25p.
- 4K High Frame Rate Mode: Prioritizes 4K 60p/59.94p or 50p output; AI framing and digital zoom are not available in this mode.
This flexibility allows configuration according to the intended use: smart automatic framing for meetings and presentations or higher frame rate 4K output for smooth motion.
Multiple Interfaces: HDMI, IP, and USB
The AW-UE5 is designed to fit into diverse AV and production workflows, featuring HDMI, IP, and USB interfaces with simultaneous output capability. This allows a single camera to serve multiple production system components.
- HDMI output can be sent to local monitors or video switchers.
- IP video integrates into network production environments.
- USB connects to computers running conferencing or streaming applications.
This versatility makes the AW-UE5 ideal for hybrid installations combining traditional AV equipment, IP production, and computer-based communication.
The USB-C connection enables the camera to function as a USB webcam with MJPEG output supporting resolutions up to 3840 × 2160, allowing integration into computer-based video environments without separate capture hardware.
An integrated stereo microphone provides audio capture for applications requiring a simple built-in audio solution.
NDI HX2 and NDI HX3 Support for IP Production
Support for both NDI HX2 and NDI HX3 protocols makes the AW-UE5 especially useful in network-based video systems. High-quality video can be transmitted over existing IP networks efficiently, simplifying integration with compatible production equipment and software.
The camera also supports H.264 and H.265 IP streaming, as well as MJPEG, RTSP, RTMP, and RTMPS workflows. RTMP/RTMPS support enables streaming to compatible online platforms and services without requiring traditional hardware video output as the first stage of the workflow.
This combination of traditional HDMI and USB connections with modern IP protocols allows the AW-UE5 to operate in a wide range of environments, from simple meeting room setups to complex network production systems.
Simple Installation with Single-Cable Options
Installation is simplified by Power over Ethernet (PoE) or USB power options.
- Connecting to a compatible PoE network allows a single LAN cable to provide power, video transmission, and camera control, reducing cable clutter and benefiting permanent or ceiling-mounted installations.
- Using the USB-C connection, the camera can receive power from a computer, enabling video signal, camera control, and power delivery over a single USB cable without separate AC power adapters.
With a weight of approximately 0.5 kg and compact dimensions of 123 × 131 × 139 mm, the AW-UE5 can be discreetly placed on a table or mounted using the included brackets.
Versatile Applications
The combination of ultra-wide field of view, 4K output, and diverse connectivity options provides significant flexibility.
- In corporate meeting rooms, the 121° field of view and Group Framing function help naturally frame participants in hybrid meetings.
- In classrooms and lecture halls, Preset Framing automatically adjusts composition as lecturers move to designated presentation zones.
- At events and productions, the ultra-wide perspective offers comprehensive coverage, while HDMI and NDI connectivity facilitate integration into existing workflows.
- The camera can also operate alongside other Panasonic remote cameras, serving as a valuable ultra-wide-angle complement in multi-camera installations where traditional PTZ cameras capture standard shots.
Key Features
- Compact 4K ultra-wide-angle ePTZ camera
- 1/2.8-type MOS image sensor
- 121° horizontal ultra-wide field of view
- F2.45 lens with 11.1 mm equivalent focal length
- Video output up to 3840 × 2160 at 60p/59.94p/50p
- AI-driven group framing
- AI-driven preset framing
- Electronic pan and tilt within the captured image
- Up to 5x digital zoom in ePTZ/AI priority mode
- Simultaneous HDMI, IP, and USB output
- NDI HX2 and NDI HX3 support
- H.264 and H.265 IP video streaming
- RTSP, RTMP, and RTMPS streaming support
- USB Video Class 1.1 webcam functionality
- USB-C interface
- PoE power per IEEE 802.3af
- USB-powered operation
- Built-in stereo microphone
- AAC-LC audio for IP streaming
- Linear PCM audio via USB
- Tabletop or hanging installation
- Approximate weight: 0.5 kg
- Available in white (AW-UE5W) and black (AW-UE5K)
Included in the Package
- Panasonic AW-UE5 camera
- USB Type-C to Type-C cable with locking screw
- Hanging bracket
- Base plate
- Safety tether
- Mounting screws
