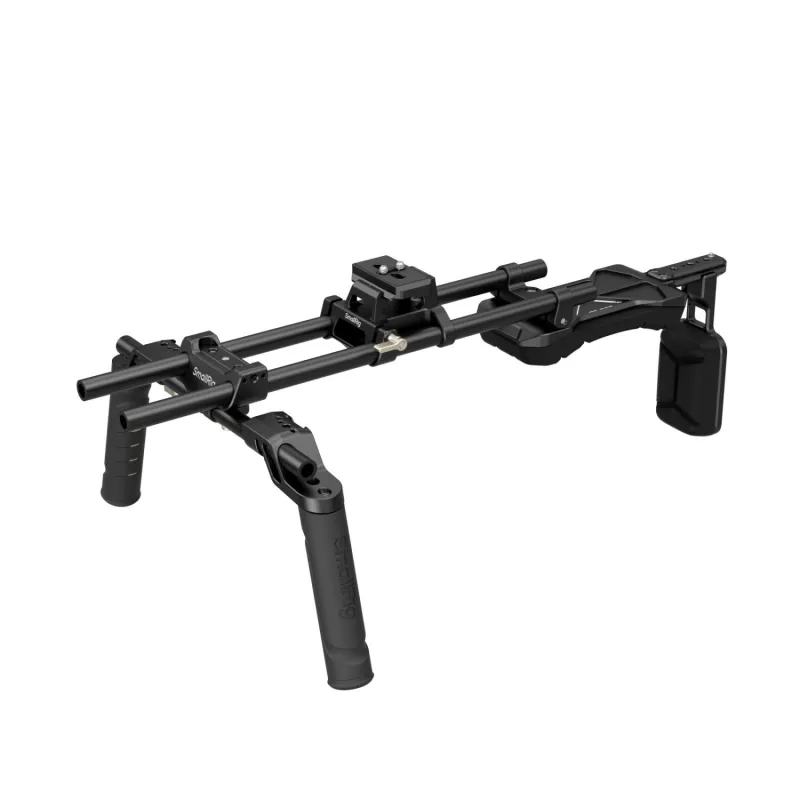

SmallRig Shoulder Rig Kit Classic Version 4480B

SmallRig Shoulder Rig Kit (Classic Version) 4480B

SmallRig Shoulder Rig Kit (Classic Version) 4480B is designed to provide a comfortable solution for shoulder shooting. Adopting a universal 15mm dual rod system, it can be adapted to different specifications of cameras. The vertical angle of the handle is 15 degrees, and it can be adjusted by 360 degrees rotation, which is more in line with the gripping habit; the handle connector adopts only one screw knob locking, which is more convenient and quicker to operate.

Key Features:

• Increases stability and reduces the burden, aiding in first-person perspective shooting.
• Comfortable ergonomic experience.
• One knob lockable multi-position design for quick disassembly, assembly, and adjustment of the center of gravity.
• Arca-Swiss quick-release design for fast camera disassembly and assembly.
• Built-in multiple threaded holes for easy expansion with accessories like magic arms, quick-release plates, and V-mount plates.

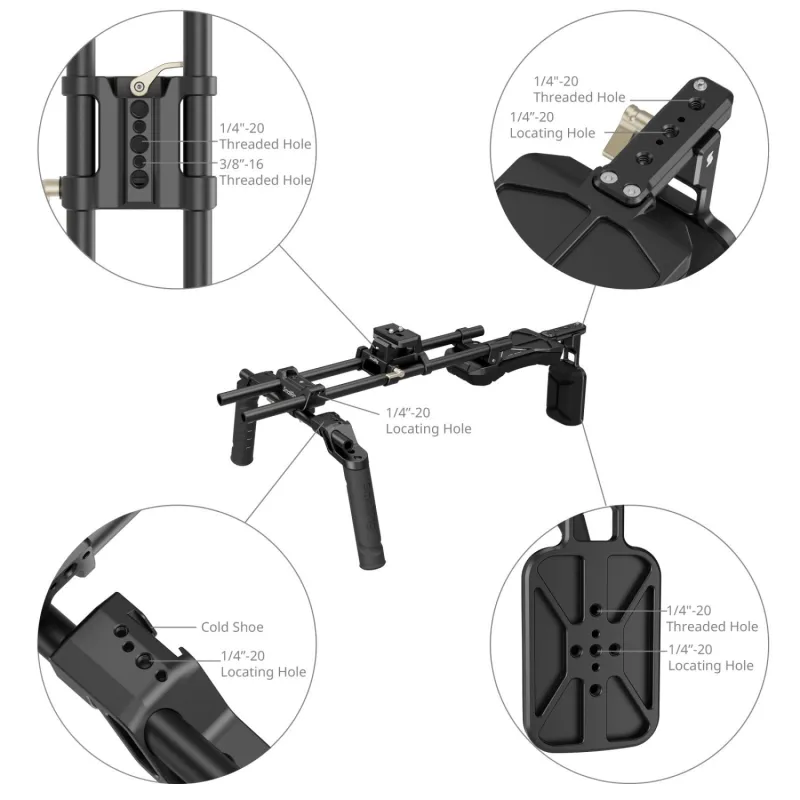

The mount plate kit with dual 15mm rod clamp adopts Arca-Swiss specification on the top, enabling quick disassembly of the camera using the attached Arca-Swiss plate. The cage with built-in Arca-Swiss plate slides right in for installation; a knob can lock the two 15mm rods for quick disassembly and adjustment of the equipment's center of gravity. The bottom features built-in 1/4-20 and 3/8-16 threaded holes for quick release plate installation, allowing rapid switching between shoulder and tripod setups. The shoulder pad and back pad are made of high elasticity material, suitable for shoulder arc, ergonomic, providing a comfortable experience for shoulder carrying. The back pad is adjustable front and back, suitable for people of different sizes, effectively preventing the equipment from sliding forward. The shoulder pad and back pad also have built-in 1/4-20 threaded holes and 1/4-20 locating holes for expanding accessories like V-mount batteries and counterweights.

Recommended loading weight: <10kg

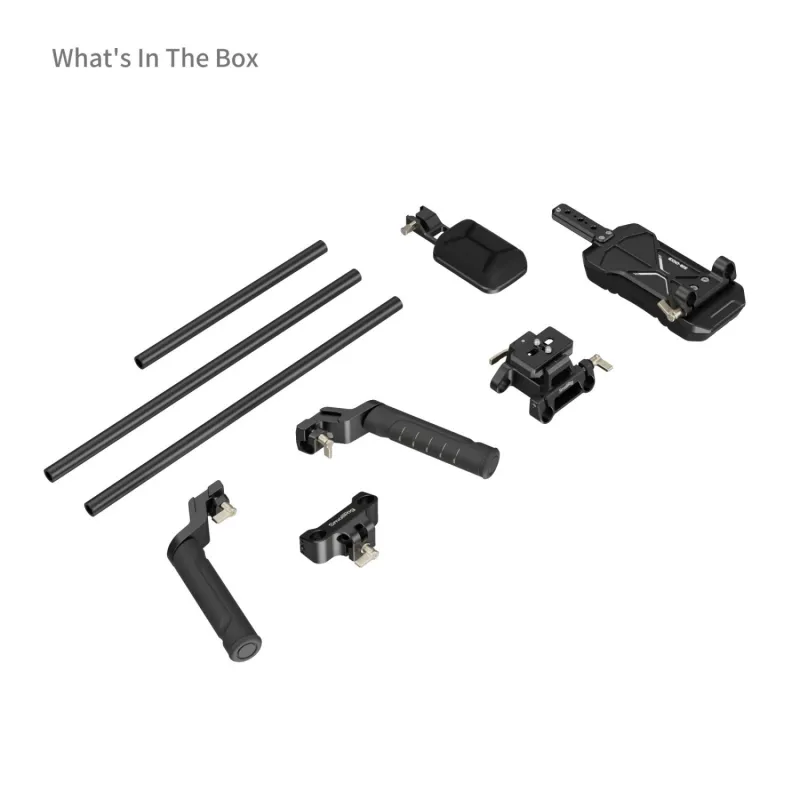

Specifications:

• Handle: 2
• Mount Plate Kit with Dual 15mm Rod Clamp: 1
• Shoulder Pad: 1
• Back Pad: 1
• Handle Connector: 1
• 15mm Rod (400mm): 2
• 15mm Rod (300mm): 1

Weight and Dimensions:

• Product Weight: 575.3g
• Package Weight: 415g

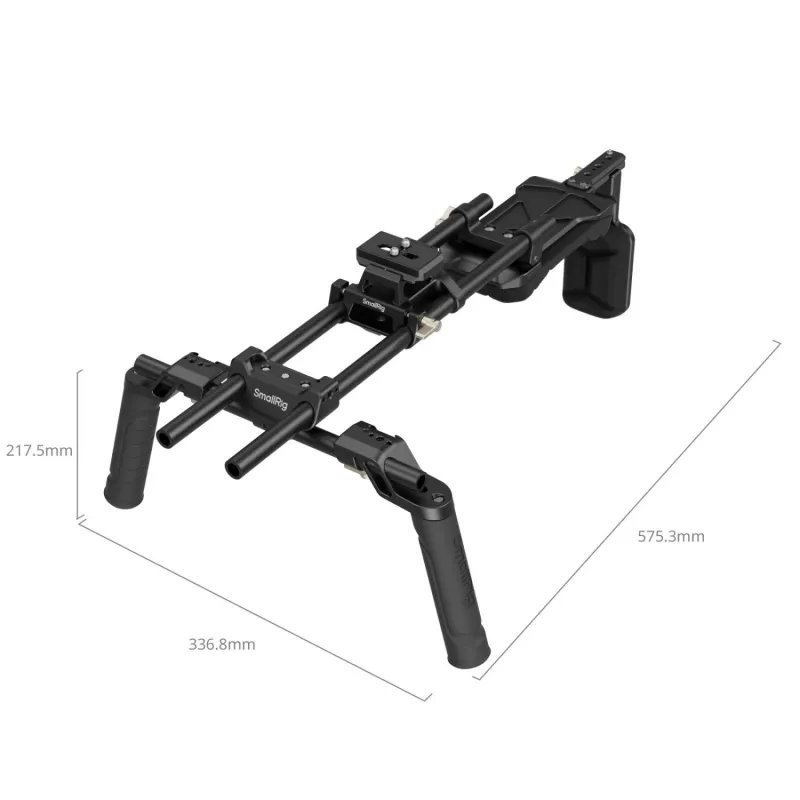

• Product Dimensions: 336.8 x 217.5mm
• Package Dimensions: 165 x 75mm
• Material(s): Aluminum Alloy, Stainless Steel, Silicone, PU
