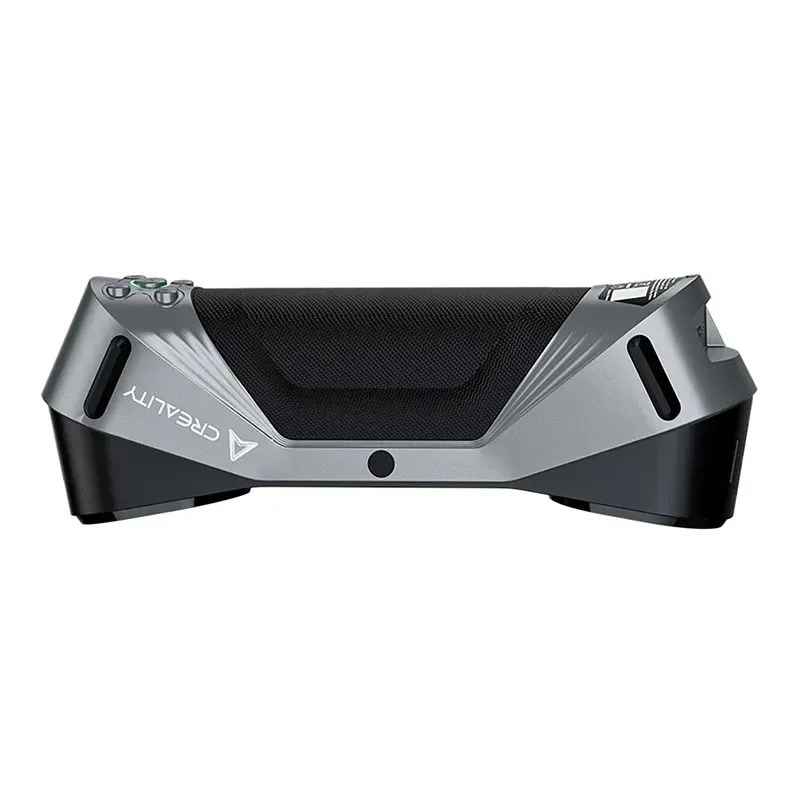

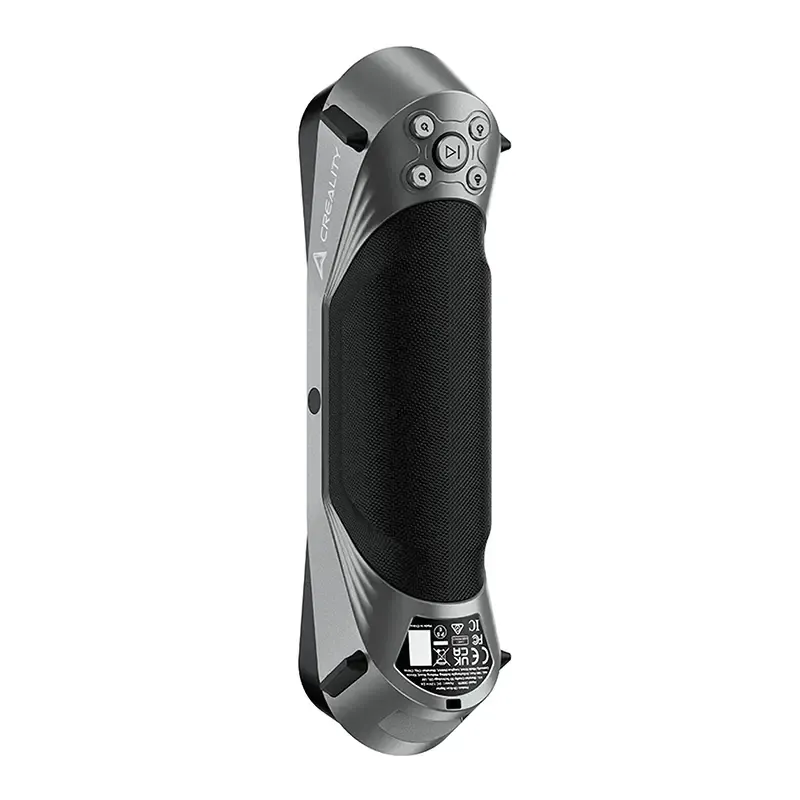

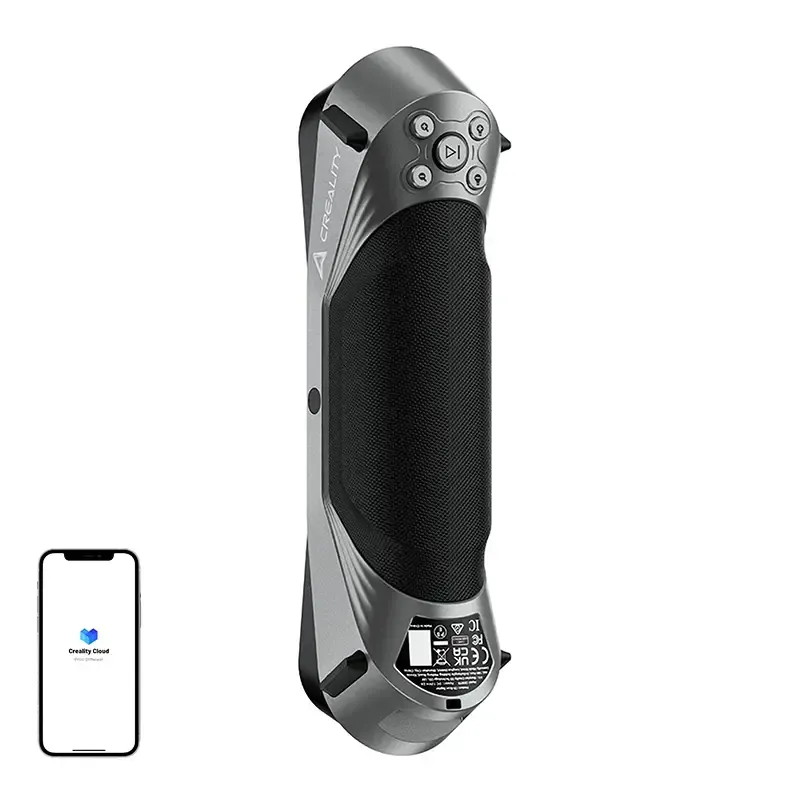

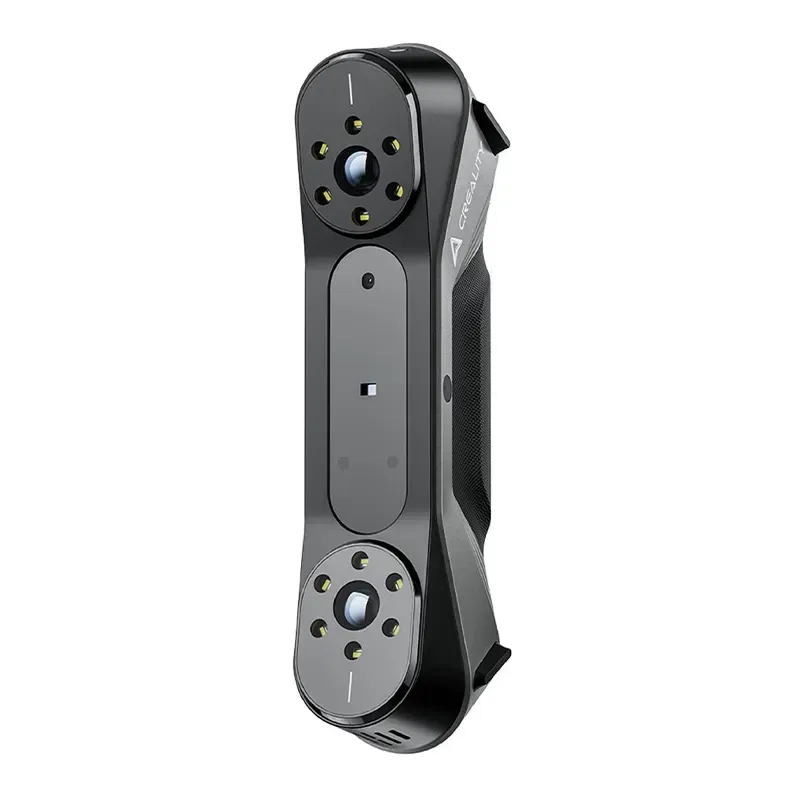

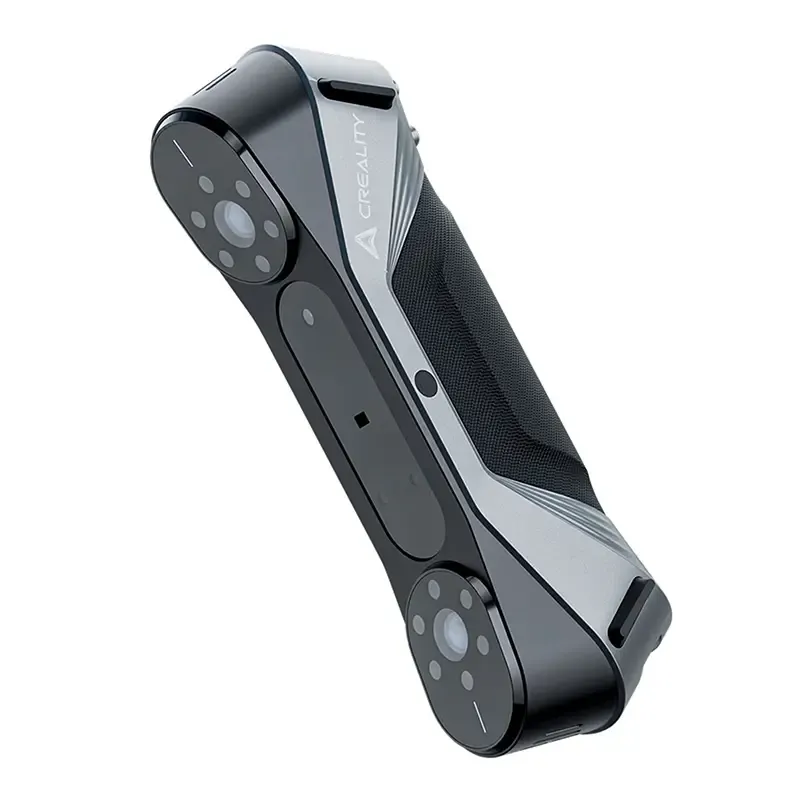

Creality CR-Scan Raptor 3D Scanner
The Creality CR-Scan Raptor is an advanced 3D scanner that integrates blue laser and near-infrared (NIR) technology to deliver metrology-level precision. It enables the creation of highly accurate 3D models from a wide range of objects, from small items to large components with maximum dimensions of 2000 × 2000 × 2000 mm. This scanner is suitable for professionals and 3D enthusiasts seeking top-quality and precise scanning results.
Precision and Scanning Speed
The CR-Scan Raptor achieves scanning accuracy up to 0.02 mm using seven laser lines for detailed object reproduction. In blue laser mode, it scans at speeds up to 60 frames per second, while in NIR mode, it reaches up to 20 frames per second, maintaining excellent image quality. These capabilities make it ideal for applications such as reverse engineering, product design, and quality control.
Versatility and Application Range
Utilizing line-scanning technology, the CR-Scan Raptor can capture objects ranging from 5 × 5 × 5 mm to 2000 × 2000 × 2000 mm. It supports scanning of small intricate details as well as large items like automotive parts or architectural models. The device also features color mapping for realistic texture and color reproduction.
Stability and Ease of Use
Equipped with an advanced temperature compensation algorithm and vibration reduction technology, the scanner ensures stable and precise scanning regardless of environmental conditions. Its intuitive user interface and touch-sensitive buttons facilitate ease of use, even for beginners.
Color Scanning and Handling Difficult Surfaces
The CR-Scan Raptor can scan challenging surfaces such as black or metallic objects without requiring spray. It includes a 24-bit RGB camera and 12 LEDs to illuminate the object, capturing fine details and realistic colors essential for accurate appearance reproduction.
Portability and Compatibility
The scanner operates within a working distance of 150 to 1000 mm, with a minimum scanning volume of 5 × 5 × 5 mm. Weighing only 372 g and compact in size (215 × 50 × 74 mm), it is portable and suitable for both office and field use. It supports Windows 10/11 (64-bit) and macOS, with future wireless scanning capabilities planned.
Technical Specifications
- Scanning Modes: Blue light (7-line laser), NIR (infrared, binocular structured light)
- Accuracy: Blue light: up to 0.02 mm at 100 mm; NIR: up to 0.1 mm
- 3D Resolution: Blue light: 0.02–2 mm; NIR: 0.1–2 mm
- Scanning Speed: Blue light: up to 60 fps; NIR: up to 20 fps
- Minimum Scan Volume: Blue light: 5 × 5 × 5 mm; NIR: 150 × 150 × 150 mm
- Single Capture Range: Blue light: 270 × 170 mm at 300 mm; NIR: 930 × 580 mm at 1000 mm
- Working Distance: Blue light: 150–400 mm; NIR: 170–1000 mm
- Color Mapping: Yes
- Alignment Modes: Marker, geometry, texture
- 3D Imaging Camera Resolution: 1920 × 1200 pixels
- Illumination: 12 white LEDs; 12 blue LEDs for marker recognition enhancement
- Laser Safety: Class I (eye safe)
- Inertia Measurement Unit (IMU): Yes
- Output Formats: OBJ, STL, PLY
- Power Supply: 12 V, 2 A
- Data Interface: USB Type-C / USB 3.0
- Device Dimensions: 215 × 50 × 74 mm
- Device Weight: 372 g
- Wireless Scanning: Supported with future wireless accessories
- Supported Operating Systems: Windows 10/11 (64-bit), macOS
- Operating Temperature Range: -10°C to 40°C
