Azden SGM-990+i Shotgun Microphone

Azden SGM-990+i Shotgun Microphone

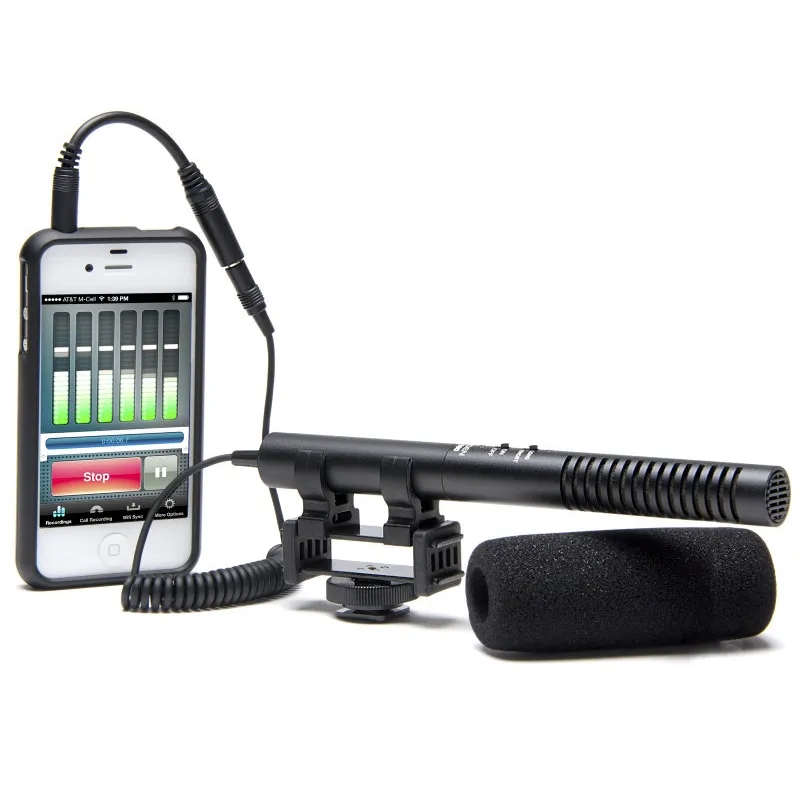

The Azden SGM-990+i is a 2-position shotgun microphone featuring switchable supercardioid and omni-directional pickup patterns. It includes a 3.5mm TRS plug output cable, shock mount holder, foam windscreen, and a TRRS mobile device interface cable for versatile use with camcorders, DSLR cameras, and mobile devices.

Pickup Patterns and Usage

The built-in microphones on camcorders and DSLR cameras typically have an omni-directional pickup pattern, capturing sound equally from all directions. In contrast, the SGM-990+i is a 177mm long directional "zoom" microphone with two switchable sound pickup patterns: "Long" (supercardioid) and "Short" (cardioid). The "Long" setting focuses on distant sound sources, while the "Short" setting is optimized for closer or broader sound fields. Both settings effectively reject unwanted sounds from the sides and rear, providing clear audio capture within a working range of 6 to 12 meters.

Specifications

• Microphone Element: Electret condenser
• Frequency Response: 150 Hz to 18 kHz
• Sensitivity: Long: -33 dB; Short: -43 dB (at 1 kHz, 1 V/µbar)
• Directional Pattern: Switchable Long (supercardioid) and Short (cardioid)
• Output Impedance: Long: 1.7 kΩ; Short: 760 Ω (at 1 kHz)
• Power Source: 1.5 V DC (1 "AAA" battery)
• Maximum Sound Pressure Level (SPL): 100 dB
• Signal-to-Noise Ratio: Better than 40 dB
• Dimensions: Diameter 18.2 mm, Length 177 mm
• Weight (without battery): 70.9 grams
• Plug Cord Assembly: Coiled cord with 3.5 mm plug

Included Accessories

• Shock mount holder
• Foam windscreen
• TRRS mobile device interface cable

The Azden SGM-990+i is ideal for videographers and content creators seeking directional audio capture with flexibility for both distant and close sound sources, compatible with a wide range of recording devices.
