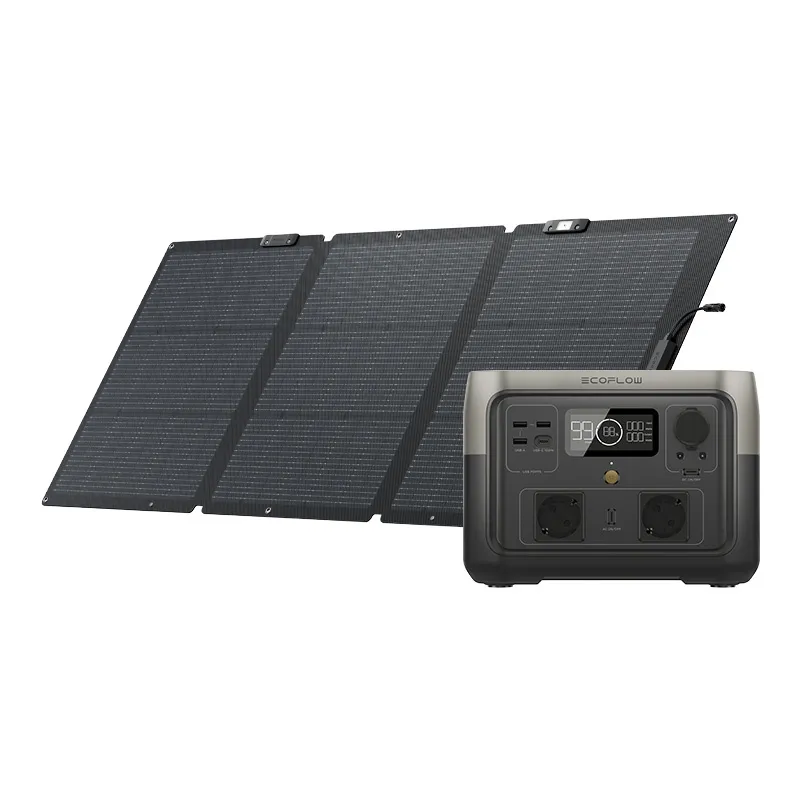

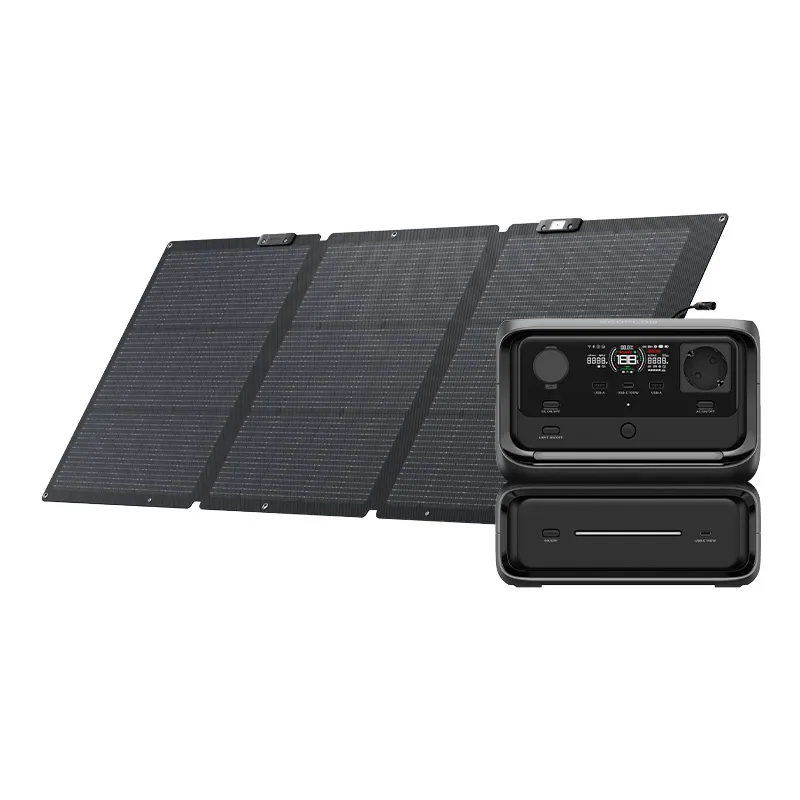

EcoFlow River 3 Max power station + 160W photovoltaic panel

Set EcoFlow River 3 Max power station + 160W photovoltaic panel.

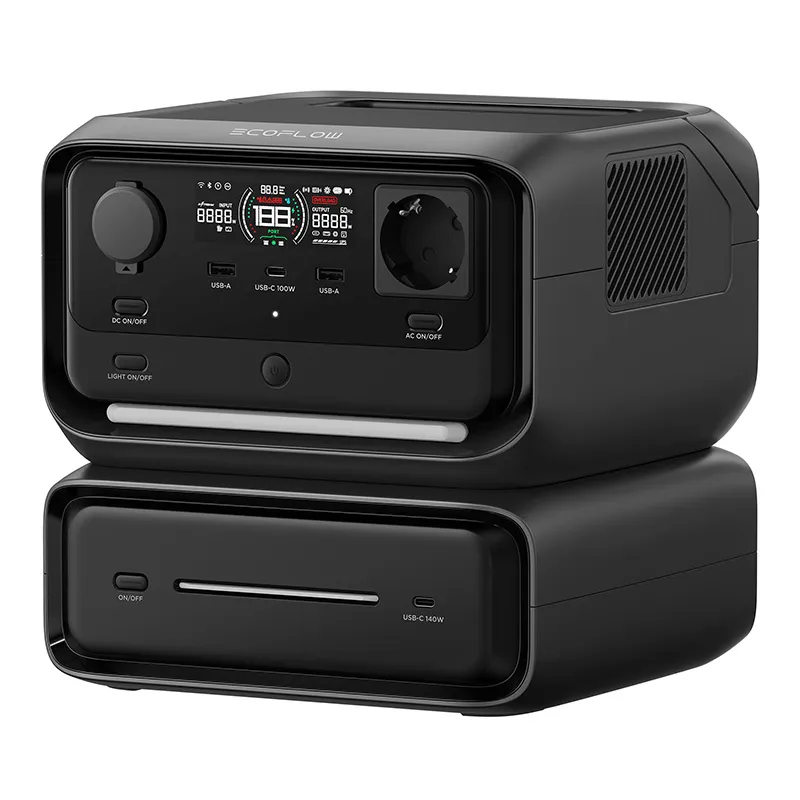

The RIVER 3 Max is a combination of the EcoFlow RIVER 3 Plus Power Station and an additional battery, providing a total capacity of up to 572 Wh. With an output power of up to 600 watts (or up to 1,200 watts in X-Boost mode), you can easily supply power to a wide variety of devices, and the use of next-generation GaN (gallium nitride) semiconductor ensures excellent energy efficiency and lower heat loss. In addition, the lightweight and durable design makes the product great for traveling. Also noteworthy is the UPS function, which allows switching to emergency power in less than 10 ms. The kit includes a 160-watt photovoltaic panel.

Seamless power supply for essential devices

The RIVER 3 Max station stands out with a power output of up to 600 watts, and thanks to the available X-Boost mode, it can also handle loads of up to 1,200 watts. So you can easily plug in most of the devices you need, from smartphones and laptops to lamps and travel coolers.

Take advantage of the benefits of GaN technology

RIVER 3 series devices use innovative GaN semiconductors, so they offer better performance than standard silicon-based devices. Gallium nitride provides high energy efficiency and excellent conductivity, in addition to minimizing the risk of equipment overheating and maintaining its compact size. An additional advantage of the technology used is quiet operation - the noise level of the RIVER 3 Max model is only about 30 dB, which is about the same as that of a whisper or ticking clock. So you can freely use the station even at night!

Several available outlets

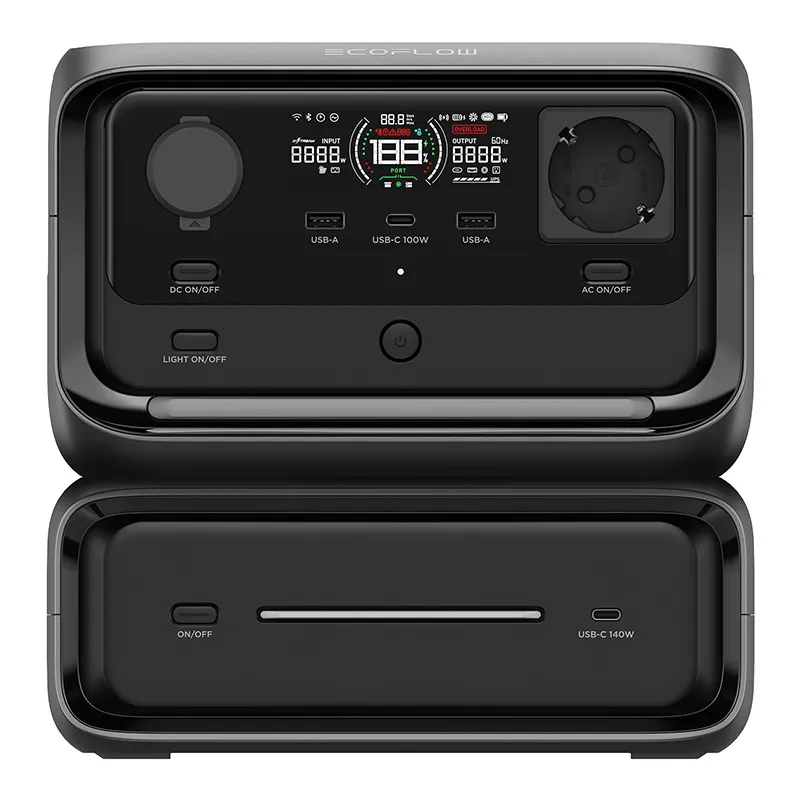

Need to connect more devices to the station? No problem! The RIVER 3 Max is equipped with three AC outlets with 600 watts (or 1200 watts with X-Boost), two USB-A ports with a total of 24 watts, one USB-C 100-watt port, one USB-C 140-watt port and one 12.6-volt 126-watt car outlet. So you can conveniently charge smartphones and laptops, use lighting and more!

UPS emergency power supply

Be prepared for possible power outages. RIVER 3 Max offers a UPS function that can switch to emergency power in less than 10 ms. Now you can easily take care of uninterrupted operation of your refrigerator or computer! Whats more, when the station is close to being discharged, it can notify the NAS or PC server so that it has time to save data and safely shut down. Such a solution is great for the home office!

Several charging options

The EcoFlow RIVER 3 Max station can be charged in several ways. Using an AC outlet, you will charge it in just about 1.5 hours. About the same amount of time is enough with a power generator. It is also possible to connect the device to photovoltaic panels of up to 220 watts (you will find a 160-watt variant included) or a car charger. Such a solution is great for traveling! You can also charge the RIVER 3 Max via USB-C. With so much flexibility, you can easily prepare the station to work in almost any circumstances!

It will serve you for a long time

The RIVER 3 Max is equipped with a LiFePO4 battery that provides about 3,000 charging cycles (up to 80% of the original capacity). This translates into up to 10 years of use! Moreover, X-Guard technology guarantees reliable protection against overcharging, short-circuiting, overvoltage and other hazards. The battery is also distinguished by its IP54 rating - it is not intimidated by water or dust. The station is also drop-proof from a height of up to 1.5 meters - don't be afraid to damage it quickly.

Convenient operation

The station is compatible with the EcoFlow app, which allows you to control it remotely. With its help, for example, you can check the charge level, power output and remaining run time, as well as adjust settings. You'll also receive useful notifications regarding power failures, for example. The RIVER 3 Max also has a built-in color screen that provides convenient access to key information related to its operation.

Large capacity, portable design

The capacity of the RIVER 3 Max station is as high as 572 Wh, allowing it to power essential devices for a long time. At the same time, the product is surprisingly light and small - it weighs only about 8 kg, and its dimensions are 234 x 224 x 255 mm. So you can easily take it to the garden, to the camper or on a camping trip!

160 W panel included

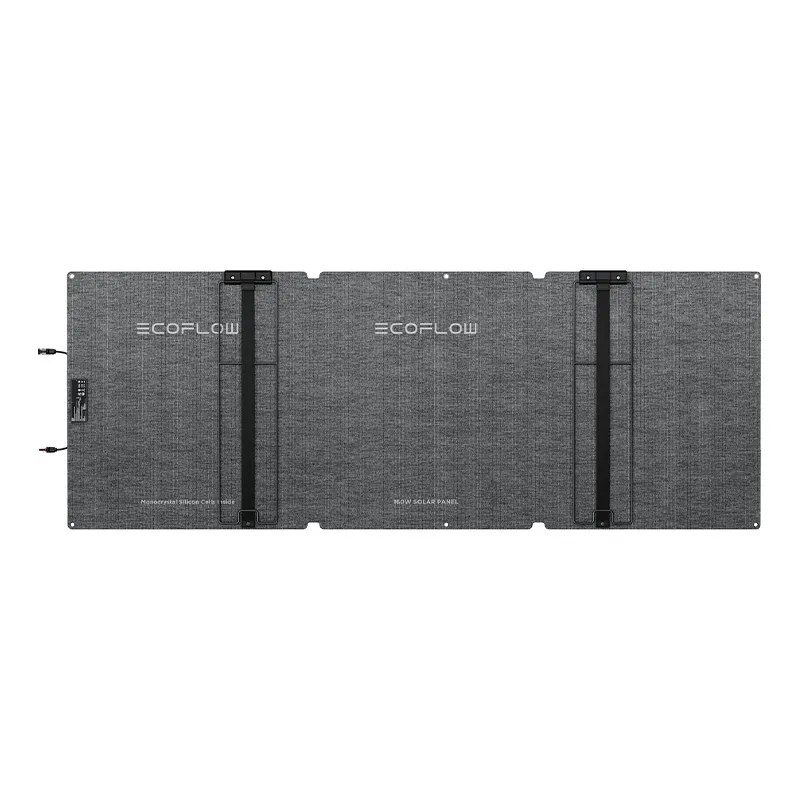

The EcoFlow NextGen photovoltaic panel included in the kit features a light weight of 5.6 kg and a foldable design, which makes it convenient to transport. The TOPCon N-type monocrystalline cells used provide 160 watts of power and up to 25% efficiency. When folded, the panel reaches dimensions of 600 x 572 x 32 mm, and a practical carrying bag makes it more convenient to carry. With adjustable supports (30, 60, 90) and a light angle indicator, it is easy to position it in the right position in relation to the sun. Durable, layered construction protects the unit from the elements, including dust and water (IP68), and standard connectors allow connection to EcoFlow stations and creation of larger configurations with several panels.

Included

• RIVER 3 Max power station
• 160 W photovoltaic panel
• Cable for charging from an AC outlet
• Cable for charging in the car
• USB-B to USB-A UPS cable
• Quick start guide

General

Manufacturer: EcoFlow

Model: RIVER 3 Max

Capacity: 572 Wh / 179200 mAh

Dimensions: 234 x 224 x 255 mm

Weight: 8 kg

Battery

Type: LFP (LiFePO4)

Lifetime: Approx. 3000 cycles (up to 80% capacity)

Outputs

AC: 3x 230 V 50 Hz, 600 W max (up to 1200 W in X-Boost mode)

USB-A: 2x 5 V 2.4 A, 12 W per port, 24 W total

USB-C: 1x 100 W 5/9/12/15 V 3 A max, 20 V 5 A max; 1x 140 W 5/9/12/15 V 3 A max, 20/28 V 5 A max.

Car output: 1x 12.6 V, 10 A, 126 W max.

Inputs

AC charging: 200-240 V, 3 A max, 50/60 Hz, 650 W, 0-100 in approx. 1.5 hr

Charging with photovoltaic panels: 11-55 V, 13 A, 220 W max, 0-100 in approx. 3.2 h

Charging in the car: 11-55 V, 8 A max, 220 W max, 0-100 in approx. 6.5 h

Charging with a power generator: 200-240 V, 3 A max, 50/60 Hz, 650 W, 0-100 in approx. 1.5 h

Charging via USB-C: 5/9/12/15 V 3 A max, 20/28 V 5 A max, 140 W max, 0-100 in approx. 7 h

Other

UPS: < 10 ms

Additional battery: B300 (286 Wh)

Application: EcoFlow, Wi-Fi and Bluetooth connection

Noise level: Approx. 30 dB

Waterproof class: IP54 (only the battery, the whole station is not waterproof)

Operating conditions

Optimal working temperature: From 20C to 30C

Charging temperature: From 0C to 45C

Discharge temperature: From -10C to 45C

Storage temperature: From 20C to 30C

Operating altitude: 2000 m

Photovoltaic panel

Manufacturer: EcoFlow

Model: EF-Fold-P160-04

Rated power: 160 W (5 W)

Open circuit voltage: 21.3 V

Short-circuit current: 9.1 A

Optimum operating voltage: 18.6 V

Optimum operating current: 8.6 A

Recommended ambient temperature: From -20C to 85C

Efficiency: 25%

Temperature coefficient of rated power: -(0.30 0.02)/C

Temperature coefficient of open circuit voltage: -(0.25 0.03)/C

Temperature coefficient of short-circuit current: +(0.04 0.015)/C

Weight: Approximately 5.6 kg

Dimensions when unfolded: 600 x 1610 x 25 mm

Dimensions when folded: 600 x 572 x 32 mm

Type of cells: TOPCon monocrystalline

Connector type: Photovoltaic connectors
