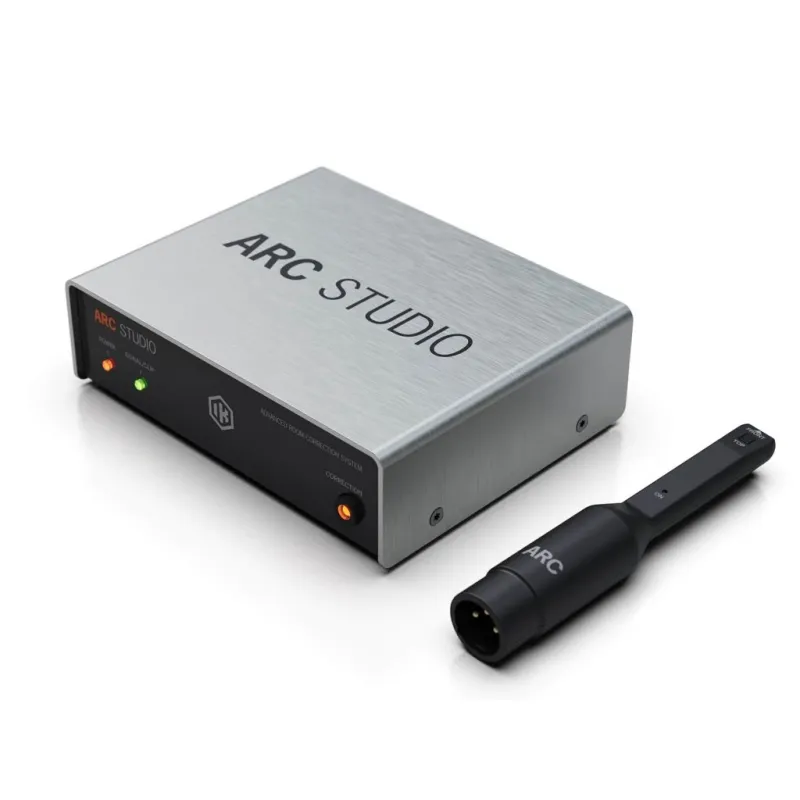

IK Multimedia ARC Studio - ARC4 DSP Unit with Measurement Microphone
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Recorders |
| Connector | USB |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Hardware/Software System for Room Acoustics Correction
The IK Multimedia ARC Studio is a comprehensive hardware and software solution designed to correct room acoustics for any type of studio monitors, suitable for both digital and analogue audio applications. It includes a dedicated hardware DSP processor, a MEMS measurement microphone, and the ARC 4 software suite.
Adaptive Room Acoustics Correction
This system analyzes the acoustic characteristics of your listening environment, creates a detailed 3D acoustic model, and applies precise correction to improve the accuracy of your monitor playback. It functions both as a digital plug-in within a DAW or as a standalone hardware processor, making it compatible with digital studios, analogue studios with consoles and tape decks, and even Hi-Fi listening rooms.
Key Features
- Solves acoustic issues in your listening space
- Compatible with digital and analogue studio setups
- Hardware/software integrated system
- Operates as both plug-in and hardware processor
- Accurate room acoustic measurement with included microphone
- Listening correction tailored to your environment
- Includes emulations of iconic studio monitor models
- Customizable listening experience
- Easy setup and commissioning
- Includes DSP unit and MEMS measurement microphone
Designed for Professional and Hi-Fi Environments
Traditional studios and monitoring rooms often face challenges with room acoustics. Unlike plug-in-only solutions, ARC Studio offers a compact hardware processor that integrates seamlessly into any audio setup, providing transparent and precise spatial correction.
Capabilities
- Significantly improves mixing accuracy with any monitor system in any room
- Quick setup in minutes for any studio environment
- Emulates over 20 iconic monitors and playback systems
- Customizable monitor renditions to suit specific needs
System Components
- Hardware DSP module with processor
- MEMS measurement microphone
- Software package including ARC 4 measurement application, multiplatform DAW plug-in, and standalone control application
Usage in Any Audio Setup
ARC Studio is versatile and can be used in purely digital DAW-based studios, analogue studios with mixing consoles and tape decks, as well as Hi-Fi listening and presentation rooms requiring precise audio monitoring.
Setup Process
- Connect the measurement microphone to your audio interface
- Follow guided measurements of multiple acoustic points in your listening space
- ARC 4 software creates a 3D acoustic profile identifying problematic areas
- Load the correction profile into the ARC Studio hardware processor or DAW plug-in depending on your setup
Hardware Design and Connectivity
The ARC Studio processor features a minimalist front panel with three LEDs indicating power, signal/clip status, and correction activity. The rear panel includes:
- 2x balanced XLR female inputs for stereo analog input
- 2x balanced XLR male outputs for stereo analog output
- USB-C port for computer connection and software control
- DC power input for external power supply
Audio Performance
The unit offers a dynamic range of 120 dB(A) from analog input to output, a frequency response from 0.5 Hz to 40 kHz, and ultra-stable clocking with very low jitter, ensuring sonic transparency and precision comparable to high-end audio converters. True bypass relays ensure no signal loss or distortion when correction is disabled.
Profile Customization
- Target Curves: Nine factory preset curves for various monitoring scenarios, including a default balanced curve
- Adjustable Correction Range: Define frequency limits to preserve unique monitor characteristics or focus correction on specific bands
- Variable Resolution and Smoothing: Adjust filter precision for detailed or smooth correction
- Phase Modes: Natural mode improves phase response; Linear mode preserves original phase differences for accurate stereo imaging
ARC 4 Software Highlights
- Advanced measurement algorithm for accurate room modeling
- Guided measurement process suitable for users without acoustic engineering experience
- Two measurement modes: Advanced (21 points, 3 layers) and Quick (7 points)
- Creates a 3D acoustic model applied via plug-in or saved to hardware
- New standalone ARC Studio management application
- Expanded virtual monitoring with over 20 iconic monitor profiles
- Updated user interface with dark and light modes
Technical Specifications
- Analog Inputs: 2x XLR female, line level
- Analog Outputs: 2x XLR male, line level
- Computer Connection: USB-C
- Power Supply: External power adapter included
Package Contents
- ARC Studio DSP hardware unit
- MEMS measurement microphone
- ARC 4 software package
