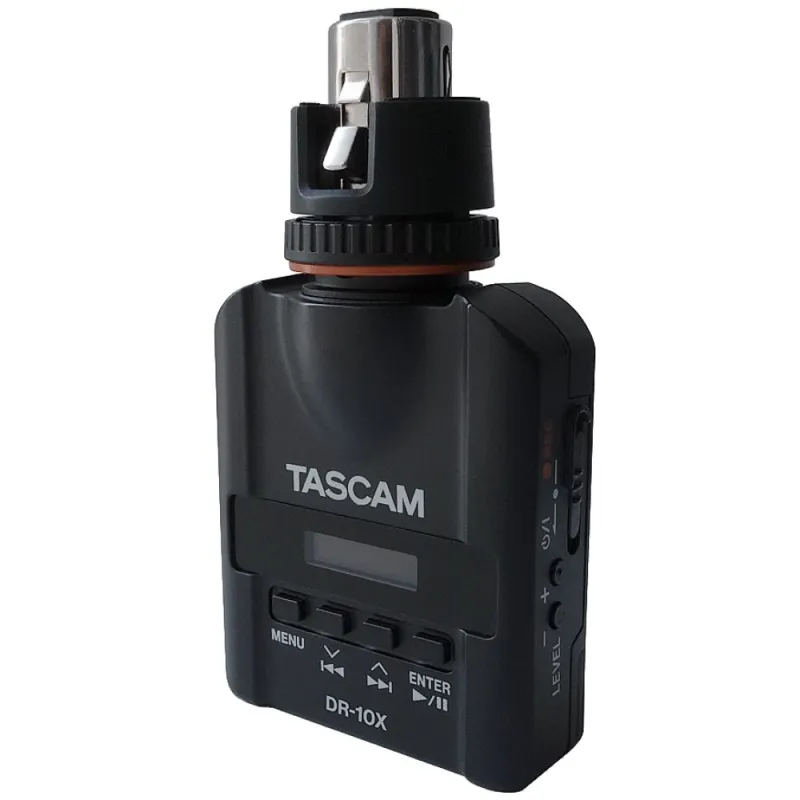

Tascam DR-10X Mic-attachable audio recorder

Compact Mic-Attachable Audio Recorder

The Tascam DR-10X is a compact audio recorder designed to attach directly to handheld microphones via a captive XLR connector, creating an ultra-compact news gathering recording system. It securely connects to any dynamic microphone, capturing high-quality mono audio in Broadcast WAV (BWF) format at 48 kHz/24-bit resolution. Recordings are stored on a microSD/microSDHC card (up to 32 GB) and can be offloaded via USB or by removing the card for computer transfer.

Plug-On Connection for Handheld Microphones

• Simple plug-on connection compatible with any XLR handheld dynamic or battery-powered condenser microphone
• Locking mechanism ensures a stable and secure connection with the microphone
• Ideal for use with high-quality shotgun microphones

Compact, Lightweight, and Fully Featured

• Extremely lightweight at only 56.3 grams, fits comfortably in the palm of the hand
• Headphones output for immediate playback and input monitoring during recording
• Built-in clock with BWF support to embed time information in metadata
• Dual recording mode creates a backup track at a lower level to prevent distortion
• Sliding record button with hold function to prevent accidental operation
• Automatic gain control (AGC) and switchable limiter to prevent overloads
• Switchable low-cut filter reduces low-frequency noise
• Easy-to-read OLED display for clear visibility
• Automatic file closing protects recorded data if battery runs out

High-Quality Mono Audio Recording

The DR-10X records mono WAV audio files at 48 kHz/24-bit resolution, ideal for interviews, press conferences, meetings, and other applications where stereo is not required. Users can select manual or automatic gain control and enable the limiter for overload protection. The dual recording function simultaneously records a safety track at a lower level for added reliability.

Reliable Field Recording Features

• Sliding recording switch prevents accidental button presses during recording
• Hold function locks controls to avoid unintended operation
• Battery level displayed on the OLED screen for easy monitoring
• Automatic file closure prevents data loss if power is interrupted
• Playback capability via headphones for immediate review of recordings
• Time track increment function allows creation of new files at regular intervals without stopping recording

Additional Features and Specifications

• Records to microSD/microSDHC cards up to 32 GB
• Recording level adjustable to High, Mid, or Low
• Micro USB-B connector for easy data transfer and firmware updates
• Powered by one AAA battery (alkaline, rechargeable NiMH) or USB connection
• Settings can be configured on a computer and transferred via USB
• Fastening mechanism ensures a stable joint between recorder and microphone
