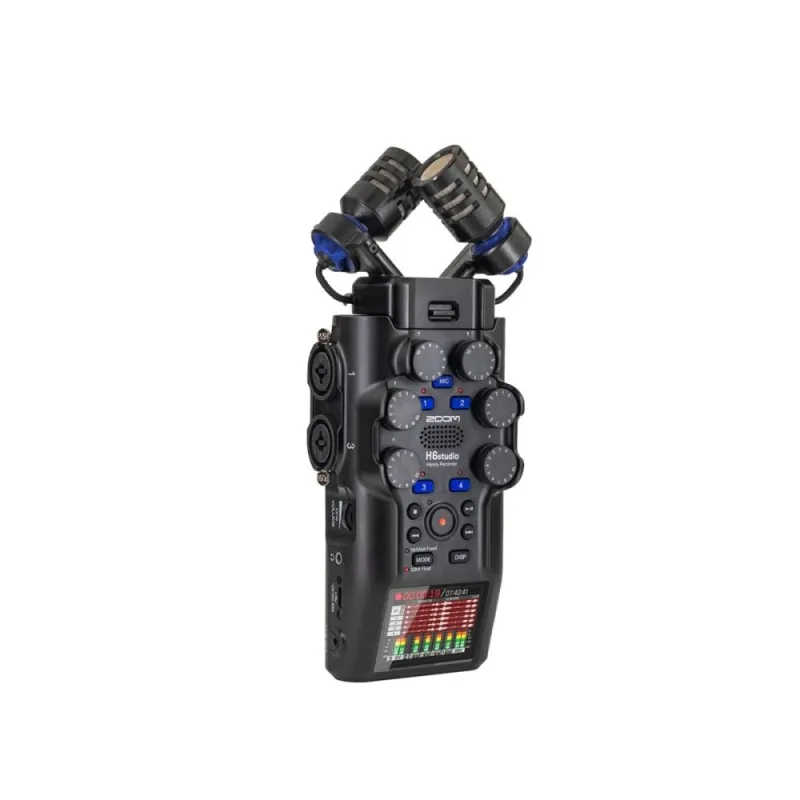

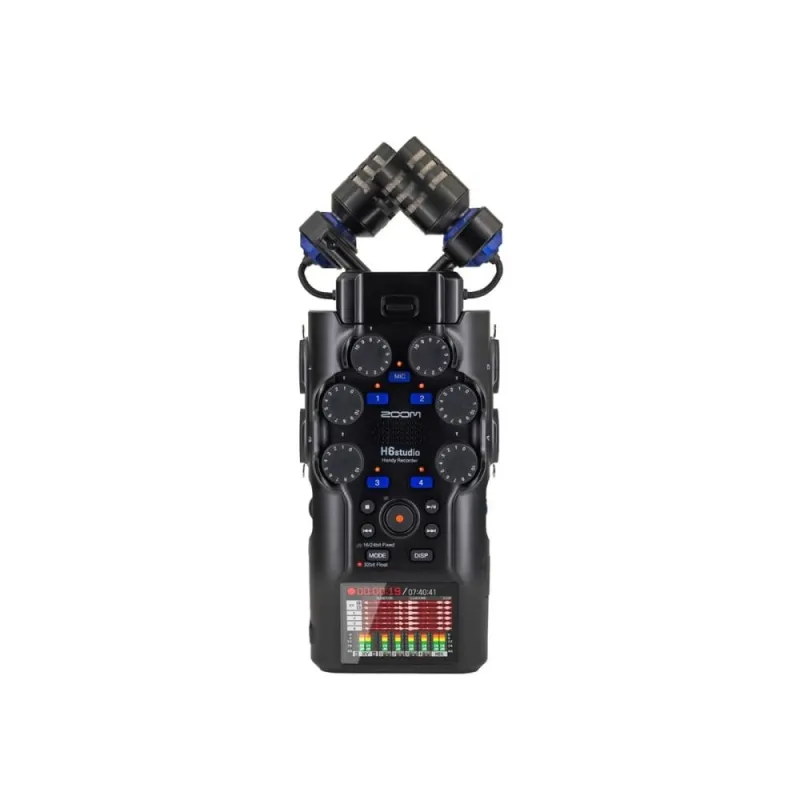

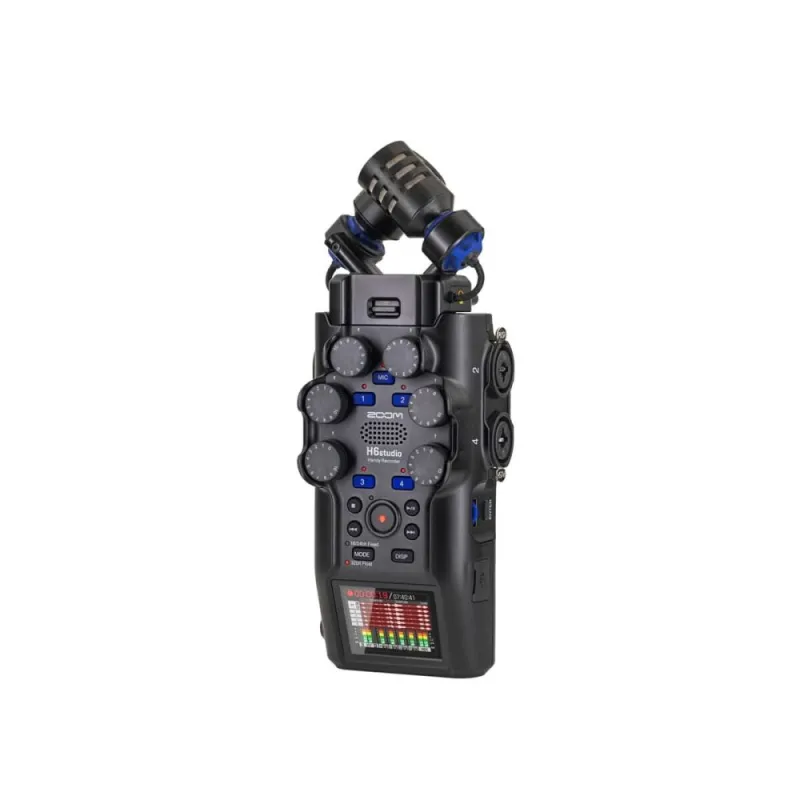

Zoom H6studio Handy Recorder

Advanced Audio Recording with Zoom H6studio

Microphone and Preamps

• Equipped with large-diaphragm XY microphones measuring 19.4 mm for exceptional frequency response and a maximum sound pressure level (SPL) of 140 dB.
• Microphone size enhances recording depth and clarity, capturing audio with unmatched detail.
• Features four studio-grade F-Series preamps providing ultra-low noise performance with an equivalent input noise (EIN) of -127 dBu.

Recording Technology and Formats

• Utilizes 32-bit float recording technology to prevent clipping, allowing for high dynamic range capture without distortion.
• Includes dedicated gain knobs for precise input level control, eliminating the need for post-production gain adjustments.
• Supports both 32-bit float and 16/24-bit recording formats, enabling flexible workflows:
• 32-bit float mode prevents clipping but requires post-production processing.
• 16/24-bit mode avoids the need for post-processing but requires careful gain adjustment to prevent clipping.
• Dedicated format switch allows quick adaptation between recording modes.

Sampling Rates and Track Capacity

• Supports sampling rates ranging from 44.1 kHz up to 192 kHz for high-resolution audio capture.
• Capable of recording up to 8 tracks simultaneously:
• 6 individual inputs plus 2 stereo mixes at 96 kHz.
• 6 individual inputs at 192 kHz.

Audio Quality and Dynamic Range

• Incorporates dual analog-to-digital (AD) converters combined with 32-bit float processing to deliver an impressive dynamic range of 132 dB.
• Includes advanced look-ahead limiters that anticipate potential overloads and prevent distortion before it affects the recorded track.
