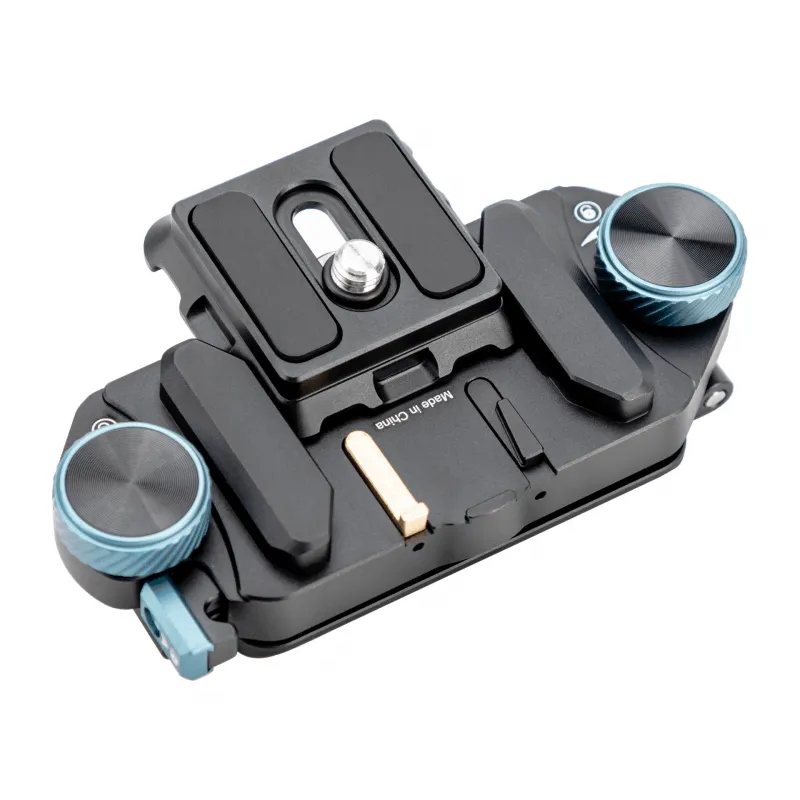

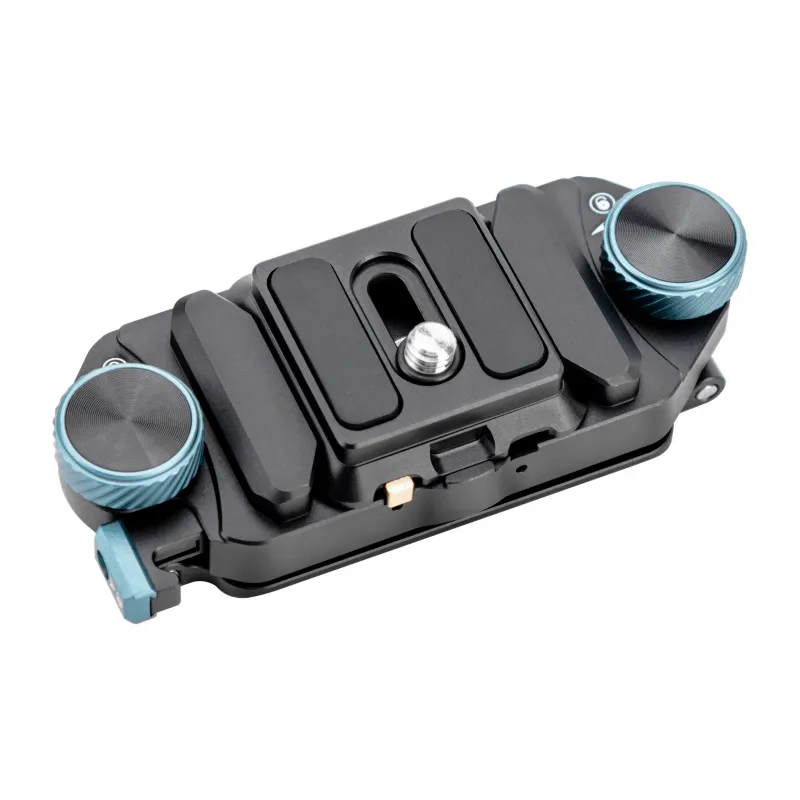

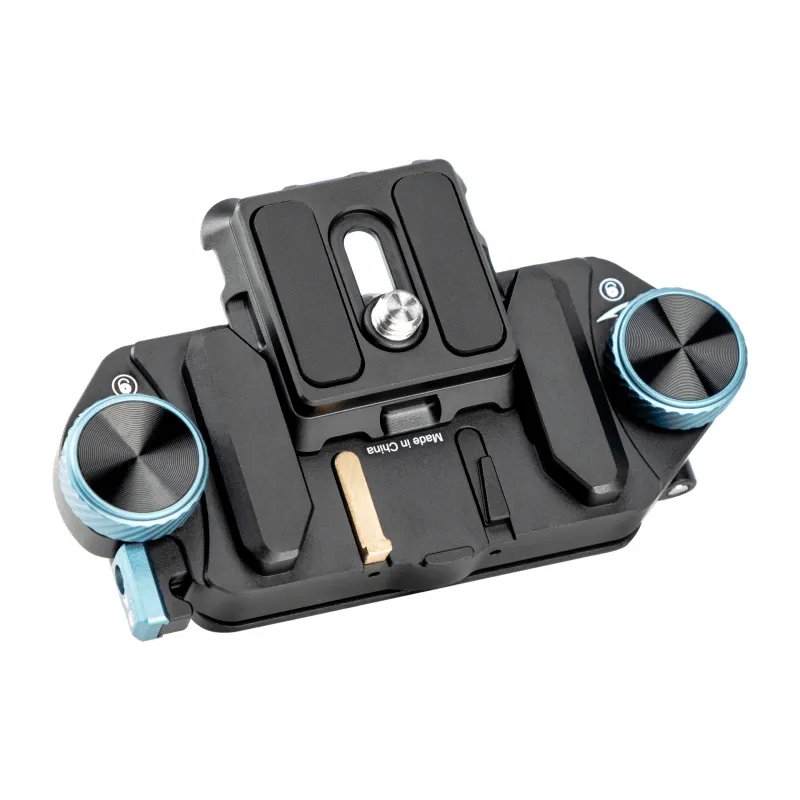

Fotopro RZ-5 Backpack Quick Release

Mounting Bracket for Camera Carrying

The Fotopro RZ-5 is a robust mounting bracket designed to securely attach your camera to backpack straps or hip belts, relieving neck strain and enhancing freedom of movement during photography on the go.

Quick-Release Mechanism

• Enables fast removal of the camera with a single button press without removing the rucksack.
• Intuitive slide-in and slide-out operation for quick transition between transport and shooting modes.

Quadruple Security System

• Advanced locking system protects the camera from detachment in all directions: front/back, top/bottom, and left/right.
• Non-slip pads with high friction prevent sliding on straps or belts.
• Spring-loaded locking sleeve secures the mounting plate firmly in place.

Compatibility and Standards

• Compatible with straps and harnesses up to 75 mm wide and clamp spacing up to 15 mm.
• Mounting plate features a 1/4" thread fitting most cameras.
• Compliant with the Arca-Swiss quick-release standard, allowing easy transfer of the camera to tripods or other mounts such as the Fotopro RZ-3.
• Can be mounted under the arm or on the side of the hip belt according to user preference.

Durability and Load Capacity

• Constructed entirely from durable metal for enhanced strength and wear resistance.
• Supports camera loads up to 25 kg, suitable for heavy photographic equipment.

Ergonomic Design and Comfort

• Contoured base designed to fit comfortably against the body, preventing chafing or pressure during extended use.
• Lightweight at only 130 grams with compact dimensions of 95 x 40 x 22.5 mm.

Installation and Usage

• Quick and easy installation by loosening side knobs, sliding in the strap or belt, and tightening.
• Spring system and non-slip linings ensure secure attachment without accidental over-tightening or loosening.

Specifications

• Model: Fotopro RZ-5
• Maximum load capacity: 25 kg
• Maximum clamp spacing: 15 mm
• Dimensions: 95 x 40 x 22.5 mm
• Weight: 130 g

Package Contents

• Fotopro RZ-5 mounting bracket
