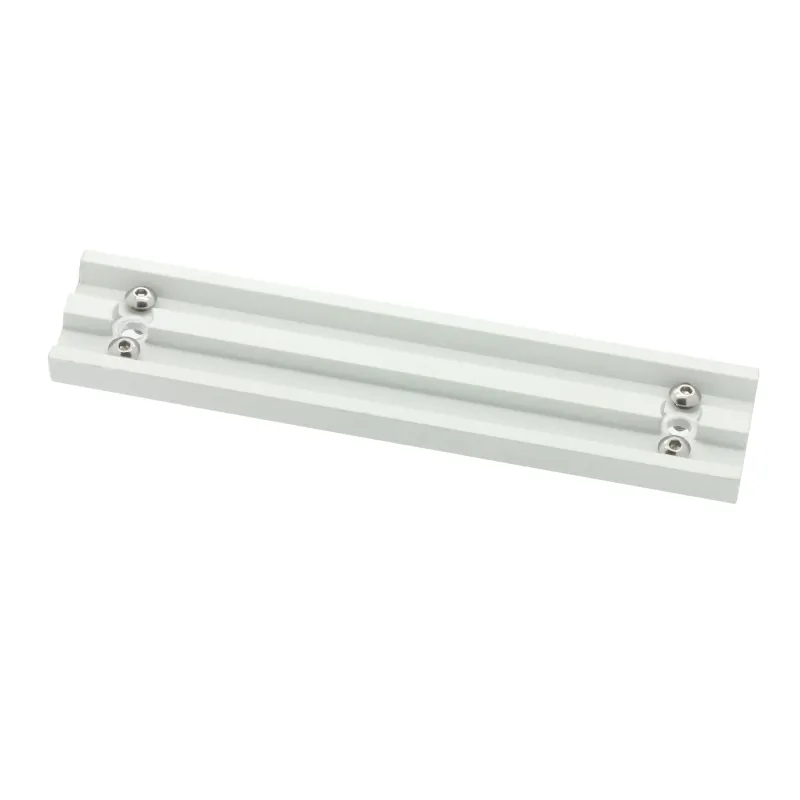

BRESSER Dovetail rail 200mm for Messier (Vixen/GP)

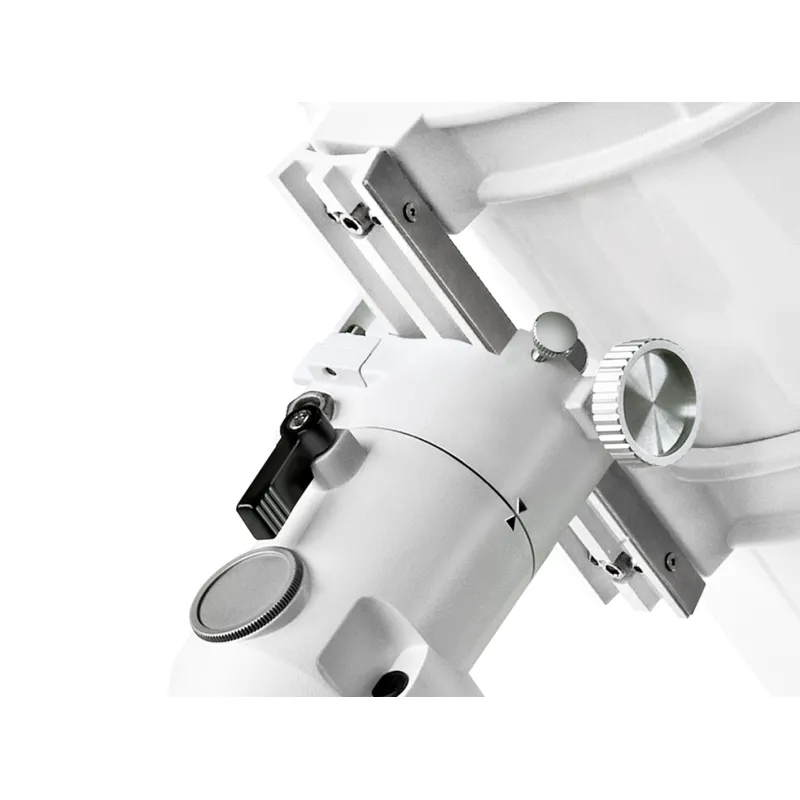

This dovetail rail is suitable for mounting on BRESSER MESSIER 6 , 8 and 10 inch Dobson telescopes. The dovetail rail is manufactured according to the GP standard and therefore these Dobson telescope tubes can be used on any telescope mounting with the appropriate carrying capacity. The prism rail is 200mm long and therefore offers sufficient clearance for secure mounting on the telescope mount. In combination with the optionally available carrying handle Art. No. 4940150, these Dobson telescope tubes can also be easily transported because the carrying handle is mounted in the centre of gravity of the telescope. This dovetail rail is also suitable as spare part for all other MESSIER telescopes with 200mm dovetail rail.


FEATURES

• dovetail rail (GP) for 6, 8 and 10 inch MESSIER Dobson telescopes
• when using these telescope tubes on EQ mounts
• the assembly is carried out on the original tube rings
• also suitable as spare part for MESSIER telescopes with 200mm prism rail
• assembly material and tools included
• length: 200mm; width: 45 mm; height: 16 mm
• bore spacing: 160 mm; Bore diameter: 6.5 mm

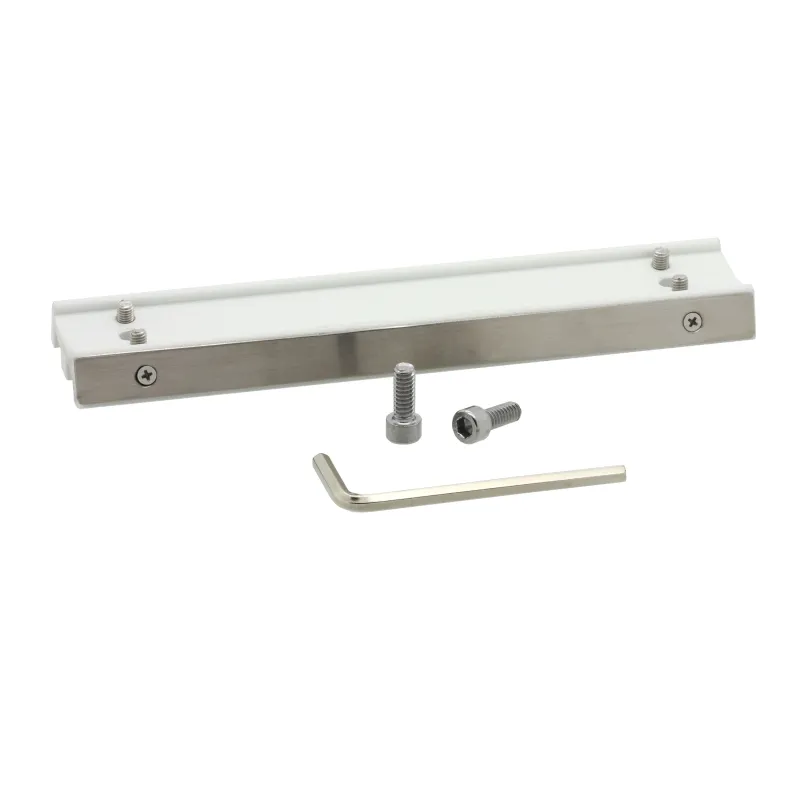

SCOPE OF DELIVERY

• dovetail rail (GP)
• mounting screws (2 pieces; 1/4 inch)
• hex wrench tool (3/16 inch)
